NanoRF Series

The NanoRF Series is a high-density, high-frequency push-on interface designed for VITA 67.3 and SOSA-aligned embedded systems. Available in backplane and plug-in contacts, cable assemblies and adapters, NanoRF supports up to 70 GHz performance, making it ideal for high-speed systems like SIGINT, RADAR and UAVs. Used within modular options for both RF and hybrid RF/Fiber configurations, NanoRF provides a versatile, space-efficient solution for next-generation embedded platforms.

Impedance (Ω)	50
Frequency GHz	70 GHz
Shielding Effectiveness	≥ -140 dB, 3 MHz to 30 MHz ≥ -120 dB, 30 MHz to 3.0 GHz ≥ -100 dB, 3.0 GHz to 30 GHz ≥ -90 dB, 30 to 67.0 GHz
Dielectric Withstanding Voltage	250 VRMS
Mating Cycles	500
Mating Torque	2.5 lbs (per contact)
Withdrawal Force	0.315 lbs
Temperature Rating	-55°C to +125°C
Corrosion (salt spray)	MIL-STD-202, Method 101, Condition B
Vibration	MIL-STD-202, Method 204, Condition D
Shock	MIL-STD-202, Method 213, Condition I
Thermal Shock	MIL-STD-202, Method 107, Condition B
Moisture Resistance	MIL-STD-202, Method 106, Less Step 7B
Barometric Pressure (Altitude)	MIL-STD-202, Method 105, Condition C, 70k Ft.

Grid List

Filters

per page

Part # 8341-40001

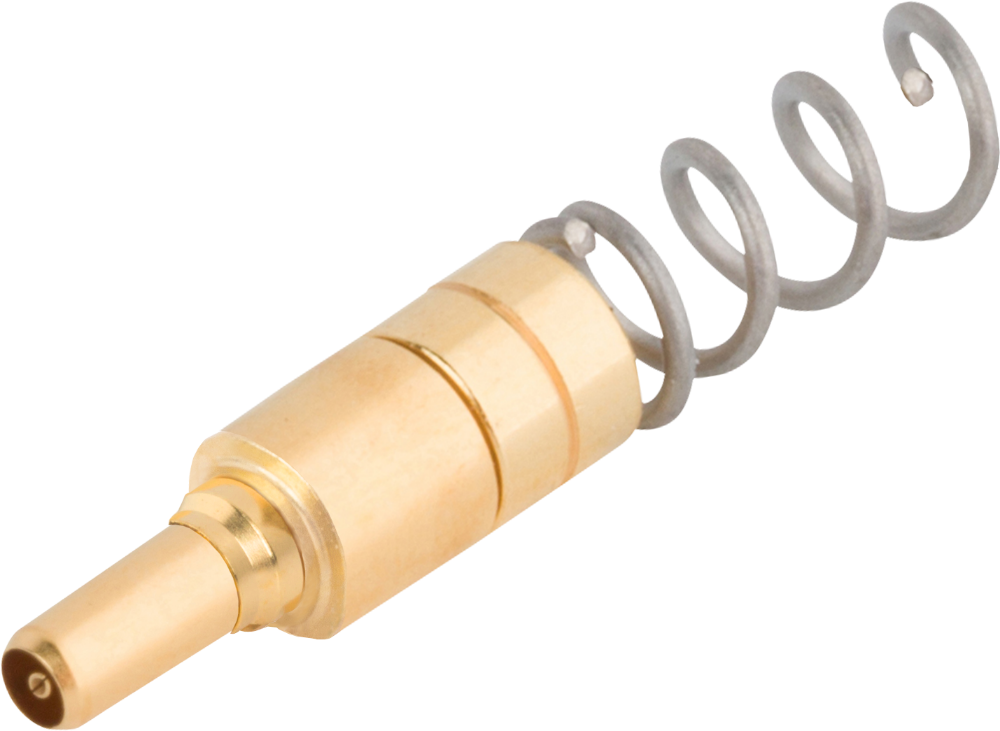

NanoRF Female VITA 67.3 Backplane Contact for .047 Cable

Available Inventory: 209

8341-40001

VITA Connectors 8341-40001

NanoRF Series

Part # 8341-40001

Available Inventory: 209

Part # 8341-40002

Available Inventory: 290

Part # 8351-40001

Available Inventory: 646

Part # 9341-80005

Available Inventory: 43

Part # 9341-80006

Available Inventory: 59

Part # 9341-80007

Available Inventory: 78

Part # 9341-80011

Available Inventory: 49

Part # 9341-80012

Available Inventory: 55

Part # 9351-80004

Available Inventory: 83

Part # 9351-80005

Available Inventory: 32

Part # 9351-80007

Available Inventory: 57

Part # 9351-80008

Available Inventory: 59

Part # V673-NANO-BP-10-X

Available Inventory: 6

Part # V673-NANO-BP-20-X

Available Inventory: 9

Part # 7083-0004

Available Inventory: 41

Part # 7083-0005

Available Inventory: 80

Part # 7083-0006

Available Inventory: 13

Part # 7083-0027-0240

Available Inventory: 26

Part # 7083-0115

Available Inventory: 50

Part # 7083-0146

Available Inventory: 0

Part # 1183-6004

Available Inventory: 95

Part # 1183-6005

Available Inventory: 90

Part # 1183-6006

Available Inventory: 141

Part # 1183-6007

Available Inventory: 114

Part # 1183-6008

Available Inventory: 96
