Products specifications
| Attribute name | Attribute value |
|---|---|
| Family | VITA 67, SOSA Aligned |
| RF Series | NanoRF |
| Gender | Jack (Female) |
| Number of Ports | Single |
| Orientation (Body) | Straight |
| Termination Style | Solder |
| Coupling | Push-on |
| Orientation 2 (Body) | Right Angle |
| RF Series 2 | U.FL |
| Cable Type | 0.047 Flexible Coax |
| Cable Length | 12" |
| Electrical | |
| Frequency | 6 GHz |
| Impedance | 50 ohms |
| Shielding Effectiveness | ≥ -140 dB, 3 MHz to 30 MHz, ≥ -120 dB, 30 MHz to 3.0 GHz ≥ -100 dB, 3.0 GHz to 30 GHz ≥ -90 dB, 30 to 67.0 GHz |
| Dielectric withstanding Voltage | 250 VRMS |
| Mechanical | |
| Insertion Force | 2.5 lbs (per contact) |
| Withdrawal Force | 0.315 lbs |
| Mating Cycles | 500 |
| Environmental | |
| Corrosion (salt spray) | MIL-STD-202, Method 101, Condition B |
| Vibration | MIL-STD-202, Method 204, Condition D |
| Temperature Rating | -55°C to +125°C |
| Shock | MIL-STD-202, Method 213, Condition I |
| Moisture Resistance | MIL-STD-202, Method 106, Less Step 7B |
| Thermal Shock | MIL-STD-202, Method 107, Condition B |
| Barometric Pressure (Altitude) | MIL-STD-202, Method 105, Condition C, 70k Ft. |
Products specifications
| Attribute name | Attribute value |
|---|---|
| Family | VITA 67, SOSA Aligned |
| RF Series | NanoRF |
| Gender | Jack (Female) |
| Number of Ports | Single |
| Orientation (Body) | Straight |
| Termination Style | Solder |
| Coupling | Push-on |
| Orientation 2 (Body) | Right Angle |
| RF Series 2 | U.FL |
| Cable Type | 0.047 Flexible Coax |
| Cable Length | 12" |
| Electrical | |
| Frequency | 6 GHz |
| Impedance | 50 ohms |
| Shielding Effectiveness | ≥ -140 dB, 3 MHz to 30 MHz, ≥ -120 dB, 30 MHz to 3.0 GHz ≥ -100 dB, 3.0 GHz to 30 GHz ≥ -90 dB, 30 to 67.0 GHz |
| Dielectric withstanding Voltage | 250 VRMS |
| Mechanical | |
| Insertion Force | 2.5 lbs (per contact) |
| Withdrawal Force | 0.315 lbs |
| Mating Cycles | 500 |
| Environmental | |
| Corrosion (salt spray) | MIL-STD-202, Method 101, Condition B |
| Vibration | MIL-STD-202, Method 204, Condition D |
| Temperature Rating | -55°C to +125°C |
| Shock | MIL-STD-202, Method 213, Condition I |
| Moisture Resistance | MIL-STD-202, Method 106, Less Step 7B |
| Thermal Shock | MIL-STD-202, Method 107, Condition B |
| Barometric Pressure (Altitude) | MIL-STD-202, Method 105, Condition C, 70k Ft. |
Related products
SF3811-60059
VITA Connectors SF3811-60059
SF9321-60084
VITA Connectors SF9321-60084
SF9321-60093
VITA Connectors SF9321-60093
Part # 7038-0337
SMPS Male VITA 67.3 to SMA Male 12" Cable Assembly for .085 Cable
Available Inventory: 33
7038-0337
VITA Cable Assemblies 7038-0337
Part # 7038-0338
SMPS Male VITA 67.3 to SMA Male 12" Cable Assembly for .047 Cable
Available Inventory: 73
7038-0338
VITA Cable Assemblies 7038-0338
SF3811-60060
VITA Connectors SF3811-60060
Customers Also Viewed
8341-40002
VITA Connectors 8341-40002
Part # 7083-0004
NanoRF Female VITA 67.3 Backplane Contact to 2.92mm 12" Cable Assembly for .047 Cable
Available Inventory: 0
7083-0004
VITA Cable Assemblies
Part # 9341-80005

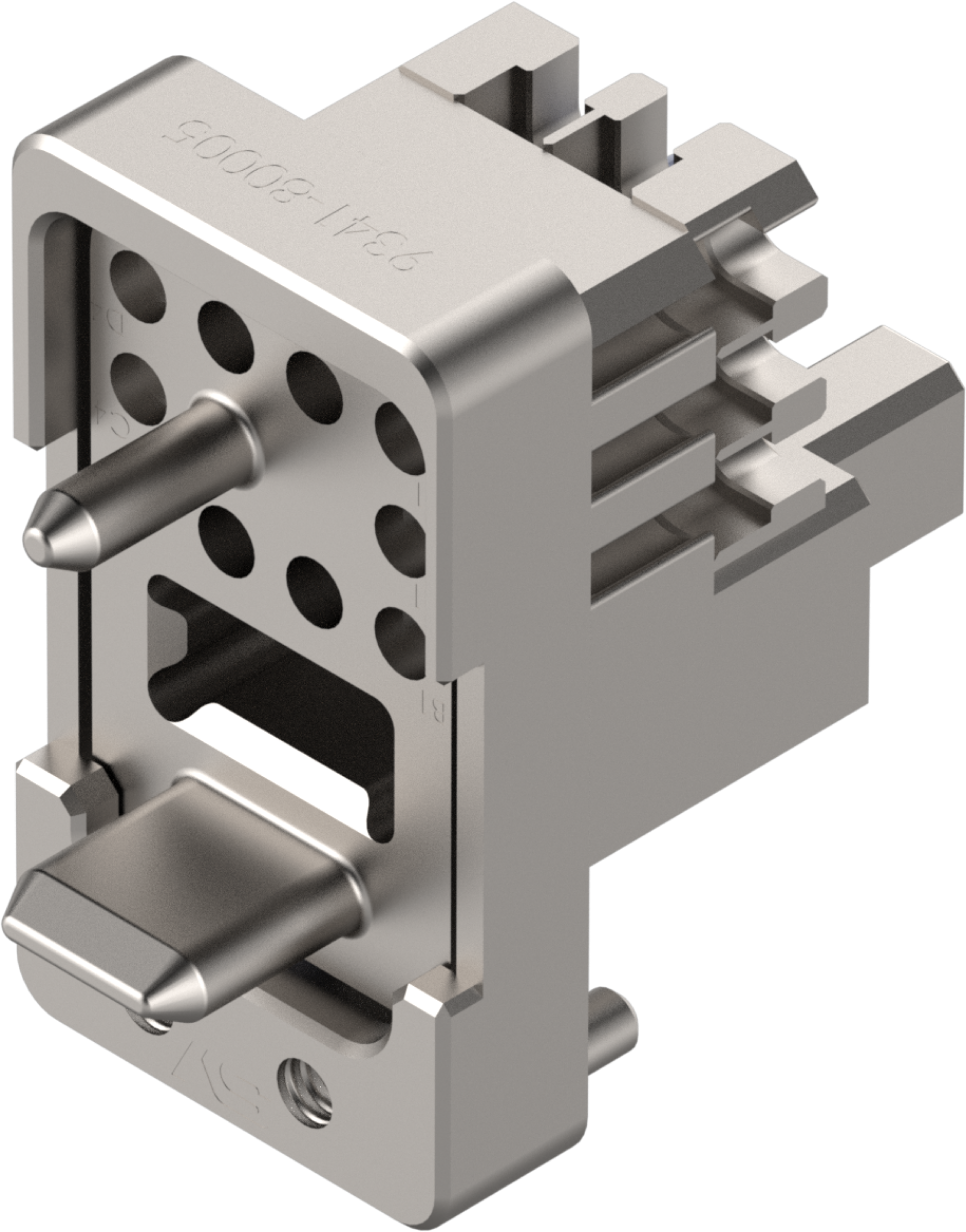

NanoRF VITA 67.3 10 Port RF and 1 Port MT Fiber Backplane Hybrid Module
