SMPS VITA 67.3 Male Plug-in Contact for .047 Cable
P/N: SF3811-60060

There currently isn't any inventory available in distribution. Please contact us to obtain this product.
3401
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute name Attribute value
Family VITA 67, SOSA Aligned
Gender Plug (Male)
Orientation (Body) Straight
Coupling Push-on
Termination Style Solder
Mounting Type Snap-in
Number of Ports Single
RF Series VITA SMPS
Cable Type 0.047 Flexible Coax
Finish Passivated
Cable Builder Attributes
Mating Connector 3821-40023, 3821-40024
Electrical
Frequency 40 GHz
Impedance 50 ohms
Shielding Effectiveness ≥ -100 dB, DC to 26.5 GHz
Dielectric withstanding Voltage 250 VRMS
Mechanical
Insertion Force 1.2 lbs (per contact)
Mating Cycles 500
Withdrawal Force 1.0 lbs
Environmental
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Vibration MIL-STD-202, Method 204, Condition D
Thermal Shock MIL-STD-202, Method 107, Condition B
Temperature Rating -65°C to +165°C
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B
Shock MIL-STD-202, Method 213, Condition I
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.


EU RoHS Directive 2011/65/EU Yes, w/ Exemption 6C

These products comply with the substance restrictions of the Restriction on Hazardous Substances Directive 2011/65/EU (RoHS2). The RoHS2 Directive requires that certain electrical and electronic equipment products do not contain mercury, cadmium, hexavalent chromium, PBB, PBDE, lead, DEHP, BBP, DBP and DIBP above defined thresholds. Products indicated as compliant with exemption contain one or more of these substances above the prohibition thresholds, but are compliant by claiming one or more valid exemptions.

EU REACH Regulation (EC) No. 1907/2006 SVHC > Threshold

These products contain one or more EU REACH Substances of Very High Concern (SVHC) > 0.1% by weight (1000 ppm). Details related to the SVHC are displayed.

REACH SVHC: LEAD, CAS #: 7439-92-1, PPM: 4000

Use personal protective equipment as required. Do not eat, drink or smoke when using this product. Wash thoroughly after handling. Recycle if possible and dispose of the article by following all applicable governmental regulations relevant to your geographic location.

This information is provided based on reasonable inquiry of our suppliers and represents our current actual knowledge based on the information they provided.

Please contact [email protected] for any Compliance or Environmental related questions.

Last Update: 6/28/2023 1:20:43 AM

Spinning Wheel; Your Submission is Loading

Contact Us

How can we help?

*
*
*
*
*
*
*
*
Access all of our VITA resources for this part number in one, easily-downloadable package.
VITA Toolkit Download Now
  • Drawings
  • Models
  • Rapid Response App Note
  • VITA 67.3 Catalog
  • VITA 67.3 SMPS Toolbox Resource Guide
Products specifications
Attribute name Attribute value
Family VITA 67, SOSA Aligned
Gender Plug (Male)
Orientation (Body) Straight
Coupling Push-on
Termination Style Solder
Mounting Type Snap-in
Number of Ports Single
RF Series VITA SMPS
Cable Type 0.047 Flexible Coax
Finish Passivated
Cable Builder Attributes
Mating Connector 3821-40023, 3821-40024
Electrical
Frequency 40 GHz
Impedance 50 ohms
Shielding Effectiveness ≥ -100 dB, DC to 26.5 GHz
Dielectric withstanding Voltage 250 VRMS
Mechanical
Insertion Force 1.2 lbs (per contact)
Mating Cycles 500
Withdrawal Force 1.0 lbs
Environmental
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Vibration MIL-STD-202, Method 204, Condition D
Thermal Shock MIL-STD-202, Method 107, Condition B
Temperature Rating -65°C to +165°C
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B
Shock MIL-STD-202, Method 213, Condition I
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.
Product tags
Customers Also Viewed
Part #   3221-40019

SMPM Female VITA 67.1/2 Plug-in Contact for .047 Cable

Available Inventory: 497
3221-40019
VITA Connectors 3221-40019
Datasheet
Part #   3221-40022

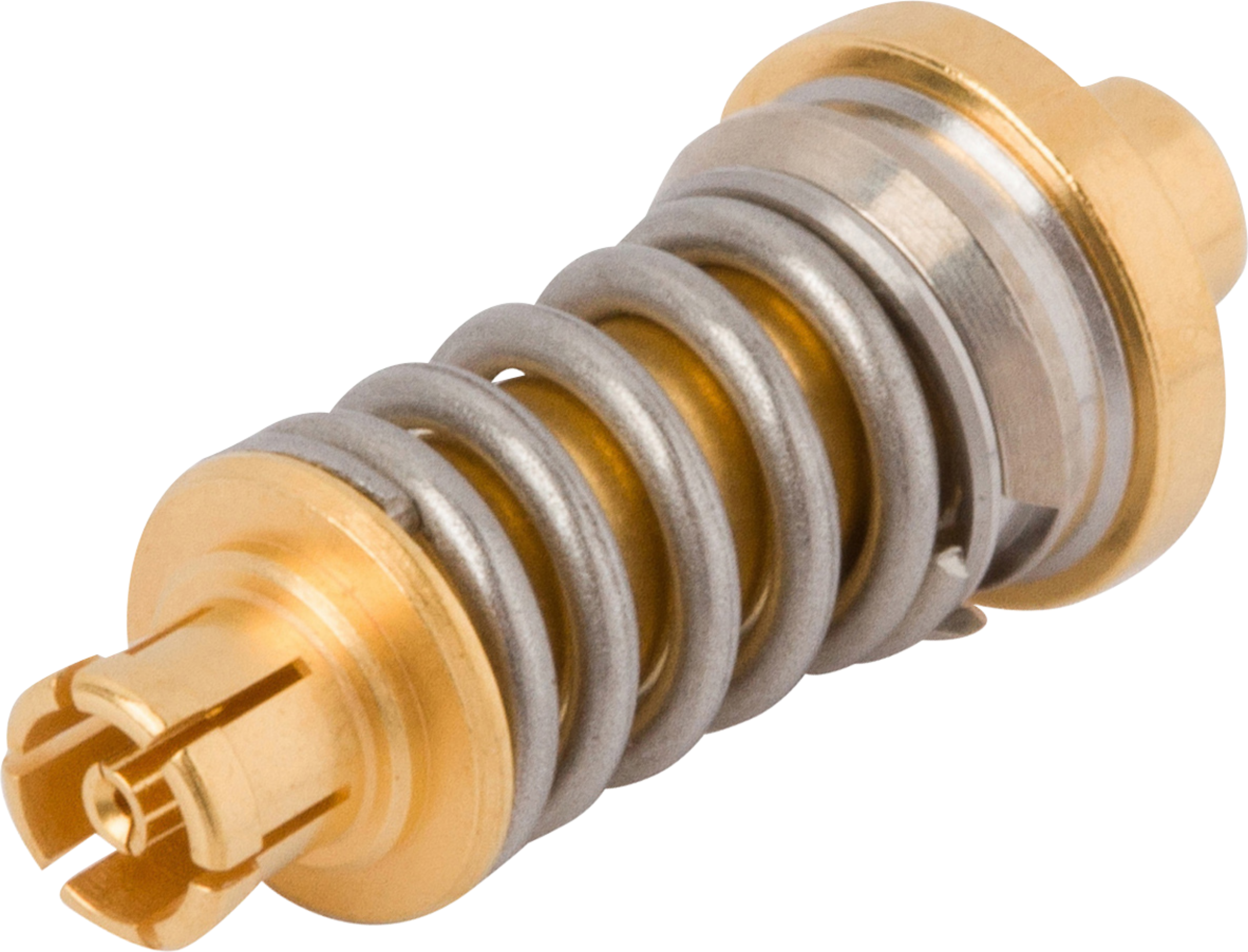

SMPM Female VITA 67.1/2 Plug-in Contact for .086 Cable

Available Inventory: 957
3221-40022
VITA Connectors 3221-40022
Datasheet
Part #   SF1138-6020

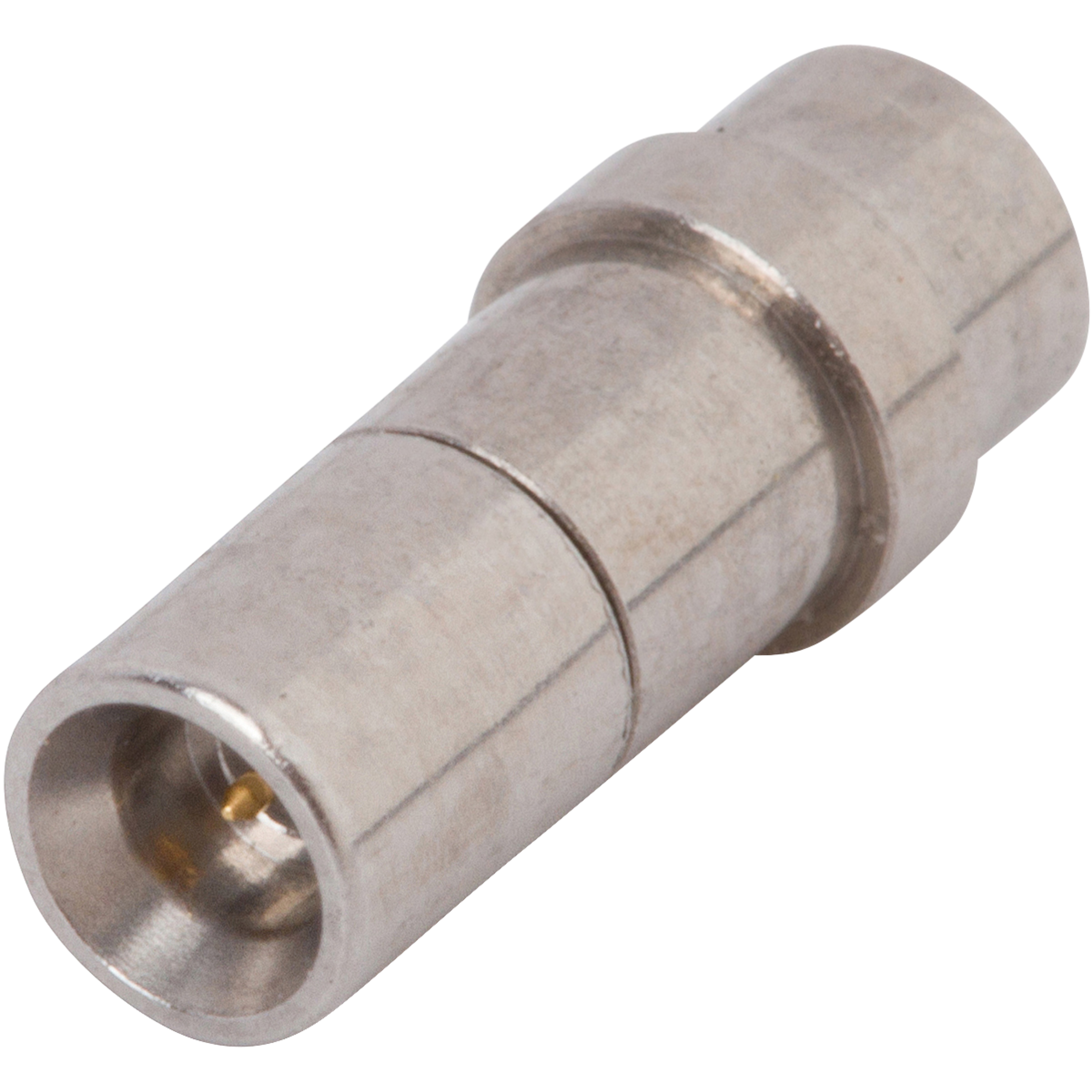

SMPS Male to SMPS VITA 67.3 Male Plug-in Adapter
