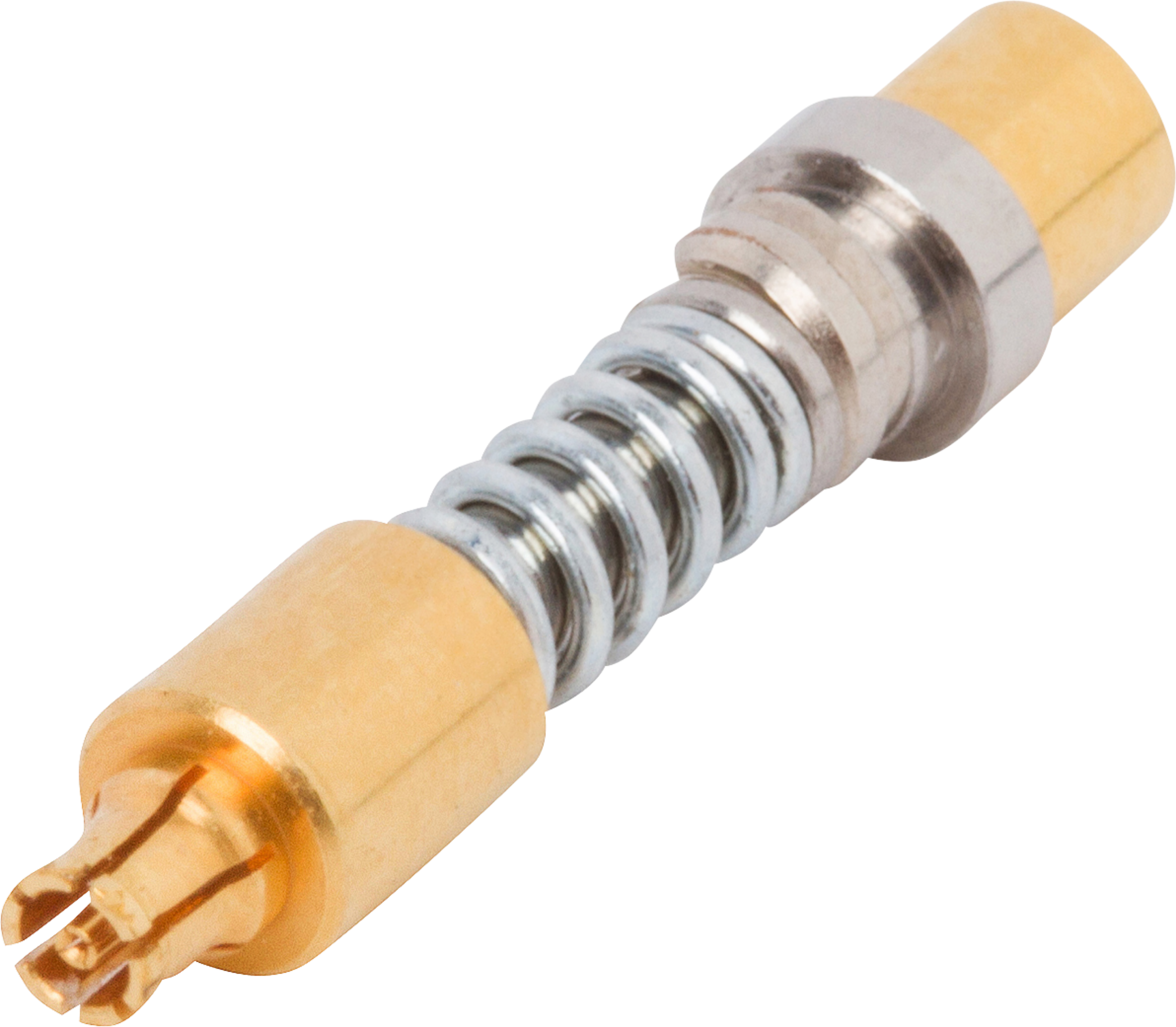

SMPS Female VITA 67.3 Backplane Contact for .047 Cable
P/N: 3821-40023

There currently isn't any inventory available in distribution. Please contact us to obtain this product.
3270
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute name Attribute value
Family VITA 67, SOSA Aligned
RF Series VITA SMPS
Gender Jack (Female)
Orientation (Body) Straight
Coupling Push-on
Mounting Type Snap-in
Number of Ports Single
Termination Style Solder
Finish Gold
Cable Type 0.047 Flexible Coax
Cable Builder Attributes
Mating Connector SF3811-60059, SF3811-60060
Electrical
Frequency 40 GHz
Impedance 50 ohms
Dielectric withstanding Voltage 250 VRMS
Shielding Effectiveness ≥ -100 dB, DC to 26.5 GHz
Mechanical
Mating Cycles 500
Insertion Force 1.2 lbs (per contact)
Withdrawal Force 1.0 lbs
Environmental
Temperature Rating -65°C to +165°C
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Vibration MIL-STD-202, Method 204, Condition D
Shock MIL-STD-202, Method 213, Condition I
Thermal Shock MIL-STD-202, Method 107, Condition B
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.


EU RoHS Directive 2011/65/EU Yes, w/ Exemption 6C

These products comply with the substance restrictions of the Restriction on Hazardous Substances Directive 2011/65/EU (RoHS2). The RoHS2 Directive requires that certain electrical and electronic equipment products do not contain mercury, cadmium, hexavalent chromium, PBB, PBDE, lead, DEHP, BBP, DBP and DIBP above defined thresholds. Products indicated as compliant with exemption contain one or more of these substances above the prohibition thresholds, but are compliant by claiming one or more valid exemptions.

EU REACH Regulation (EC) No. 1907/2006 SVHC > Threshold

These products contain one or more EU REACH Substances of Very High Concern (SVHC) > 0.1% by weight (1000 ppm). Details related to the SVHC are displayed.

REACH SVHC: LEAD, CAS #: 7439-92-1, PPM: 4000

Use personal protective equipment as required. Do not eat, drink or smoke when using this product. Wash thoroughly after handling. Recycle if possible and dispose of the article by following all applicable governmental regulations relevant to your geographic location.

This information is provided based on reasonable inquiry of our suppliers and represents our current actual knowledge based on the information they provided.

Please contact [email protected] for any Compliance or Environmental related questions.

Last Update: 6/28/2023 1:17:24 AM

Spinning Wheel; Your Submission is Loading

Contact Us

How can we help?

*
*
*
*
*
*
*
*
Access all of our VITA resources for this part number in one, easily-downloadable package.
VITA Toolkit Download Now
  • Drawings
  • Models
  • Rapid Response App Note
  • VITA 67.3 Catalog
  • VITA 67.3 SMPS Toolbox Resource Guide
Products specifications
Attribute name Attribute value
Family VITA 67, SOSA Aligned
RF Series VITA SMPS
Gender Jack (Female)
Orientation (Body) Straight
Coupling Push-on
Mounting Type Snap-in
Number of Ports Single
Termination Style Solder
Finish Gold
Cable Type 0.047 Flexible Coax
Cable Builder Attributes
Mating Connector SF3811-60059, SF3811-60060
Electrical
Frequency 40 GHz
Impedance 50 ohms
Dielectric withstanding Voltage 250 VRMS
Shielding Effectiveness ≥ -100 dB, DC to 26.5 GHz
Mechanical
Mating Cycles 500
Insertion Force 1.2 lbs (per contact)
Withdrawal Force 1.0 lbs
Environmental
Temperature Rating -65°C to +165°C
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Vibration MIL-STD-202, Method 204, Condition D
Shock MIL-STD-202, Method 213, Condition I
Thermal Shock MIL-STD-202, Method 107, Condition B
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.
Product tags
Customers Also Viewed
Part #   SF9321-60086

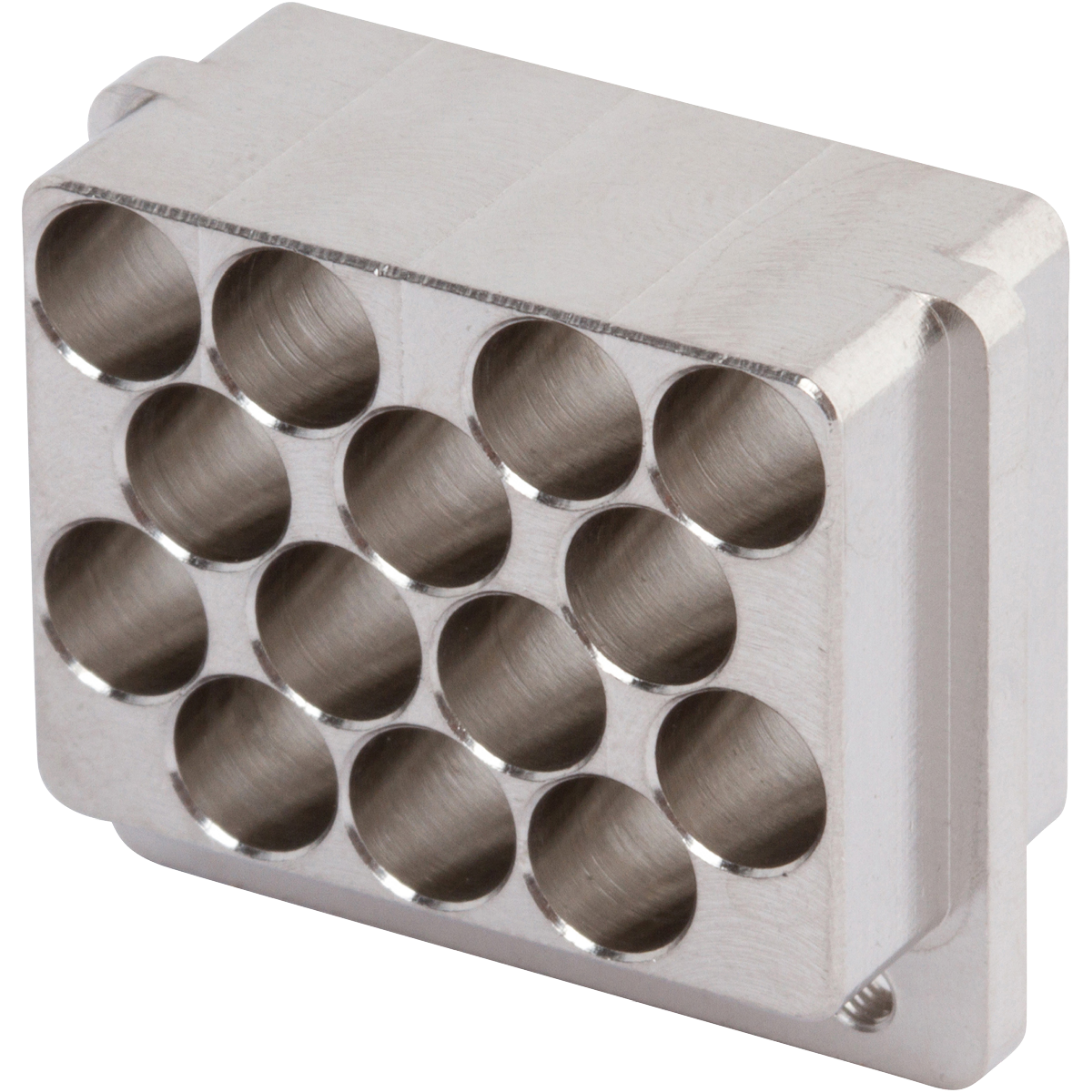

SMPM VITA 67.3 14 Port Backplane Module

Available Inventory: 393
SF9321-60086
VITA Connectors SF9321-60086
Datasheet
Part #   3821-40024

SMPS Female VITA 67.3 Backplane Contact for .085 Cable

Available Inventory: 0
3821-40024
VITA Connectors 3821-40024
Datasheet
Part #   SF9321-60093

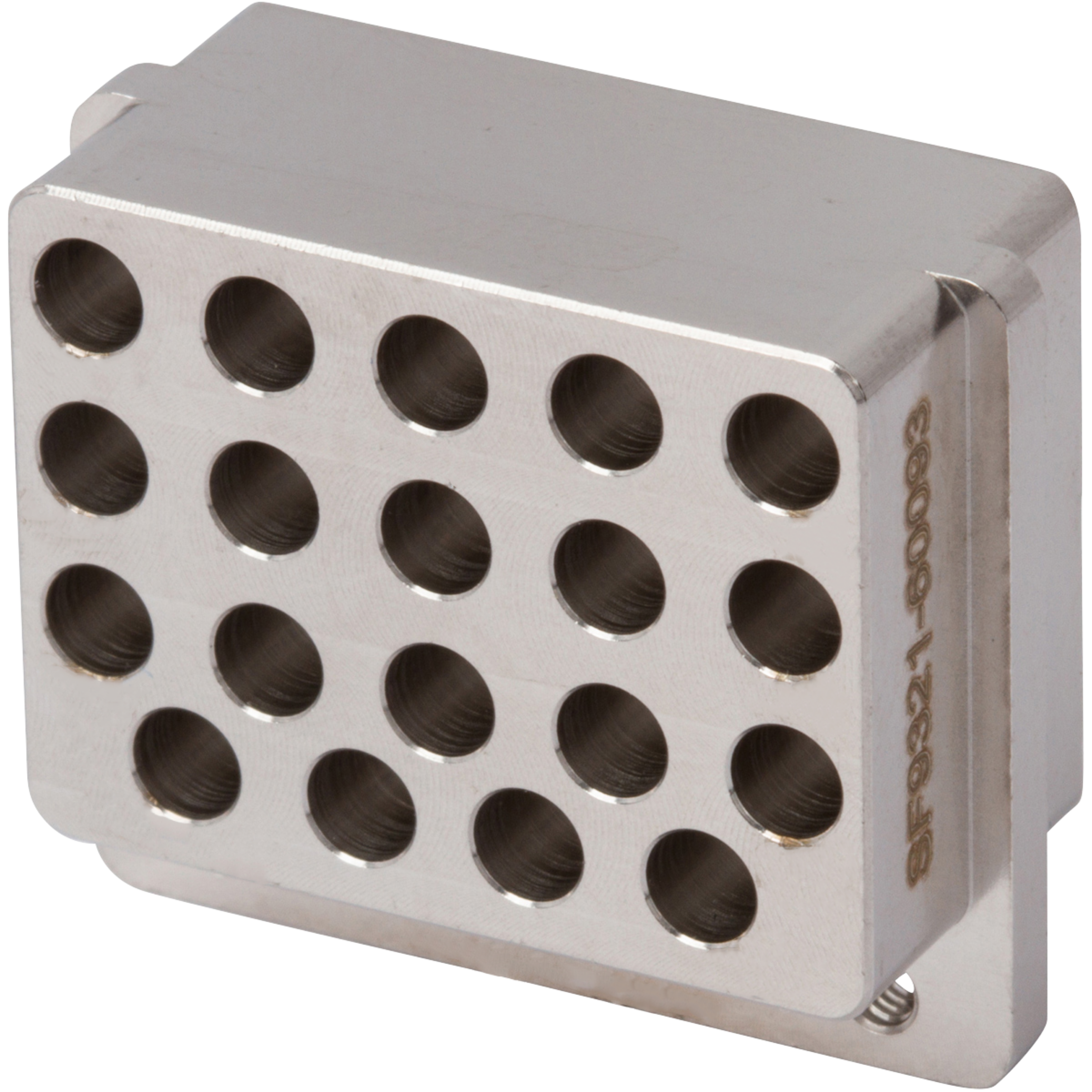

SMPS VITA 67.3 19 Port Backplane Module C
