Products specifications
| Attribute name | Attribute value |
|---|---|
| Family | VITA 67, SOSA Aligned |
| RF Series | VITA SMPS |
| Coupling | Push-on |
| Orientation (Body) | Straight |
| Gender | Plug (Male) |
| Detent | Smooth Bore |
| Mounting Type | Snap-in |
| Number of Ports | Single |
| Termination Style | Solder |
| Gender 2 | Plug (Male) |
| Cable Type | 0.047 Flexible Coax |
| RF Series 2 | U.FL |
| Orientation 2 (Body) | Right Angle |
| Cable Length | 12" |
| Electrical | |
| Frequency | 6 GHz |
| Impedance | 50 ohms |
| Shielding Effectiveness | ≥ -100 dB, DC to 26.5 GHz |
| Dielectric withstanding Voltage | 250 VRMS |
| Mechanical | |
| Mating Cycles | 500 |
| Withdrawal Force | 1.0 lbs |
| Insertion Force | 1.2 lbs (per contact) |
| Environmental | |
| Temperature Rating | -65°C to +165°C |
| Corrosion (salt spray) | MIL-STD-202, Method 101, Condition B |
| Vibration | MIL-STD-202, Method 204, Condition D |
| Thermal Shock | MIL-STD-202, Method 107, Condition B |
| Moisture Resistance | MIL-STD-202, Method 106, Less Step 7B |
| Shock | MIL-STD-202, Method 213, Condition I |
| Barometric Pressure (Altitude) | MIL-STD-202, Method 105, Condition C, 70k Ft. |
Products specifications
| Attribute name | Attribute value |
|---|---|
| Family | VITA 67, SOSA Aligned |
| RF Series | VITA SMPS |
| Coupling | Push-on |
| Orientation (Body) | Straight |
| Gender | Plug (Male) |
| Detent | Smooth Bore |
| Mounting Type | Snap-in |
| Number of Ports | Single |
| Termination Style | Solder |
| Gender 2 | Plug (Male) |
| Cable Type | 0.047 Flexible Coax |
| RF Series 2 | U.FL |
| Orientation 2 (Body) | Right Angle |
| Cable Length | 12" |
| Electrical | |
| Frequency | 6 GHz |
| Impedance | 50 ohms |
| Shielding Effectiveness | ≥ -100 dB, DC to 26.5 GHz |
| Dielectric withstanding Voltage | 250 VRMS |
| Mechanical | |
| Mating Cycles | 500 |
| Withdrawal Force | 1.0 lbs |
| Insertion Force | 1.2 lbs (per contact) |
| Environmental | |
| Temperature Rating | -65°C to +165°C |
| Corrosion (salt spray) | MIL-STD-202, Method 101, Condition B |
| Vibration | MIL-STD-202, Method 204, Condition D |
| Thermal Shock | MIL-STD-202, Method 107, Condition B |
| Moisture Resistance | MIL-STD-202, Method 106, Less Step 7B |
| Shock | MIL-STD-202, Method 213, Condition I |
| Barometric Pressure (Altitude) | MIL-STD-202, Method 105, Condition C, 70k Ft. |
Related products
3821-40023
VITA Connectors 3821-40023
3821-40024
VITA Connectors 3821-40024
Part # 7038-0370
SMPS Female VITA 67.3 to SMA Male 12" Cable Assembly for .085 Cable
Available Inventory: 35
7038-0370
VITA Cable Assemblies 7038-0370
Part # 7038-0371
SMPS Female VITA 67.3 to SMA Male 12" Cable Assembly for .047 Cable
Available Inventory: 90
7038-0371
VITA Cable Assemblies 7038-0371
Customers Also Viewed
SF1138-6020
VITA Adapters SF1138-6020
SF3811-60059
VITA Connectors SF3811-60059

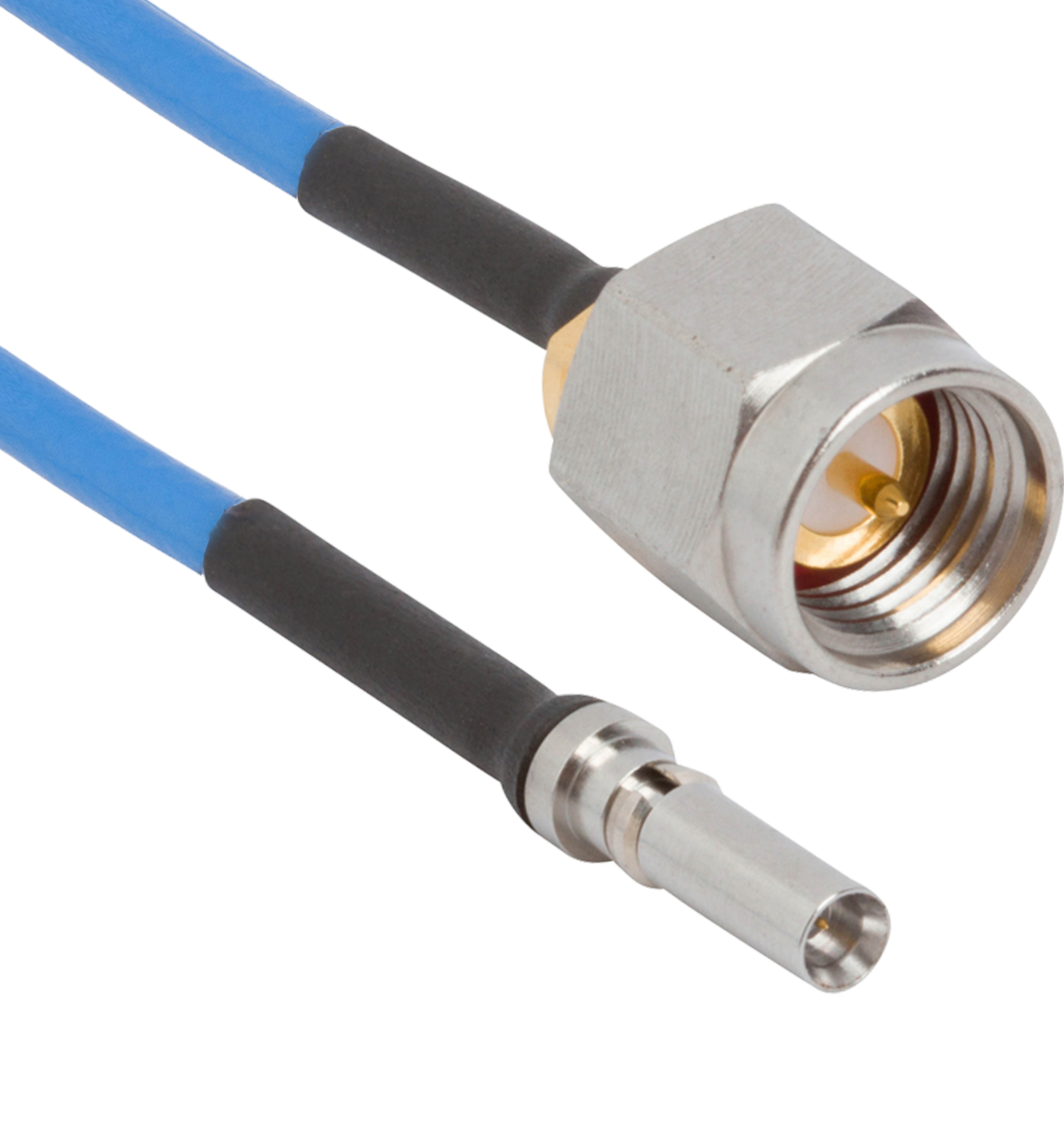

Part # 7038-0337
