| Attribute name | Attribute value |
|---|---|
| Family | VITA 67 |
| RF Series | VITA SMPM |
| Orientation (Body) | Straight |
| Coupling | Push-on |
| Termination Style | Solder |
| Gender 2 | Jack (Female) |
| RF Series 2 | U.FL |
| Gender | Plug (Male) |
| Orientation 2 (Body) | Right Angle |
| Cable Type | 0.047 Flexible Coax |
| Cable Length | 6" |
| Electrical | |
| Frequency | 6 GHz |
| Impedance | 50 ohms |
| Dielectric withstanding Voltage | 200 VRMS |
| Mechanical | |
| Withdrawal Force | 1.5 lbs |
| Mating Cycles | 500 |
| Insertion Force | 2.5 lbs (per contact) |
| Environmental | |
| Temperature Rating | −40 °C to +90 °C |
| Corrosion (salt spray) | MIL-STD-202, Method 101, Condition B |
| Shock | MIL-STD-202, Method 213, Condition A |
| Vibration | MIL-STD-201 |
| Moisture Resistance | MIL-STD-202 Method 103, Condition B |
| Barometric Pressure (Altitude) | MIL-STD-202, Method 105, Condition C, 70k Ft. |
| Thermal Shock | MIL-STD-202 Method 107, Condition A |
| EU RoHS Directive 2011/65/EU | Yes, w/ Exemption 6C These products comply with the substance restrictions of the Restriction on Hazardous Substances Directive 2011/65/EU (RoHS2). The RoHS2 Directive requires that certain electrical and electronic equipment products do not contain mercury, cadmium, hexavalent chromium, PBB, PBDE, lead, DEHP, BBP, DBP and DIBP above defined thresholds. Products indicated as compliant with exemption contain one or more of these substances above the prohibition thresholds, but are compliant by claiming one or more valid exemptions. |
| EU REACH Regulation (EC) No. 1907/2006 | SVHC > Threshold These products contain one or more EU REACH Substances of Very High Concern (SVHC) > 0.1% by weight (1000 ppm). Details related to the SVHC are displayed. REACH SVHC: LEAD, CAS #: 7439-92-1, PPM: 4000 Use personal protective equipment as required. Do not eat, drink or smoke when using this product. Wash thoroughly after handling. Recycle if possible and dispose of the article by following all applicable governmental regulations relevant to your geographic location. |
| CE / UKCA | Not Yet Reviewed Please contact our compliance team for more information. |
This information is provided based on reasonable inquiry of our suppliers and represents our current actual knowledge based on the information they provided. Please contact compliance@svmicro.com for any Compliance or Environmental related questions. Last Update: 12/22/2025 1:18:20 AM | |
| Attribute name | Attribute value |
|---|---|
| Family | VITA 67 |
| RF Series | VITA SMPM |
| Orientation (Body) | Straight |
| Coupling | Push-on |
| Termination Style | Solder |
| Gender 2 | Jack (Female) |
| RF Series 2 | U.FL |
| Gender | Plug (Male) |
| Orientation 2 (Body) | Right Angle |
| Cable Type | 0.047 Flexible Coax |
| Cable Length | 6" |
| Electrical | |
| Frequency | 6 GHz |
| Impedance | 50 ohms |
| Dielectric withstanding Voltage | 200 VRMS |
| Mechanical | |
| Withdrawal Force | 1.5 lbs |
| Mating Cycles | 500 |
| Insertion Force | 2.5 lbs (per contact) |
| Environmental | |
| Temperature Rating | −40 °C to +90 °C |
| Corrosion (salt spray) | MIL-STD-202, Method 101, Condition B |
| Shock | MIL-STD-202, Method 213, Condition A |
| Vibration | MIL-STD-201 |
| Moisture Resistance | MIL-STD-202 Method 103, Condition B |
| Barometric Pressure (Altitude) | MIL-STD-202, Method 105, Condition C, 70k Ft. |
| Thermal Shock | MIL-STD-202 Method 107, Condition A |
Part # 7032-7434-180

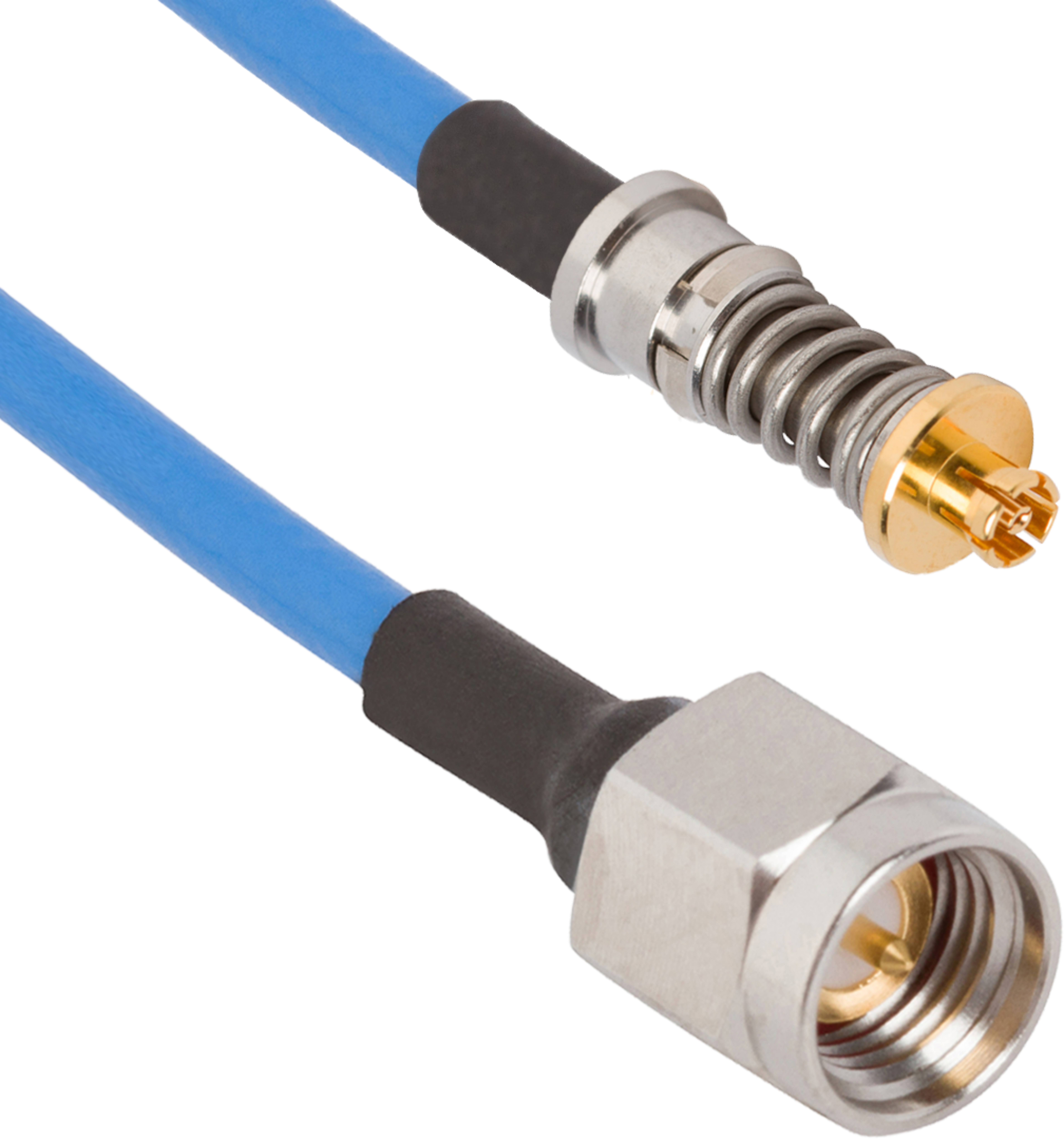

SMPM Female VITA 67.3 to SMA Male 18" Cable Assembly for .085 Cable
Available Inventory: 128
Part # 7032-7435-120

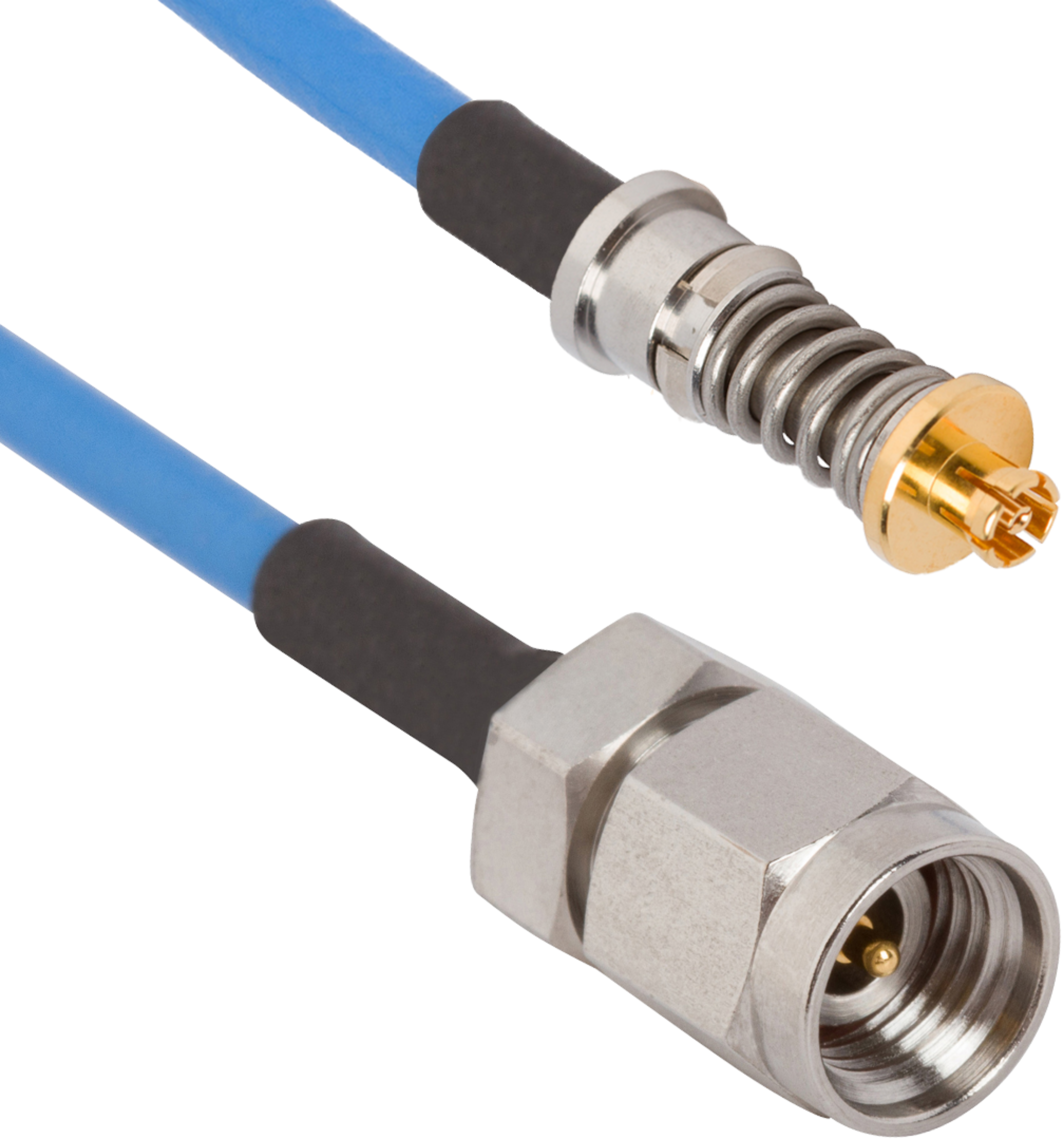

SMPM Female VITA 67.3 to 2.92mm Male 12" Cable Assembly for .085 Cable
