SMPM Female VITA 67.3 to SMA Male 18" Cable Assembly for .085 Cable
P/N: 7032-7434-180

In stock at Qty Order
Interstate Connecting Components 39
Heilind Electronics 13
Master Electronics 8
Onlinecomponents.com 8
Mouser Electronics 2
Products specifications
Attribute name Attribute value
Family VITA 67, SOSA Aligned
Gender Jack (Female)
RF Series VITA SMPM
Orientation (Body) Straight
RF Series 2 SMA
Termination Style Solder
Coupling Push-on
Cable Type 0.085 Flexible Coax
Orientation 2 (Body) Straight
Gender 2 Plug (Male)
Cable Length 18"
Electrical
Frequency 26.5 GHz
Impedance 50 ohms
Shielding Effectiveness ≥ -100 dB, DC to 26.5 GHz
Dielectric withstanding Voltage 325 VRMS
Mechanical
Mating Cycles 500
Insertion Force 2.5 lbs (per contact)
Withdrawal Force 1.5 lbs
Environmental
Temperature Rating -65°C to +165°C
Vibration MIL-STD-202, Method 204, Condition D
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Shock MIL-STD-202, Method 213, Condition I
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B
Thermal Shock MIL-STD-202, Method 107, Condition B


EU RoHS Directive 2011/65/EU Yes, w/ Exemption 6C

These products comply with the substance restrictions of the Restriction on Hazardous Substances Directive 2011/65/EU (RoHS2). The RoHS2 Directive requires that certain electrical and electronic equipment products do not contain mercury, cadmium, hexavalent chromium, PBB, PBDE, lead, DEHP, BBP, DBP and DIBP above defined thresholds. Products indicated as compliant with exemption contain one or more of these substances above the prohibition thresholds, but are compliant by claiming one or more valid exemptions.

EU REACH Regulation (EC) No. 1907/2006 SVHC > Threshold

These products contain one or more EU REACH Substances of Very High Concern (SVHC) > 0.1% by weight (1000 ppm). Details related to the SVHC are displayed.

REACH SVHC: LEAD, CAS #: 7439-92-1, PPM: 30000

Use personal protective equipment as required. Do not eat, drink or smoke when using this product. Wash thoroughly after handling. Recycle if possible and dispose of the article by following all applicable governmental regulations relevant to your geographic location.

CE / UKCA Compliant

This products meets the requirements for CE and UKCA.

This information is provided based on reasonable inquiry of our suppliers and represents our current actual knowledge based on the information they provided.

Please contact [email protected] for any Compliance or Environmental related questions.

Last Update: 6/28/2023 1:13:18 AM

Spinning Wheel; Your Submission is Loading

Contact Us

How can we help?

*
*
*
*
*
*
*
*
Access all of our VITA resources for this part number in one, easily-downloadable package.
VITA Toolkit Download Now
  • Drawings
  • Models
  • Rapid Response App Note
  • VITA 67.3 Catalog
  • VITA 67.3 SMPM Toolbox Resource Guide
Products specifications
Attribute name Attribute value
Family VITA 67, SOSA Aligned
Gender Jack (Female)
RF Series VITA SMPM
Orientation (Body) Straight
RF Series 2 SMA
Termination Style Solder
Coupling Push-on
Cable Type 0.085 Flexible Coax
Orientation 2 (Body) Straight
Gender 2 Plug (Male)
Cable Length 18"
Electrical
Frequency 26.5 GHz
Impedance 50 ohms
Shielding Effectiveness ≥ -100 dB, DC to 26.5 GHz
Dielectric withstanding Voltage 325 VRMS
Mechanical
Mating Cycles 500
Insertion Force 2.5 lbs (per contact)
Withdrawal Force 1.5 lbs
Environmental
Temperature Rating -65°C to +165°C
Vibration MIL-STD-202, Method 204, Condition D
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Shock MIL-STD-202, Method 213, Condition I
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B
Thermal Shock MIL-STD-202, Method 107, Condition B
Product tags
Customers Also Viewed
Part #   7032-7434-120

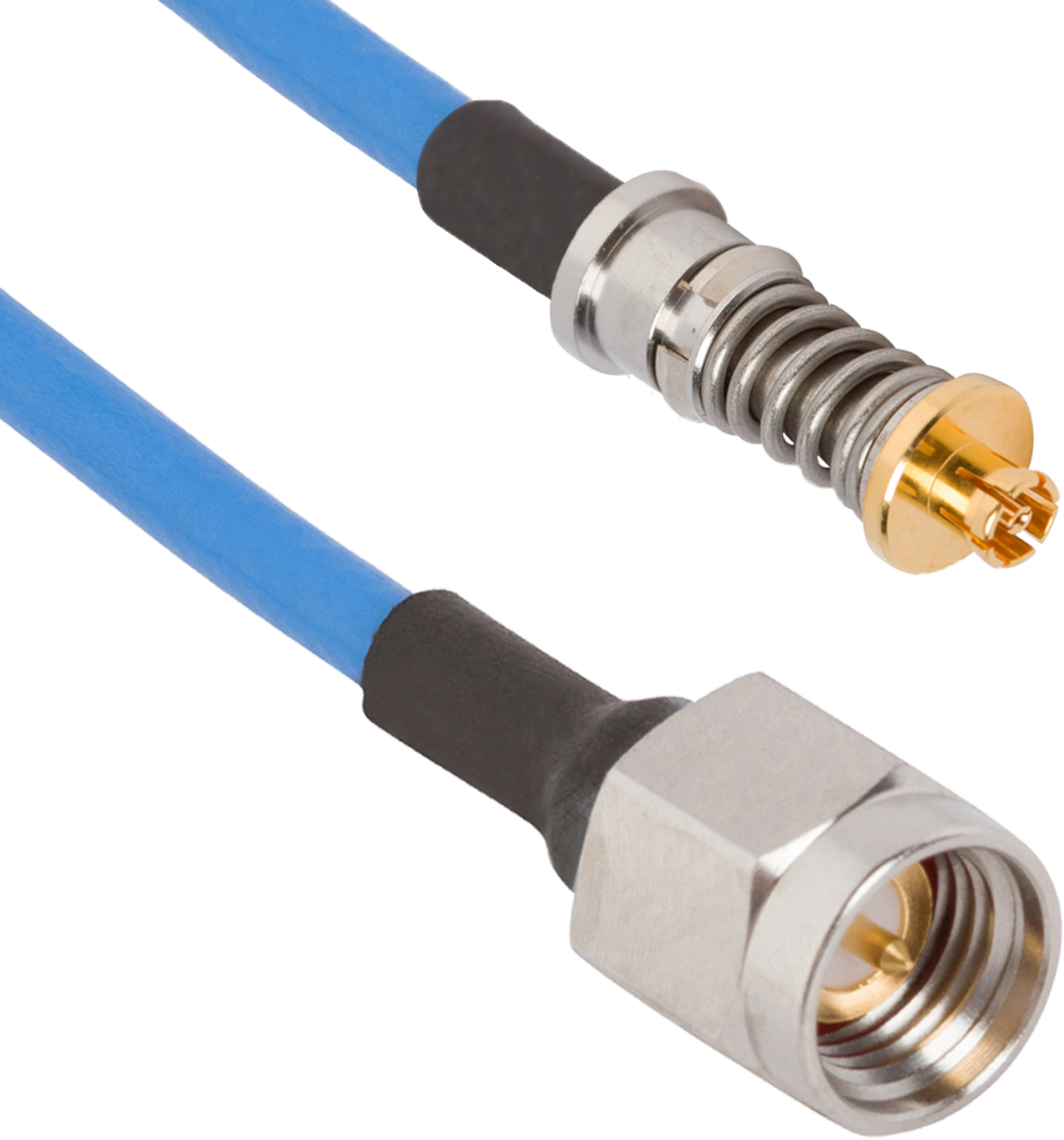

SMPM Female VITA 67.3 to SMA Male 12" Cable Assembly for .085 Cable

Available Inventory: 256
7032-7434-120
VITA Cable Assemblies 7032-7434-120
Datasheet
Part #   7032-7435-120

SMPM Female VITA 67.3 to 2.92mm Male 12" Cable Assembly for .085 Cable

Available Inventory: 0
7032-7435-120
VITA Cable Assemblies 7032-7435-120
Datasheet
Part #   7032-7435-180

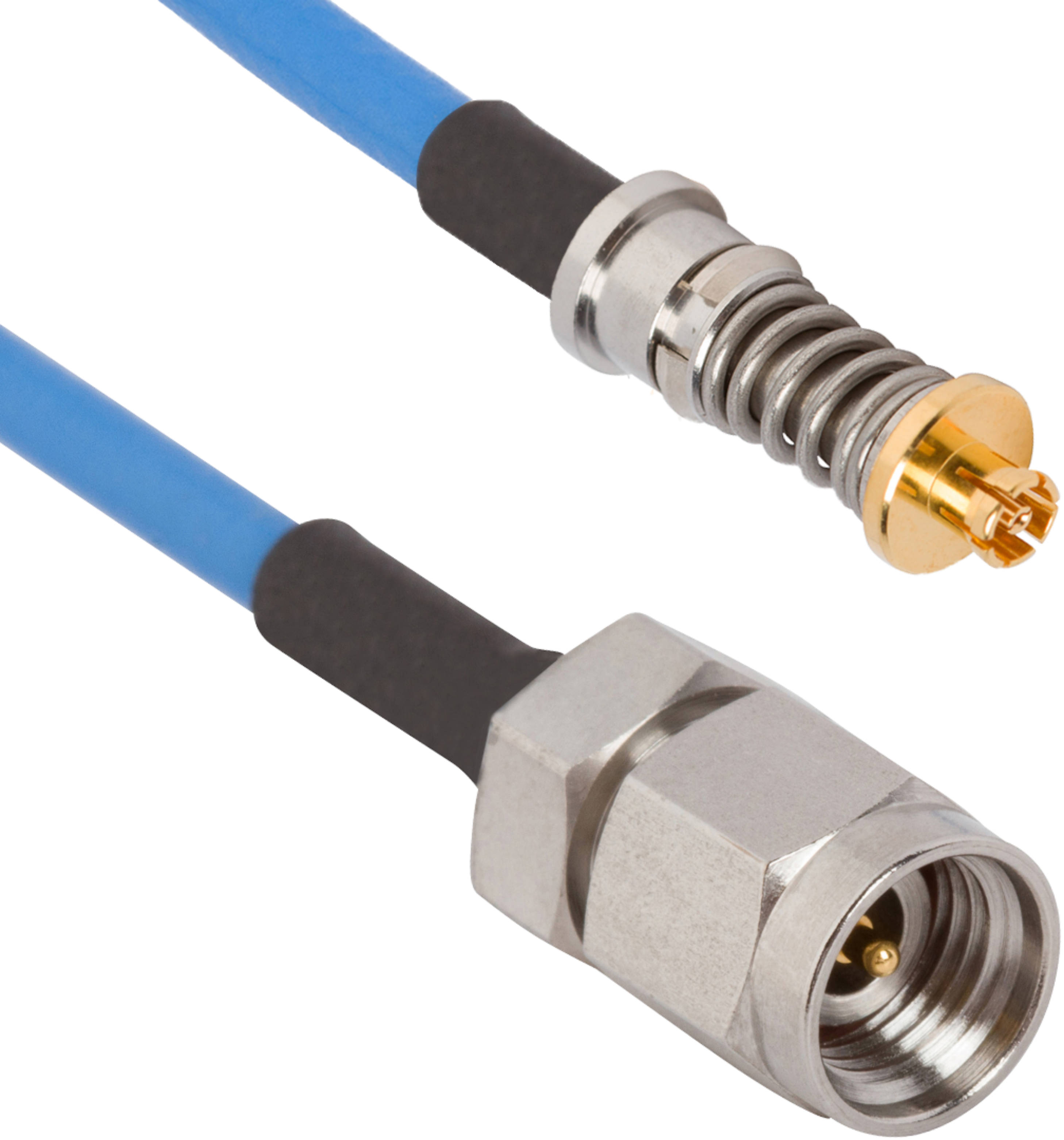

SMPM Female VITA 67.3 to 2.92mm Male 18" Cable Assembly for .085 Cable
