Reflow Stable PCB Connectors

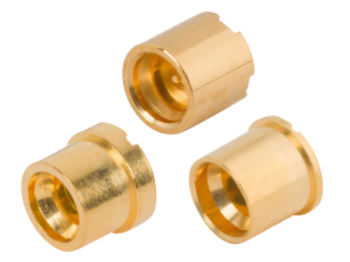

SV Microwave has developed a suite of Reflow Stable single and multiport PCB Connectors that feature either a glass or epoxy seal as the dielectric material. Capable of withstanding up to 500°C, these connectors retain their internal geometries without compromising electrical and mechanical performance after going through solder reflow. Available in SMP, SMPM, and SMPS series.
Features / Benefits:
- Capable of multiple reflows
- Minimal board to RP height (.041)"
- Dimensionally stable during reflow
- Glass Seal Reflow Stable PCB Connectors rated to 500° C
- Multiport PCB Connectors rated to 500°C
- Epoxy Seal Reflow Stable PCB Connectors rated to 255° C
- Single, 2, or 4 port configurations
Applications:
- Phased Array Systems
- Missile Seeker and Guidance Systems
- High-Density Multiport Configurations
The specifications below are typical for the connector series but may not apply to this part. Please see the datasheet for full specifications.
SMP
| Impedance (Ω) | 50 |
| Frequency GHz | 40 GHz |
| Shielding Effectiveness | ≥ -80 dB DC - 3 GHz ≥ -65 dB 3 - 26.5 GHz |
| Dielectric withstanding Voltage | 500 VRMS |
| Mating Cycles - SB | 1000 |
| Mating Cycles - LD | 500 |
| Mating Cycles - FD | 100 |
| Insertion Force - SB | 3.0 lbs |
| Insertion Force - LD | 5.0 lbs |
| Insertion Force - FD | 7.0 lbs |
| Withdrawal Force - SB | 0.5 lbs |
| Withdrawal Force - LD | 7.0 lbs |
| Withdrawal Force - FD | 9.0 lbs |
| Axial Misalignment | .010” Max |
| Radial Misalignment | 3° Max |
| Temperature Rating | -65°C to +165°C |
| Corrosion (salt spray) | MIL-STD-202, Method 101, Condition B |
| Vibration | MIL-STD-202, Method 204, Condition D |
| Shock | MIL-STD-202, Method 213, Condition I |
| Thermal Shock | MIL-STD-202, Method 107, Condition B |
| Moisture Resistance | MIL-STD-202, Method 106, Less Step 7B |
| Barometric Pressure (Altitude) | MIL-STD-202, Method 105, Condition C, 70k Ft. |
SMPS
| Impedance (Ω) | 50 |
| Frequency GHz | 65 GHz |
| Shielding Effectiveness | ≥ -80 dB DC - 3 GHz ≥ -65 dB 3 - 26.5 GHz |
| Dielectric withstanding Voltage | 250 VRMS |
| Mating Cycles - SB | 500 |
| Mating Cycles - FD | 100 |
| Insertion Force - SB | 1.2 lbs |
| Insertion Force - FD | 2.5 lbs |
| Withdrawal Force - SB | 1.0 lbs |
| Withdrawal Force - FD | 4.5 lbs |
| Axial Misalignment | .010” Max |
| Radial Misalignment | 3° Max |
| Temperature Rating | -65°C to +165°C |
| Corrosion (salt spray) | MIL-STD-202, Method 101, Condition B |
| Vibration | MIL-STD-202, Method 204, Condition D |
| Shock | MIL-STD-202, Method 213, Condition I |
| Thermal Shock | MIL-STD-202, Method 107, Condition B |
| Moisture Resistance | MIL-STD-202, Method 106, Less Step 7B |
| Barometric Pressure (Altitude) | MIL-STD-202, Method 105, Condition C, 70k Ft. |
SMPM
| Impedance (Ω) | 50 |
| Frequency GHz | 65 GHz |
| Shielding Effectiveness | ≥ -80 dB DC - 3 GHz ≥ -65 dB 3 - 26.5 GHz |
| Dielectric withstanding Voltage | 325 VRMS |
| Mating Cycles - SB | 500 |
| Mating Cycles - FD | 100 |
| Insertion Force - SB | 2.5 lbs |
| Insertion Force - FD | 4.5 lbs |
| Withdrawal Force - SB | 1.5 lbs |
| Withdrawal Force - FD | 6.5 lbs |
| Axial Misalignment | .010” Max |
| Radial Misalignment | 3° Max |
| Temperature Rating | -65°C to +165°C |
| Corrosion (salt spray) | MIL-STD-202, Method 101, Condition B |
| Vibration | MIL-STD-202, Method 204, Condition D |
| Shock | MIL-STD-202, Method 213, Condition I |
| Thermal Shock | MIL-STD-202, Method 107, Condition B |
| Moisture Resistance | MIL-STD-202, Method 106, Less Step 7B |
| Barometric Pressure (Altitude) | MIL-STD-202, Method 105, Condition C, 70k Ft. |
Application Note
| Product Video |
1211-20016
SMP Connectors 1211-20016
1211-20015
SMP Connectors 1211-20015
Part # 1211-20021
SMP Male PCB Surface Mount Connector (Glass Seal, Pre-Tinned), FD
Available Inventory: 428
1211-20021
SMP Connectors 1211-20021
Part # 1211-20019
SMP Male PCB Surface Mount Connector (Glass Seal, Pre-Tinned), SB
Available Inventory: 88
1211-20019
SMP Connectors 1211-20019
1211-40162
SMP Connectors 1211-40162
9311-20013
SMP Connectors 9311-20013
9311-20018
SMP Connectors 9311-20018
9311-20020
SMP Connectors 9311-20020
3211-20028
SMPM Connectors 3211-20028
3211-20027
SMPM Connectors 3211-20027
Part # 3211-20034
SMPM Male PCB Surface Mount Connector (Glass Seal, Pre-Tinned), FD
Available Inventory: 3
3211-20034
SMPM Connectors 3211-20034
Part # 3211-20033
SMPM Male PCB Surface Mount Connector (Glass Seal, Pre-Tinned), SB
Available Inventory: 12
3211-20033
SMPM Connectors 3211-20033
3211-40175
SMPM Connectors 3211-40175
9311-20021
SMPM Connectors 9311-20021
9311-20022
SMPM Connectors 9311-20022
9311-20023
SMPM Connectors 9311-20023
9311-20024
SMPM Connectors 9311-20024
Part # 3811-60006
SMPS Male PCB Surface Mount Connector (Glass Seal) (.009"), FD
Available Inventory: 141
3811-60006
SMPS Connectors 3811-60006
Part # 3811-60005
SMPS Male PCB Surface Mount Connector (Glass Seal) (.009"), SB
Available Inventory: 84
3811-60005
SMPS Connectors 3811-60005
Part # 3811-60005-TD
SMPS Male PCB Surface Mount Connector (Glass Seal, Tin Dipped) (.009"), SB
Available Inventory: 4
3811-60005-TD
SMPS Connectors 3811-60005-TD
Part # 3811-40092
SMPS Male PCB Surface Mount Connector (Reflow Stable) (.009"), FD
Available Inventory: 280
3811-40092
SMPS Connectors 3811-40092
Part # 3811-60006-TD
SMPS Male PCB Surface Mount Hermetic (Glass Seal, Tin Dipped) (.009"), FD
Available Inventory: 36
3811-60006-TD
SMPS Connectors 3811-60006-TD
9311-20025
SMPS Connectors 9311-20025
9311-20026
SMPS Connectors 9311-20026
9311-20027
SMPS Connectors 9311-20027
9311-20028
