SMPS Male PCB Surface Mount Connector (Glass Seal, Tin Dipped) (.009"), SB
P/N: 3811-60005-TD

This part number is currently unavailable. Please contact us for more information.
Products specifications
Attribute name Attribute value
RF Series SMPS
Gender Plug (Male)
Coupling Push-on
Orientation (Body) Straight
Detent Smooth Bore
Mounting Type PCB Vertical Launch
Termination Style Solder (Pre-Tinned)
Style Glass Seal
Number of Ports Single
Electrical
Frequency 65 GHz
Impedance 50 ohms
Shielding Effectiveness ≥ -80 dB DC - 3 GHz, ≥ -65 dB 3 - 26.5 GHz
Dielectric withstanding Voltage 250 VRMS
Mechanical
Mating Cycles - SB 500
Mating Cycles - FD 100
Insertion Force - FD 2.5 lbs
Withdrawal Force - SB 1.0 lbs
Insertion Force - SB 1.2 lbs
Withdrawal Force - FD 4.5 lbs
Axial Misalignment .010” Max
Radial Misalignment 3° Max
Environmental
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Temperature Rating -65°C to +165°C
Shock MIL-STD-202, Method 213, Condition I
Thermal Shock MIL-STD-202, Method 107, Condition B
Vibration MIL-STD-202, Method 204, Condition D
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B


EU RoHS Directive 2011/65/EU Compliant

These products comply with the substance restrictions of the Restriction on Hazardous Substances Directive 2011/65/EU (RoHS2). The RoHS2 Directive requires that certain electrical and electronic equipment products do not contain mercury, cadmium, hexavalent chromium, PBB, PBDE, lead, DEHP, BBP, DBP and DIBP above defined thresholds. Products indicated as 'Compliant' do not contain any of these substances above the prohibition thresholds.

EU REACH Regulation (EC) No. 1907/2006 Does not contain REACH SVHC

These products do not contain Substances of Very High Concern (SVHC) > 0.1% by weight (1000 ppm).

This information is provided based on reasonable inquiry of our suppliers and represents our current actual knowledge based on the information they provided.

Please contact [email protected] for any Compliance or Environmental related questions.

Last Update: 6/28/2023 1:24:02 AM

Spinning Wheel; Your Submission is Loading

Contact Us

How can we help?

*
*
*
*
*
*
*
*
Products specifications
Attribute name Attribute value
RF Series SMPS
Gender Plug (Male)
Coupling Push-on
Orientation (Body) Straight
Detent Smooth Bore
Mounting Type PCB Vertical Launch
Termination Style Solder (Pre-Tinned)
Style Glass Seal
Number of Ports Single
Electrical
Frequency 65 GHz
Impedance 50 ohms
Shielding Effectiveness ≥ -80 dB DC - 3 GHz, ≥ -65 dB 3 - 26.5 GHz
Dielectric withstanding Voltage 250 VRMS
Mechanical
Mating Cycles - SB 500
Mating Cycles - FD 100
Insertion Force - FD 2.5 lbs
Withdrawal Force - SB 1.0 lbs
Insertion Force - SB 1.2 lbs
Withdrawal Force - FD 4.5 lbs
Axial Misalignment .010” Max
Radial Misalignment 3° Max
Environmental
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Temperature Rating -65°C to +165°C
Shock MIL-STD-202, Method 213, Condition I
Thermal Shock MIL-STD-202, Method 107, Condition B
Vibration MIL-STD-202, Method 204, Condition D
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B
Product tags
Customers Also Viewed
Part #   3811-60005

SMPS Male PCB Surface Mount Connector (Glass Seal) (.009"), SB

Available Inventory: 499
3811-60005
SMPS Connectors 3811-60005
Datasheet
Part #   3811-60006

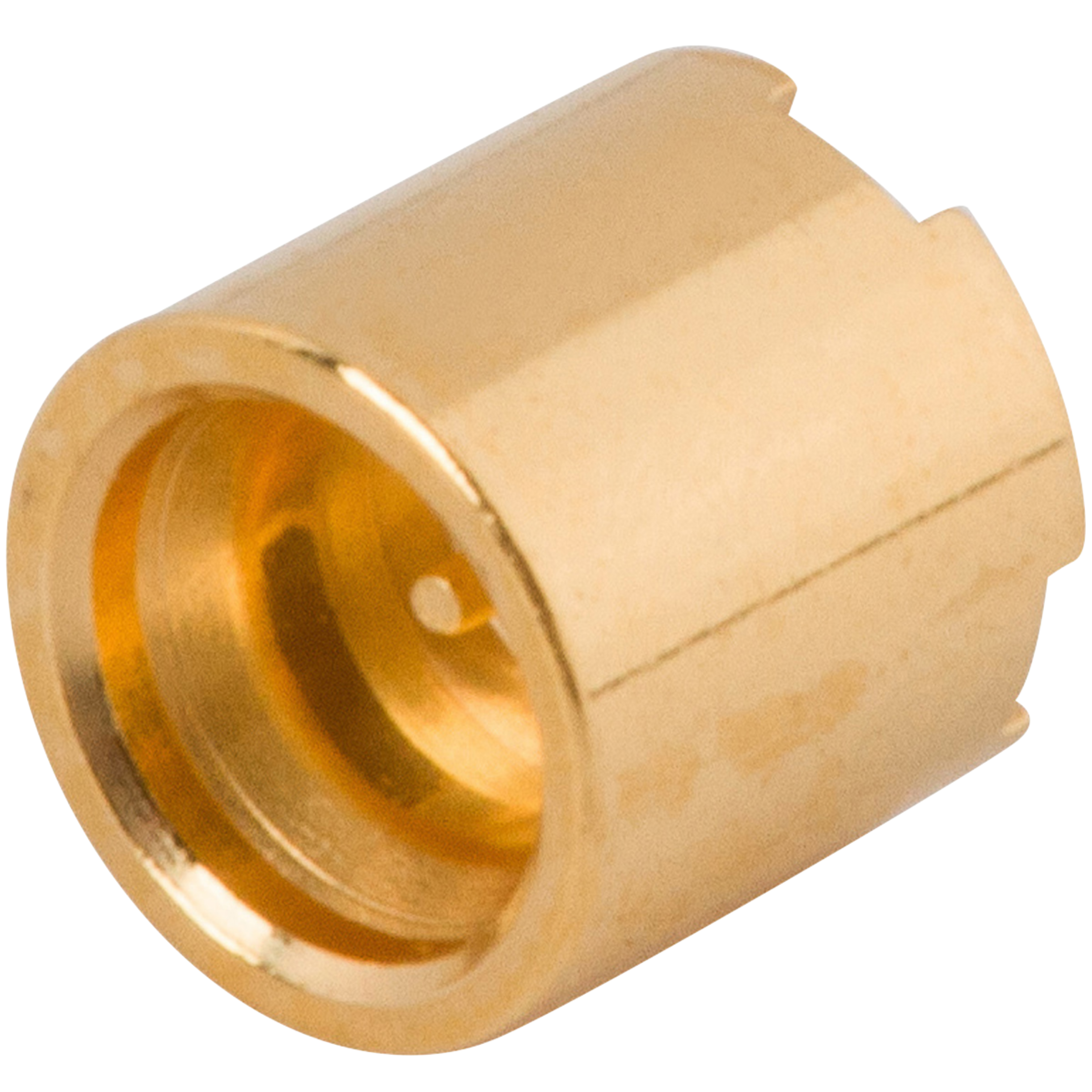

SMPS Male PCB Surface Mount Connector (Glass Seal) (.009"), FD

Available Inventory: 61
3811-60006
SMPS Connectors 3811-60006
Datasheet
Part #   3811-60006-TD

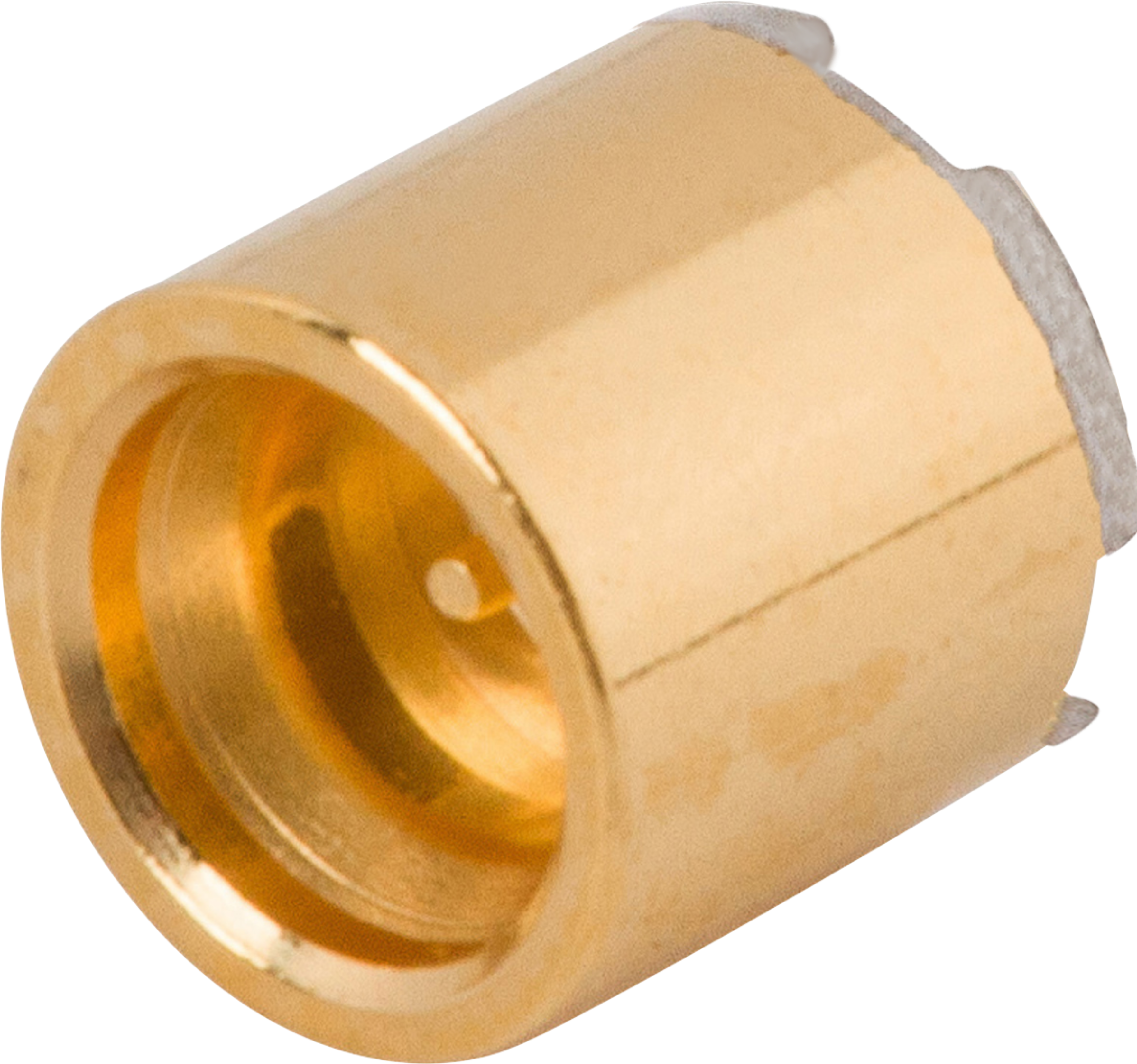

SMPS Male PCB Surface Mount Hermetic (Glass Seal, Tin Dipped) (.009"), FD
