SMPS Male PCB Surface Mount Connector (Glass Seal) (.009"), SB
P/N: 3811-60005

In stock at Qty Order
Digi-Key Electronics 256
Mouser Electronics 143
Master Electronics 40
Onlinecomponents.com 40
Products specifications
Attribute name Attribute value
Orientation (Body) Straight
Gender Plug (Male)
Coupling Push-on
RF Series SMPS
Detent Smooth Bore
Number of Ports Single
Termination Style Solder
Style Glass Seal
Mounting Type PCB Vertical Launch
IP Rating IP 68
Finish Gold
Electrical
Impedance 50 ohms
Frequency 65 GHz
Shielding Effectiveness ≥ -80 dB DC - 3 GHz, ≥ -65 dB 3 - 26.5 GHz
Dielectric withstanding Voltage 250 VRMS
Mechanical
Mating Cycles - SB 500
Mating Cycles - FD 100
Insertion Force - SB 1.2 lbs
Insertion Force - FD 2.5 lbs
Withdrawal Force - SB 1.0 lbs
Withdrawal Force - FD 4.5 lbs
Axial Misalignment .010” Max
Radial Misalignment 3° Max
Environmental
Temperature Rating -65°C to +165°C
Vibration MIL-STD-202, Method 204, Condition D
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Shock MIL-STD-202, Method 213, Condition I
Thermal Shock MIL-STD-202, Method 107, Condition B
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.


EU RoHS Directive 2011/65/EU Compliant

These products comply with the substance restrictions of the Restriction on Hazardous Substances Directive 2011/65/EU (RoHS2). The RoHS2 Directive requires that certain electrical and electronic equipment products do not contain mercury, cadmium, hexavalent chromium, PBB, PBDE, lead, DEHP, BBP, DBP and DIBP above defined thresholds. Products indicated as 'Compliant' do not contain any of these substances above the prohibition thresholds.

EU REACH Regulation (EC) No. 1907/2006 Does not contain REACH SVHC

These products do not contain Substances of Very High Concern (SVHC) > 0.1% by weight (1000 ppm).

This information is provided based on reasonable inquiry of our suppliers and represents our current actual knowledge based on the information they provided.

Please contact [email protected] for any Compliance or Environmental related questions.

Last Update: 6/28/2023 1:24:00 AM

Spinning Wheel; Your Submission is Loading

Contact Us

How can we help?

*
*
*
*
*
*
*
*
Products specifications
Attribute name Attribute value
Orientation (Body) Straight
Gender Plug (Male)
Coupling Push-on
RF Series SMPS
Detent Smooth Bore
Number of Ports Single
Termination Style Solder
Style Glass Seal
Mounting Type PCB Vertical Launch
IP Rating IP 68
Finish Gold
Electrical
Impedance 50 ohms
Frequency 65 GHz
Shielding Effectiveness ≥ -80 dB DC - 3 GHz, ≥ -65 dB 3 - 26.5 GHz
Dielectric withstanding Voltage 250 VRMS
Mechanical
Mating Cycles - SB 500
Mating Cycles - FD 100
Insertion Force - SB 1.2 lbs
Insertion Force - FD 2.5 lbs
Withdrawal Force - SB 1.0 lbs
Withdrawal Force - FD 4.5 lbs
Axial Misalignment .010” Max
Radial Misalignment 3° Max
Environmental
Temperature Rating -65°C to +165°C
Vibration MIL-STD-202, Method 204, Condition D
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Shock MIL-STD-202, Method 213, Condition I
Thermal Shock MIL-STD-202, Method 107, Condition B
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.
Product tags
Customers Also Viewed
Part #   3811-60006

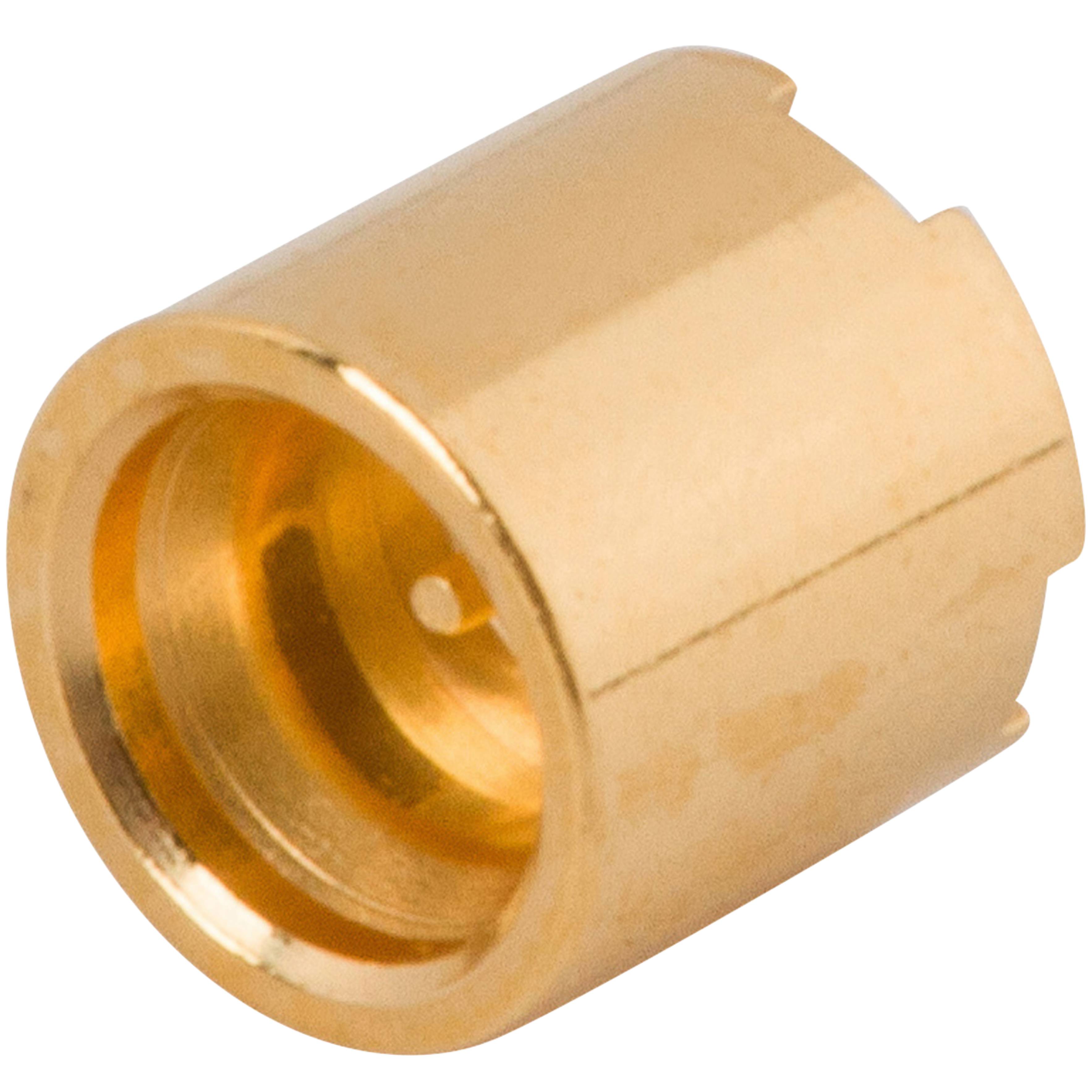

SMPS Male PCB Surface Mount Connector (Glass Seal) (.009"), FD

Available Inventory: 61
3811-60006
SMPS Connectors 3811-60006
Datasheet
3811-60005-TD
SMPS Connectors 3811-60005-TD
Datasheet
Part #   3811-60006-TD

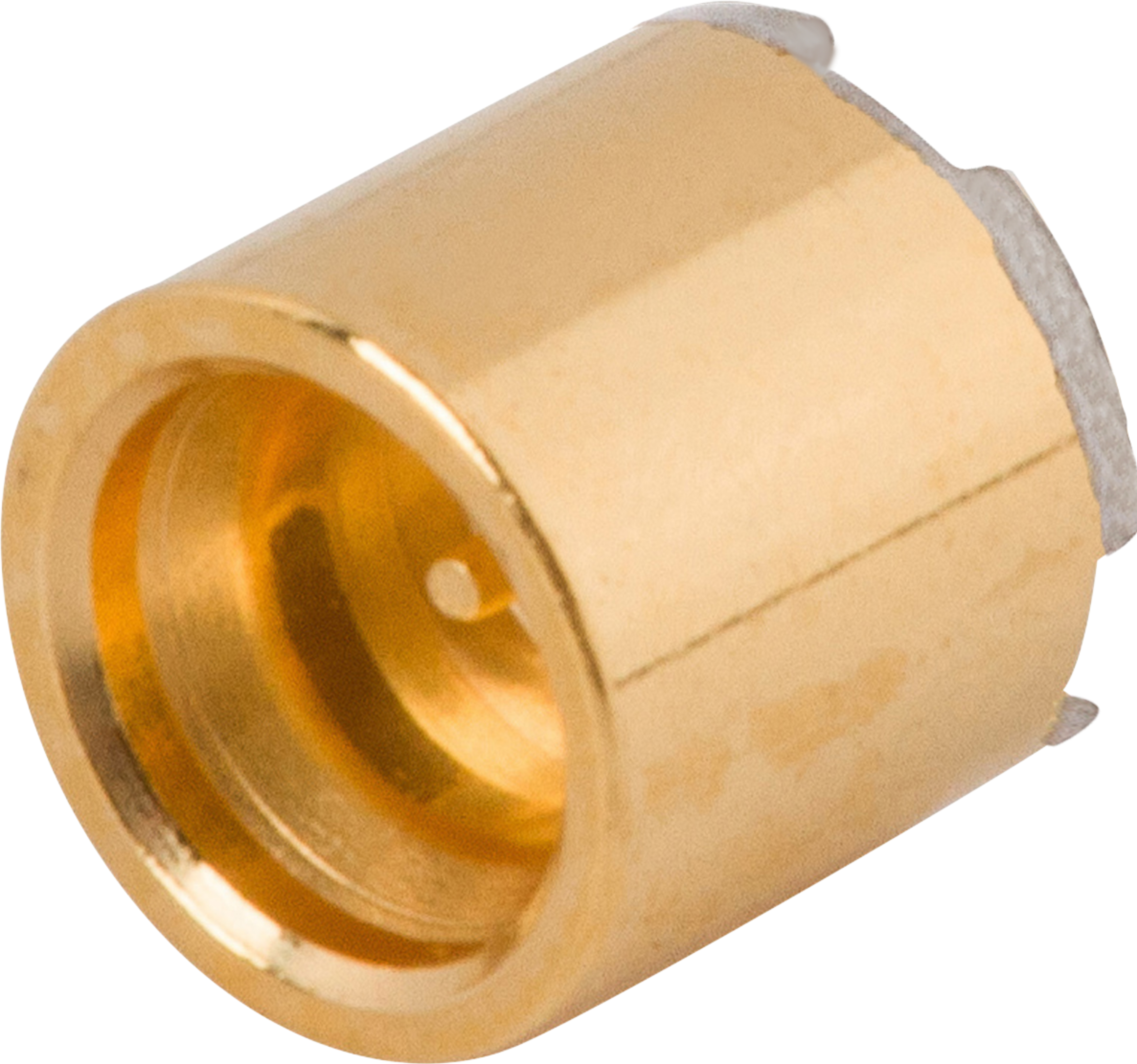

SMPS Male PCB Surface Mount Hermetic (Glass Seal, Tin Dipped) (.009"), FD
