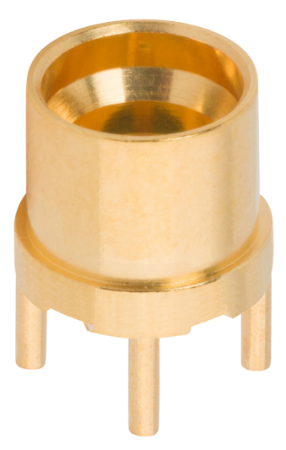

Name: SMPS Male PCB Surface Mount Connector (Glass Seal) FD, 4 Legs | 3811-60110
SKU: 3811-60110
Availability: OutOfStock

Products specifications

Attribute name	Attribute value
RF Series	SMPS
Gender	Plug (Male)
Orientation (Body)	Straight
Coupling	Push-on
Mounting Type	PCB Vertical Launch
Detent	Limited Detent
Termination Style	Solder
Number of Ports	Single
Finish	Gold
Contact Style	Surface Mount
Style	Glass Seal, Glass Seal
Electrical
Impedance	50 ohms
Frequency	40 GHz
Dielectric withstanding Voltage	250 VRMS
Shielding Effectiveness	≥ -80 dB DC - 3 GHz, ≥ -65 dB 3 - 26.5 GHz
Mechanical
Mating Cycles - FD	100
Mating Cycles - SB	500
Insertion Force - SB	1.2 lbs
Withdrawal Force - SB	1.0 lbs
Radial Misalignment	3° Max
Axial Misalignment	.010” Max
Insertion Force - FD	2.5 lbs
Withdrawal Force - FD	4.5 lbs
Environmental
Temperature Rating	-65°C to +165°C
Corrosion (salt spray)	MIL-STD-202, Method 101, Condition B
Vibration	MIL-STD-202, Method 204, Condition D
Shock	MIL-STD-202, Method 213, Condition I
Thermal Shock	MIL-STD-202, Method 107, Condition B
Barometric Pressure (Altitude)	MIL-STD-202, Method 105, Condition C, 70k Ft.
Moisture Resistance	MIL-STD-202, Method 106, Less Step 7B

SMPS Male PCB Surface Mount Connector (Glass Seal) FD, 4 Legs
P/N: 3811-60110
