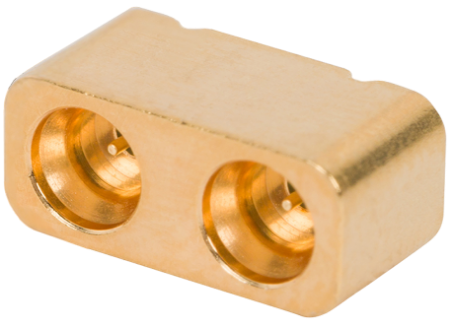

| Attribute name | Attribute value |
|---|---|
| Family | Mini-D RF |
| RF Series | SMPS |
| Gender | Plug (Male) |
| Orientation (Body) | Straight |
| Coupling | Push-on |
| Detent | Full Detent |
| Mounting Type | PCB Vertical Launch |
| Number of Ports | Multiple |
| Finish | Gold |
| Termination Style | Solder |
| Style | Glass Seal |
| Electrical | |
| Impedance | 50 ohms |
| Frequency | 50 GHz |
| Shielding Effectiveness | ≥ -80 dB DC - 3 GHz, ≥ -65 dB 3 - 26.5 GHz |
| Dielectric withstanding Voltage | 250 VRMS |
| Mechanical | |
| Mating Cycles - SB | 500 |
| Insertion Force - SB | 1.2 lbs |
| Mating Cycles - FD | 100 |
| Insertion Force - FD | 2.5 lbs |
| Withdrawal Force - SB | 1.0 lbs |
| Withdrawal Force - FD | 4.5 lbs |
| Axial Misalignment | .010” Max |
| Radial Misalignment | 3° Max |
| Environmental | |
| Temperature Rating | -65°C to +165°C |
| Shock | MIL-STD-202, Method 213, Condition I |
| Vibration | MIL-STD-202, Method 204, Condition D |
| Corrosion (salt spray) | MIL-STD-202, Method 101, Condition B |
| Thermal Shock | MIL-STD-202, Method 107, Condition B |
| Barometric Pressure (Altitude) | MIL-STD-202, Method 105, Condition C, 70k Ft. |
| Moisture Resistance | MIL-STD-202, Method 106, Less Step 7B |
| EU RoHS Directive 2011/65/EU | Compliant These products comply with the substance restrictions of the Restriction on Hazardous Substances Directive 2011/65/EU (RoHS2). The RoHS2 Directive requires that certain electrical and electronic equipment products do not contain mercury, cadmium, hexavalent chromium, PBB, PBDE, lead, DEHP, BBP, DBP and DIBP above defined thresholds. Products indicated as 'Compliant' do not contain any of these substances above the prohibition thresholds. |
| EU REACH Regulation (EC) No. 1907/2006 | Does not contain REACH SVHC These products do not contain Substances of Very High Concern (SVHC) > 0.1% by weight (1000 ppm). |
| CE / UKCA | Not Yet Reviewed Please contact our compliance team for more information. |
This information is provided based on reasonable inquiry of our suppliers and represents our current actual knowledge based on the information they provided. Please contact compliance@svmicro.com for any Compliance or Environmental related questions. Last Update: 5/12/2025 1:11:13 AM | |
