SMPM VITA 67.3 Installation/Removal Tool (75 Ohm)
P/N: 500-32-050

There currently isn't any inventory available in distribution. Please contact us to obtain this product.
Products specifications
Attribute name Attribute value
Family VITA 67
RF Series VITA SMPM
Electrical
Dielectric withstanding Voltage 325 VRMS
Shielding Effectiveness ≥ -100 dB, DC to 26.5 GHz
Mechanical
Mating Cycles 500
Insertion Force 2.5 lbs (per contact)
Withdrawal Force 1.5 lbs
Environmental
Temperature Rating -65°C to +165°C
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Vibration MIL-STD-202, Method 204, Condition D
Shock MIL-STD-202, Method 213, Condition I
Thermal Shock MIL-STD-202, Method 107, Condition B
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.
Spinning Wheel; Your Submission is Loading

Contact Us

How can we help?

*
*
*
*
*
*
*
*
Products specifications
Attribute name Attribute value
Family VITA 67
RF Series VITA SMPM
Electrical
Dielectric withstanding Voltage 325 VRMS
Shielding Effectiveness ≥ -100 dB, DC to 26.5 GHz
Mechanical
Mating Cycles 500
Insertion Force 2.5 lbs (per contact)
Withdrawal Force 1.5 lbs
Environmental
Temperature Rating -65°C to +165°C
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Vibration MIL-STD-202, Method 204, Condition D
Shock MIL-STD-202, Method 213, Condition I
Thermal Shock MIL-STD-202, Method 107, Condition B
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.
Product tags
Customers Also Viewed

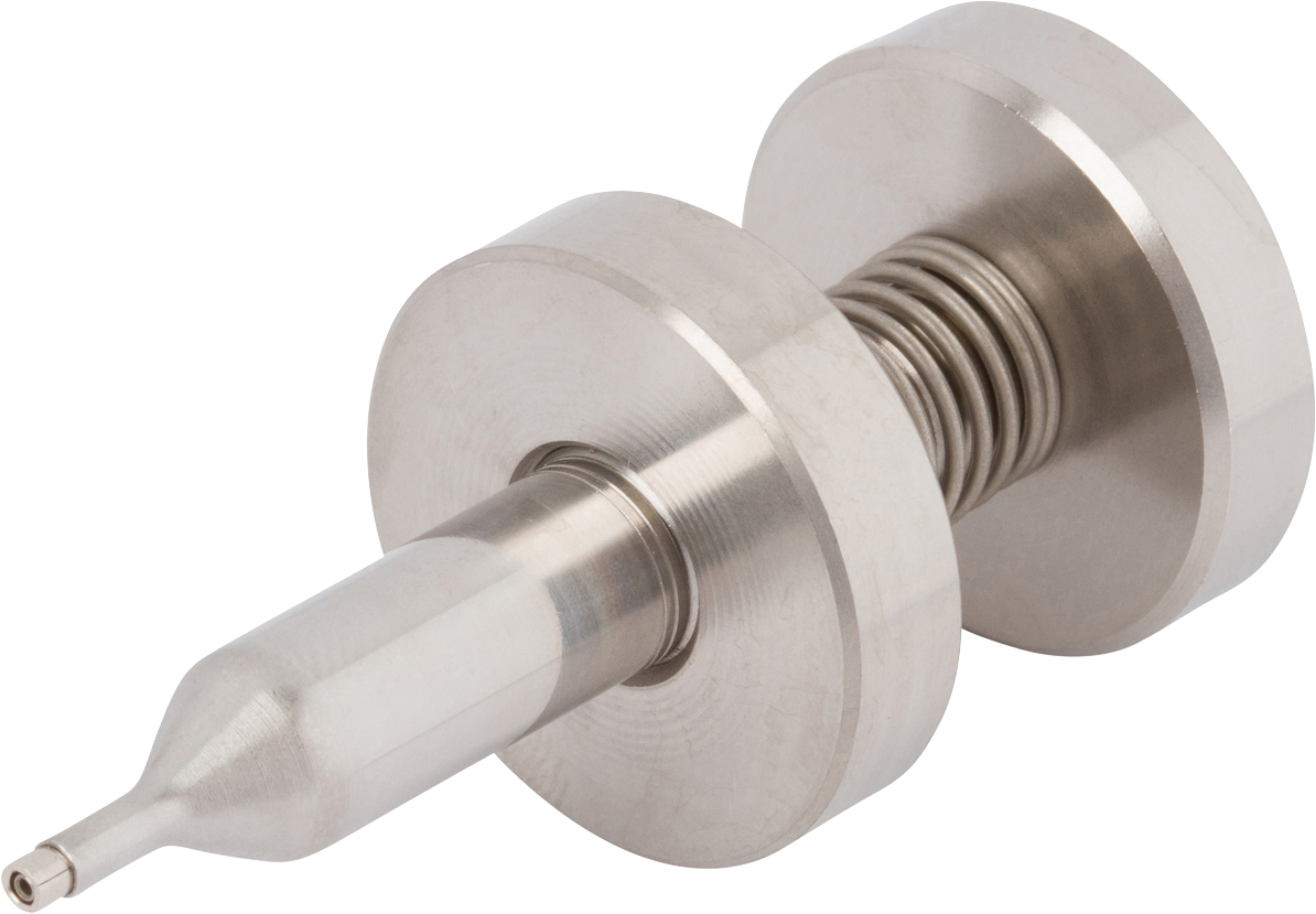

Part #   500-38-004

SMPS Female Bullet Removal Tool

Available Inventory: 35
500-38-004
SMPS Tool 500-38-004
Datasheet

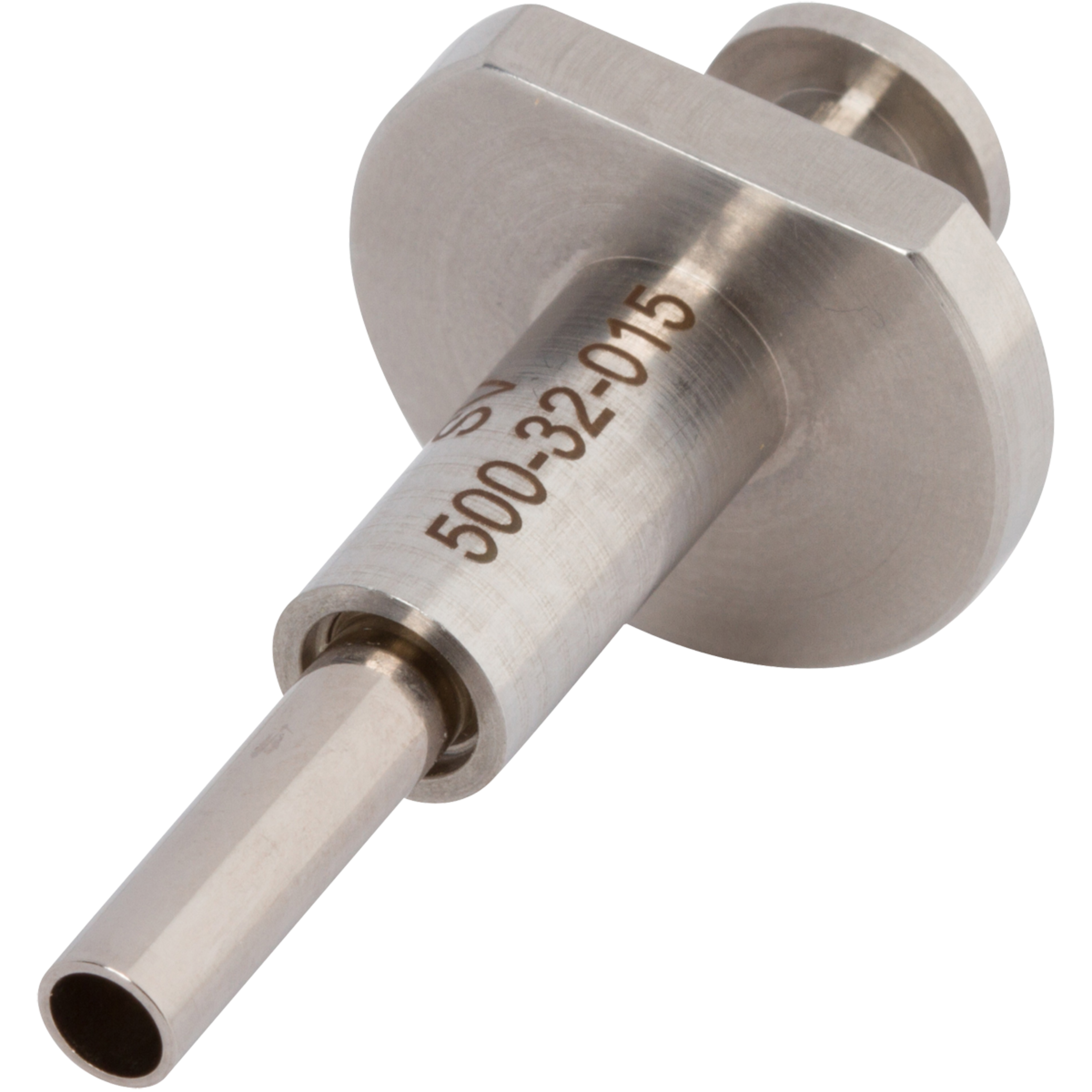

Part #   500-32-015

SMPM Female VITA 67.3 Contact Removal Tool

Available Inventory: 103
500-32-015
VITA Tool 500-32-015
Datasheet

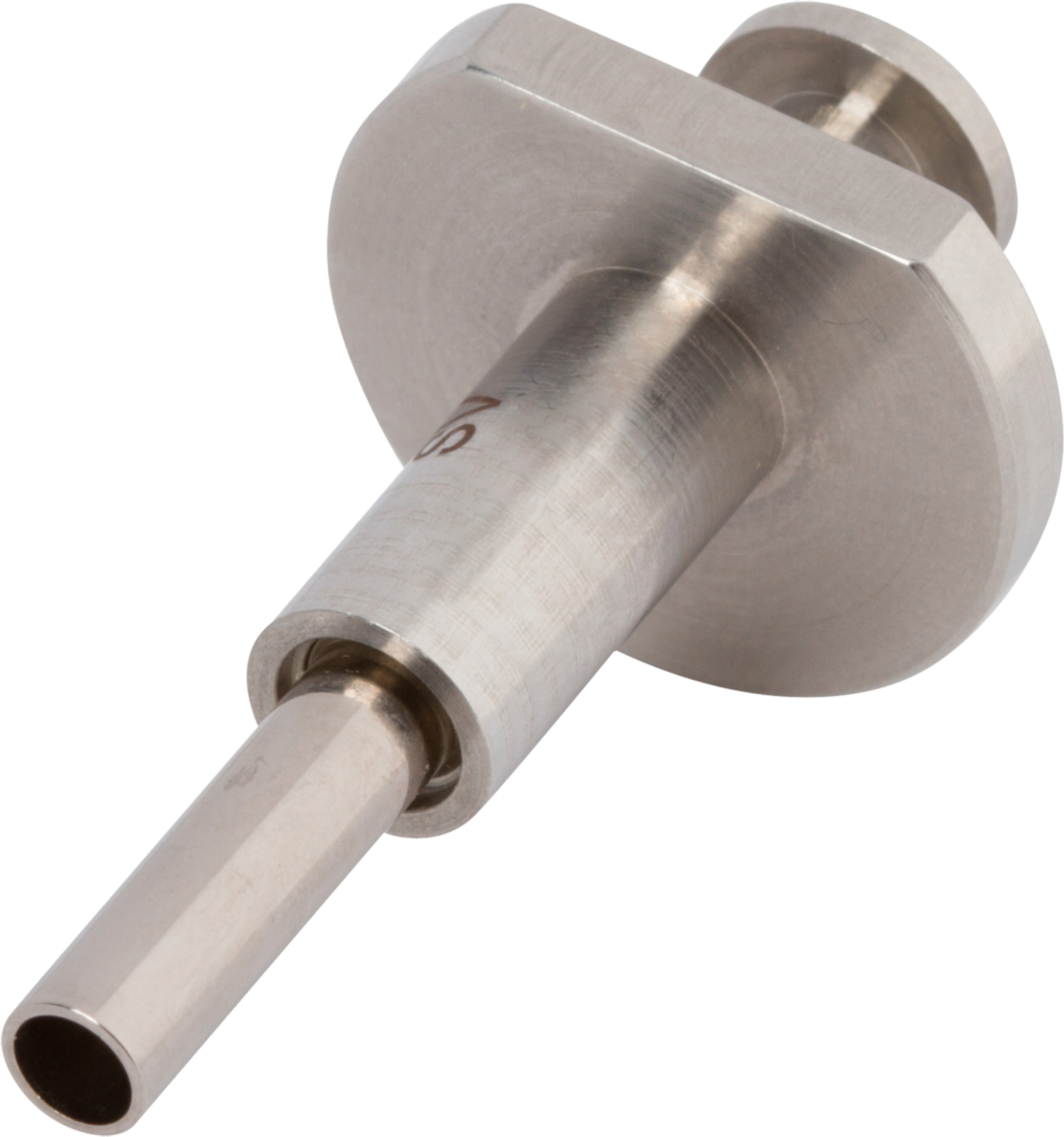

Part #   500-38-006
