P/N: 500-32-042

SMPM VITA 67.3 Installation/Removal Tool

In stock at Qty Order
Mouser Electronics 2
TTI Inc Global Headquarters 1
Products specifications
Attribute name Attribute value
Family VITA 67
RF Series VITA SMPM
Electrical
Dielectric withstanding Voltage 325 VRMS
Shielding Effectiveness ≥ -100 dB, DC to 26.5 GHz
Mechanical
Mating Cycles 500
Insertion Force 2.5 lbs (per contact)
Withdrawal Force 1.5 lbs
Environmental
Temperature Rating -65°C to +165°C
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Vibration MIL-STD-202, Method 204, Condition D
Shock MIL-STD-202, Method 213, Condition I
Thermal Shock MIL-STD-202, Method 107, Condition B
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.

Contact Us

How can we help?

*
*
*
*
*
*
*
*
Access all of our VITA resources for this part number in one, easily-downloadable package.
VITA Toolkit Download Now
  • Drawings
  • Models
  • Rapid Response App Note
  • VITA 67.3 Catalog
  • VITA 67.3 SMPM Toolbox Resource Guide
Products specifications
Attribute name Attribute value
Family VITA 67
RF Series VITA SMPM
Electrical
Dielectric withstanding Voltage 325 VRMS
Shielding Effectiveness ≥ -100 dB, DC to 26.5 GHz
Mechanical
Mating Cycles 500
Insertion Force 2.5 lbs (per contact)
Withdrawal Force 1.5 lbs
Environmental
Temperature Rating -65°C to +165°C
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Vibration MIL-STD-202, Method 204, Condition D
Shock MIL-STD-202, Method 213, Condition I
Thermal Shock MIL-STD-202, Method 107, Condition B
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.
Customers Also Viewed
Part #   500-38-004

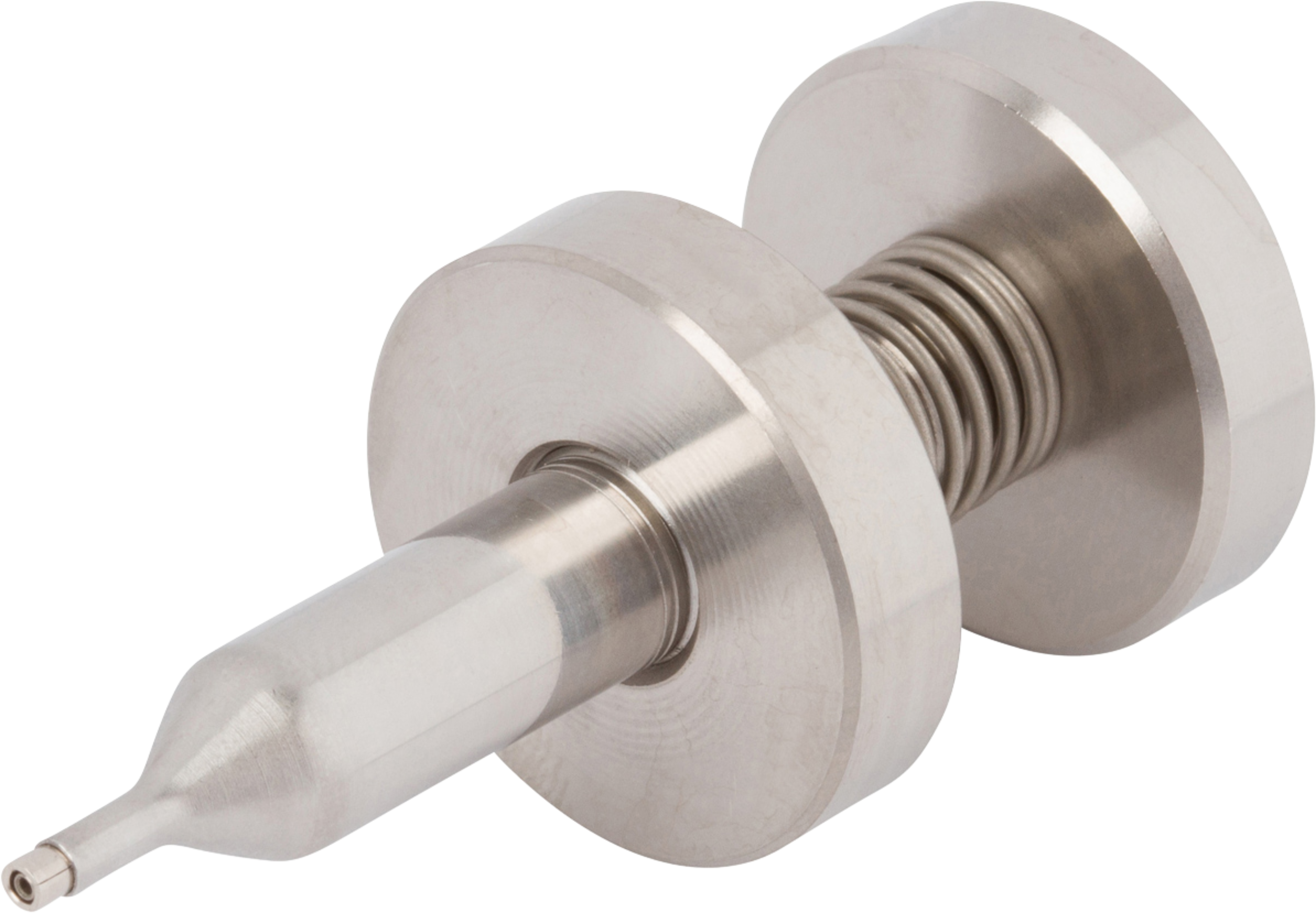

SMPS Female Bullet Removal Tool

Available Inventory: 42
500-38-004
SMPS Tool 500-38-004
Datasheet
Part #   500-32-015

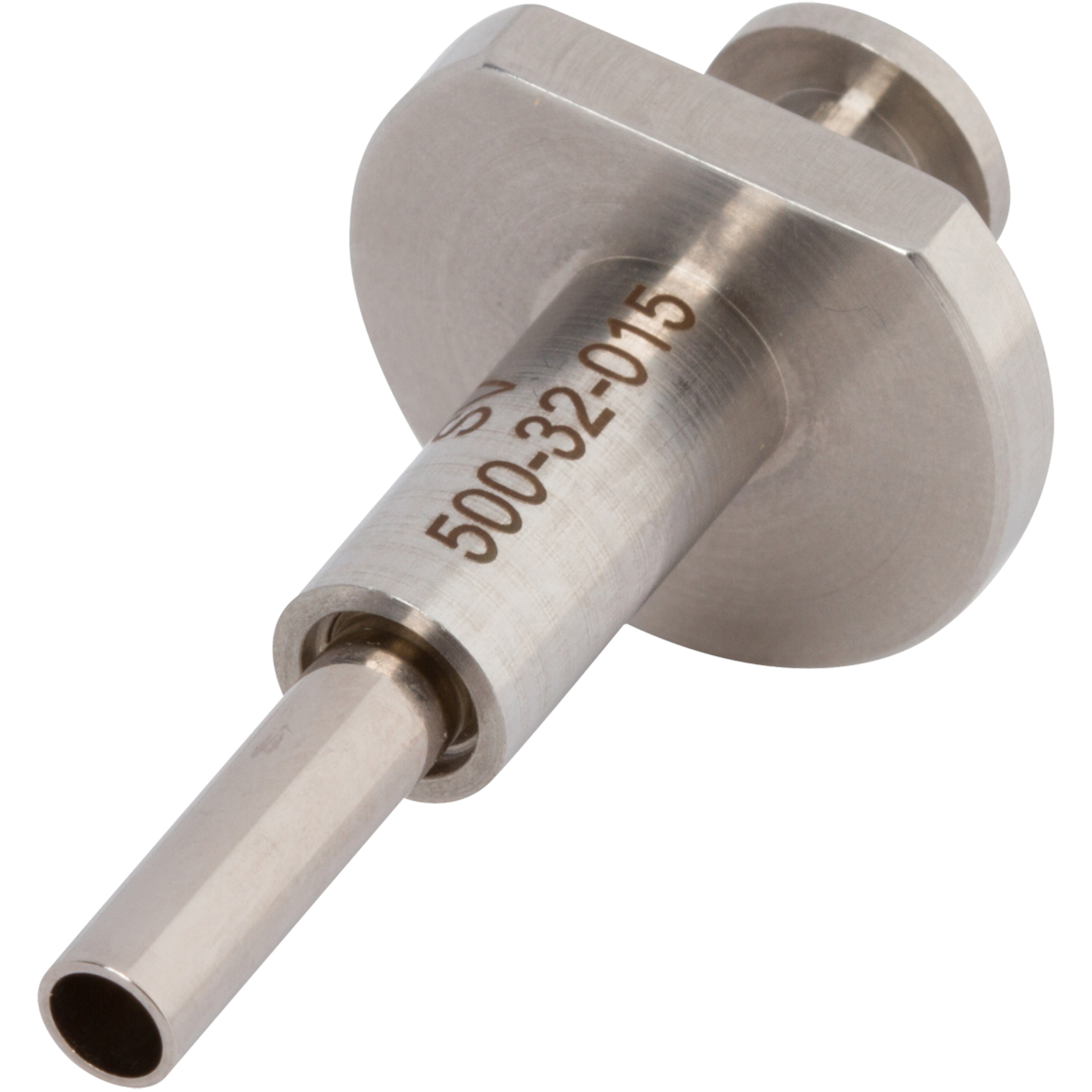

SMPM Female VITA 67.3 Contact Removal Tool

Available Inventory: 127
500-32-015
VITA Tool 500-32-015
Datasheet
Part #   500-38-006

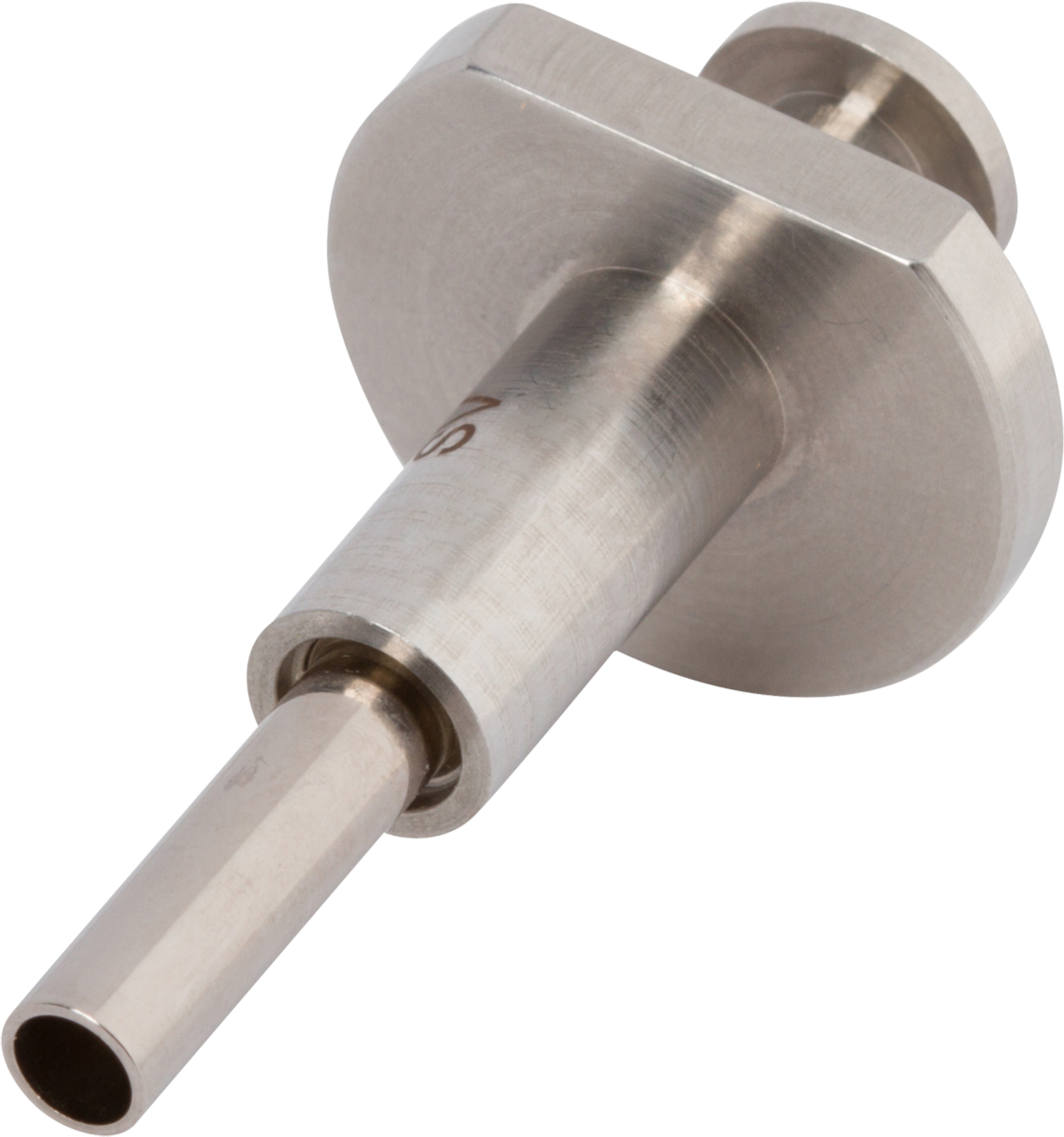

SMPS VITA 67.3 Contact Removal Tool
