SMPS VITA 67.3 Contact Removal Tool
P/N: 500-38-006

There currently isn't any inventory available in distribution. Please contact us to obtain this product.
Products specifications
Attribute name Attribute value
Family VITA 67
RF Series VITA SMPS
Electrical
Dielectric withstanding Voltage 250 VRMS
Shielding Effectiveness ≥ -100 dB, DC to 26.5 GHz
Mechanical
Mating Cycles 500
Insertion Force 1.2 lbs (per contact)
Withdrawal Force 1.0 lbs
Environmental
Temperature Rating -65°C to +165°C
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Shock MIL-STD-202, Method 213, Condition I
Vibration MIL-STD-202, Method 204, Condition D
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B
Thermal Shock MIL-STD-202, Method 107, Condition B
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.


EU RoHS Directive 2011/65/EU Compliant

These products comply with the substance restrictions of the Restriction on Hazardous Substances Directive 2011/65/EU (RoHS2). The RoHS2 Directive requires that certain electrical and electronic equipment products do not contain mercury, cadmium, hexavalent chromium, PBB, PBDE, lead, DEHP, BBP, DBP and DIBP above defined thresholds. Products indicated as 'Compliant' do not contain any of these substances above the prohibition thresholds.

EU REACH Regulation (EC) No. 1907/2006 Does not contain REACH SVHC

These products do not contain Substances of Very High Concern (SVHC) > 0.1% by weight (1000 ppm).

This information is provided based on reasonable inquiry of our suppliers and represents our current actual knowledge based on the information they provided.

Please contact [email protected] for any Compliance or Environmental related questions.

Last Update: 6/28/2023 1:28:19 AM

Spinning Wheel; Your Submission is Loading

Contact Us

How can we help?

*
*
*
*
*
*
*
*
Access all of our VITA resources for this part number in one, easily-downloadable package.
VITA Toolkit Download Now
  • Drawings
  • Models
  • Rapid Response App Note
  • VITA 67.3 Catalog
  • VITA 67.3 SMPS Toolbox Resource Guide
Products specifications
Attribute name Attribute value
Family VITA 67
RF Series VITA SMPS
Electrical
Dielectric withstanding Voltage 250 VRMS
Shielding Effectiveness ≥ -100 dB, DC to 26.5 GHz
Mechanical
Mating Cycles 500
Insertion Force 1.2 lbs (per contact)
Withdrawal Force 1.0 lbs
Environmental
Temperature Rating -65°C to +165°C
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Shock MIL-STD-202, Method 213, Condition I
Vibration MIL-STD-202, Method 204, Condition D
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B
Thermal Shock MIL-STD-202, Method 107, Condition B
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.
Product tags
Customers Also Viewed
Part #   500-38-002

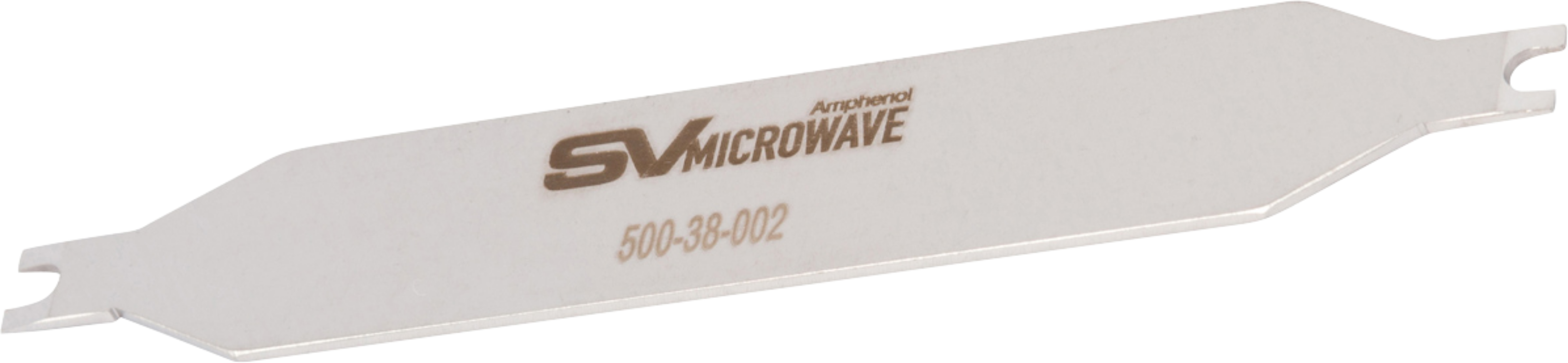

SMPS Female Cable Removal Tool

Available Inventory: 23
500-38-002
SMPS Tool 500-38-002
Datasheet
Part #   500-38-004

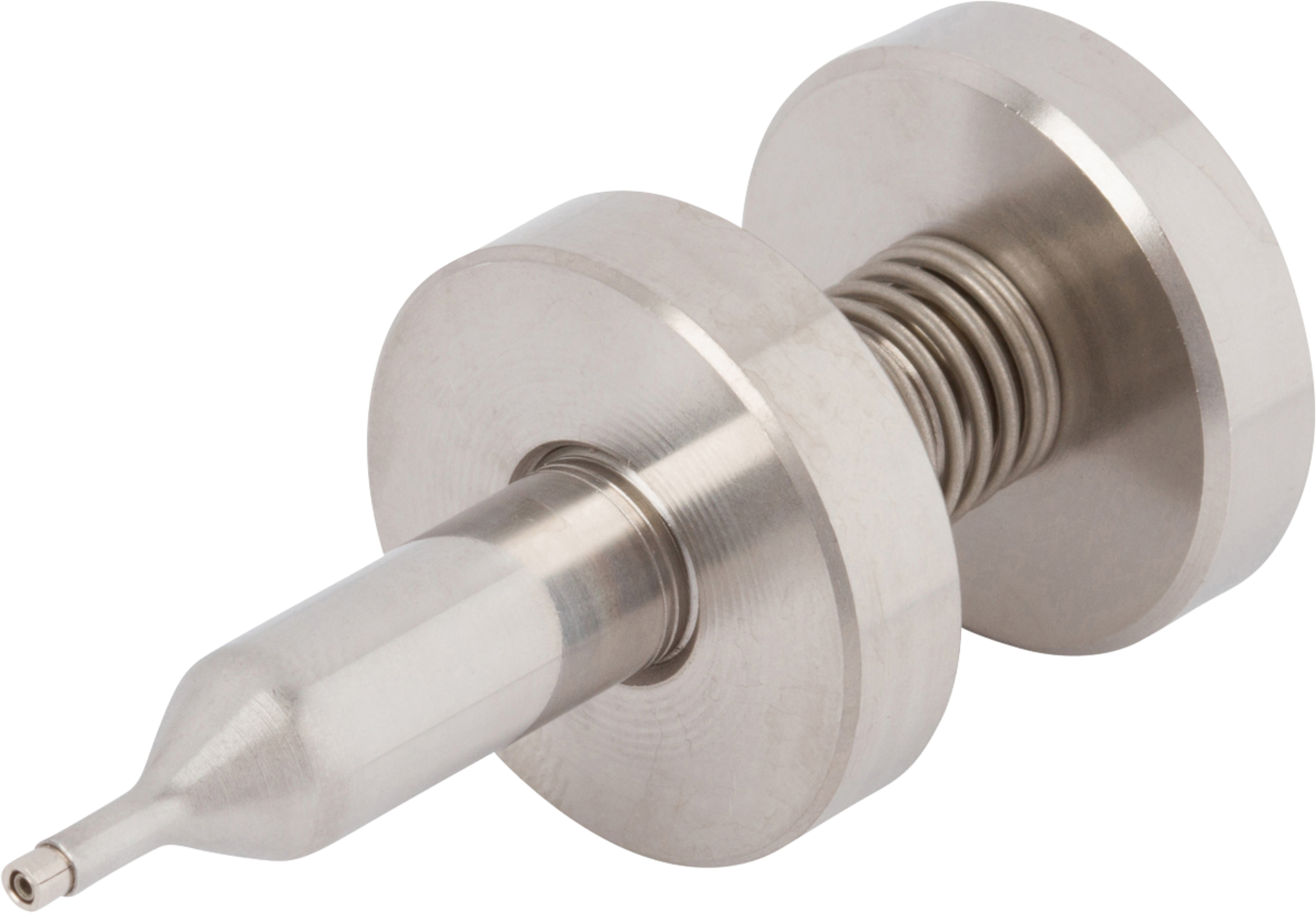

SMPS Female Bullet Removal Tool

Available Inventory: 33
500-38-004
SMPS Tool 500-38-004
Datasheet
Part #   500-32-022

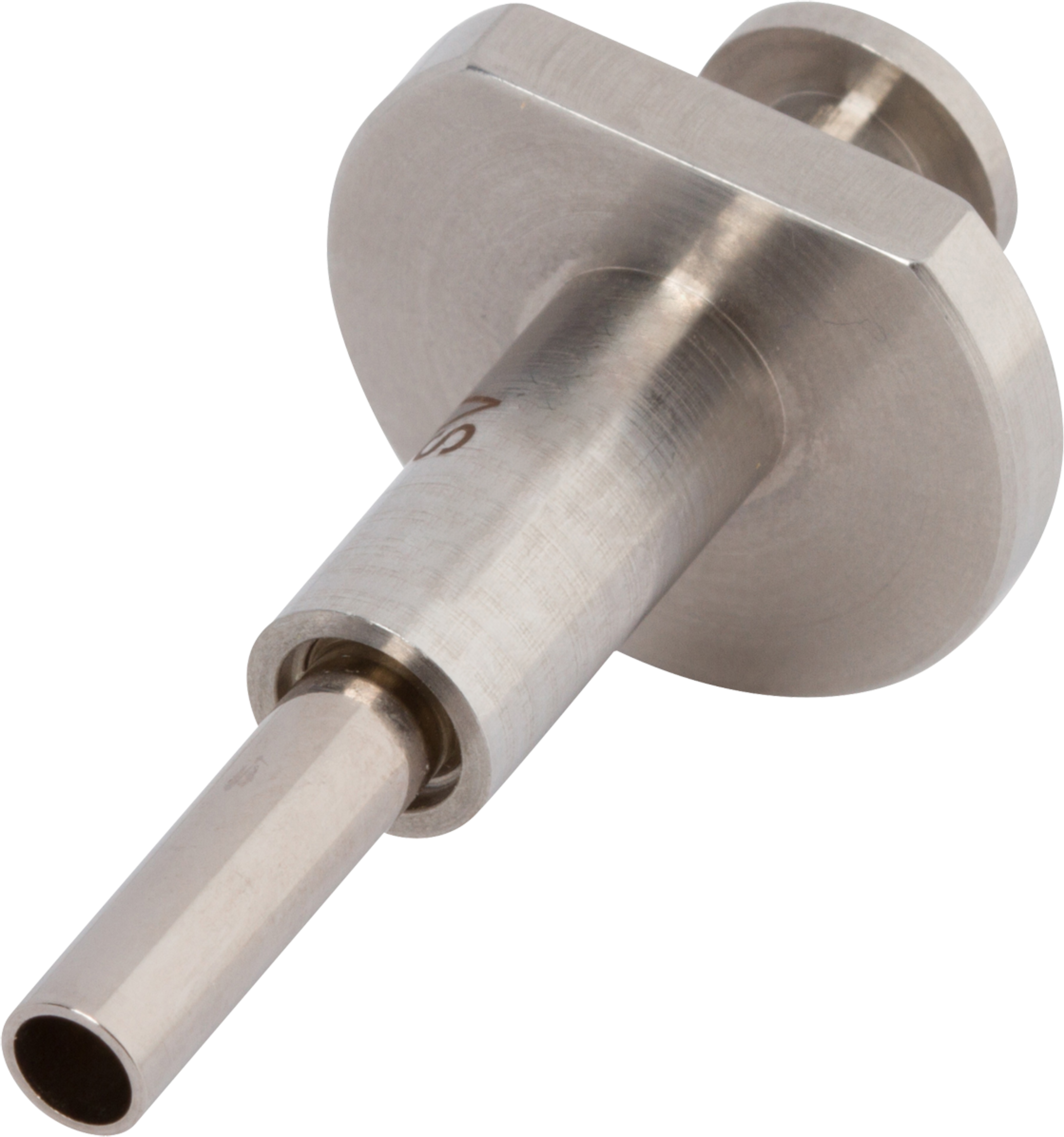

SMPM Female VITA 67.1/2 Contact Removal Tool
