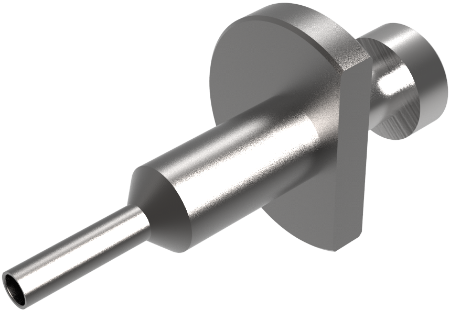

SMPS VITA 67.3 Gen2 Plug-In Contact Removal Tool, 500-38-021

SMPS VITA 67.3 Gen2 Plug-In Contact Removal Tool
P/N: 500-38-021

There currently isn't any inventory available in distribution. Please contact us to obtain this product.
Downloads
Products specifications
Attribute nameAttribute value
FamilyVITA 67
RF SeriesVITA SMPS
Electrical
Dielectric withstanding Voltage200 VRMS
Shielding Effectiveness≥ -100 dB, DC to 26.5 GHz
Mechanical
Mating Cycles500
Insertion Force1.2 lbs (per contact)
Withdrawal Force1.0 lbs
Environmental
Temperature Rating-65°C to +165°C
Corrosion (salt spray)MIL-STD-202, Method 101, Condition B
ShockMIL-STD-202, Method 213, Condition I
VibrationMIL-STD-202, Method 204, Condition D
Moisture ResistanceMIL-STD-202, Method 106, Less Step 7B
Thermal ShockMIL-STD-202, Method 107, Condition B
Barometric Pressure (Altitude)MIL-STD-202, Method 105, Condition C, 70k Ft.


This information is provided based on reasonable inquiry of our suppliers and represents our current actual knowledge based on the information they provided.

Please contact compliance@svmicro.com for any Compliance or Environmental related questions.

Last Update: 6/17/2026 1:24:34 AM
Spinning Wheel; Your Submission is Loading

Contact Us

How can we help?

*
*
*
*
*
*
*
*
Products specifications
Attribute nameAttribute value
FamilyVITA 67
RF SeriesVITA SMPS
Electrical
Dielectric withstanding Voltage200 VRMS
Shielding Effectiveness≥ -100 dB, DC to 26.5 GHz
Mechanical
Mating Cycles500
Insertion Force1.2 lbs (per contact)
Withdrawal Force1.0 lbs
Environmental
Temperature Rating-65°C to +165°C
Corrosion (salt spray)MIL-STD-202, Method 101, Condition B
ShockMIL-STD-202, Method 213, Condition I
VibrationMIL-STD-202, Method 204, Condition D
Moisture ResistanceMIL-STD-202, Method 106, Less Step 7B
Thermal ShockMIL-STD-202, Method 107, Condition B
Barometric Pressure (Altitude)MIL-STD-202, Method 105, Condition C, 70k Ft.
Product tags
Customers Also Viewed

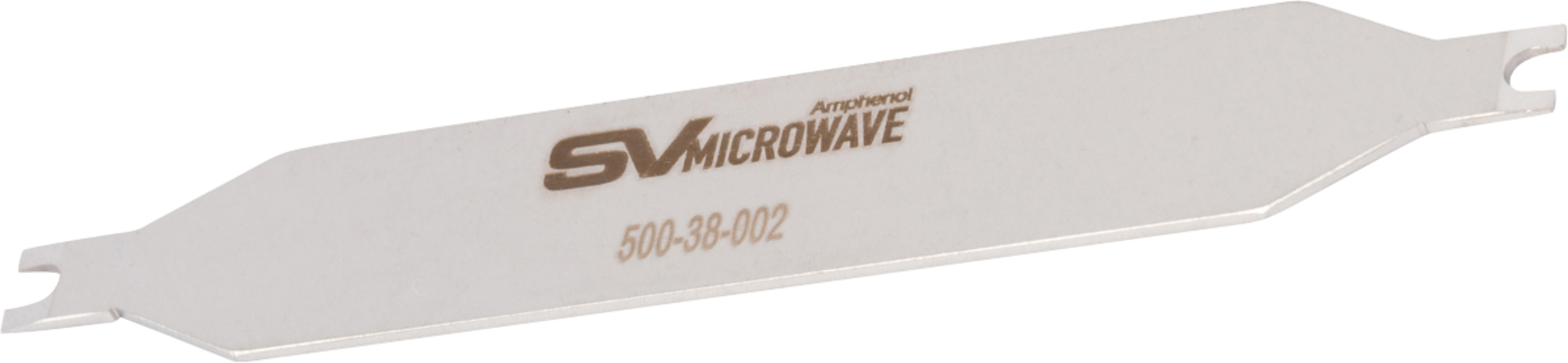

SMPS Female Cable Removal Tool, 500-38-002
Part #   500-38-002

SMPS Female Cable Removal Tool

Available Inventory: 25
500-38-002
SMPS Tool 500-38-002
Datasheet

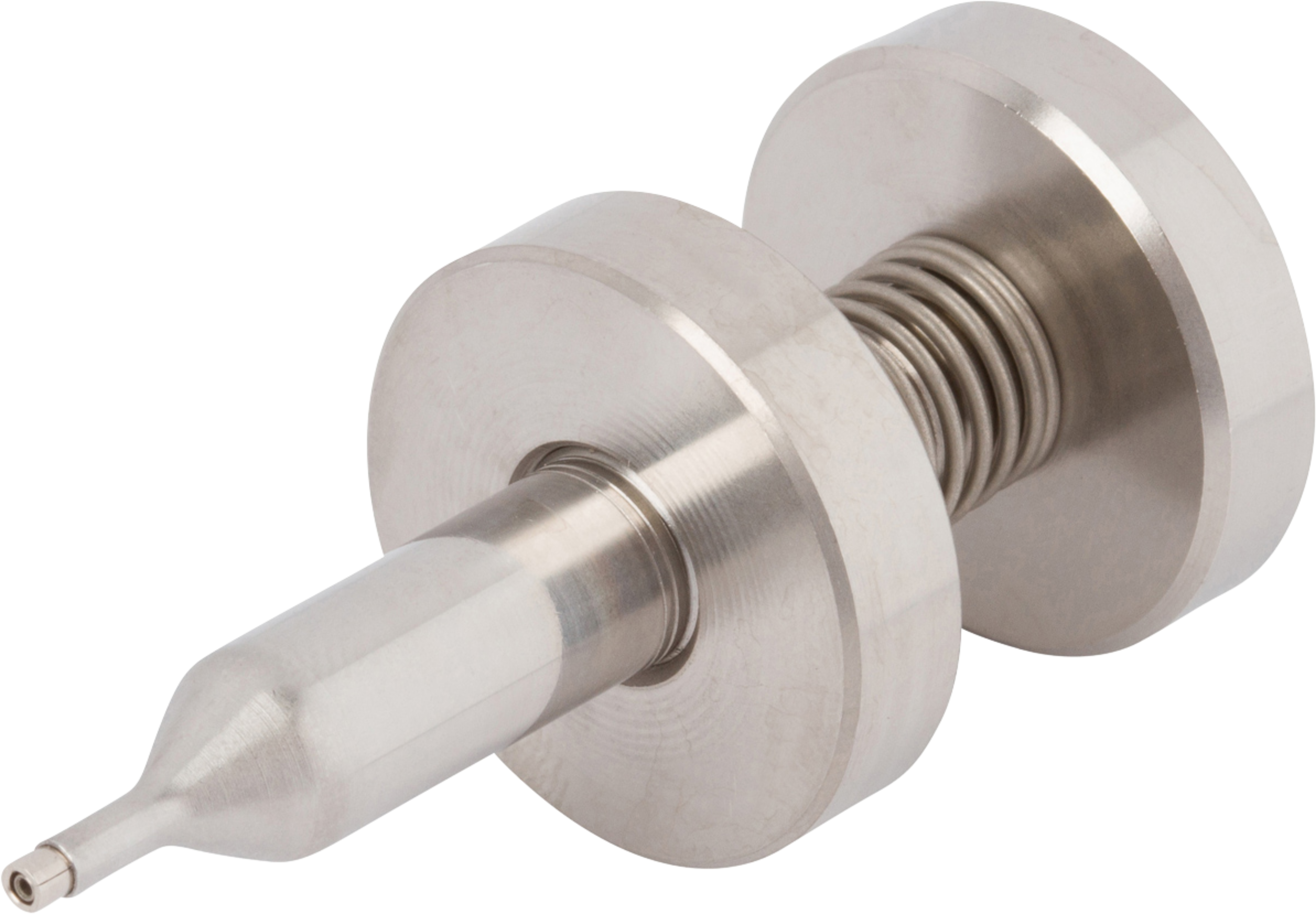

SMPS Female Bullet Removal Tool, 500-38-004
