SMPS VITA 67.3 19 Port Aluminum Backplane Module
P/N: 9321-80036

In stock at Qty Order
Mouser Electronics 19
Newark 10
Farnell 10
Digi-Key Electronics 9
Products specifications
Attribute name Attribute value
Family VITA 67, SOSA Aligned
RF Series VITA SMPS
Orientation (Body) Straight
Coupling Push-on
Mounting Type Snap-in
Number of Ports Multiple
Finish Passivated
Electrical
Frequency 100 GHz
Impedance 50 ohms
Dielectric withstanding Voltage 250 VRMS
Shielding Effectiveness ≥ -100 dB, DC to 26.5 GHz
Mechanical
Mating Cycles 500
Insertion Force 1.2 lbs (per contact)
Withdrawal Force 1.0 lbs
Environmental
Temperature Rating -65°C to +165°C
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Vibration MIL-STD-202, Method 204, Condition D
Shock MIL-STD-202, Method 213, Condition I
Thermal Shock MIL-STD-202, Method 107, Condition B
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.


This information is provided based on reasonable inquiry of our suppliers and represents our current actual knowledge based on the information they provided.

Please contact [email protected] for any Compliance or Environmental related questions.

Last Update: 6/28/2023 1:31:04 AM

Spinning Wheel; Your Submission is Loading

Contact Us

How can we help?

*
*
*
*
*
*
*
*
Products specifications
Attribute name Attribute value
Family VITA 67, SOSA Aligned
RF Series VITA SMPS
Orientation (Body) Straight
Coupling Push-on
Mounting Type Snap-in
Number of Ports Multiple
Finish Passivated
Electrical
Frequency 100 GHz
Impedance 50 ohms
Dielectric withstanding Voltage 250 VRMS
Shielding Effectiveness ≥ -100 dB, DC to 26.5 GHz
Mechanical
Mating Cycles 500
Insertion Force 1.2 lbs (per contact)
Withdrawal Force 1.0 lbs
Environmental
Temperature Rating -65°C to +165°C
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Vibration MIL-STD-202, Method 204, Condition D
Shock MIL-STD-202, Method 213, Condition I
Thermal Shock MIL-STD-202, Method 107, Condition B
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.
Product tags
Customers Also Viewed
Part #   9321-80035

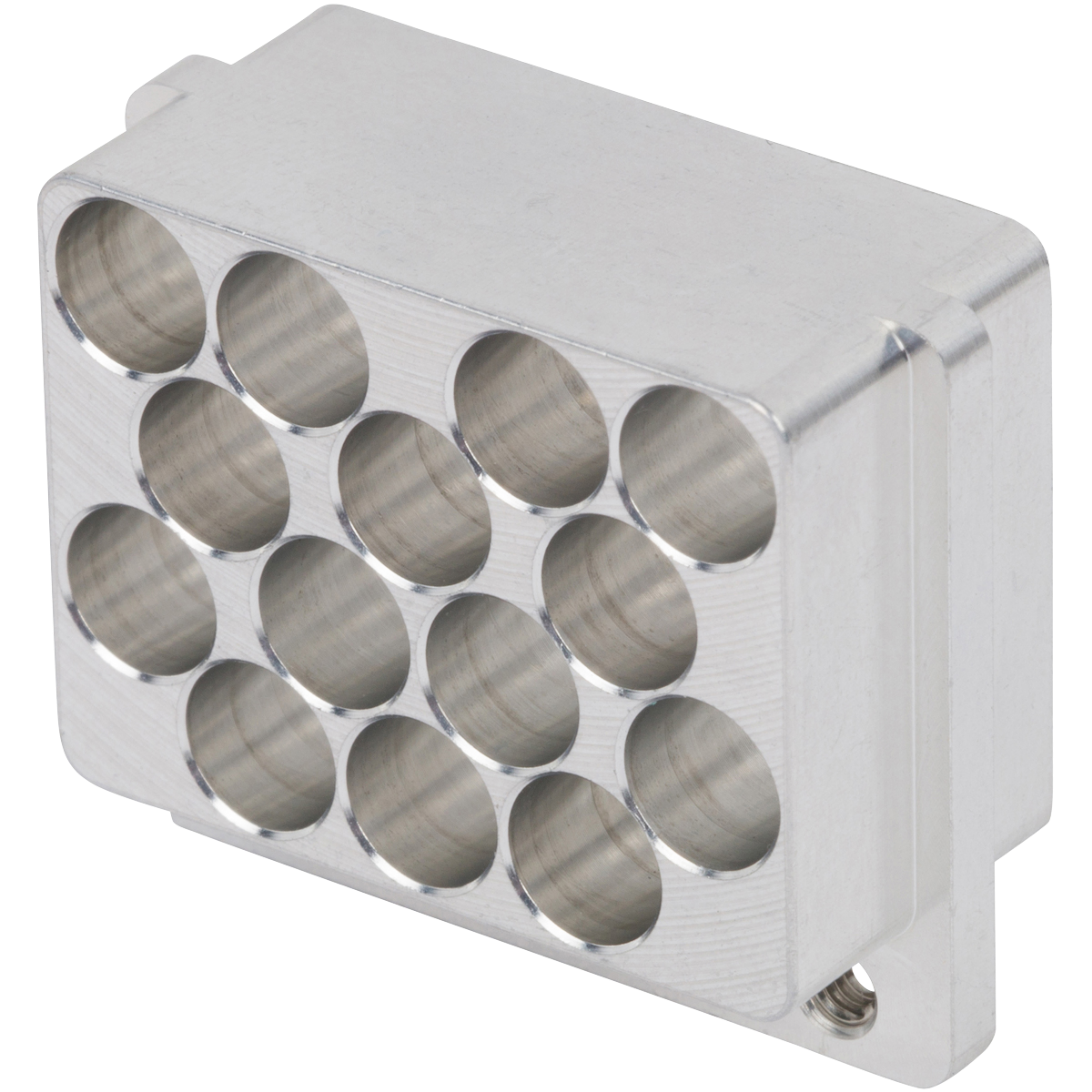

SMPM VITA 67.3 14 Port Aluminum Backplane Module

Available Inventory: 20
9321-80035
VITA Connectors 9321-80035
Datasheet
Part #   9311-80024

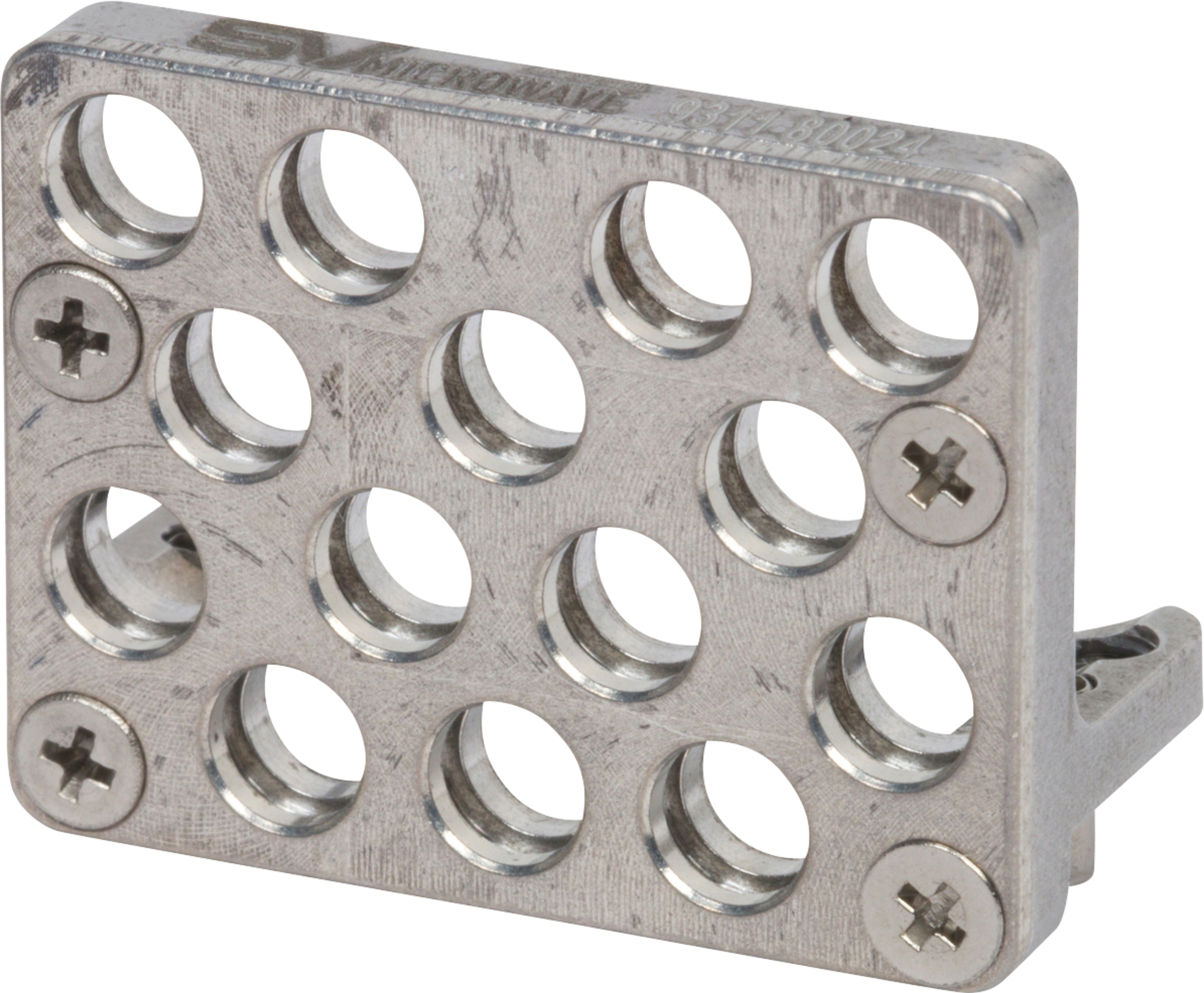

SMPM VITA 67.3 14 Port Aluminum Plug-In Module

Available Inventory: 35
9311-80024
VITA Connectors 9311-80024
Datasheet
Part #   9321-60108

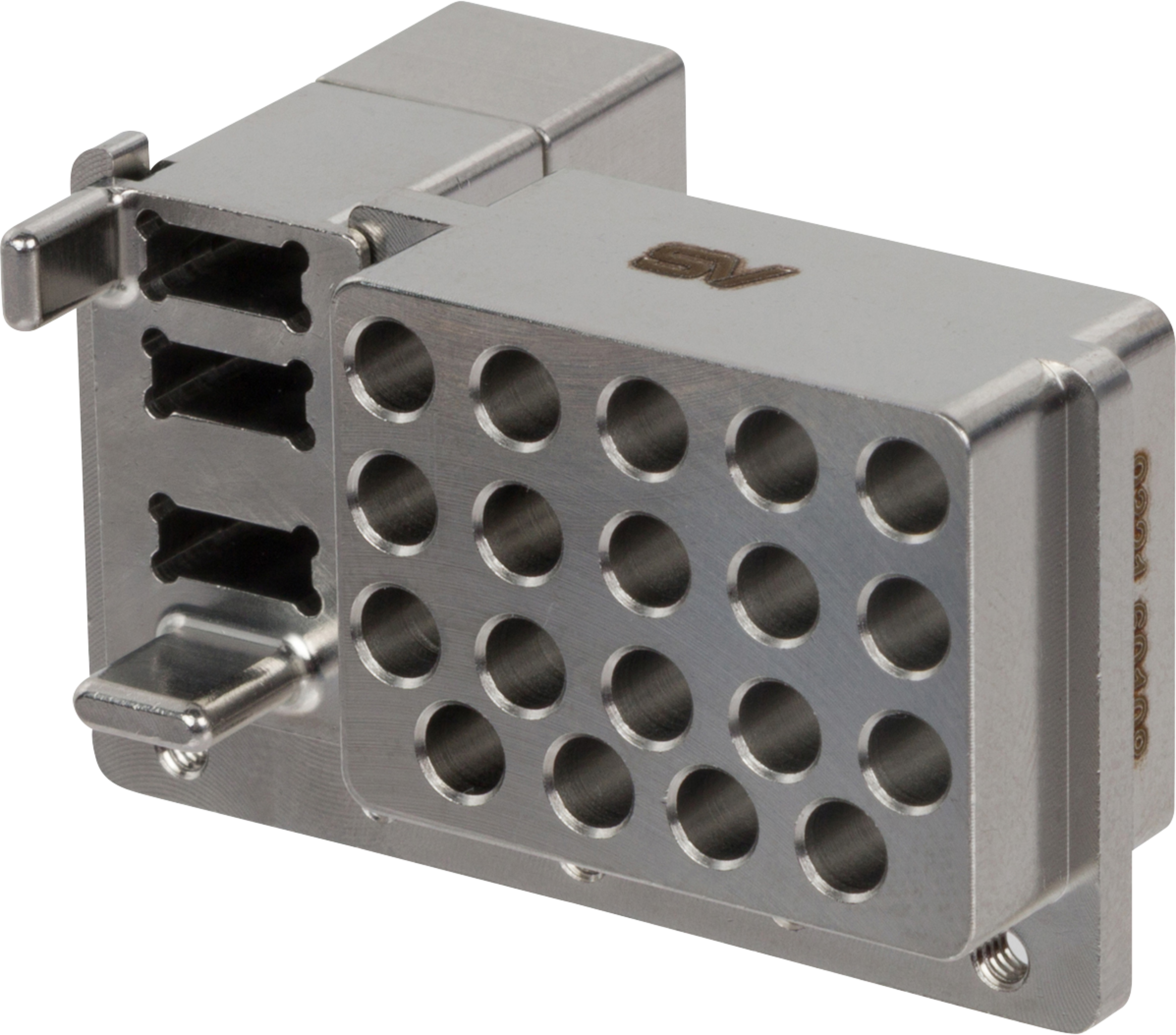

SMPS VITA 66.5 19 Port RF and 3 Port MT Fiber Backplane Hybrid Module
