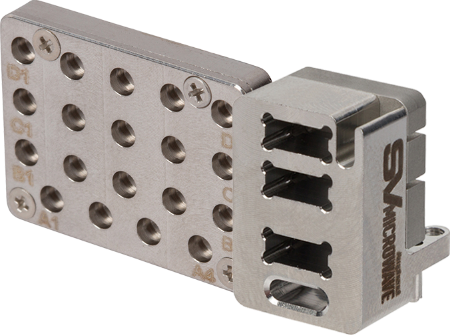

SMPS VITA 66.5 19 Port RF and 3 Port MT Fiber Plug-In Hybrid Module
P/N: 9311-60214

In stock at Qty Order
Mouser Electronics 10 On Order
Products specifications
Attribute name Attribute value
RF Series VITA SMPS
Mounting Type Snap-in
Orientation (Body) Straight
Number of Ports Multiple
Coupling Push-on
Finish Passivated
Family SOSA Aligned
Electrical
Frequency 67 GHz
Impedance 50 ohms
Dielectric withstanding Voltage 250 VRMS
Shielding Effectiveness ≥ -100 dB, DC to 26.5 GHz
Mechanical
Mating Cycles 500
Insertion Force 1.2 lbs (per contact)
Withdrawal Force 1.0 lbs
Environmental
Temperature Rating -65°C to +165°C
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Vibration MIL-STD-202, Method 204, Condition D
Shock MIL-STD-202, Method 213, Condition I
Thermal Shock MIL-STD-202, Method 107, Condition B
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.


EU RoHS Directive 2011/65/EU Yes, w/ Exemption 6C

These products comply with the substance restrictions of the Restriction on Hazardous Substances Directive 2011/65/EU (RoHS2). The RoHS2 Directive requires that certain electrical and electronic equipment products do not contain mercury, cadmium, hexavalent chromium, PBB, PBDE, lead, DEHP, BBP, DBP and DIBP above defined thresholds. Products indicated as compliant with exemption contain one or more of these substances above the prohibition thresholds, but are compliant by claiming one or more valid exemptions.

EU REACH Regulation (EC) No. 1907/2006 SVHC > Threshold

These products contain one or more EU REACH Substances of Very High Concern (SVHC) > 0.1% by weight (1000 ppm). Details related to the SVHC are displayed.

REACH SVHC: LEAD, CAS #: 7439-92-1, PPM: 4000

Use personal protective equipment as required. Do not eat, drink or smoke when using this product. Wash thoroughly after handling. Recycle if possible and dispose of the article by following all applicable governmental regulations relevant to your geographic location.

This information is provided based on reasonable inquiry of our suppliers and represents our current actual knowledge based on the information they provided.

Please contact [email protected] for any Compliance or Environmental related questions.

Last Update: 6/28/2023 1:31:03 AM

Spinning Wheel; Your Submission is Loading

Contact Us

How can we help?

*
*
*
*
*
*
*
*

Need a Complete RF/Fiber Solution?

3 MT Ferrule with Fiber Cable Assembly

To populate SV Microwave's 3 Port MT Fiber Module with a fiber cable assembly, please contact Amphenol Fiber Systems International.

[email protected]
(212) 547-2400

Products specifications
Attribute name Attribute value
RF Series VITA SMPS
Mounting Type Snap-in
Orientation (Body) Straight
Number of Ports Multiple
Coupling Push-on
Finish Passivated
Family SOSA Aligned
Electrical
Frequency 67 GHz
Impedance 50 ohms
Dielectric withstanding Voltage 250 VRMS
Shielding Effectiveness ≥ -100 dB, DC to 26.5 GHz
Mechanical
Mating Cycles 500
Insertion Force 1.2 lbs (per contact)
Withdrawal Force 1.0 lbs
Environmental
Temperature Rating -65°C to +165°C
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Vibration MIL-STD-202, Method 204, Condition D
Shock MIL-STD-202, Method 213, Condition I
Thermal Shock MIL-STD-202, Method 107, Condition B
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.
Product tags
Customers Also Viewed
Part #   9321-60109

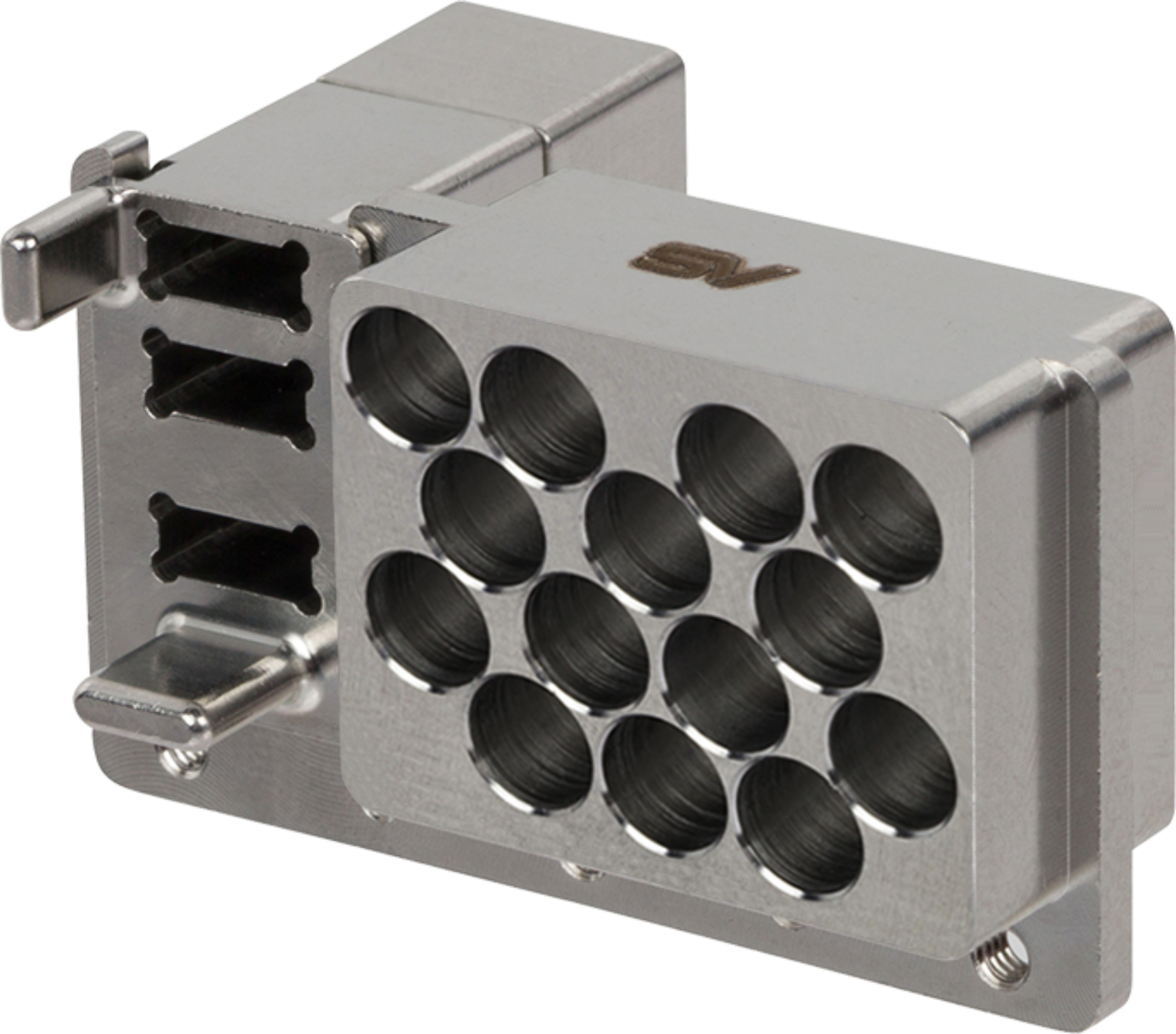

SMPM VITA 66.5 14 Port RF and 3 Port MT Fiber Backplane Hybrid Module

Available Inventory: 39
9321-60109
VITA Connectors 9321-60109
Datasheet
Part #   9321-80035

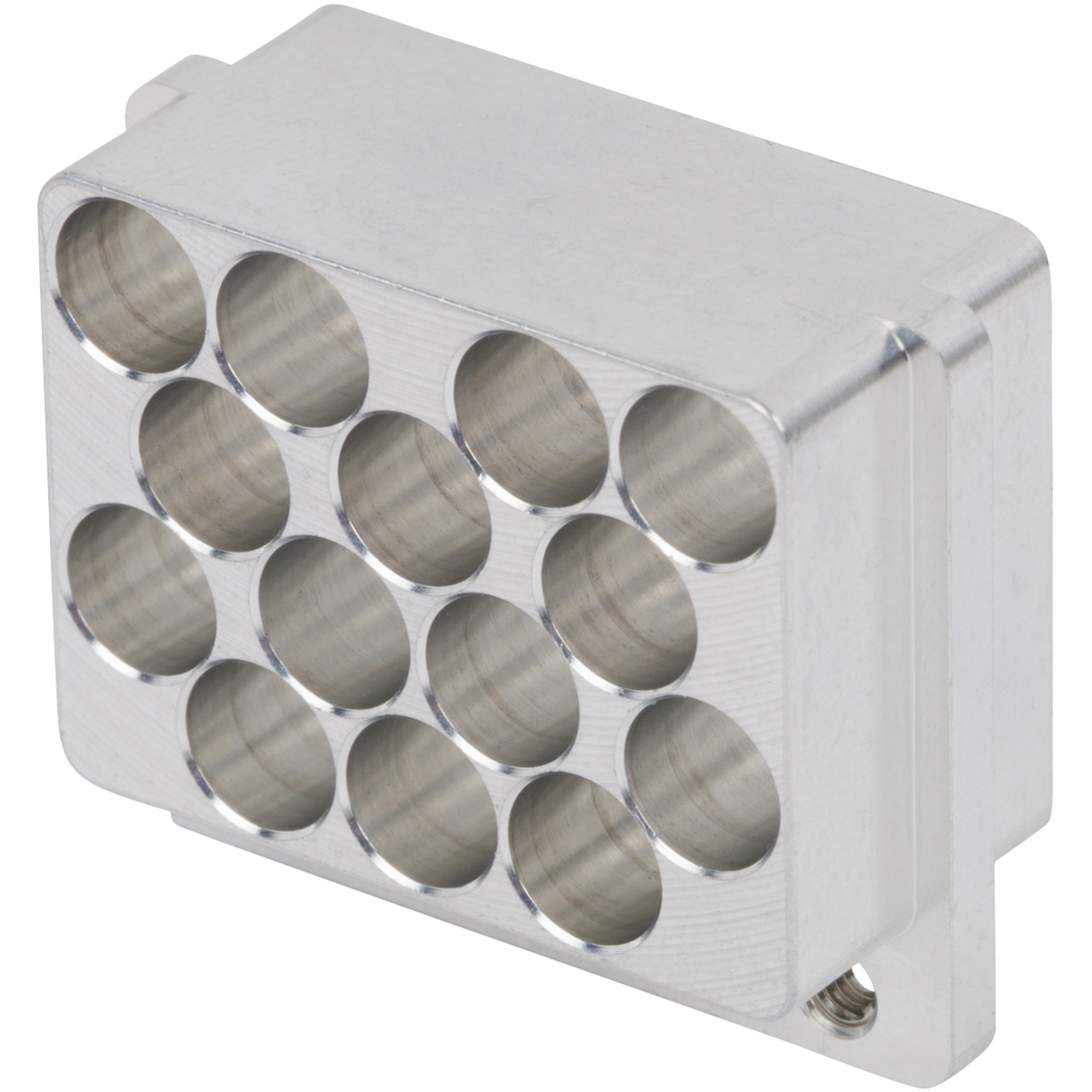

SMPM VITA 67.3 14 Port Aluminum Backplane Module
