Products specifications
| Attribute name | Attribute value |
|---|---|
| Family | VITA 66, SOSA Aligned |
| Mounting Type | PCB Edge Launch |
| Coupling | Push-on |
| Orientation (Body) | Straight |
| Number of Ports | Multiple |
| Finish | Passivated |
| Electrical | |
| Impedance | 50 ohms |
| Shielding Effectiveness | ≥ -100 dB, DC to 26.5 GHz |
| Dielectric withstanding Voltage | 250 VRMS |
| Mechanical | |
| Mating Cycles | 500 |
| Insertion Force | 1.2 lbs (per contact) |
| Withdrawal Force | 1.0 lbs |
| Environmental | |
| Temperature Rating | -65°C to +165°C |
| Corrosion (salt spray) | MIL-STD-202, Method 101, Condition B |
| Vibration | MIL-STD-202, Method 204, Condition D |
| Shock | MIL-STD-202, Method 213, Condition I |
| Moisture Resistance | MIL-STD-202, Method 106, Less Step 7B |
| Thermal Shock | MIL-STD-202, Method 107, Condition B |
| Barometric Pressure (Altitude) | MIL-STD-202, Method 105, Condition C, 70k Ft. |
Need a Complete RF/Fiber Solution? |
|
 |
To populate SV Microwave's 3 Port MT Fiber Module with a fiber cable assembly, please contact Amphenol Fiber Systems International. [email protected] |
Products specifications
| Attribute name | Attribute value |
|---|---|
| Family | VITA 66, SOSA Aligned |
| Mounting Type | PCB Edge Launch |
| Coupling | Push-on |
| Orientation (Body) | Straight |
| Number of Ports | Multiple |
| Finish | Passivated |
| Electrical | |
| Impedance | 50 ohms |
| Shielding Effectiveness | ≥ -100 dB, DC to 26.5 GHz |
| Dielectric withstanding Voltage | 250 VRMS |
| Mechanical | |
| Mating Cycles | 500 |
| Insertion Force | 1.2 lbs (per contact) |
| Withdrawal Force | 1.0 lbs |
| Environmental | |
| Temperature Rating | -65°C to +165°C |
| Corrosion (salt spray) | MIL-STD-202, Method 101, Condition B |
| Vibration | MIL-STD-202, Method 204, Condition D |
| Shock | MIL-STD-202, Method 213, Condition I |
| Moisture Resistance | MIL-STD-202, Method 106, Less Step 7B |
| Thermal Shock | MIL-STD-202, Method 107, Condition B |
| Barometric Pressure (Altitude) | MIL-STD-202, Method 105, Condition C, 70k Ft. |
Related products
SF9321-60093
VITA Connectors SF9321-60093
3821-40023
VITA Connectors 3821-40023
SF1138-6020
VITA Adapters SF1138-6020
Customers Also Viewed

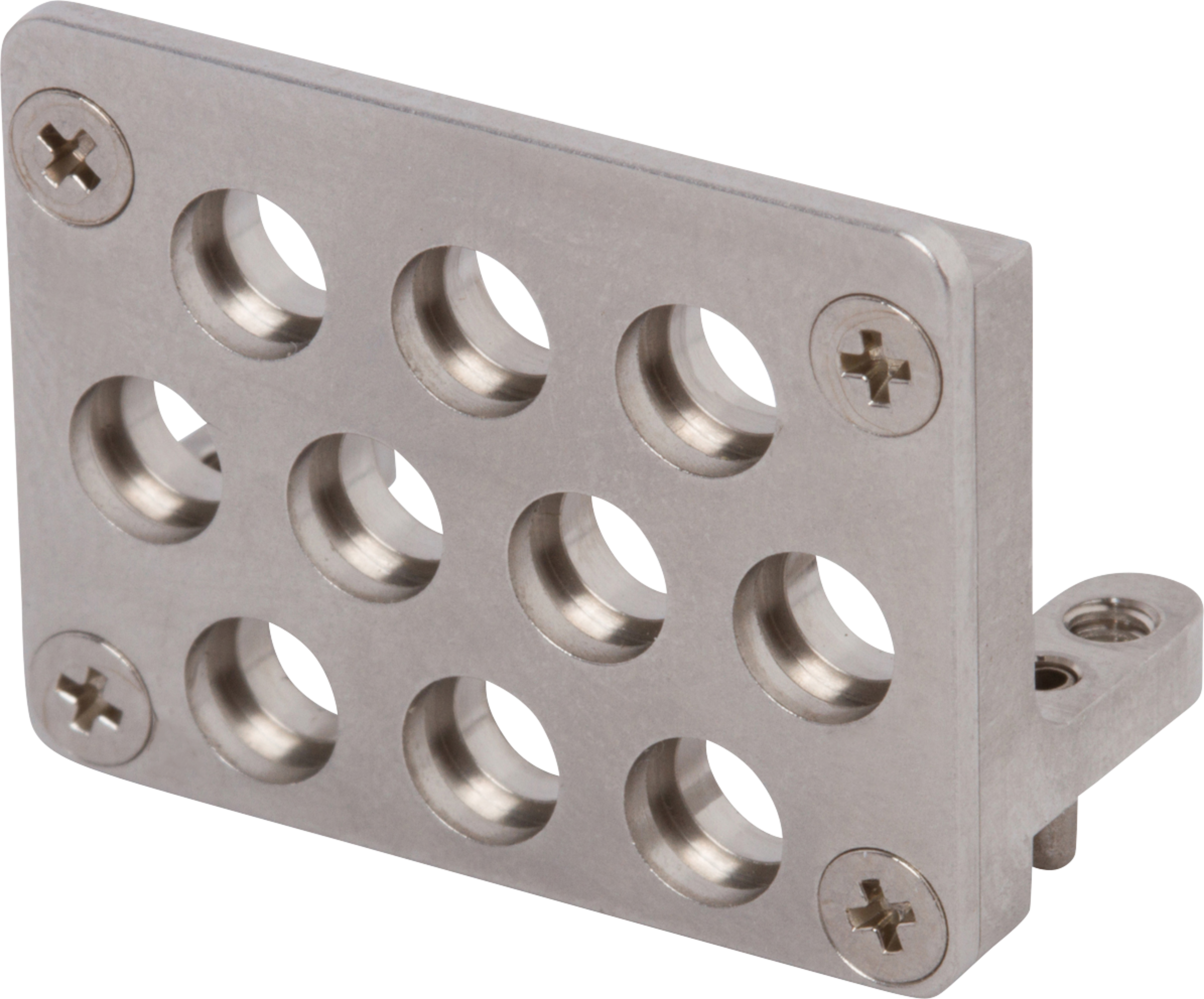

9311-60220
VITA Connectors 9311-60220

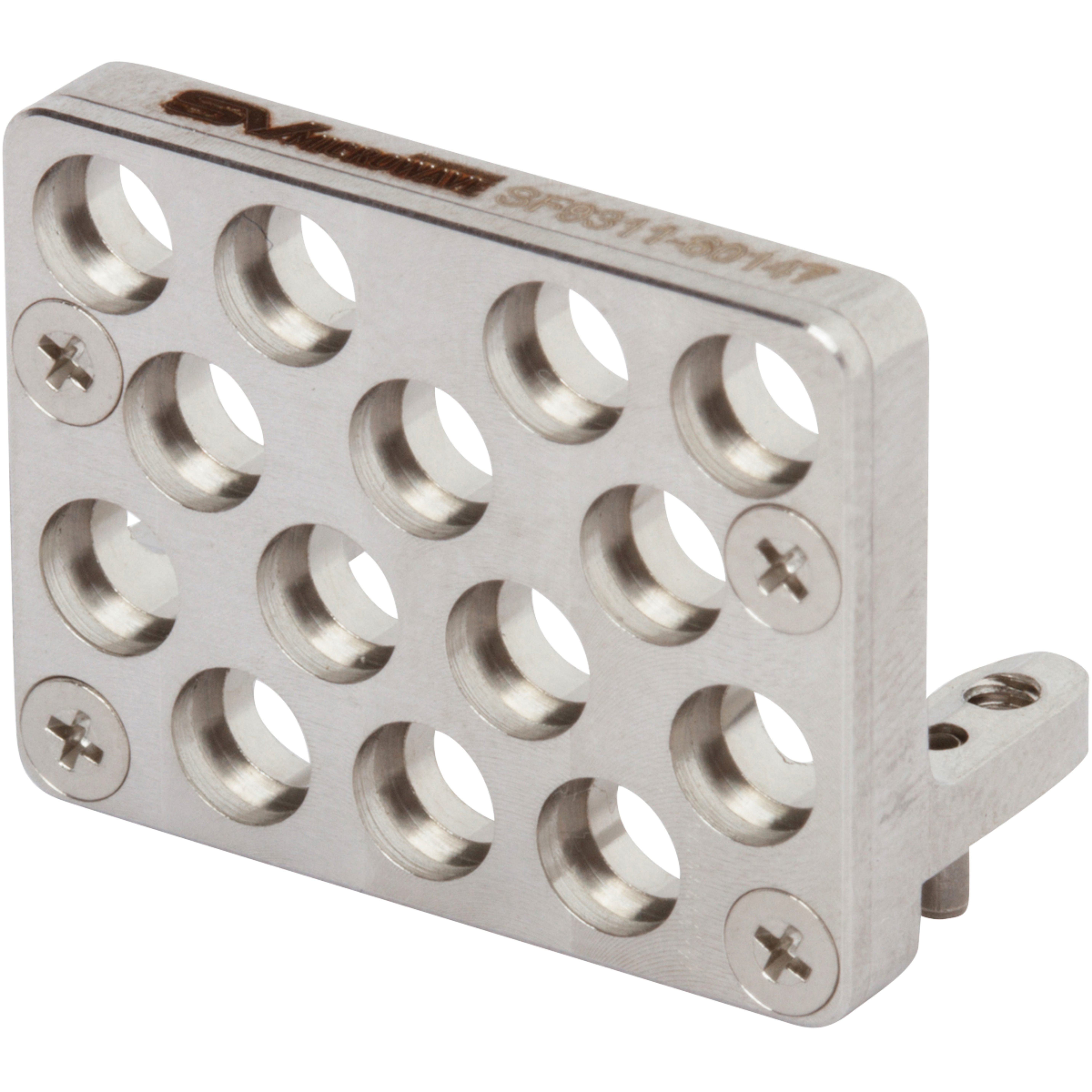

9311-60221
