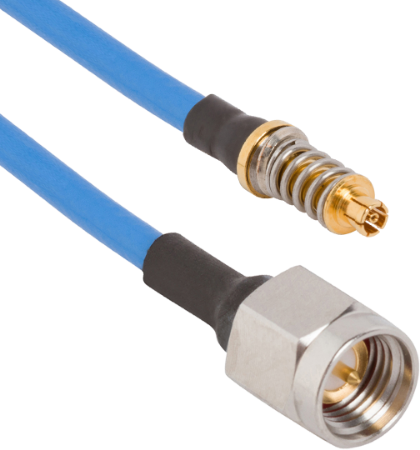

SMPM Female VITA 67.1/67.2 to SMA Male 6" Cable Assembly for .085 Cable"
P/N: 7032-6729-060

In stock at Qty Order
Digi-Key Electronics 91
Mouser Electronics 18
Newark 15
Farnell 15
Interstate Connecting Components 11
PEI-Genesis 11
Heilind Electronics 3
Products specifications
Attribute name Attribute value
Family VITA 67
Gender Jack (Female)
Orientation (Body) Straight
RF Series VITA SMPM
Coupling Push-on
Termination Style Solder
RF Series 2 SMA
Orientation 2 (Body) Straight
Gender 2 Plug (Male)
Cable Type 0.085 Flexible Coax
Cable Length 6"
Electrical
Frequency 26.5 GHz
Impedance 50 ohms
Shielding Effectiveness ≥ -100 dB, DC to 26.5 GHz
Dielectric withstanding Voltage 325 VRMS
Mechanical
Mating Cycles 500
Withdrawal Force 1.5 lbs
Insertion Force 2.5 lbs (per contact)
Environmental
Temperature Rating -65°C to +165°C
Vibration MIL-STD-202, Method 204, Condition D
Thermal Shock MIL-STD-202, Method 107, Condition B
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Shock MIL-STD-202, Method 213, Condition I
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.

EU RoHS Directive 2011/65/EU

These products comply with the substance restrictions of the Restriction on Hazardous Substances Directive 2011/65/EU (RoHS2). The RoHS2 Directive requires that certain electrical and electronic equipment products do not contain mercury, cadmium, hexavalent chromium, PBB, PBDE, lead, DEHP, BBP, DBP and DIBP above defined thresholds. Products indicated as compliant with exemption contain one or more of these substances above the prohibition thresholds, but are compliant by claiming one or more valid exemptions.

EU REACH Regulation (EC) No. 1907/2006 SVHC > Threshold

These products contain one or more EU REACH Substances of Very High Concern (SVHC) > 0.1% by weight (1000 ppm). Details related to the SVHC are displayed.

REACH SVHC: LEAD, CAS #: 7439-92-1, PPM: 30000

Use personal protective equipment as required. Do not eat, drink or smoke when using this product. Wash thoroughly after handling. Recycle if possible and dispose of the article by following all applicable governmental regulations relevant to your geographic location.

CE / UKCA Compliant

This products meets the requirements for CE and UKCA.

This information is provided based on reasonable inquiry of our suppliers and represents our current actual knowledge based on the information they provided.

Please contact [email protected] for any Compliance or Environmental related questions.

Last Update: 6/28/2023 1:12:12 AM
Spinning Wheel; Your Submission is Loading

Contact Us

How can we help?

*
*
*
*
*
*
*
*
Products specifications
Attribute name Attribute value
Family VITA 67
Gender Jack (Female)
Orientation (Body) Straight
RF Series VITA SMPM
Coupling Push-on
Termination Style Solder
RF Series 2 SMA
Orientation 2 (Body) Straight
Gender 2 Plug (Male)
Cable Type 0.085 Flexible Coax
Cable Length 6"
Electrical
Frequency 26.5 GHz
Impedance 50 ohms
Shielding Effectiveness ≥ -100 dB, DC to 26.5 GHz
Dielectric withstanding Voltage 325 VRMS
Mechanical
Mating Cycles 500
Withdrawal Force 1.5 lbs
Insertion Force 2.5 lbs (per contact)
Environmental
Temperature Rating -65°C to +165°C
Vibration MIL-STD-202, Method 204, Condition D
Thermal Shock MIL-STD-202, Method 107, Condition B
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Shock MIL-STD-202, Method 213, Condition I
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.
Customers Also Viewed
Part #   7032-6728-060

SMPM Female VITA 67.1/67.2 to SMA Male 6" Cable Assembly for .047 Cable"

Available Inventory: 29
7032-6728-060
VITA Cable Assemblies 7032-6728-060
Datasheet
Part #   7032-6728-120

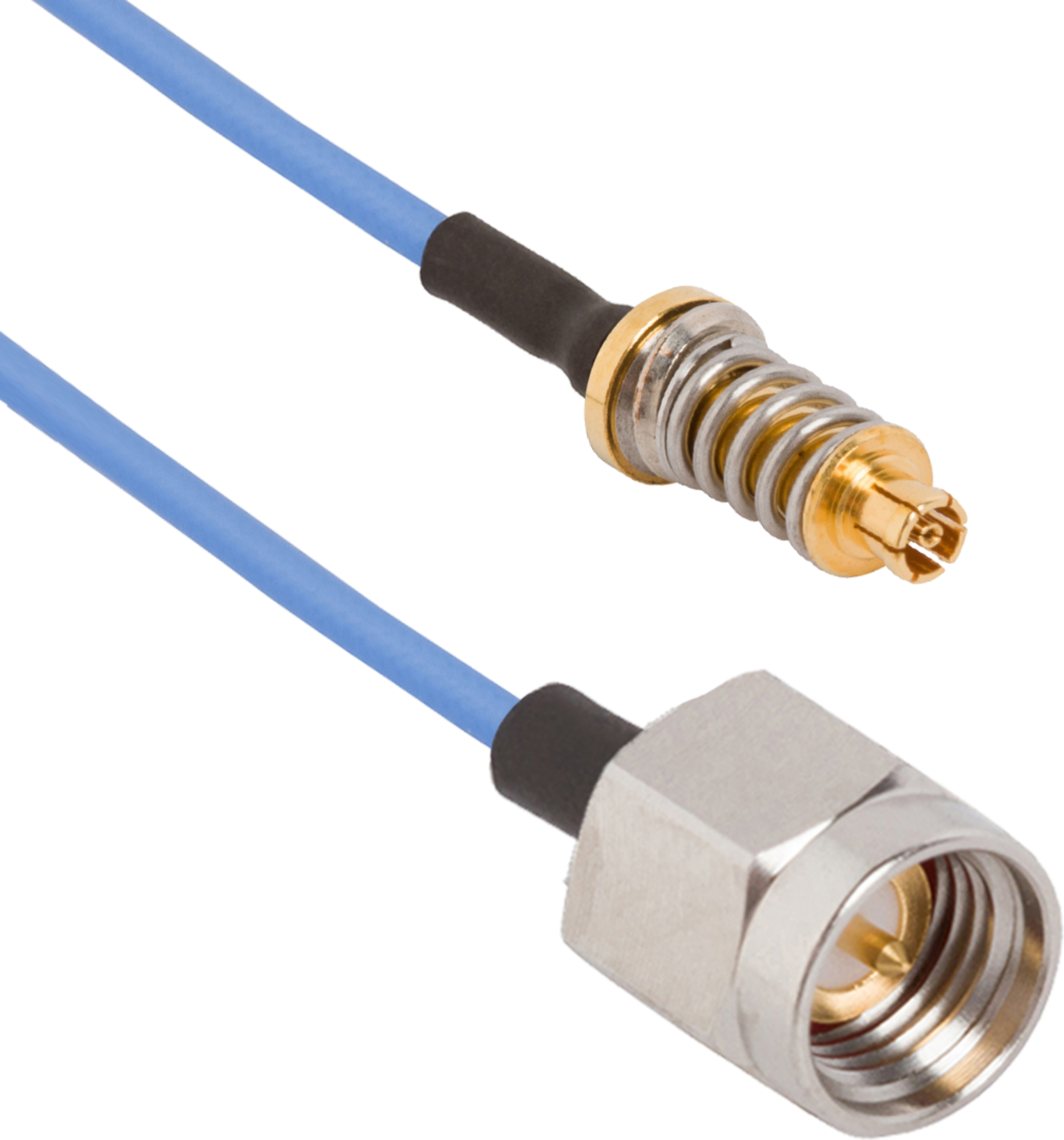

SMPM Female VITA 67.1/67.2 to SMA Male 12" Cable Assembly for .047 Cable"
