SMPM VITA 67.1 Plug-in Module
P/N: SF9321-60015

In stock at Qty Order
Mouser Electronics 47
Digi-Key Electronics 44
Master Electronics 41
Onlinecomponents.com 41
TTI Inc Global Headquarters 39
Products specifications
Attribute name Attribute value
Family VITA 67
Orientation (Body) Straight
RF Series VITA SMPM
Coupling Push-on
Mounting Type Snap-in
Finish Passivated
Electrical
Frequency 40 GHz
Impedance 50 ohms
Dielectric withstanding Voltage 325 VRMS
Shielding Effectiveness ≥ -100 dB, DC to 26.5 GHz
Mechanical
Insertion Force 2.5 lbs (per contact)
Mating Cycles 500
Withdrawal Force 1.5 lbs
Environmental
Vibration MIL-STD-202, Method 204, Condition D
Temperature Rating -65°C to +165°C
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Shock MIL-STD-202, Method 213, Condition I
Thermal Shock MIL-STD-202, Method 107, Condition B
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B


EU RoHS Directive 2011/65/EU Compliant

These products comply with the substance restrictions of the Restriction on Hazardous Substances Directive 2011/65/EU (RoHS2). The RoHS2 Directive requires that certain electrical and electronic equipment products do not contain mercury, cadmium, hexavalent chromium, PBB, PBDE, lead, DEHP, BBP, DBP and DIBP above defined thresholds. Products indicated as 'Compliant' do not contain any of these substances above the prohibition thresholds.

EU REACH Regulation (EC) No. 1907/2006 Does not contain REACH SVHC

These products do not contain Substances of Very High Concern (SVHC) > 0.1% by weight (1000 ppm).

This information is provided based on reasonable inquiry of our suppliers and represents our current actual knowledge based on the information they provided.

Please contact [email protected] for any Compliance or Environmental related questions.

Last Update: 6/28/2023 1:27:55 AM

Spinning Wheel; Your Submission is Loading

Contact Us

How can we help?

*
*
*
*
*
*
*
*
Products specifications
Attribute name Attribute value
Family VITA 67
Orientation (Body) Straight
RF Series VITA SMPM
Coupling Push-on
Mounting Type Snap-in
Finish Passivated
Electrical
Frequency 40 GHz
Impedance 50 ohms
Dielectric withstanding Voltage 325 VRMS
Shielding Effectiveness ≥ -100 dB, DC to 26.5 GHz
Mechanical
Insertion Force 2.5 lbs (per contact)
Mating Cycles 500
Withdrawal Force 1.5 lbs
Environmental
Vibration MIL-STD-202, Method 204, Condition D
Temperature Rating -65°C to +165°C
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Shock MIL-STD-202, Method 213, Condition I
Thermal Shock MIL-STD-202, Method 107, Condition B
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B
Customers Also Viewed
Part #   SF9321-60013

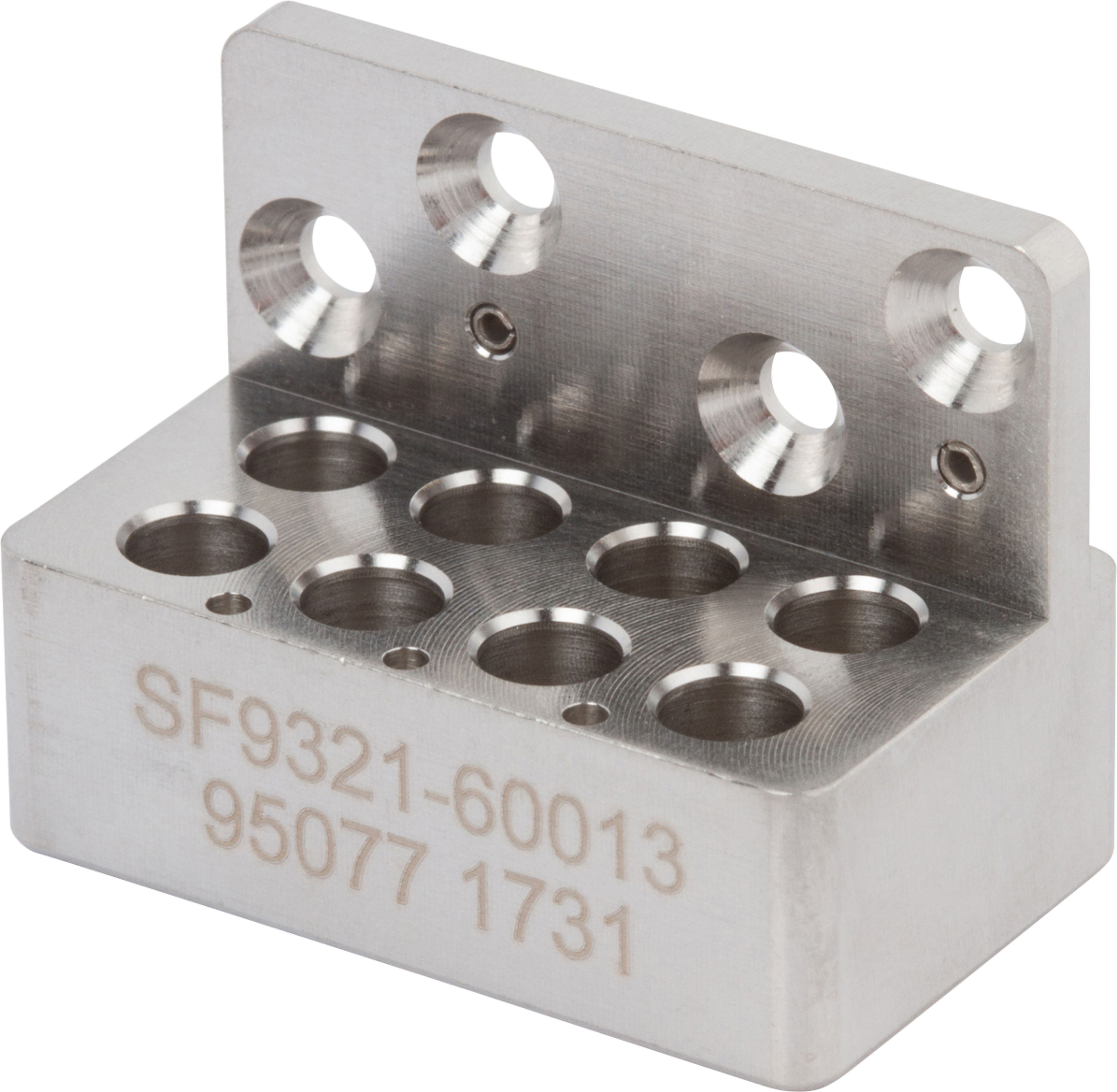

SMPM VITA 67.2 Plug-in Module

Available Inventory: 887
SF9321-60013
VITA Connectors SF9321-60013
Datasheet
Part #   500-32-022

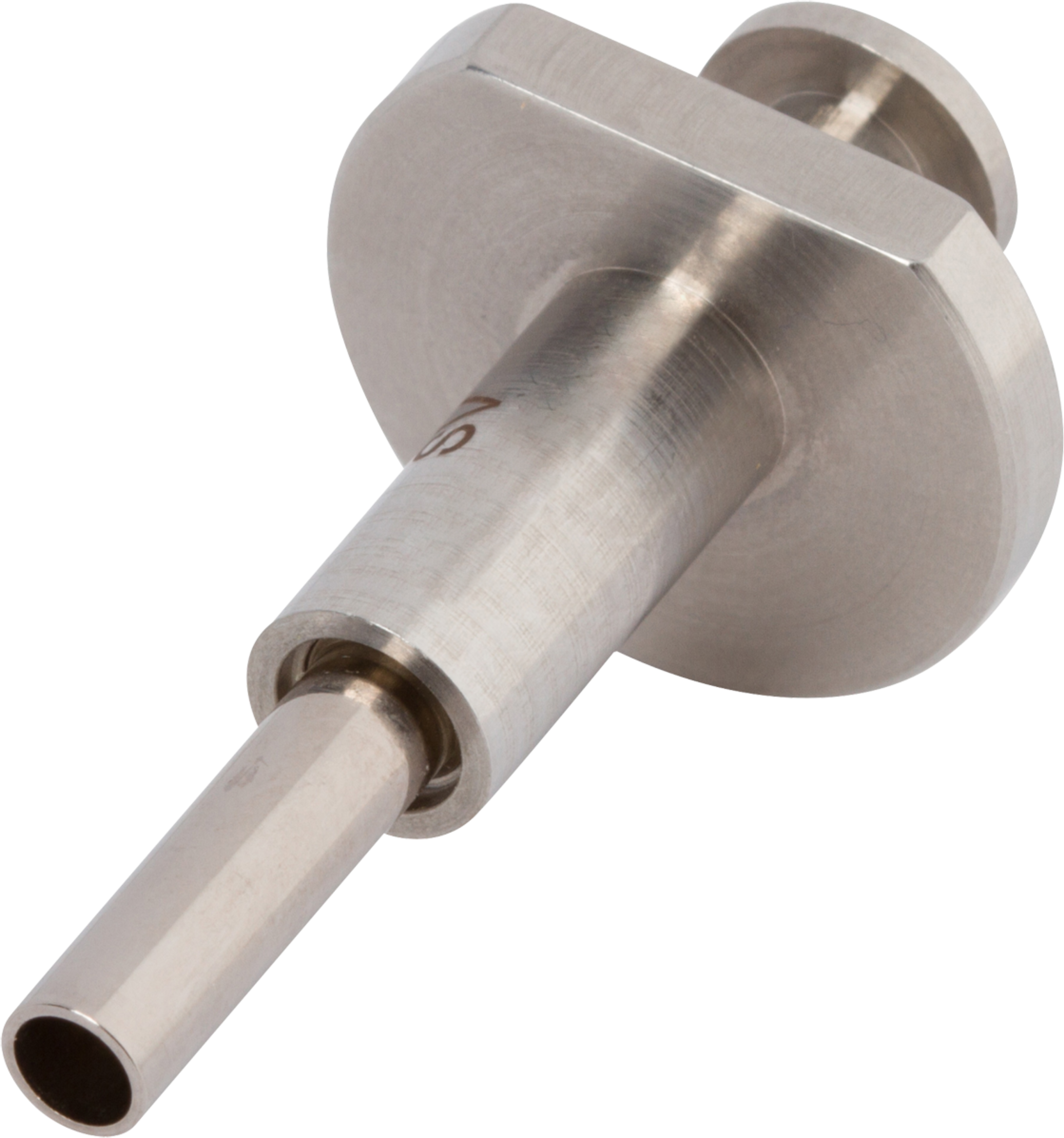

SMPM Female VITA 67.1/2 Contact Removal Tool

Available Inventory: 58
500-32-022
VITA Tool 500-32-022
Datasheet
Part #   SF9911-6000

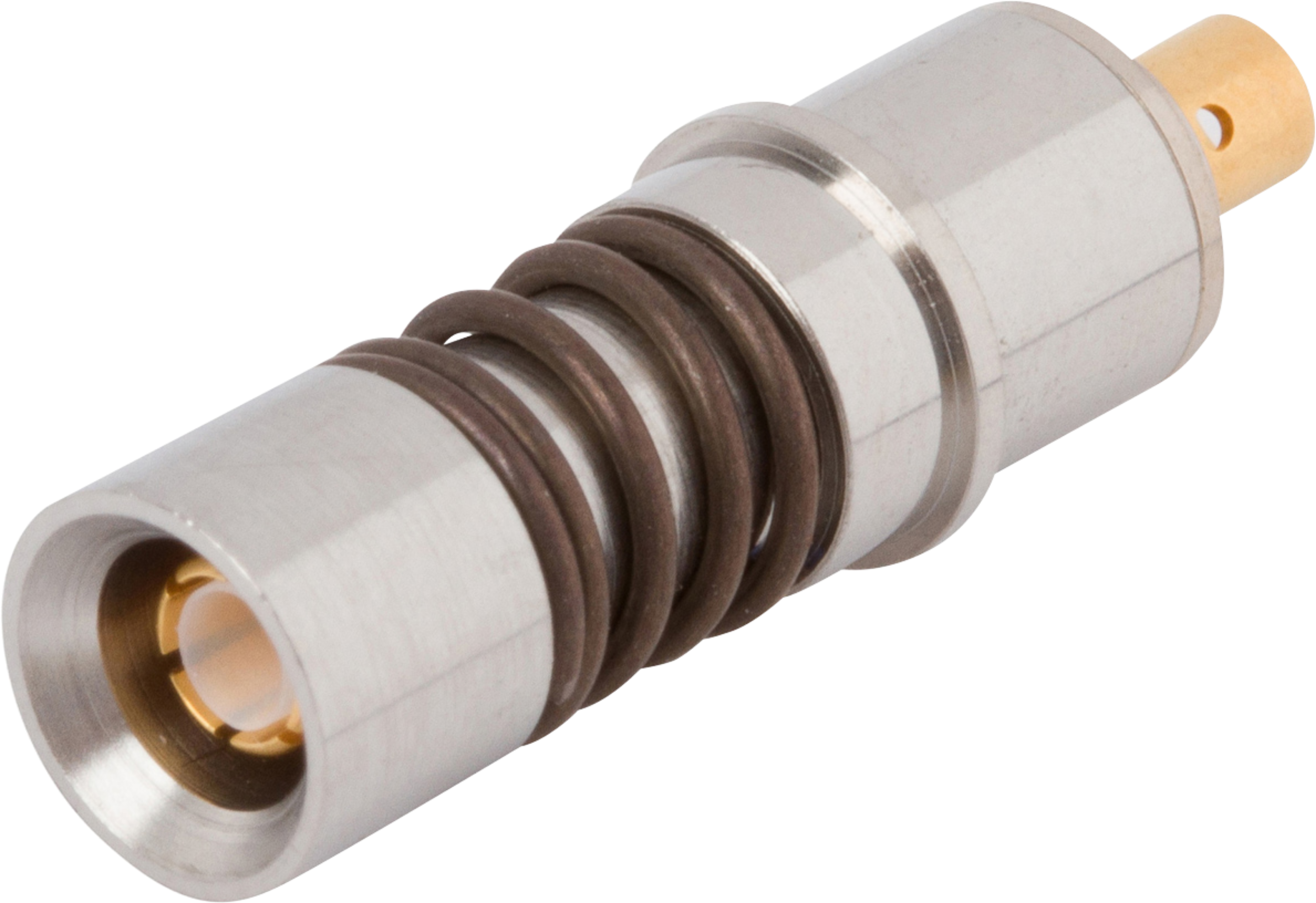

BMZ Socket D38999 Contact (Size 8) for .085 Cable
