P/N: 7032-7160

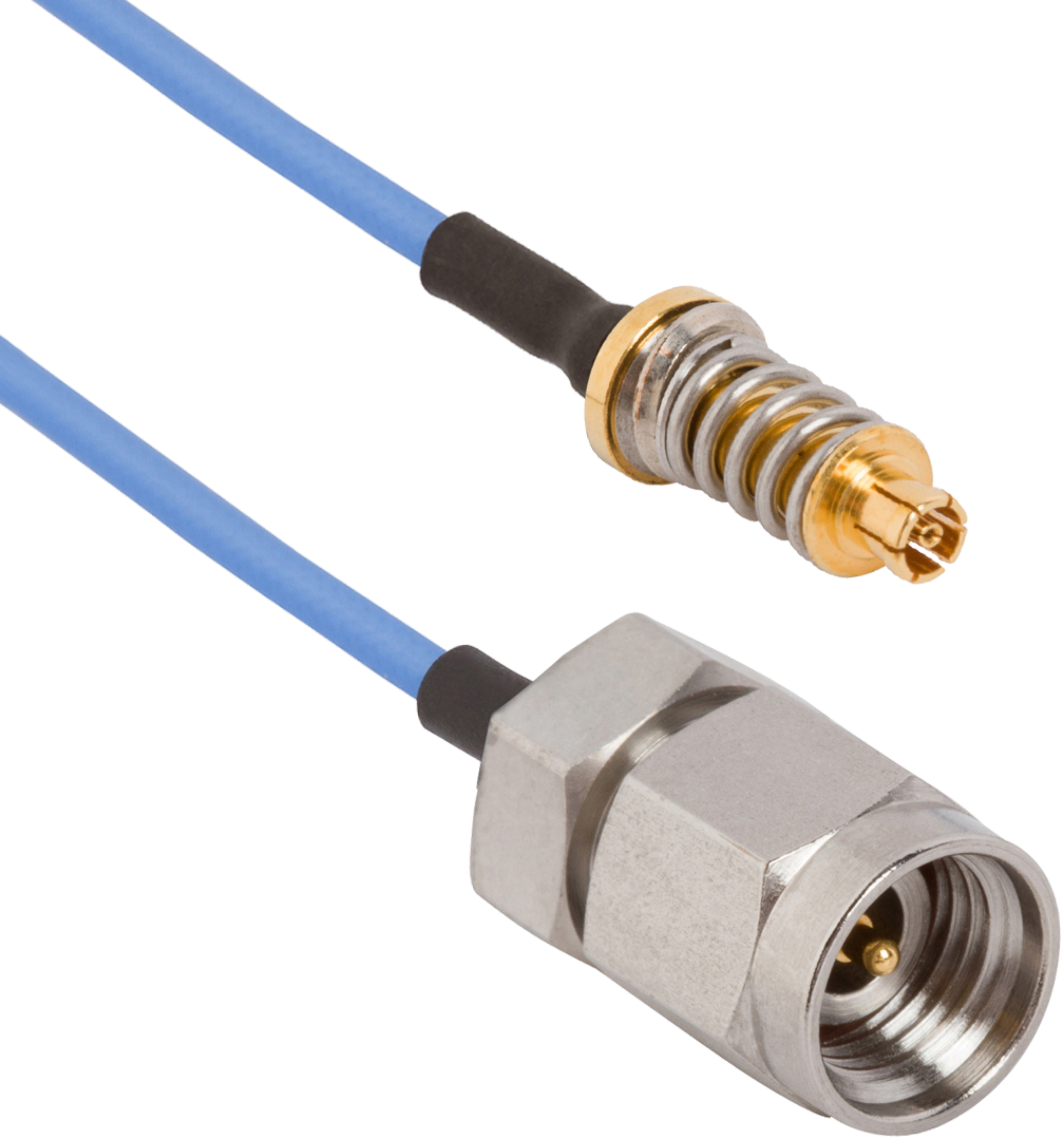

SMPM Female VITA 67.1/67.2 to 2.92mm Male 12" Cable Assembly for .047 Cable"

Not available for this part number. Please contact us.
Products specifications
Attribute name Attribute value
RF Series VITA SMPM
Orientation (Body) Straight
Coupling Push-on
Termination Style Solder
Gender Jack (Female)
RF Series 2 2.92 mm
Gender 2 Plug (Male)
Cable Type 0.047 Flexible Coax
Orientation 2 (Body) Straight
Family VITA 67
Cable Length 12"
Electrical
Frequency 40 GHz
Impedance 50 ohms
Shielding Effectiveness ≥ -100 dB, DC to 26.5 GHz
Dielectric withstanding Voltage 325 VRMS
Mechanical
Insertion Force 2.5 lbs (per contact)
Mating Cycles 500
Withdrawal Force 1.5 lbs
Environmental
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Temperature Rating -65°C to +165°C
Shock MIL-STD-202, Method 213, Condition I
Vibration MIL-STD-202, Method 204, Condition D
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B
Thermal Shock MIL-STD-202, Method 107, Condition B
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.

Contact Us

How can we help?

*
*
*
*
*
*
*
Products specifications
Attribute name Attribute value
RF Series VITA SMPM
Orientation (Body) Straight
Coupling Push-on
Termination Style Solder
Gender Jack (Female)
RF Series 2 2.92 mm
Gender 2 Plug (Male)
Cable Type 0.047 Flexible Coax
Orientation 2 (Body) Straight
Family VITA 67
Cable Length 12"
Electrical
Frequency 40 GHz
Impedance 50 ohms
Shielding Effectiveness ≥ -100 dB, DC to 26.5 GHz
Dielectric withstanding Voltage 325 VRMS
Mechanical
Insertion Force 2.5 lbs (per contact)
Mating Cycles 500
Withdrawal Force 1.5 lbs
Environmental
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Temperature Rating -65°C to +165°C
Shock MIL-STD-202, Method 213, Condition I
Vibration MIL-STD-202, Method 204, Condition D
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B
Thermal Shock MIL-STD-202, Method 107, Condition B
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.
