SMA Male Cable Connector, Lockwire Holes for RG-58 Cable
P/N: M39012/55-3009

In stock at Qty Order
Master Electronics 100
Farnell 98
Digi-Key Electronics 65
Newark 43
Mouser Electronics 42
Products specifications
Attribute name Attribute value
RF Series SMA
Orientation (Body) Straight
Gender Plug (Male)
Coupling Threaded
Termination Style Crimp
Number of Ports Single
MIL-SPEC M39012
Cable Type RG-58
Finish Passivated
Electrical
Impedance 50 ohms
Frequency 18 GHz
Dielectric withstanding Voltage 1000 VRMS
Shielding Effectiveness ≥ -90 dB
Mechanical
Mating Cycles 500
Mating Torque 7 - 10 in - lbs
Inter-mate ability 2.92mm
Environmental
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Temperature Rating -65°C to +165°C
Vibration MIL-STD-202, Method 204, Condition D
Thermal Shock MIL-STD-202, Method 107, Condition B
Shock MIL-STD-202, Method 213, Condition I
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.


This information is provided based on reasonable inquiry of our suppliers and represents our current actual knowledge based on the information they provided.

Please contact compliance@svmicro.com for any Compliance or Environmental related questions.

Last Update: 12/1/2022 1:06:01 AM

Contact Us

How can we help?

*
*
*
*
*
*
*
*
Products specifications
Attribute name Attribute value
RF Series SMA
Orientation (Body) Straight
Gender Plug (Male)
Coupling Threaded
Termination Style Crimp
Number of Ports Single
MIL-SPEC M39012
Cable Type RG-58
Finish Passivated
Electrical
Impedance 50 ohms
Frequency 18 GHz
Dielectric withstanding Voltage 1000 VRMS
Shielding Effectiveness ≥ -90 dB
Mechanical
Mating Cycles 500
Mating Torque 7 - 10 in - lbs
Inter-mate ability 2.92mm
Environmental
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Temperature Rating -65°C to +165°C
Vibration MIL-STD-202, Method 204, Condition D
Thermal Shock MIL-STD-202, Method 107, Condition B
Shock MIL-STD-202, Method 213, Condition I
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.
Customers Also Viewed
Part #   M39012/55-3030

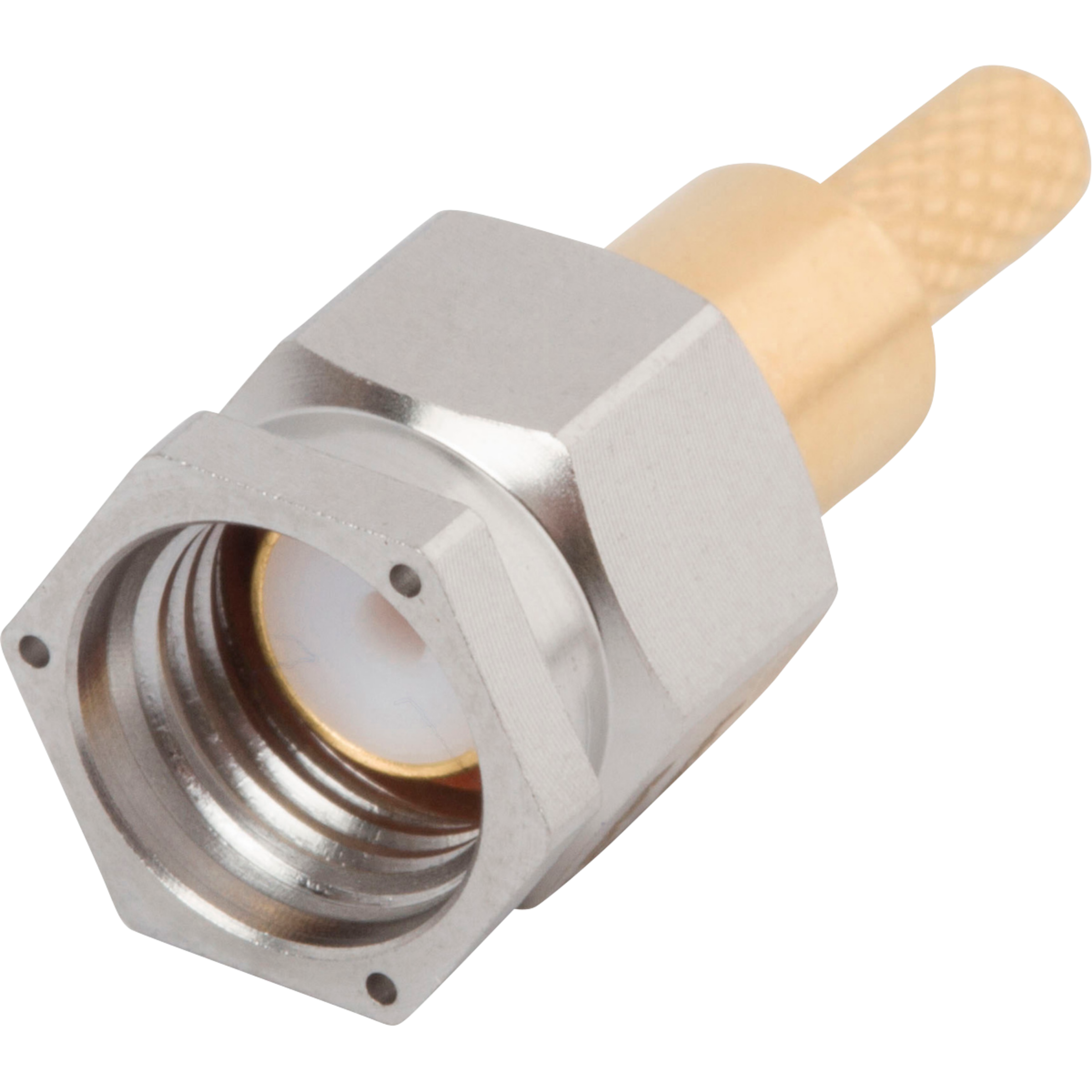

SMA Male Cable Connector, Lockwire Holes for M17/152-00001 Cable

Available Inventory: 498
M39012/55-3030
SMA Connectors M39012/55-3030
Datasheet
Part #   M39012/55-3126

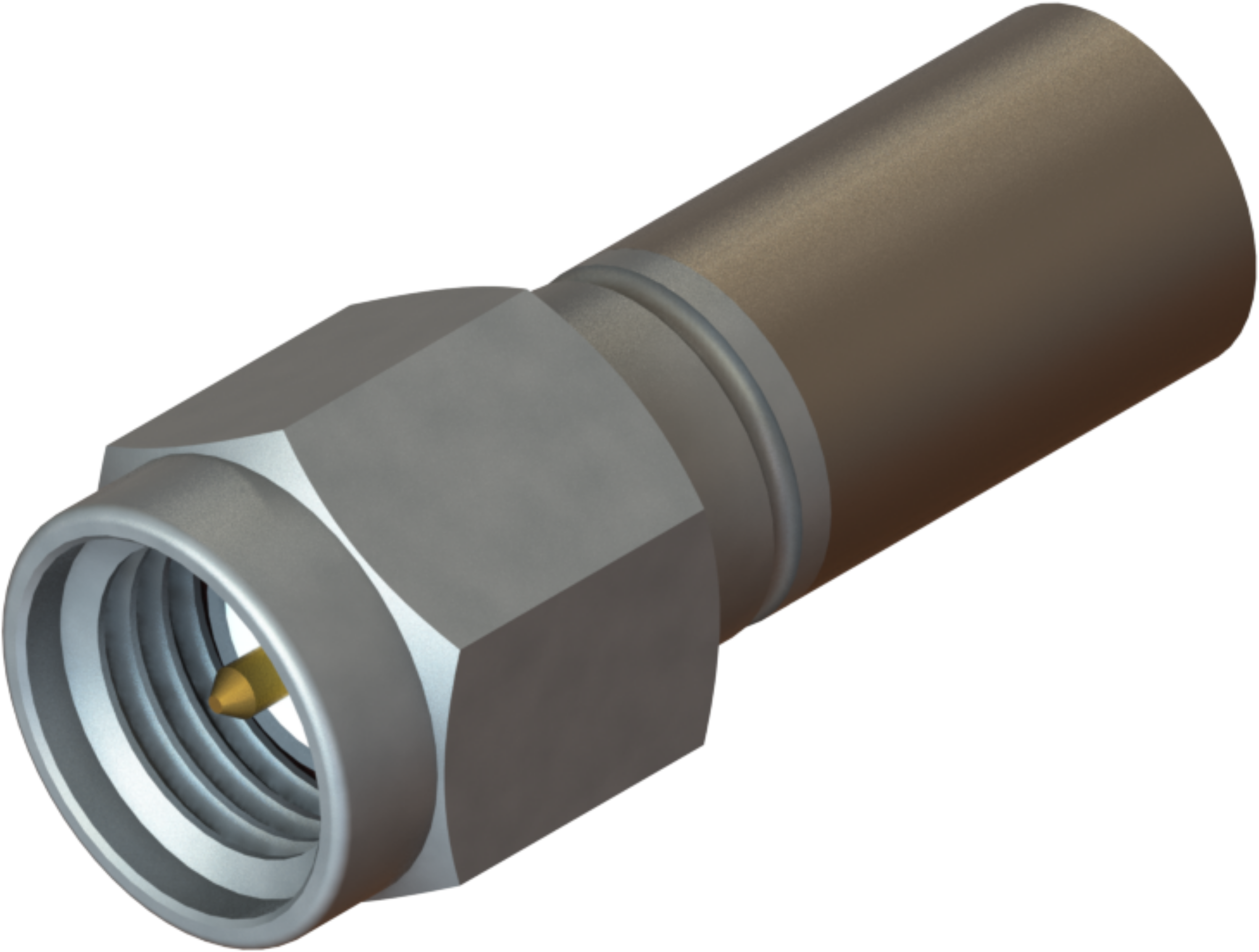

SMA Male Connector for RG-174 Cable

Available Inventory: 7064
M39012/55-3126
SMA Connectors M39012/55-3126
Datasheet
Part #   M39012/55-3006

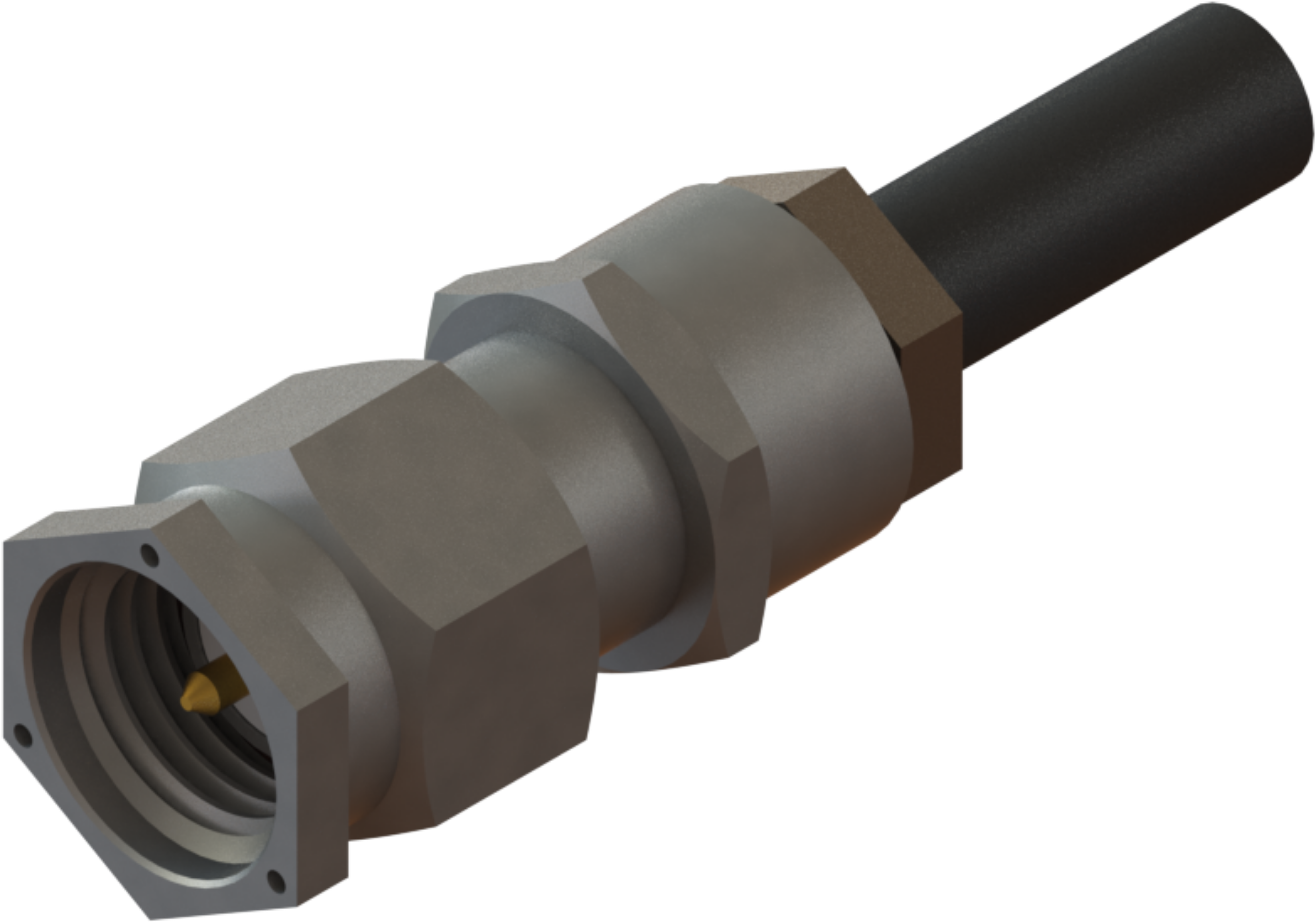

SMA Male Cable Connector, Lockwire Holes, for RG-178 Cable
