SMA Male Connector for RG-174 Cable
P/N: M39012/55-3126

In stock at Qty Order
TTI Inc Global Headquarters 3225
Microwave Components LLC 1287
Electro Enterprises Inc 1152
Arrow Electronics Inc 662
Digi-Key Electronics 311
Master Electronics 208
A.E. Petsche Company 67
Mouser Electronics 54
Farnell 50
Products specifications
Attribute name Attribute value
Gender Plug (Male)
Orientation (Body) Straight
Coupling Threaded
Number of Ports Single
Termination Style Crimp
MIL-SPEC M39012
Cable Type RG-174
RF Series SMA
Finish Passivated
Electrical
Impedance 50 ohms
Frequency 3 GHz
Dielectric withstanding Voltage 1000 VRMS
Shielding Effectiveness ≥ -90 dB
Mechanical
Mating Cycles 500
Mating Torque 7 - 10 in - lbs
Inter-mate ability 2.92mm
Environmental
Temperature Rating -65°C to +165°C
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Vibration MIL-STD-202, Method 204, Condition D
Shock MIL-STD-202, Method 213, Condition I
Thermal Shock MIL-STD-202, Method 107, Condition B
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.


EU RoHS Directive 2011/65/EU Yes, w/ Exemption 6C

These products comply with the substance restrictions of the Restriction on Hazardous Substances Directive 2011/65/EU (RoHS2). The RoHS2 Directive requires that certain electrical and electronic equipment products do not contain mercury, cadmium, hexavalent chromium, PBB, PBDE, lead, DEHP, BBP, DBP and DIBP above defined thresholds. Products indicated as compliant with exemption contain one or more of these substances above the prohibition thresholds, but are compliant by claiming one or more valid exemptions.

EU REACH Regulation (EC) No. 1907/2006 SVHC > Threshold

These products contain one or more EU REACH Substances of Very High Concern (SVHC) > 0.1% by weight (1000 ppm). Details related to the SVHC are displayed.

REACH SVHC: LEAD, CAS #: 7439-92-1, PPM: 30000

Use personal protective equipment as required. Do not eat, drink or smoke when using this product. Wash thoroughly after handling. Recycle if possible and dispose of the article by following all applicable governmental regulations relevant to your geographic location.

This information is provided based on reasonable inquiry of our suppliers and represents our current actual knowledge based on the information they provided.

Please contact compliance@svmicro.com for any Compliance or Environmental related questions.

Last Update: 12/4/2022 1:06:04 AM

Contact Us

How can we help?

*
*
*
*
*
*
*
*
Products specifications
Attribute name Attribute value
Gender Plug (Male)
Orientation (Body) Straight
Coupling Threaded
Number of Ports Single
Termination Style Crimp
MIL-SPEC M39012
Cable Type RG-174
RF Series SMA
Finish Passivated
Electrical
Impedance 50 ohms
Frequency 3 GHz
Dielectric withstanding Voltage 1000 VRMS
Shielding Effectiveness ≥ -90 dB
Mechanical
Mating Cycles 500
Mating Torque 7 - 10 in - lbs
Inter-mate ability 2.92mm
Environmental
Temperature Rating -65°C to +165°C
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Vibration MIL-STD-202, Method 204, Condition D
Shock MIL-STD-202, Method 213, Condition I
Thermal Shock MIL-STD-202, Method 107, Condition B
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.
Customers Also Viewed

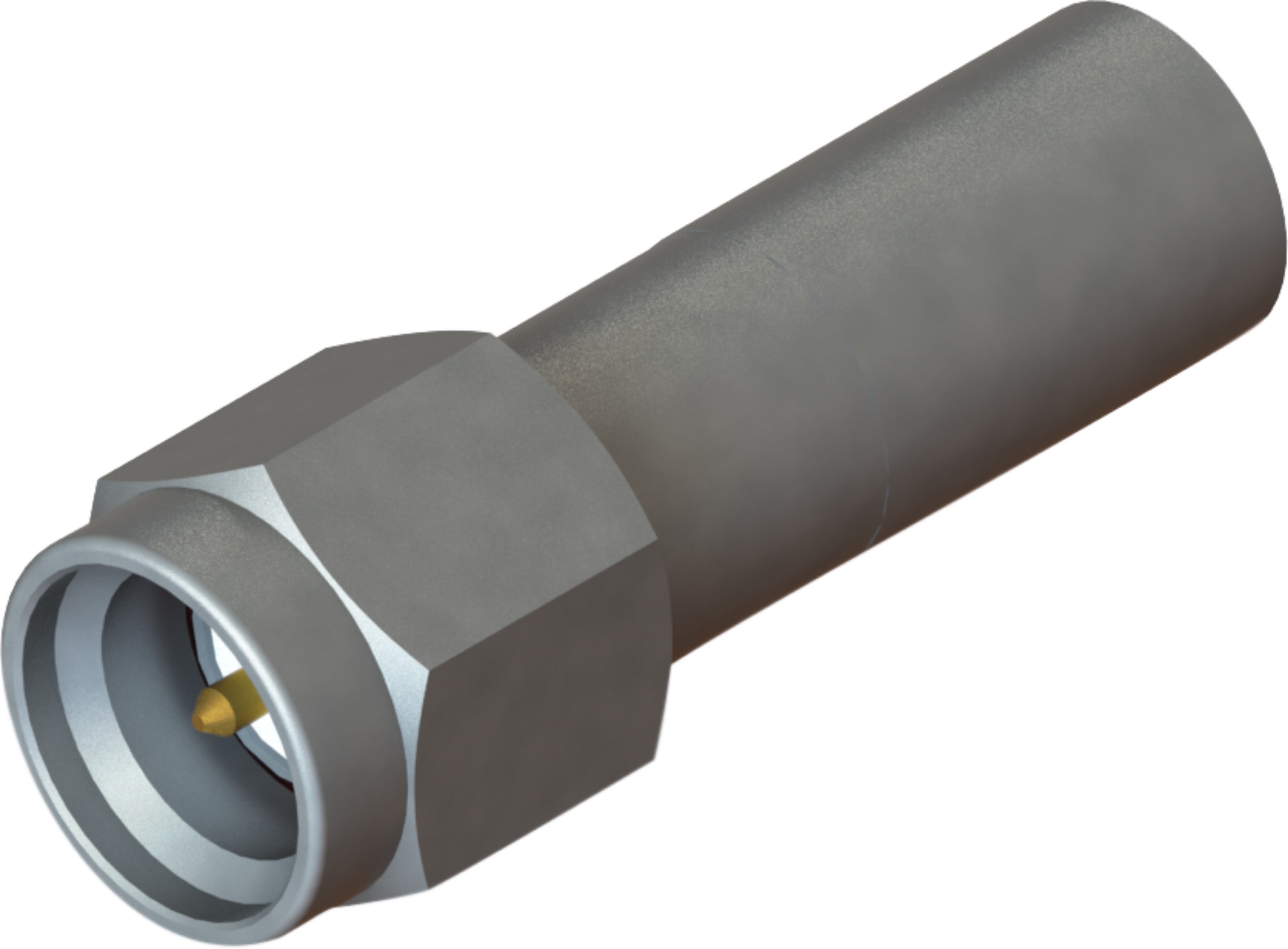

Part #   M39012/55-3128

SMA Male Cable Connector for RG-58 Cable

Available Inventory: 853
M39012/55-3128
SMA Connectors M39012/55-3128
Datasheet

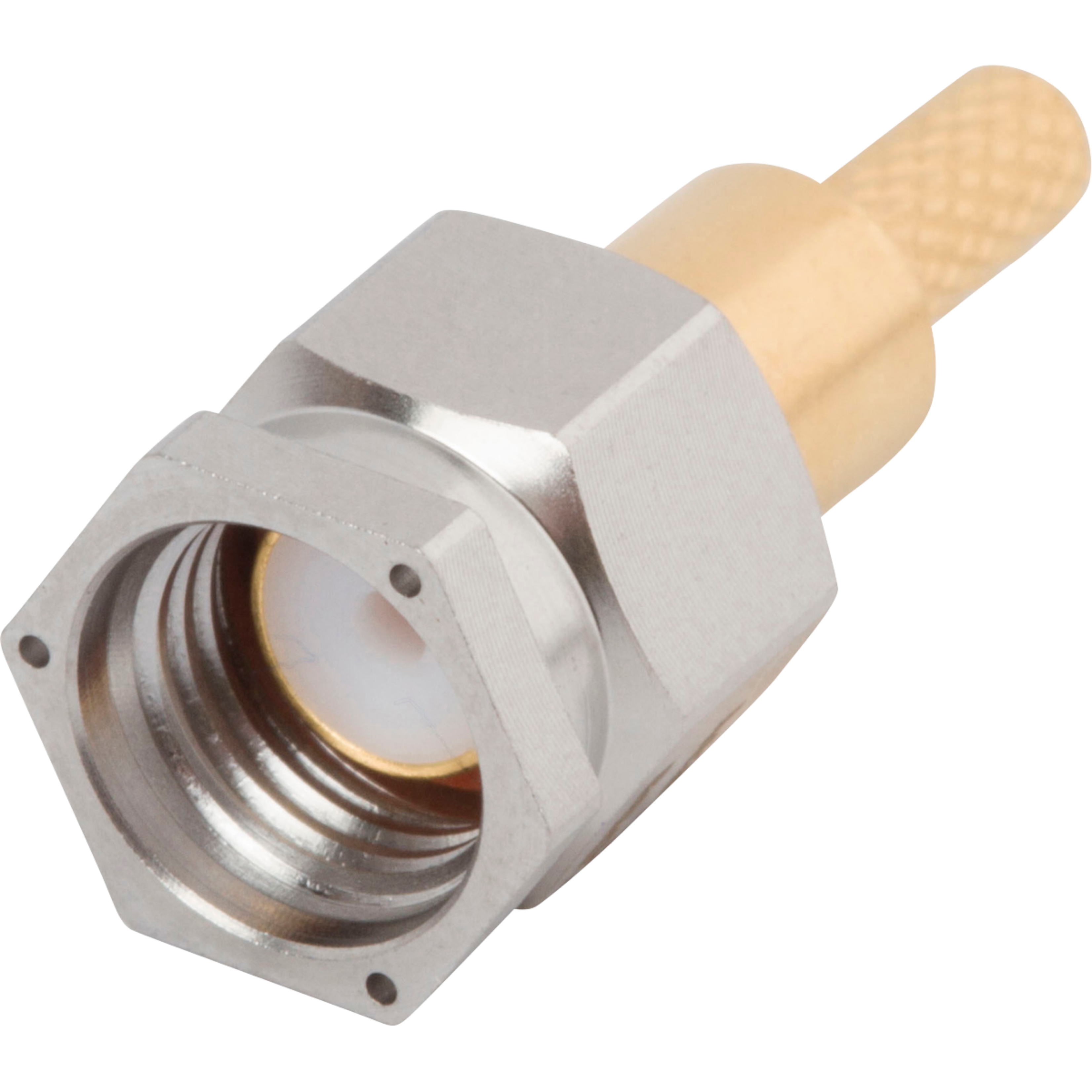

Part #   M39012/55B3012

SMA Male Cable Connector, Lockwire Holes for RG-174 Cable

Available Inventory: 803
M39012/55B3012
SMA Connectors M39012/55B3012
Datasheet

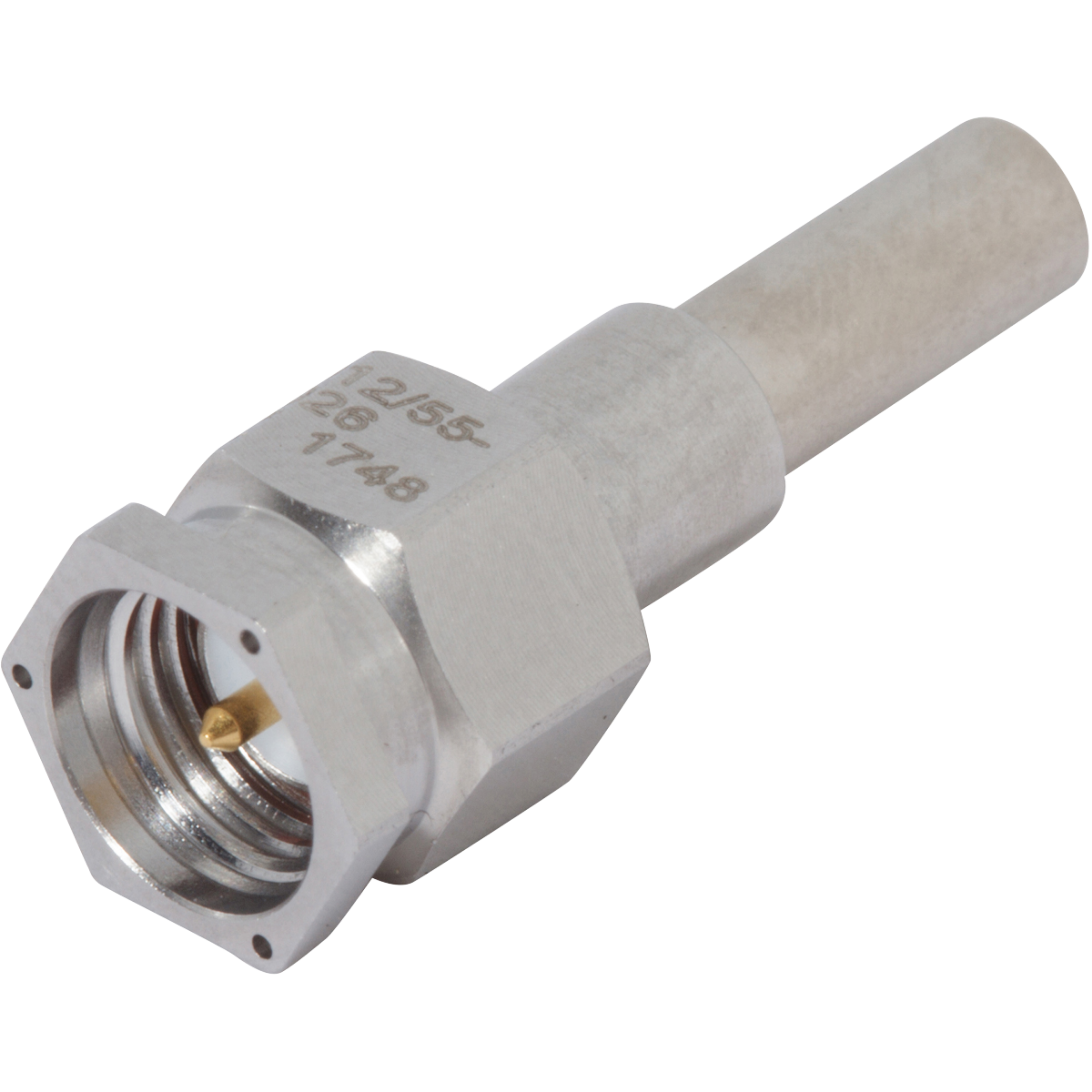

Part #   M39012/55-3028
