Non-Magnetic RF Interconnects

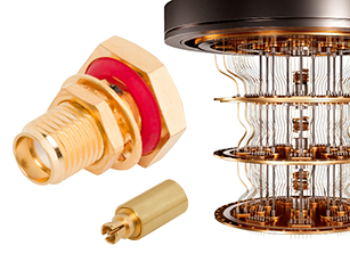

Picture for category Non-Magnetic RF Interconnects

SV Microwave’s non-magnetic RF connectors provide high-performance, reliable solutions for a variety of medical, aerospace, and quantum computing applications. Carefully selected non-magnetic materials, plating, and manufacturing techniques have been chosen for this suite of products. They are ideal for applications that require low magnetic susceptibility (10^-5 max) and no electric field distortion. Our non-magnetic product offering includes threaded (SMA series) connectors for a robust and reliable connection as well as blind-mate (SMPM series) connectors for high-density, high-frequency applications where a push-on interconnect is preferred.

Features / Benefits:

  • Fully non magnetic material and plating
  • No field distortion
  • Low Susceptibility
  • Series: SMA and SMPM
  • DC to 65 GHz

Applications:

  • Medical
  • Mil/Aero
  • Quantum Computing

SMA

Impedance (Ω)50
Frequency GHz18 GHz (select models to 26.5 GHz)
Shielding Effectiveness≥ -90 dB
Dielectric withstanding Voltage1000 VRMS
Mating Cycles500
Mating Torque7 - 10 in - lbs
Inter-mate ability2.92mm
Temperature Rating-65°C to +165°C
Corrosion (salt spray)MIL-STD-202, Method 101, Condition B
VibrationMIL-STD-202, Method 204, Condition D
ShockMIL-STD-202, Method 213, Condition I
Thermal ShockMIL-STD-202, Method 107, Condition B
Moisture ResistanceMIL-STD-202, Method 106, Less Step 7B
Barometric Pressure (Altitude)MIL-STD-202, Method 105, Condition C, 70k Ft.

SMPM

Impedance (Ω)50
Frequency GHz65 GHz
Shielding Effectiveness≥ -80 dB DC - 3 GHz
 ≥ -65 dB 3 - 26.5 GHz
Dielectric withstanding Voltage325 VRMS
Mating Cycles - SB500
Mating Cycles - FD100
Insertion Force - SB2.5 lbs
Insertion Force - FD4.5 lbs
Withdrawal Force - SB1.5 lbs
Withdrawal Force - FD6.5 lbs
Axial Misalignment.010” Max
Radial Misalignment3° Max
Temperature Rating-65°C to +165°C
Corrosion (salt spray)MIL-STD-202, Method 101, Condition B
VibrationMIL-STD-202, Method 204, Condition D
ShockMIL-STD-202, Method 213, Condition I
Thermal ShockMIL-STD-202, Method 107, Condition B
Moisture ResistanceMIL-STD-202, Method 106, Less Step 7B
Barometric Pressure (Altitude)MIL-STD-202, Method 105, Condition C, 70k Ft.

Application Note

Non-Magnetic RF Interconnects Application Note

Product Video

Filters
Part #   2921-40054

SMA Female Non-Magnetic Bulkhead Connector for .047 Cable

Available Inventory: 0
2921-40054
SMA Connectors 2944-6001
Datasheet
Part #   2921-40055

SMA Female Non-Magnetic Bulkhead Connector for .085 Cable

Available Inventory: 73
2921-40055
SMA Connectors 2921-40055
Datasheet
2921-40050-1S
SMA Connectors 2921-40050-1S
Datasheet
2921-40049-1S
SMA Connectors 2921-40049-1S
Datasheet
Part #   1129-4004

SMA Female to Female Non-Magnetic Bulkhead Adapter

Available Inventory: 130
1129-4004
SMA Adapters 1129-4004
Datasheet
Part #   2911-40023

SMA Male Non-Magnetic Connector for .047 Cable

Available Inventory: 143
2911-40023
SMA Connectors 2911-40023
Datasheet
Part #   2911-40024

SMA Male Non-Magnetic Connector for .085 Cable

Available Inventory: 124
2911-40024
SMA Connectors 2911-40024
Datasheet
Part #   1129-4006

SMA Male to Female Non-Magnetic Adapter

Available Inventory: 117
1129-4006
SMA Adapters 1129-4006
Datasheet
Part #   3221-40131

SMPM Female Non-Magnetic Connector for .047 Cable

Available Inventory: 249
3221-40131
SMPM Connectors 3221-40131
Datasheet
Part #   3221-40132

SMPM Female Non-Magnetic Connector for .085 Cable

Available Inventory: 24
3221-40132
SMPM Connectors 3221-40132
Datasheet
Part #   1132-4139

SMPM Female to Female Non-Magnetic Bullet (OAL 0.180)

Available Inventory: 68
1132-4139
SMPM Adapters 1132-4139
Datasheet
Part #   1132-4140

SMPM Female to Female Non-Magnetic Bullet (OAL 0.327)

Available Inventory: 89
1132-4140
SMPM Adapters 1132-4140
Datasheet
Part #   3211-40119

SMPM Male Non-Magnetic PCB Surface Mount Connector, FD

Available Inventory: 0
3211-40119
SMPM Connectors 3211-40119
Datasheet
Part #   3211-40118

SMPM Male Non-Magnetic PCB Surface Mount Connector, SB

Available Inventory: 51
3211-40118
SMPM Connectors 3211-40118
Datasheet
Part #   3211-40165

SMPM Male Snap-In Non-Magnetic Connector for .047 Cable, FD

Available Inventory: 100
3211-40165
SMPM Connectors 3211-40165
Datasheet
Part #   3211-40166

SMPM Male Snap-In Non-Magnetic Connector for .086 Cable, FD

Available Inventory: 100
3211-40166
SMPM Connectors 3211-40166
Datasheet
Part #   1132-4138

SMPM Male to Female Non-Magnetic Adapter, SB

Available Inventory: 81
1132-4138
SMPM Adapters 1132-4138
Datasheet
Part #   1132-4108

SMPM Male to Male Non-Magnetic Thread-In Adapter, FD

Available Inventory: 275
1132-4108
SMPM Adapters 1132-4108
Datasheet
