SMPM Male to Male Non-Magnetic Thread-In Adapter, FD
P/N: 1132-4108

In stock at Qty Order
Mouser Electronics 288 On Order
Digi-Key Electronics 100
Master Electronics 14
Onlinecomponents.com 14
Products specifications
Attribute name Attribute value
Family Non-Magnetic
RF Series SMPM
Gender Plug (Male)
Coupling Push-on
Orientation (Body) Straight
Detent Full Detent
RF Series 2 SMPM
Finish Gold
Gender 2 Plug (Male)
Orientation 2 (Body) Straight
Electrical
Frequency 65 GHz
Impedance 50 ohms
Shielding Effectiveness ≥ -80 dB DC - 3 GHz, ≥ -65 dB 3 - 26.5 GHz
Dielectric withstanding Voltage 325 VRMS
Mechanical
Mating Cycles - FD 100
Axial Misalignment .010” Max
Radial Misalignment 3° Max
Withdrawal Force - SB 1.5 lbs
Mating Cycles - SB 500
Insertion Force - SB 2.5 lbs
Withdrawal Force - FD 6.5 lbs
Insertion Force - FD 4.5 lbs
Environmental
Shock MIL-STD-202, Method 213, Condition I
Vibration MIL-STD-202, Method 204, Condition D
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Temperature Rating -65°C to +165°C
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B
Thermal Shock MIL-STD-202, Method 107, Condition B
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.


EU RoHS Directive 2011/65/EU Yes, w/ Exemption 6C

These products comply with the substance restrictions of the Restriction on Hazardous Substances Directive 2011/65/EU (RoHS2). The RoHS2 Directive requires that certain electrical and electronic equipment products do not contain mercury, cadmium, hexavalent chromium, PBB, PBDE, lead, DEHP, BBP, DBP and DIBP above defined thresholds. Products indicated as compliant with exemption contain one or more of these substances above the prohibition thresholds, but are compliant by claiming one or more valid exemptions.

EU REACH Regulation (EC) No. 1907/2006 SVHC > Threshold

These products contain one or more EU REACH Substances of Very High Concern (SVHC) > 0.1% by weight (1000 ppm). Details related to the SVHC are displayed.

REACH SVHC: LEAD, CAS #: 7439-92-1, PPM: 4000

Use personal protective equipment as required. Do not eat, drink or smoke when using this product. Wash thoroughly after handling. Recycle if possible and dispose of the article by following all applicable governmental regulations relevant to your geographic location.

This information is provided based on reasonable inquiry of our suppliers and represents our current actual knowledge based on the information they provided.

Please contact [email protected] for any Compliance or Environmental related questions.

Last Update: 6/28/2023 1:04:03 AM

Spinning Wheel; Your Submission is Loading

Contact Us

How can we help?

*
*
*
*
*
*
*
*
Products specifications
Attribute name Attribute value
Family Non-Magnetic
RF Series SMPM
Gender Plug (Male)
Coupling Push-on
Orientation (Body) Straight
Detent Full Detent
RF Series 2 SMPM
Finish Gold
Gender 2 Plug (Male)
Orientation 2 (Body) Straight
Electrical
Frequency 65 GHz
Impedance 50 ohms
Shielding Effectiveness ≥ -80 dB DC - 3 GHz, ≥ -65 dB 3 - 26.5 GHz
Dielectric withstanding Voltage 325 VRMS
Mechanical
Mating Cycles - FD 100
Axial Misalignment .010” Max
Radial Misalignment 3° Max
Withdrawal Force - SB 1.5 lbs
Mating Cycles - SB 500
Insertion Force - SB 2.5 lbs
Withdrawal Force - FD 6.5 lbs
Insertion Force - FD 4.5 lbs
Environmental
Shock MIL-STD-202, Method 213, Condition I
Vibration MIL-STD-202, Method 204, Condition D
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Temperature Rating -65°C to +165°C
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B
Thermal Shock MIL-STD-202, Method 107, Condition B
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.
Customers Also Viewed
Part #   1132-4005

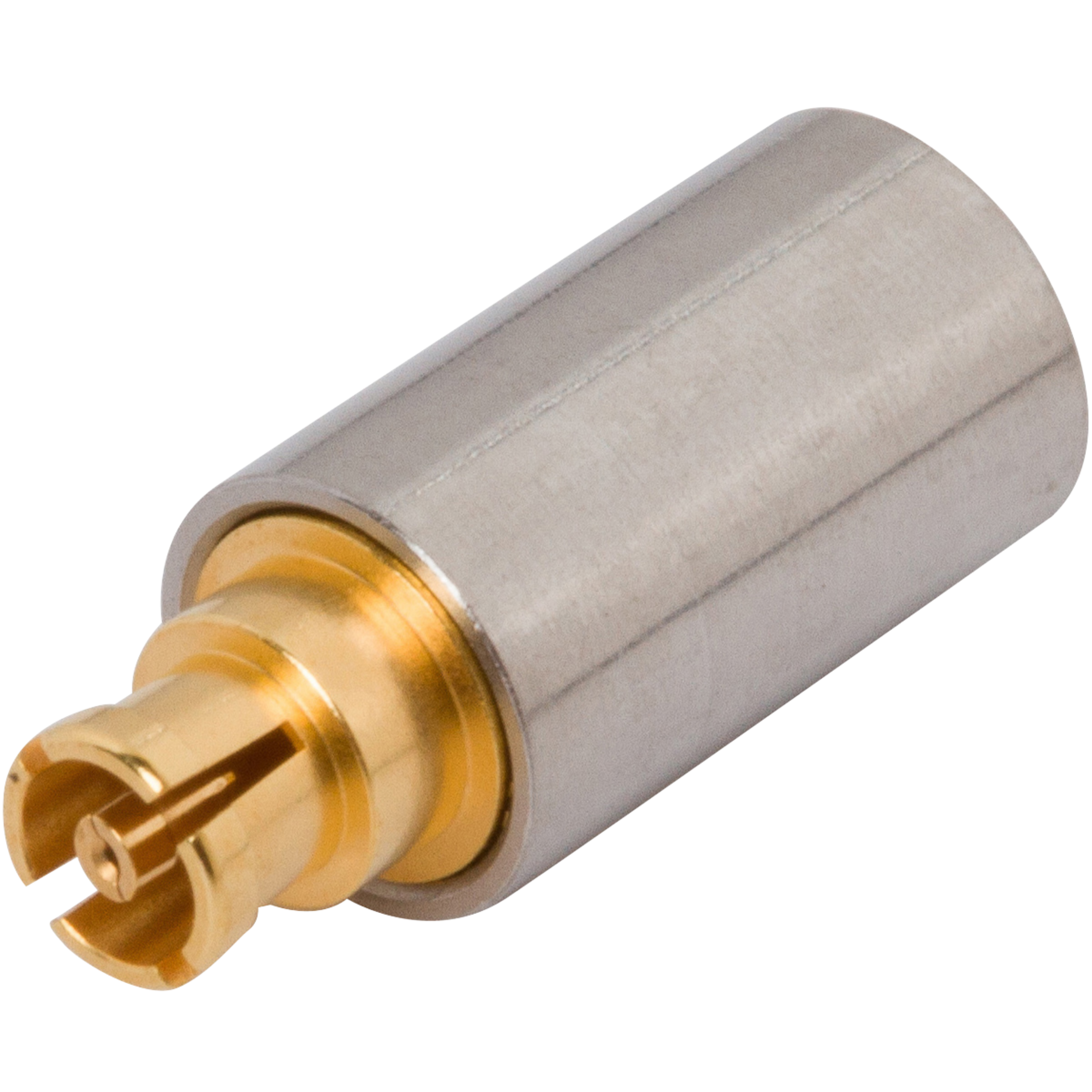

SMPM Male to Female Adapter, SB

Available Inventory: 2573
1132-4005
SMPM Adapters 1132-4005
Datasheet
Part #   1132-4010

SMPM Female to Female Bullet (OAL 0.166")"

Available Inventory: 1217
1132-4010
SMPM Adapters 1132-4010
Datasheet
Part #   1132-4021

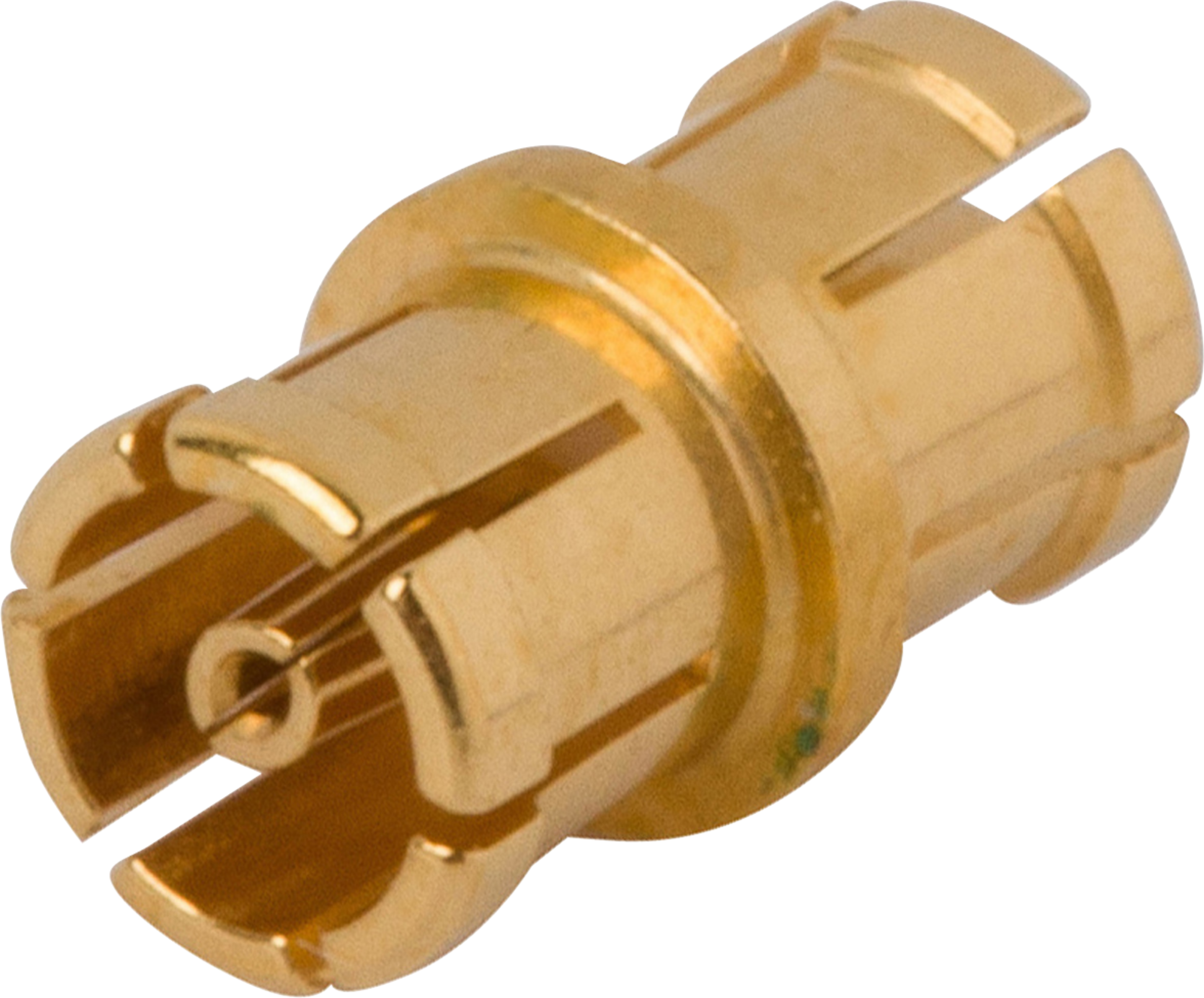

SMPM Female to Female Bullet (OAL 0.180")"
