SMPM Male to Male Bulkhead Hermetic Adapter, FD
P/N: 1132-6127

There currently isn't any inventory available in distribution. Please contact us to obtain this product.
Products specifications
Attribute name Attribute value
RF Series SMPM
Gender Plug (Male)
Coupling Push-on
Orientation (Body) Straight
Detent Full Detent
RF Series 2 SMPM
Finish Gold
Gender 2 Plug (Male)
Orientation 2 (Body) Straight
Style Hermetic, Glass Seal
IP Rating IP 68
Mounting Type Panel
Body Style Jamnut/Bulkhead
Electrical
Frequency 40 GHz
Impedance 50 ohms
Shielding Effectiveness ≥ -80 dB DC - 3 GHz, ≥ -65 dB 3 - 26.5 GHz
Dielectric withstanding Voltage 325 VRMS
Mechanical
Mating Cycles - FD 100
Axial Misalignment .010” Max
Radial Misalignment 3° Max
Withdrawal Force - SB 1.5 lbs
Mating Cycles - SB 500
Insertion Force - SB 2.5 lbs
Withdrawal Force - FD 6.5 lbs
Insertion Force - FD 4.5 lbs
Environmental
Shock MIL-STD-202, Method 213, Condition I
Vibration MIL-STD-202, Method 204, Condition D
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Temperature Rating -65°C to +165°C
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B
Thermal Shock MIL-STD-202, Method 107, Condition B
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.


EU RoHS Directive 2011/65/EU Compliant

These products comply with the substance restrictions of the Restriction on Hazardous Substances Directive 2011/65/EU (RoHS2). The RoHS2 Directive requires that certain electrical and electronic equipment products do not contain mercury, cadmium, hexavalent chromium, PBB, PBDE, lead, DEHP, BBP, DBP and DIBP above defined thresholds. Products indicated as 'Compliant' do not contain any of these substances above the prohibition thresholds.

EU REACH Regulation (EC) No. 1907/2006 Does not contain REACH SVHC

These products do not contain Substances of Very High Concern (SVHC) > 0.1% by weight (1000 ppm).

This information is provided based on reasonable inquiry of our suppliers and represents our current actual knowledge based on the information they provided.

Please contact [email protected] for any Compliance or Environmental related questions.

Last Update: 6/28/2023 1:32:09 AM

Spinning Wheel; Your Submission is Loading

Contact Us

How can we help?

*
*
*
*
*
*
*
*
Products specifications
Attribute name Attribute value
RF Series SMPM
Gender Plug (Male)
Coupling Push-on
Orientation (Body) Straight
Detent Full Detent
RF Series 2 SMPM
Finish Gold
Gender 2 Plug (Male)
Orientation 2 (Body) Straight
Style Hermetic, Glass Seal
IP Rating IP 68
Mounting Type Panel
Body Style Jamnut/Bulkhead
Electrical
Frequency 40 GHz
Impedance 50 ohms
Shielding Effectiveness ≥ -80 dB DC - 3 GHz, ≥ -65 dB 3 - 26.5 GHz
Dielectric withstanding Voltage 325 VRMS
Mechanical
Mating Cycles - FD 100
Axial Misalignment .010” Max
Radial Misalignment 3° Max
Withdrawal Force - SB 1.5 lbs
Mating Cycles - SB 500
Insertion Force - SB 2.5 lbs
Withdrawal Force - FD 6.5 lbs
Insertion Force - FD 4.5 lbs
Environmental
Shock MIL-STD-202, Method 213, Condition I
Vibration MIL-STD-202, Method 204, Condition D
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Temperature Rating -65°C to +165°C
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B
Thermal Shock MIL-STD-202, Method 107, Condition B
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.
Customers Also Viewed
Part #   1132-4005

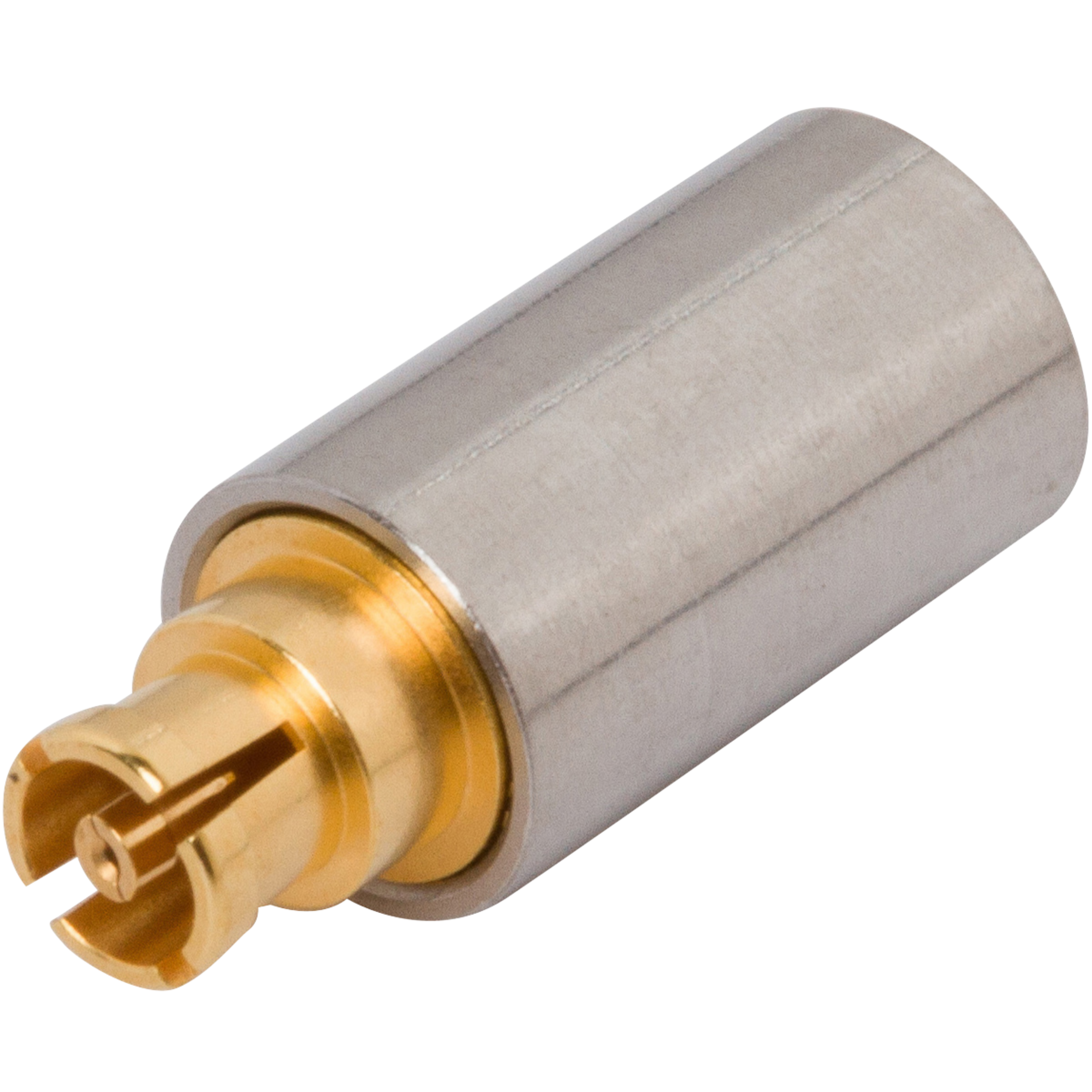

SMPM Male to Female Adapter, SB

Available Inventory: 2568
1132-4005
SMPM Adapters 1132-4005
Datasheet
Part #   1132-4010

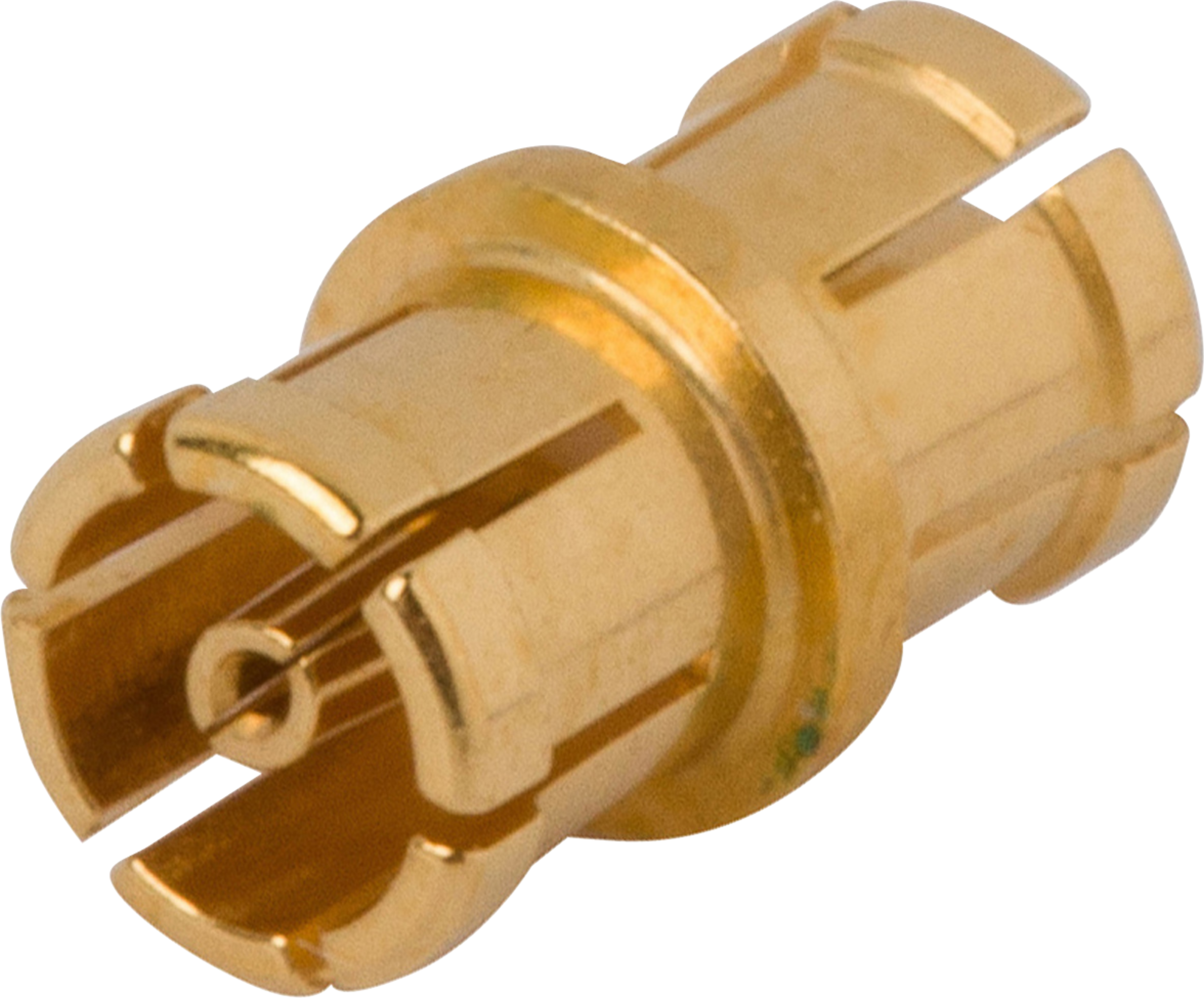

SMPM Female to Female Bullet (OAL 0.166")
