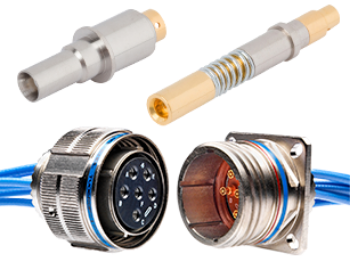

Coaxial D38999 Interconnects
SV Microwave offers DC to 65 GHz high frequency size 8, 12 and 16 coaxial contacts for the D38999 Series III housing and standard inserts. These contacts allow any application to continue to use the D38999 connector and be able to expand the use to include the microwave transmission lines.
Features / Benefits:
- Superior electrical performance and high frequency capability
- Blindmate advantage and maintenance of an accurate phase length when mated
- Uses standard interfaces based on MIL-STD-348, and can be installed in any MIL-DTL-38999 size 8, 12 or 16 insert
- Unique “Float Mount” technology allows for consistent microwave performance while maintaining tight mechanical tolerances
Applications:
- Military and Aerospace
- Severe/Harsh Environments
The specifications below are typical for the connector series, but may not apply to this particular part. Please see the datasheet for full specifications.
BMA
| Impedance (Ω) | 50 |
| Frequency GHz | 18 GHz |
| Shielding Effectiveness | ≥ -90 dB |
| Dielectric withstanding Voltage | 1000 VRMS |
| Mating Cycles | 5000 |
| Insertion Force | 3.0 lbs |
| Withdrawal Force | 1.5 lbs |
| Temperature Rating | -65°C to +165°C |
| Corrosion (salt spray) | MIL-STD-202, Method 101, Condition B |
| Vibration | MIL-STD-202, Method 204, Condition D |
| Shock | MIL-STD-202, Method 213, Condition I |
| Thermal Shock | MIL-STD-202, Method 107, Condition B |
| Moisture Resistance | MIL-STD-202, Method 106, Less Step 7B |
| Barometric Pressure (Altitude) | MIL-STD-202, Method 105, Condition C, 70k Ft. |
BMZ
| Impedance (Ω) | 50 |
| Frequency GHz | 18 GHz |
| Shielding Effectiveness | ≥ -80 dB |
| Dielectric withstanding Voltage | 1000 VRMS |
| Mating Cycles | 500 |
| Insertion Force | 0.75 lbs |
| Withdrawal Force | 0.13 lbs |
| Temperature Rating | -65°C to +165°C |
| Corrosion (salt spray) | MIL-STD-202, Method 101, Condition B |
| Vibration | MIL-STD-202, Method 204, Condition D |
| Shock | MIL-STD-202, Method 213, Condition I |
| Thermal Shock | MIL-STD-202, Method 107, Condition B |
| Moisture Resistance | MIL-STD-202, Method 106, Less Step 7B |
| Barometric Pressure (Altitude) | MIL-STD-202, Method 105, Condition C, 70k Ft. |
NSME
| Impedance (Ω) | 50 |
| Frequency GHz | 40 GHz |
| Corrosion (salt spray) | MIL-STD-202, Method 101, Condition B |
| Vibration | MIL-STD-202, Method 204, Condition D |
| Shock | MIL-STD-202, Method 213, Condition I |
| Thermal Shock | MIL-STD-202, Method 107, Condition B |
| Moisture Resistance | MIL-STD-202, Method 106, Less Step 7B |
| Barometric Pressure (Altitude) | MIL-STD-202, Method 105, Condition C, 70k Ft. |
SMPM
| Impedance (Ω) | 50 |
| Frequency GHz | 65 GHz |
| Shielding Effectiveness | ≥ -80 dB DC - 3 GHz ≥ -65 dB 3 - 26.5 GHz |
| Dielectric withstanding Voltage | 325 VRMS |
| Mating Cycles - SB | 500 |
| Mating Cycles - FD | 100 |
| Insertion Force - SB | 2.5 lbs |
| Insertion Force - FD | 4.5 lbs |
| Withdrawal Force - SB | 1.5 lbs |
| Withdrawal Force - FD | 6.5 lbs |
| Axial Misalignment | .010” Max |
| Radial Misalignment | 3° Max |
| Temperature Rating | -65°C to +165°C |
| Corrosion (salt spray) | MIL-STD-202, Method 101, Condition B |
| Vibration | MIL-STD-202, Method 204, Condition D |
| Shock | MIL-STD-202, Method 213, Condition I |
| Thermal Shock | MIL-STD-202, Method 107, Condition B |
| Moisture Resistance | MIL-STD-202, Method 106, Less Step 7B |
| Barometric Pressure (Altitude) | MIL-STD-202, Method 105, Condition C, 70k Ft. |
SMPS
| Impedance (Ω) | 50 |
| Frequency GHz | 65 GHz |
| Shielding Effectiveness | ≥ -80 dB DC - 3 GHz ≥ -65 dB 3 - 26.5 GHz |
| Dielectric withstanding Voltage | 250 VRMS |
| Mating Cycles - SB | 500 |
| Mating Cycles - FD | 100 |
| Insertion Force - SB | 1.2 lbs |
| Insertion Force - FD | 2.5 lbs |
| Withdrawal Force - SB | 1.0 lbs |
| Withdrawal Force - FD | 4.5 lbs |
| Axial Misalignment | .010” Max |
| Radial Misalignment | 3° Max |
| Temperature Rating | -65°C to +165°C |
| Corrosion (salt spray) | MIL-STD-202, Method 101, Condition B |
| Vibration | MIL-STD-202, Method 204, Condition D |
| Shock | MIL-STD-202, Method 213, Condition I |
| Thermal Shock | MIL-STD-202, Method 107, Condition B |
| Moisture Resistance | MIL-STD-202, Method 106, Less Step 7B |
| Barometric Pressure (Altitude) | MIL-STD-202, Method 105, Condition C, 70k Ft. |
Application Note | Product Video |
Part # 7093-0180
BMA (Size 8) D38999 Pin Contact to SMA Male 12" Cable Assembly for .085 Cable
Available Inventory: 25
7093-0180
BMA Cable Assemblies 7093-0180
Part # 7093-0184
BMA (Size 8) D38999 Pin Contact to SMA Male 12" Cable Assembly for .141 Cable
Available Inventory: 67
7093-0184
BMA Cable Assemblies 7093-0184
Part # 7093-0181
BMA (Size 8) D38999 Pin Contact to SMA Male 24" Cable Assembly for .085 Cable
Available Inventory: 13
7093-0181
BMA Cable Assemblies 7093-0181
Part # 7093-0185
BMA (Size 8) D38999 Pin Contact to SMA Male 24" Cable Assembly for .141 Cable
Available Inventory: 66
7093-0185
BMA Cable Assemblies 7093-0185
Part # 7093-0178
BMA (Size 8) D38999 Socket Contact to SMA Male 12" Cable Assembly for .085 Cable
Available Inventory: 0
7093-0178
BMA Cable Assemblies 7093-0178
Part # 7093-0182
BMA (Size 8) D38999 Socket Contact to SMA Male 12" Cable Assembly for .141 Cable
Available Inventory: 51
7093-0182
BMA Cable Assemblies 7093-0182
Part # 7093-0179
BMA (Size 8) D38999 Socket Contact to SMA Male 24" Cable Assembly for .085 Cable
Available Inventory: 19
7093-0179
BMA Cable Assemblies 7093-0179
Part # 7093-0183
BMA (Size 8) D38999 Socket Contact to SMA Male 24" Cable Assembly for .141 Cable
Available Inventory: 10
7093-0183
BMA Cable Assemblies 7093-0183
SF9421-6000
BMA Connectors SF9421-6000
SF9421-6001
BMA Connectors SF9421-6001
SF9411-6000
BMA Connectors SF9411-6000
SF9411-6001
BMA Connectors SF9411-6001
4941-60001
BMB Contacts 4941-60001
4941-60002
BMB Contacts 4941-60002
4951-60005
BMB Connectors 4951-60005
4951-60006
BMB Connectors 4951-60006
Part # 7093-0280
BMZ (Size 8) D38999 Pin Contact to MCX Male 12" 75 Ohm Cable Assembly for RG-179 Cable
Available Inventory: 16
7093-0280
BMZ Cable Assemblies 7093-0280
Part # 7093-0279
BMZ (Size 8) D38999 Socket Contact to MCX Male 12" 75 Ohm Cable Assembly for RG-179 Cable
Available Inventory: 40
7093-0279
BMZ Cable Assemblies 7093-0279
SF9821-6000
BMZ Connectors SF9821-6000
SF9821-6001
BMZ Connectors SF9821-6001
SF9821-60003
BMZ Connectors SF9821-60003
SF9321-60007
BMZ Connectors SF9321-60007
SF9821-6002
BMZ Connectors SF9821-6002
SF9811-6000
BMZ Connectors SF9811-6000
SF9811-6001
BMZ Connectors SF9811-6001
