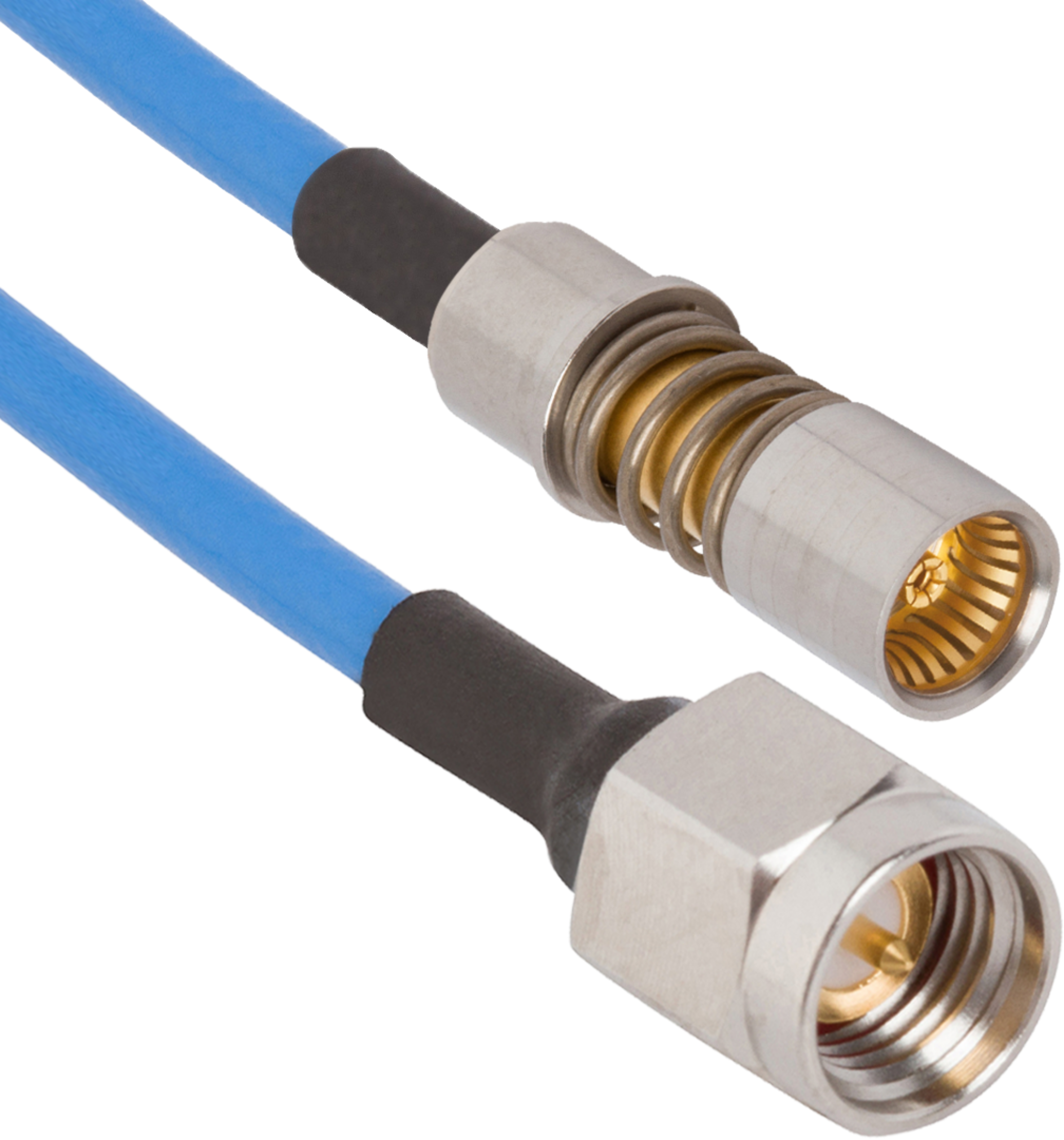

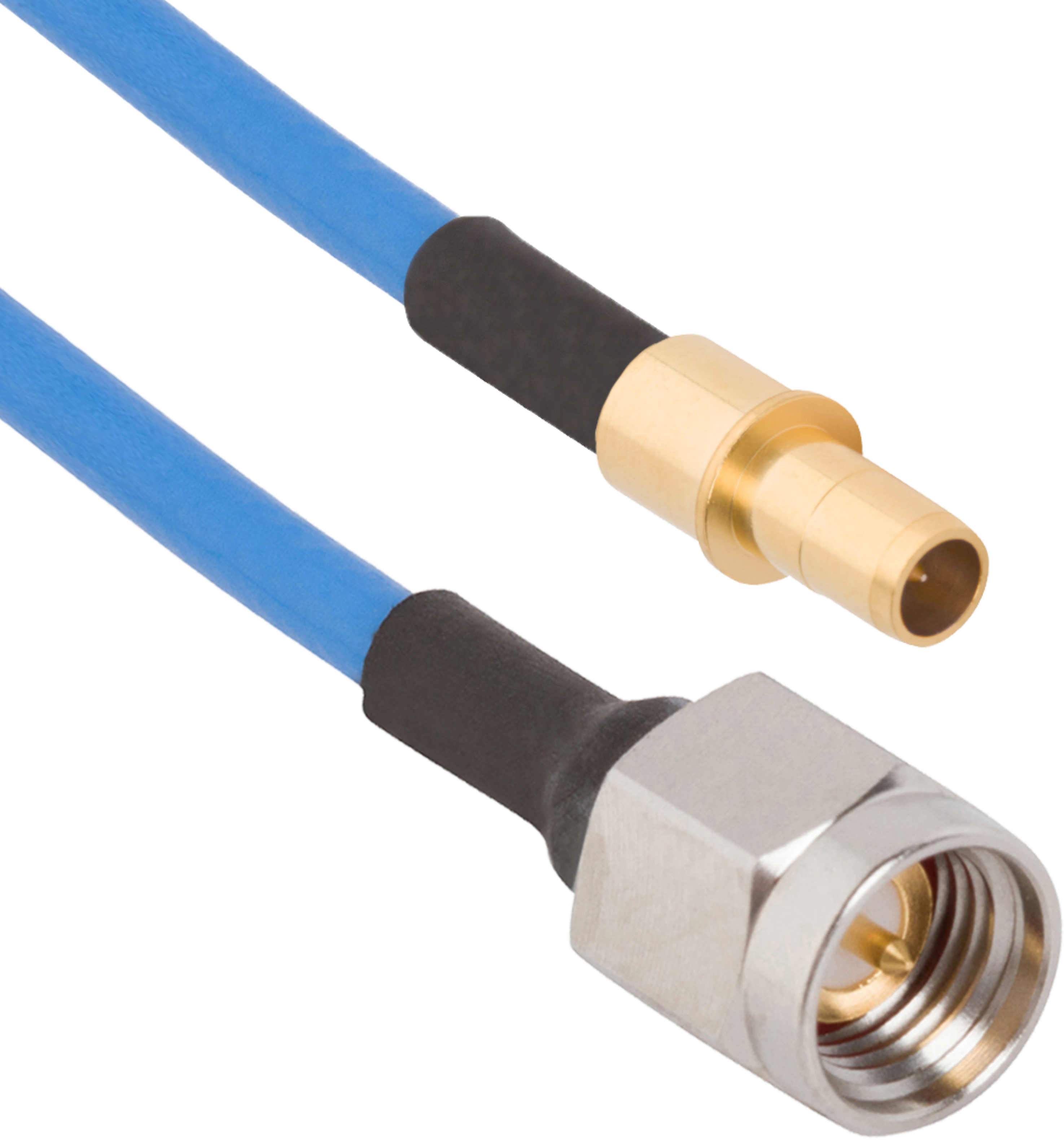

BMA (Size 8) D38999 Pin Contact to SMA Male 24" Cable Assembly for .085 Cable
P/N: 7093-0181

In stock at Qty Order
Mouser Electronics 25
Newark 22
Farnell 22
Products specifications
Attribute name Attribute value
RF Series BMA
Gender Pin
Mounting Type D38999
Orientation (Body) Straight
Coupling Push-on
Termination Style Solder
Style Size 8
Number of Ports Single
Gender 2 Plug (Male)
RF Series 2 SMA
Orientation 2 (Body) Straight
Cable Type 0.085 Flexible Coax
Cable Length 24"
Electrical
Frequency 18 GHz
Impedance 50 ohms
Shielding Effectiveness ≥ -90 dB
Dielectric withstanding Voltage 1000 VRMS
Mechanical
Mating Cycles 5000
Insertion Force 3.0 lbs
Withdrawal Force 1.5 lbs
Environmental
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Temperature Rating -65°C to +165°C
Vibration MIL-STD-202, Method 204, Condition D
Shock MIL-STD-202, Method 213, Condition I
Thermal Shock MIL-STD-202, Method 107, Condition B
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.
