BMA Pin D38999 Contact (Size 8) for .141 Cable
P/N: SF9421-6001

There currently isn't any inventory available in distribution. Please contact us to obtain this product.
Products specifications
Attribute name Attribute value
RF Series BMA
Gender Pin
Coupling Push-on
Orientation (Body) Straight
Style Size 8
Mounting Type D38999 Series I, II, III and IV
Finish Passivated
Cable Type 0.140 Flexible Coax
Electrical
Frequency 18 GHz
Impedance 50 ohms
Shielding Effectiveness ≥ -90 dB
Dielectric withstanding Voltage 1000 VRMS
Mechanical
Mating Cycles 5000
Insertion Force 3.0 lbs
Withdrawal Force 1.5 lbs
Environmental
Temperature Rating -65°C to +165°C
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Vibration MIL-STD-202, Method 204, Condition D
Shock MIL-STD-202, Method 213, Condition I
Thermal Shock MIL-STD-202, Method 107, Condition B
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.


EU RoHS Directive 2011/65/EU Yes, w/ Exemption 6C

These products comply with the substance restrictions of the Restriction on Hazardous Substances Directive 2011/65/EU (RoHS2). The RoHS2 Directive requires that certain electrical and electronic equipment products do not contain mercury, cadmium, hexavalent chromium, PBB, PBDE, lead, DEHP, BBP, DBP and DIBP above defined thresholds. Products indicated as compliant with exemption contain one or more of these substances above the prohibition thresholds, but are compliant by claiming one or more valid exemptions.

EU REACH Regulation (EC) No. 1907/2006 SVHC > Threshold

These products contain one or more EU REACH Substances of Very High Concern (SVHC) > 0.1% by weight (1000 ppm). Details related to the SVHC are displayed.

REACH SVHC: LEAD, CAS #: 7439-92-1, PPM: 4000

Use personal protective equipment as required. Do not eat, drink or smoke when using this product. Wash thoroughly after handling. Recycle if possible and dispose of the article by following all applicable governmental regulations relevant to your geographic location.

This information is provided based on reasonable inquiry of our suppliers and represents our current actual knowledge based on the information they provided.

Please contact [email protected] for any Compliance or Environmental related questions.

Last Update: 6/28/2023 1:21:26 AM

Spinning Wheel; Your Submission is Loading

Contact Us

How can we help?

*
*
*
*
*
*
*
*
Products specifications
Attribute name Attribute value
RF Series BMA
Gender Pin
Coupling Push-on
Orientation (Body) Straight
Style Size 8
Mounting Type D38999 Series I, II, III and IV
Finish Passivated
Cable Type 0.140 Flexible Coax
Electrical
Frequency 18 GHz
Impedance 50 ohms
Shielding Effectiveness ≥ -90 dB
Dielectric withstanding Voltage 1000 VRMS
Mechanical
Mating Cycles 5000
Insertion Force 3.0 lbs
Withdrawal Force 1.5 lbs
Environmental
Temperature Rating -65°C to +165°C
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Vibration MIL-STD-202, Method 204, Condition D
Shock MIL-STD-202, Method 213, Condition I
Thermal Shock MIL-STD-202, Method 107, Condition B
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.
Customers Also Viewed
Part #   8001-4102

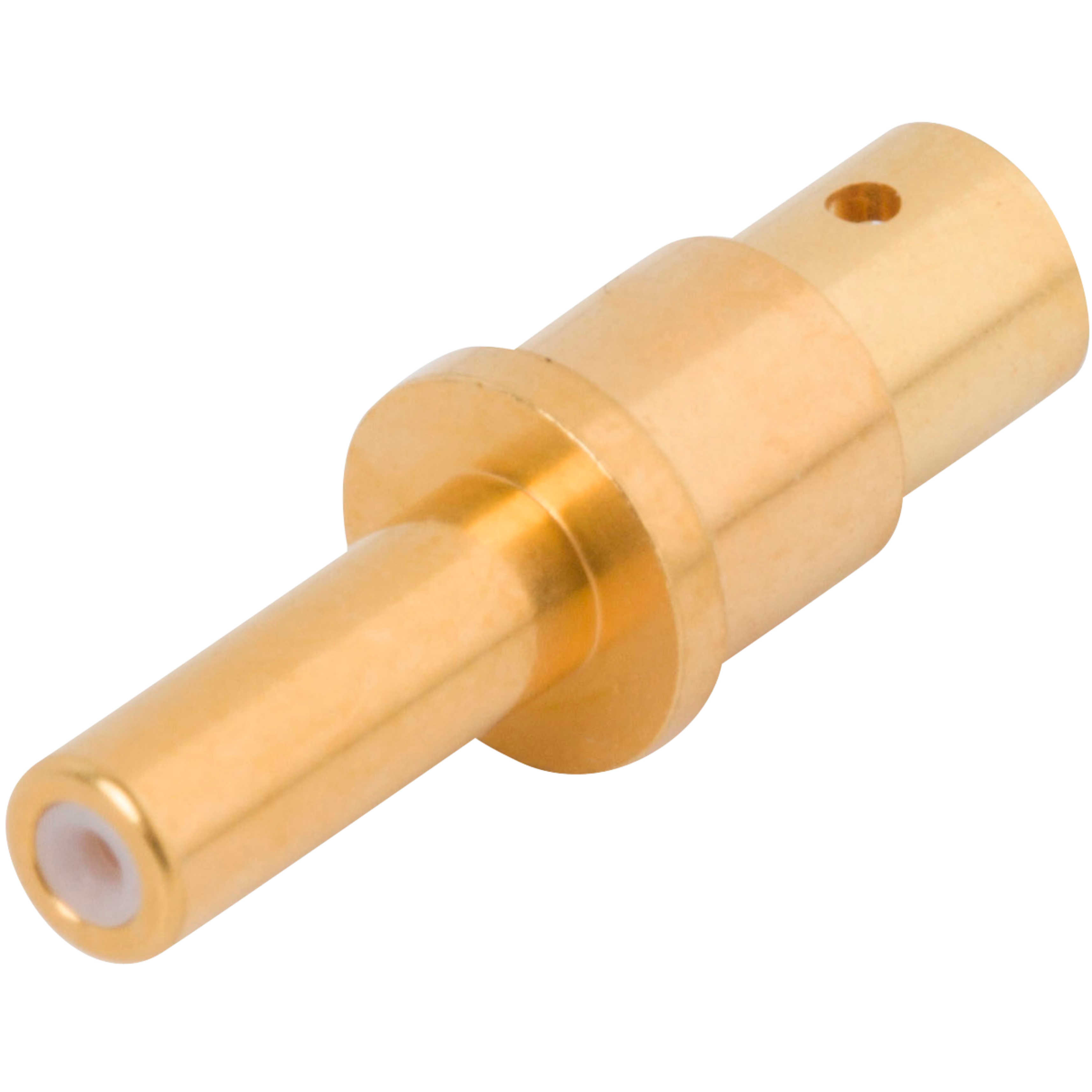

NSME Pin D38999 Contact (Size 12) for .085 Cable

Available Inventory: 15
8001-4102
NSME Connectors 8001-4102
Datasheet
Part #   8001-4103

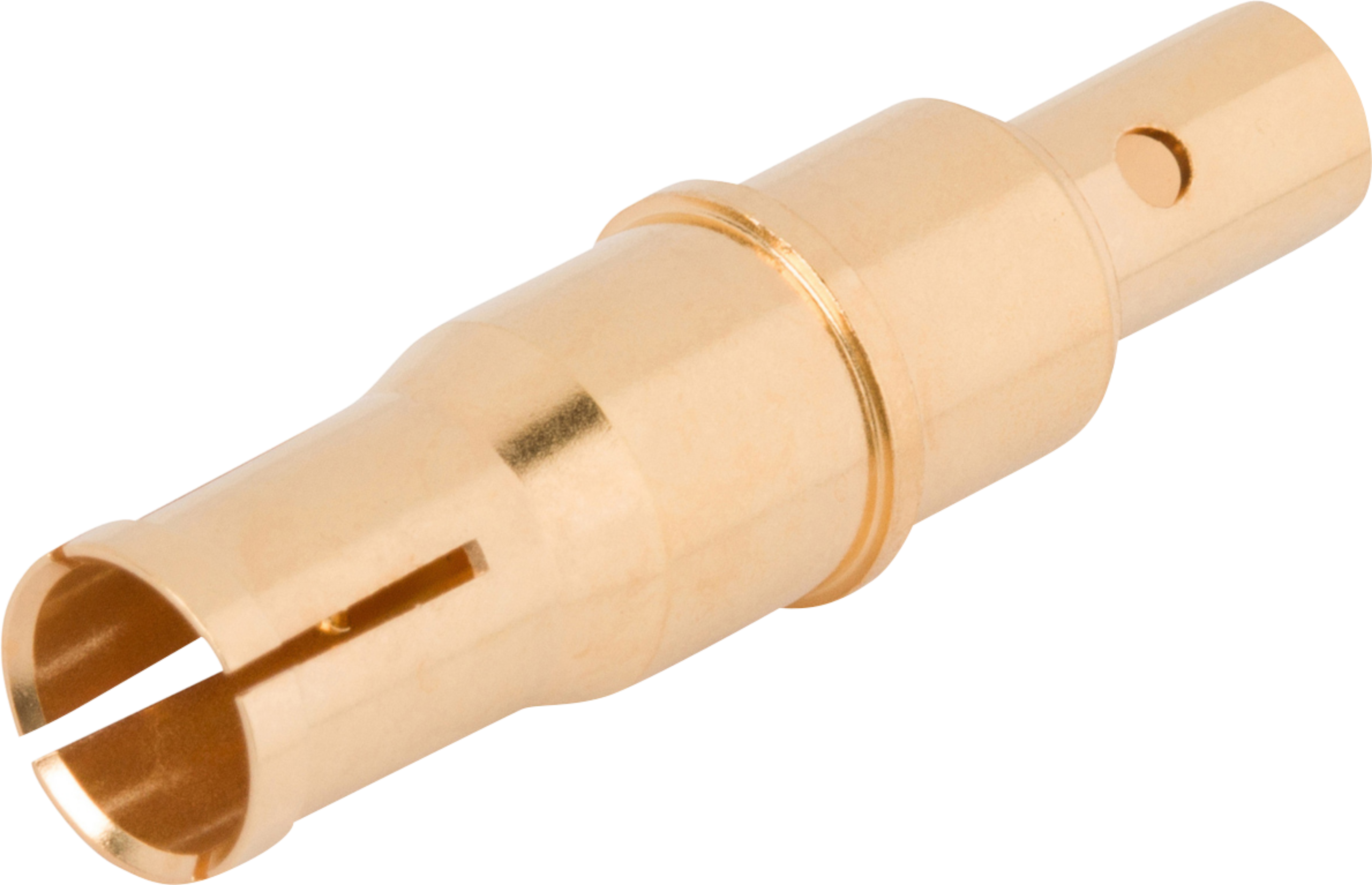

NSME Socket D38999 Contact (Size 8) for .141 Cable

Available Inventory: 0
8001-4103
NSME Connectors 8001-4103
Datasheet
Part #   8001-4104

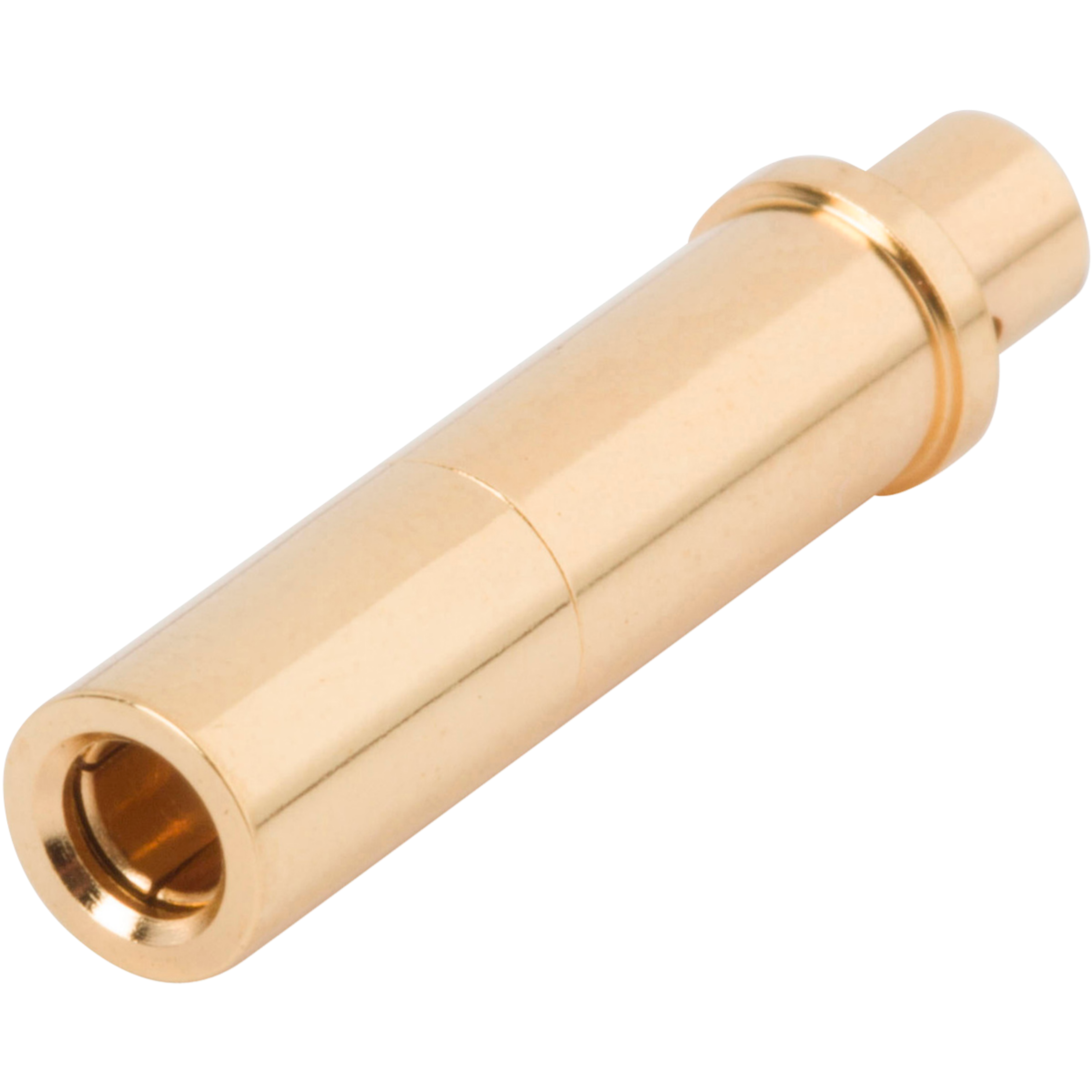

NSME Socket D38999 Contact (Size 12) for .085 Cable

Available Inventory: 257
8001-4104
NSME Connectors 8001-4104
Datasheet
Part #   SF9411-6000

BMA Socket D38999 Contact (Size 8) for .085 Cable

Available Inventory: 488
SF9411-6000
BMA Connectors SF9411-6000
Datasheet
Part #   SF9411-6001

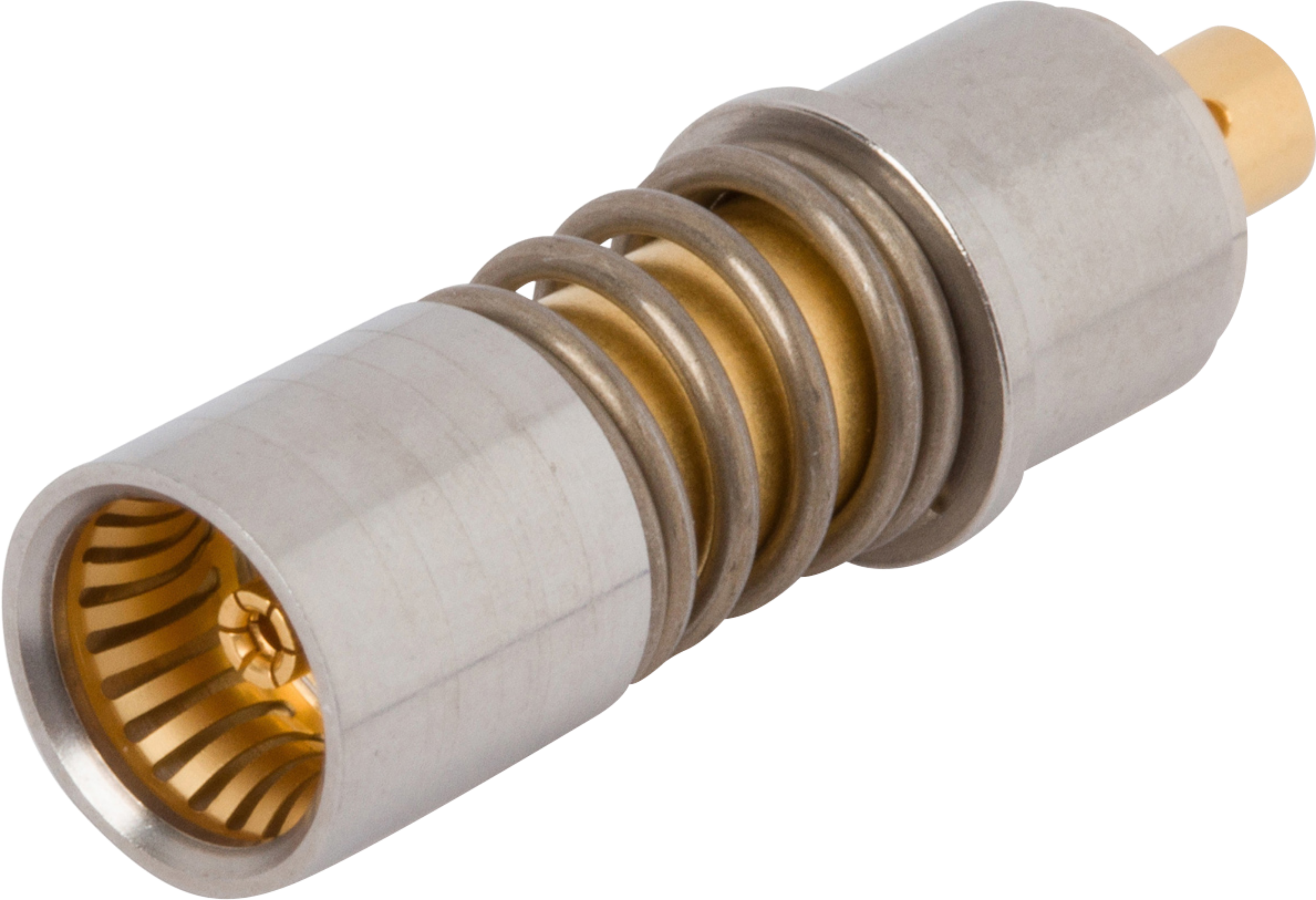

BMA Socket D38999 Contact (Size 8) for .141 Cable

Available Inventory: 1114
SF9411-6001
BMA Connectors SF9411-6001
Datasheet
Part #   SF9421-6000

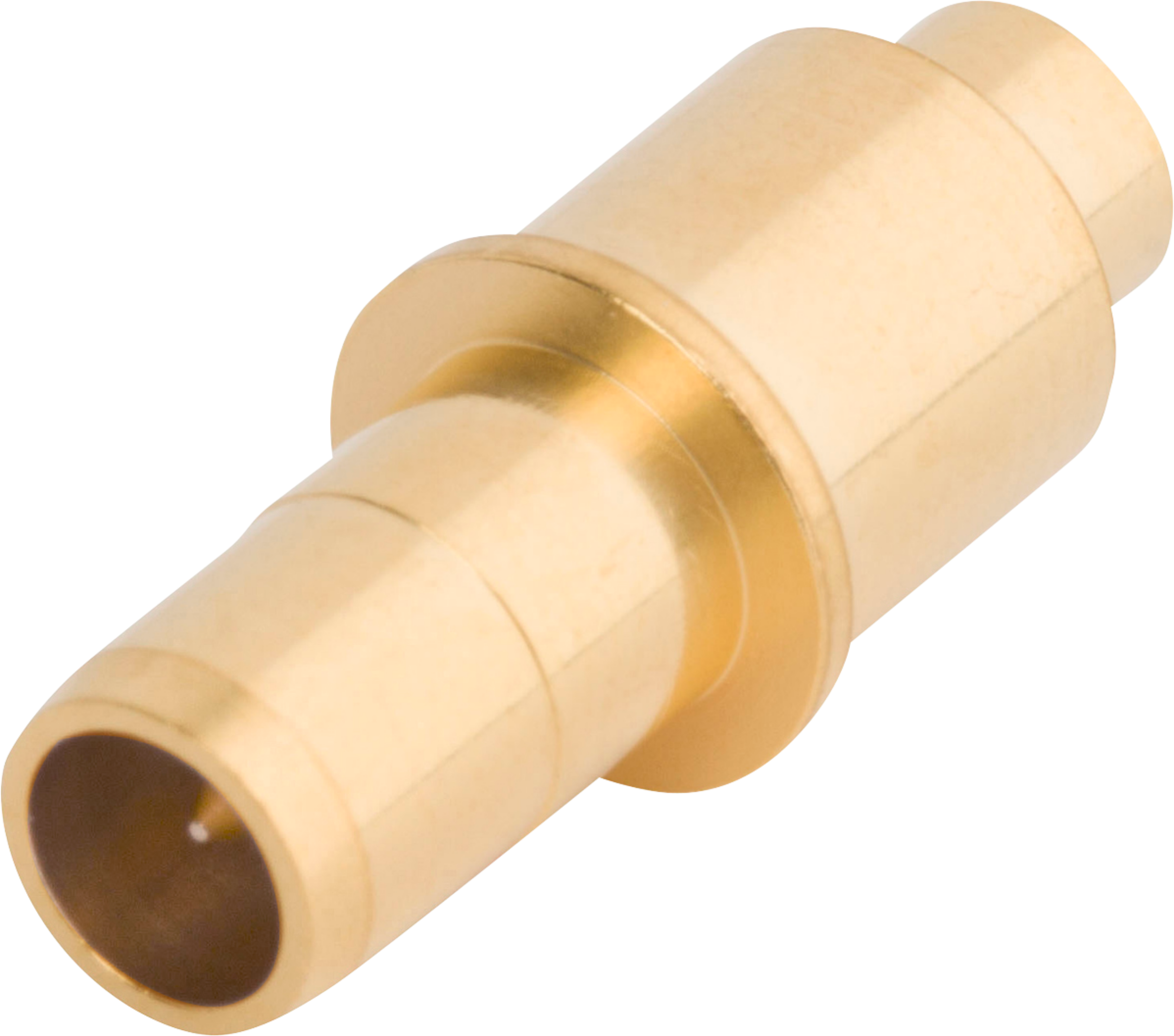

BMA Pin D38999 Contact (Size 8) for .085 Cable
