NSME Socket D38999 Contact (Size 12) for .085 Cable
P/N: 8001-4104

In stock at Qty Order
Newark 89
Farnell 89
Mouser Electronics 70
Products specifications
Attribute name Attribute value
RF Series NSME
Mounting Type D38999
Coupling Push-on
Gender Socket
Orientation (Body) Straight
Style Size 12
Termination Style Solder
Number of Ports Single
MIL-SPEC M39029
Finish Gold
Cable Type 0.085 Flexible Coax
Electrical
Frequency 3 GHz
Impedance 50 ohms


EU RoHS Directive 2011/65/EU Yes, w/ Exemption 6C

These products comply with the substance restrictions of the Restriction on Hazardous Substances Directive 2011/65/EU (RoHS2). The RoHS2 Directive requires that certain electrical and electronic equipment products do not contain mercury, cadmium, hexavalent chromium, PBB, PBDE, lead, DEHP, BBP, DBP and DIBP above defined thresholds. Products indicated as compliant with exemption contain one or more of these substances above the prohibition thresholds, but are compliant by claiming one or more valid exemptions.

EU REACH Regulation (EC) No. 1907/2006 SVHC > Threshold

These products contain one or more EU REACH Substances of Very High Concern (SVHC) > 0.1% by weight (1000 ppm). Details related to the SVHC are displayed.

REACH SVHC: LEAD, CAS #: 7439-92-1, PPM: 4000

Use personal protective equipment as required. Do not eat, drink or smoke when using this product. Wash thoroughly after handling. Recycle if possible and dispose of the article by following all applicable governmental regulations relevant to your geographic location.

This information is provided based on reasonable inquiry of our suppliers and represents our current actual knowledge based on the information they provided.

Please contact [email protected] for any Compliance or Environmental related questions.

Last Update: 6/28/2023 1:17:46 AM

Spinning Wheel; Your Submission is Loading

Contact Us

How can we help?

*
*
*
*
*
*
*
*
Products specifications
Attribute name Attribute value
RF Series NSME
Mounting Type D38999
Coupling Push-on
Gender Socket
Orientation (Body) Straight
Style Size 12
Termination Style Solder
Number of Ports Single
MIL-SPEC M39029
Finish Gold
Cable Type 0.085 Flexible Coax
Electrical
Frequency 3 GHz
Impedance 50 ohms
Customers Also Viewed
Part #   8001-4101

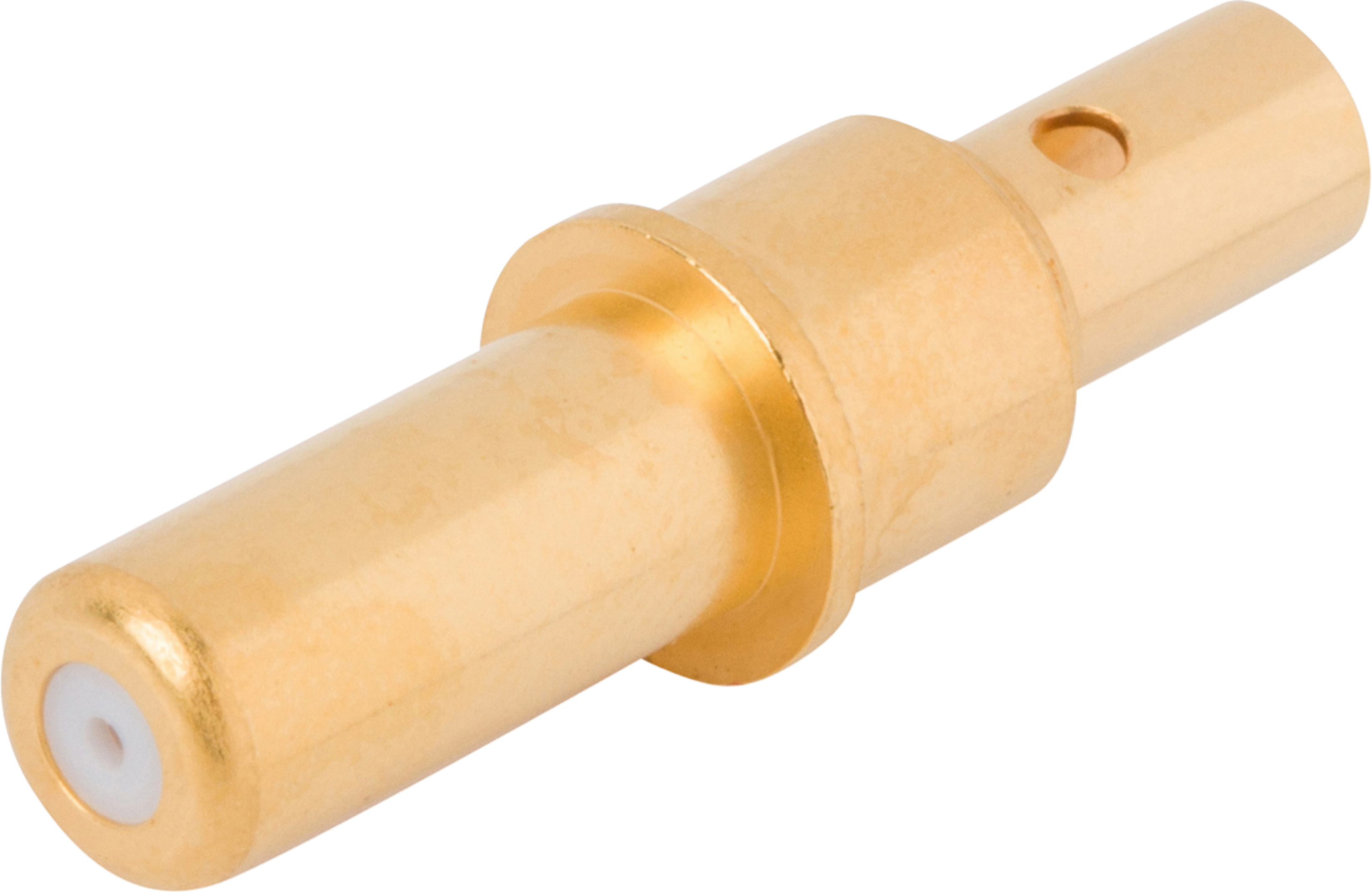

NSME Pin D38999 Contact (Size 8) for .141 Cable

Available Inventory: 19
8001-4101
NSME Connectors 8001-4101
Datasheet
Part #   8001-4102

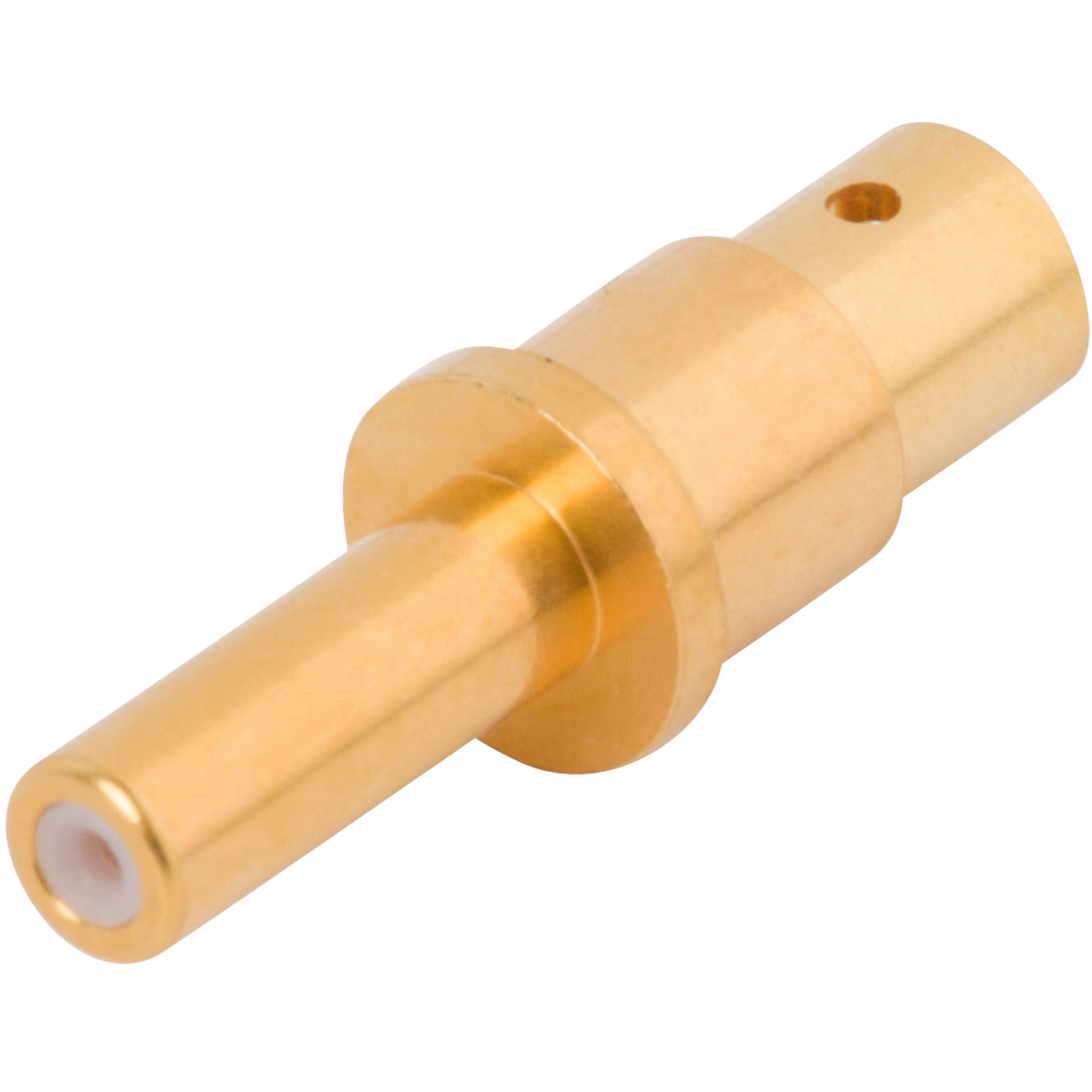

NSME Pin D38999 Contact (Size 12) for .085 Cable

Available Inventory: 0
8001-4102
NSME Connectors 8001-4102
Datasheet
Part #   8001-4103

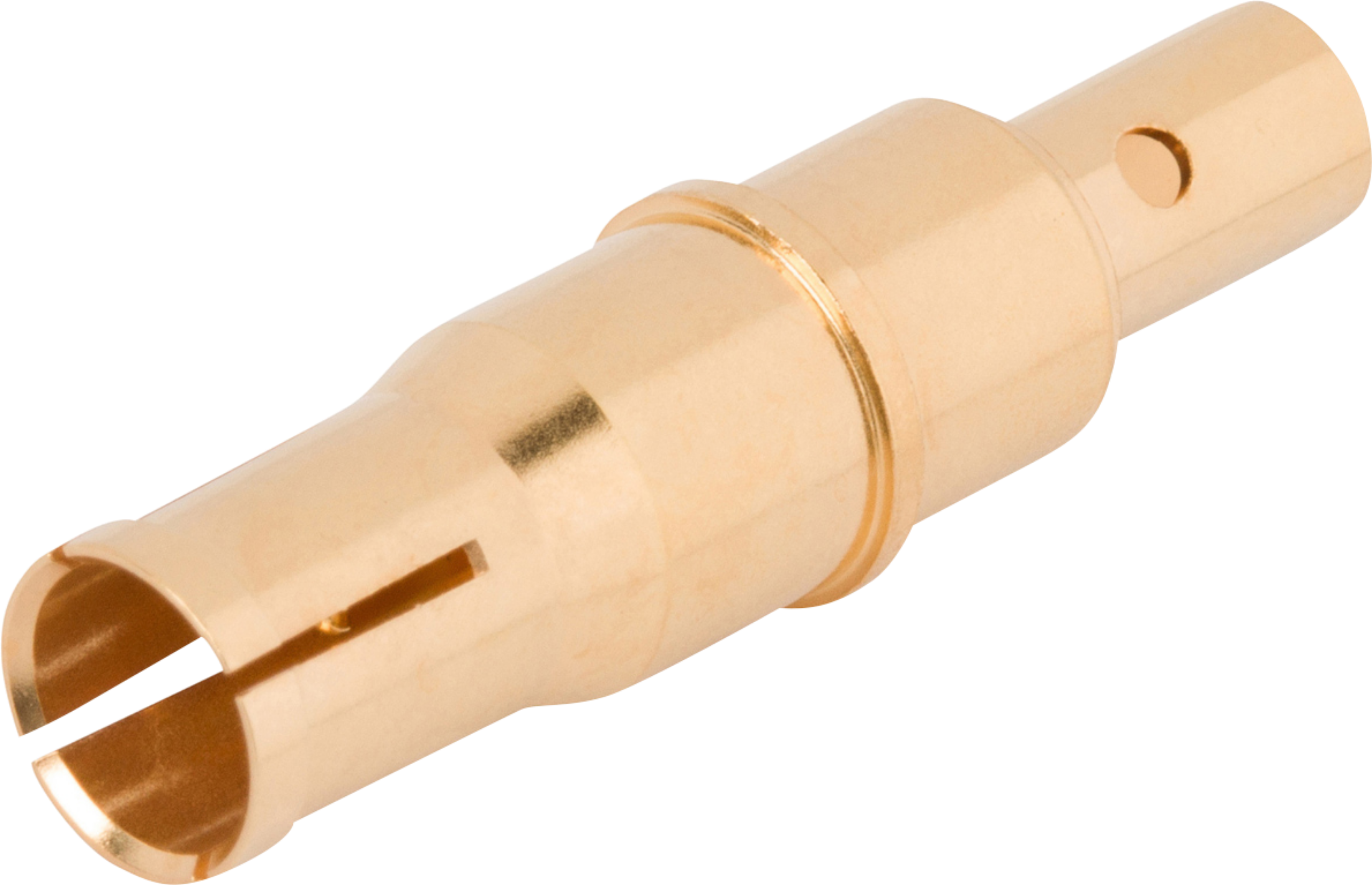

NSME Socket D38999 Contact (Size 8) for .141 Cable
