P/N: 8001-4108

NSME Socket D38999 Contact (Size 8) for .085 Cable

Not available for this part number. Please contact us.
Products specifications
Attribute name Attribute value
RF Series NSME
Gender Socket
Orientation (Body) Straight
Coupling Push-on
Mounting Type D38999
Style Size 8
Termination Style Solder
Number of Ports Single
MIL-SPEC M39029
Finish Gold
Cable Type 0.085 Flexible Coax
Electrical
Frequency 3 GHz
Impedance 50 ohms


EU RoHS Directive 2011/65/EU Yes, w/ Exemption 6C

These products comply with the substance restrictions of the Restriction on Hazardous Substances Directive 2011/65/EU (RoHS2). The RoHS2 Directive requires that certain electrical and electronic equipment products do not contain mercury, cadmium, hexavalent chromium, PBB, PBDE, lead, DEHP, BBP, DBP and DIBP above defined thresholds. Products indicated as compliant with exemption contain one or more of these substances above the prohibition thresholds, but are compliant by claiming one or more valid exemptions.

This information is provided based on reasonable inquiry of our suppliers and represents our current actual knowledge based on the information they provided.

Please contact compliance@svmicro.com for any Compliance or Environmental related questions.

Contact Us

How can we help?

*
*
*
*
*
*
*
*
Products specifications
Attribute name Attribute value
RF Series NSME
Gender Socket
Orientation (Body) Straight
Coupling Push-on
Mounting Type D38999
Style Size 8
Termination Style Solder
Number of Ports Single
MIL-SPEC M39029
Finish Gold
Cable Type 0.085 Flexible Coax
Electrical
Frequency 3 GHz
Impedance 50 ohms
Customers Also Viewed
Part #   8001-4101

NSME Pin D38999 Contact (Size 8) for .141 Cable

Available Inventory: 40
8001-4101
NSME Connectors 8001-4101
Datasheet
Part #   8001-4103

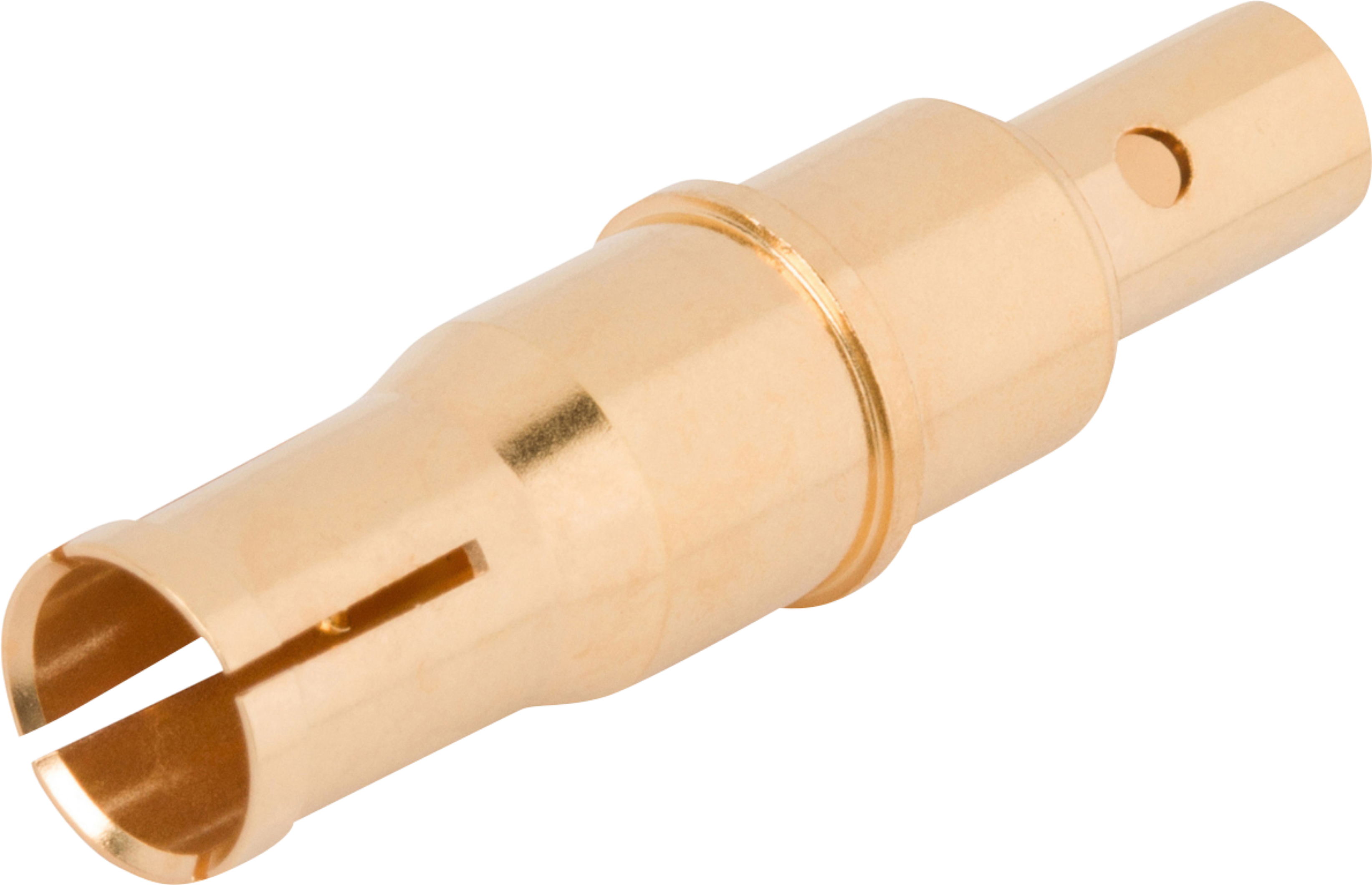

NSME Socket D38999 Contact (Size 8) for .141 Cable

Available Inventory: 20
8001-4103
NSME Connectors 8001-4103
Datasheet
Part #   8001-4107

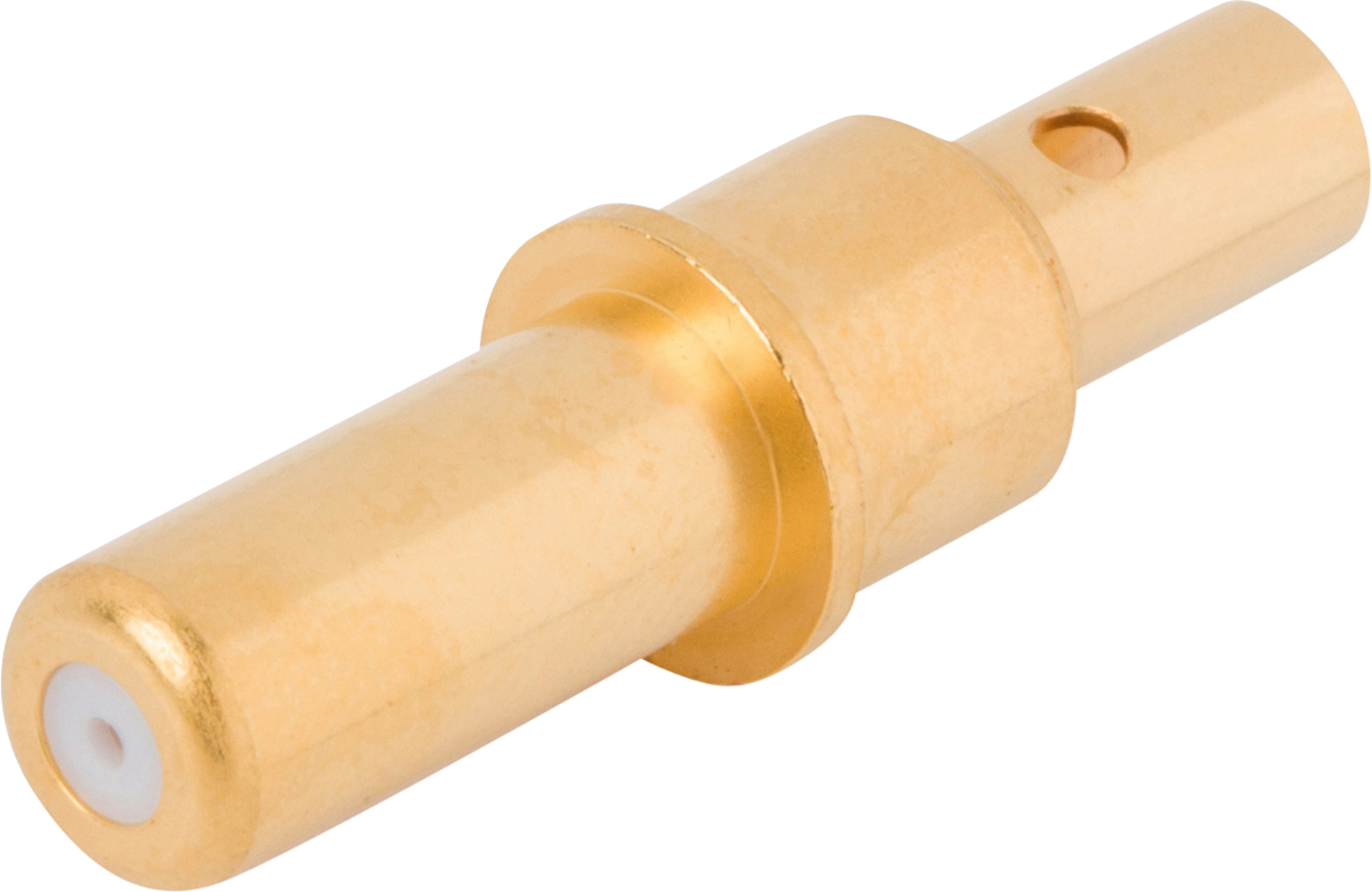

NSME Pin D38999 Contact (Size 8) for .085 Cable
