Threaded SMPM Connectors, Adapters and Cable Assemblies

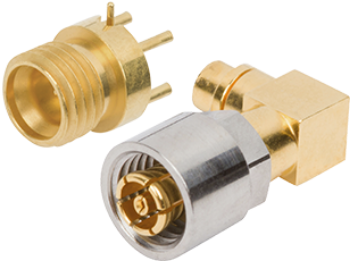

Picture for category Threaded SMPM Connectors, Adapters and Cable Assemblies

SV Microwave has just released a new line of threaded SMPM interconnects including connectors, adapters, and cable assemblies that feature a standard SMPM RF interface with a threaded coupling nut to ensure low mating and de-mating force. These threaded SMPM interconnects are ideal for high vibration environments while still maintaining superior electrical and mechanical performance.

Features / Benefits:

  • Standard SMPM RF interface
  • Tooling not required for assembly, but can be used in tight spaces
  • Low mate/demate force
  • DC - up to 40 GHz

Applications:

  • Mil/Aero
  • Commercial
  • Space
  • Power dividers and combiners

SMPM

Impedance (Ω)50
Frequency GHz40 GHz
Shielding Effectiveness≥ -80 dB DC - 3 GHz
 ≥ -65 dB 3 - 26.5 GHz
Dielectric withstanding Voltage325 VRMS
Mating Cycles - SB500
Mating Cycles - FD100
Insertion Force - SB2.5 lbs
Insertion Force - FD4.5 lbs
Withdrawal Force - SB1.5 lbs
Withdrawal Force - FD6.5 lbs
Axial Misalignment.010” Max
Radial Misalignment3° Max
Temperature Rating-65°C to +165°C
Corrosion (salt spray)MIL-STD-202, Method 101, Condition B
VibrationMIL-STD-202, Method 204, Condition D
ShockMIL-STD-202, Method 213, Condition I
Thermal ShockMIL-STD-202, Method 107, Condition B
Moisture ResistanceMIL-STD-202, Method 106, Less Step 7B
Barometric Pressure (Altitude)MIL-STD-202, Method 105, Condition C, 70k Ft.

Product Video

Filters
Part #   3221-60017

Threaded SMPM Female Connector for .047 Cable

Available Inventory: 151
3221-60017
SMPM Connectors 3221-60017
Datasheet
Part #   3221-60016

Threaded SMPM Female Connector for .085 Cable

Available Inventory: 328
3221-60016
SMPM Connectors 3221-60016
Datasheet
Part #   3222-40060

Threaded SMPM Female Connector, R/A for .047 Cable

Available Inventory: 117
3222-40060
SMPM Connectors 3222-40060
Datasheet
Part #   3222-40059

Threaded SMPM Female Connector, R/A for .085 Cable

Available Inventory: 428
3222-40059
SMPM Connectors 3222-40059
Datasheet
7032-9896
SMPM Cable Assemblies 7032-9896
Datasheet
7032-9894
SMPM Cable Assemblies 7032-9894
Datasheet
Part #   1132-6108

Threaded SMPM Female to 2.92mm Female Adapter

Available Inventory: 194
1132-6108
SMPM Adapters 1132-6108
Datasheet
7032-9895
SMPM Cable Assemblies 7032-9895
Datasheet
7032-9893
SMPM Cable Assemblies 7032-9893
Datasheet
Part #   3211-40170

Threaded SMPM Male PCB Edge Launch Connector (Pre-Tinned), SB

Available Inventory: 25
3211-40170
SMPM Connectors 3211-40170
Datasheet
Part #   3211-40121

Threaded SMPM Male PCB Edge Launch Connector, SB

Available Inventory: 1124
3211-40121
SMPM Connectors 3211-40121
Datasheet
Part #   3212-60037

Threaded SMPM Male PCB Thru-Hole Connector (Pre-Tinned), R/A, SB

Available Inventory: 134
3212-60037
SMPM Connectors 3212-60037
Datasheet
Part #   3211-60298

Threaded SMPM Male PCB Thru-Hole Connector, SB

Available Inventory: 693
3211-60298
SMPM Connectors 3211-60298
Datasheet
3211-60407-1S
SMPM Connectors 3211-60407-1S
Datasheet
3211-60407-2S
SMPM Connectors 3211-60407-2S
Datasheet
Part #   1132-6109

Threaded SMPM Male to 2.92mm Female Adapter, SB

Available Inventory: 129
1132-6109
SMPM Adapters 1132-6109
Datasheet
