Threaded SMPM Male to 2.92mm Female Adapter, SB
P/N: 1132-6109

In stock at Qty Order
Mouser Electronics 58
Digi-Key Electronics 22
Interstate Connecting Components 18
Farnell 8
Heilind Electronics 6
Products specifications
Attribute name Attribute value
RF Series SMPM
Gender Plug (Male)
Orientation (Body) Straight
Coupling Threaded
Detent Smooth Bore
Finish Passivated
RF Series 2 2.92 mm
Gender 2 Jack (Female)
Orientation 2 (Body) Straight
Family Threaded SMPM
Electrical
Impedance 50 ohms
Frequency 40 GHz
Dielectric withstanding Voltage 325 VRMS
Shielding Effectiveness ≥ -80 dB DC - 3 GHz, ≥ -65 dB 3 - 26.5 GHz
Mechanical
Mating Cycles - FD 100
Mating Cycles - SB 500
Insertion Force - SB 2.5 lbs
Withdrawal Force - FD 6.5 lbs
Insertion Force - FD 4.5 lbs
Withdrawal Force - SB 1.5 lbs
Axial Misalignment .010” Max
Radial Misalignment 3° Max
Environmental
Temperature Rating -65°C to +165°C
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Shock MIL-STD-202, Method 213, Condition I
Vibration MIL-STD-202, Method 204, Condition D
Thermal Shock MIL-STD-202, Method 107, Condition B
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.


EU RoHS Directive 2011/65/EU Yes, w/ Exemption 6C

These products comply with the substance restrictions of the Restriction on Hazardous Substances Directive 2011/65/EU (RoHS2). The RoHS2 Directive requires that certain electrical and electronic equipment products do not contain mercury, cadmium, hexavalent chromium, PBB, PBDE, lead, DEHP, BBP, DBP and DIBP above defined thresholds. Products indicated as compliant with exemption contain one or more of these substances above the prohibition thresholds, but are compliant by claiming one or more valid exemptions.

EU REACH Regulation (EC) No. 1907/2006 SVHC > Threshold

These products contain one or more EU REACH Substances of Very High Concern (SVHC) > 0.1% by weight (1000 ppm). Details related to the SVHC are displayed.

REACH SVHC: LEAD, CAS #: 7439-92-1, PPM: 4000

Use personal protective equipment as required. Do not eat, drink or smoke when using this product. Wash thoroughly after handling. Recycle if possible and dispose of the article by following all applicable governmental regulations relevant to your geographic location.

This information is provided based on reasonable inquiry of our suppliers and represents our current actual knowledge based on the information they provided.

Please contact [email protected] for any Compliance or Environmental related questions.

Last Update: 6/28/2023 1:01:17 AM

Spinning Wheel; Your Submission is Loading

Contact Us

How can we help?

*
*
*
*
*
*
*
*
Products specifications
Attribute name Attribute value
RF Series SMPM
Gender Plug (Male)
Orientation (Body) Straight
Coupling Threaded
Detent Smooth Bore
Finish Passivated
RF Series 2 2.92 mm
Gender 2 Jack (Female)
Orientation 2 (Body) Straight
Family Threaded SMPM
Electrical
Impedance 50 ohms
Frequency 40 GHz
Dielectric withstanding Voltage 325 VRMS
Shielding Effectiveness ≥ -80 dB DC - 3 GHz, ≥ -65 dB 3 - 26.5 GHz
Mechanical
Mating Cycles - FD 100
Mating Cycles - SB 500
Insertion Force - SB 2.5 lbs
Withdrawal Force - FD 6.5 lbs
Insertion Force - FD 4.5 lbs
Withdrawal Force - SB 1.5 lbs
Axial Misalignment .010” Max
Radial Misalignment 3° Max
Environmental
Temperature Rating -65°C to +165°C
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Shock MIL-STD-202, Method 213, Condition I
Vibration MIL-STD-202, Method 204, Condition D
Thermal Shock MIL-STD-202, Method 107, Condition B
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.
Product tags
Customers Also Viewed
Part #   1132-6108

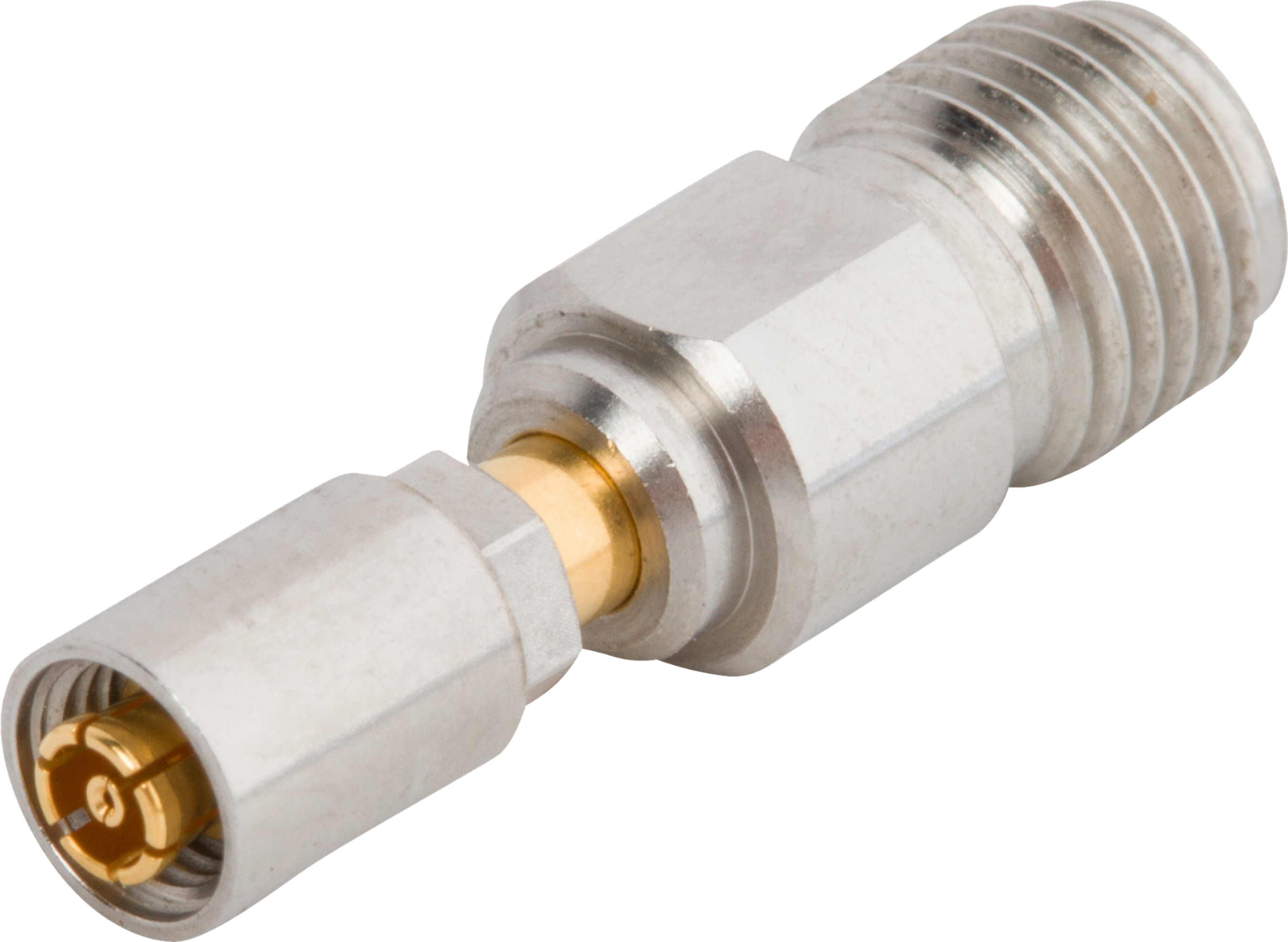

Threaded SMPM Female to 2.92mm Female Adapter

Available Inventory: 240
1132-6108
SMPM Adapters 1132-6108
Datasheet
Part #   3211-60298

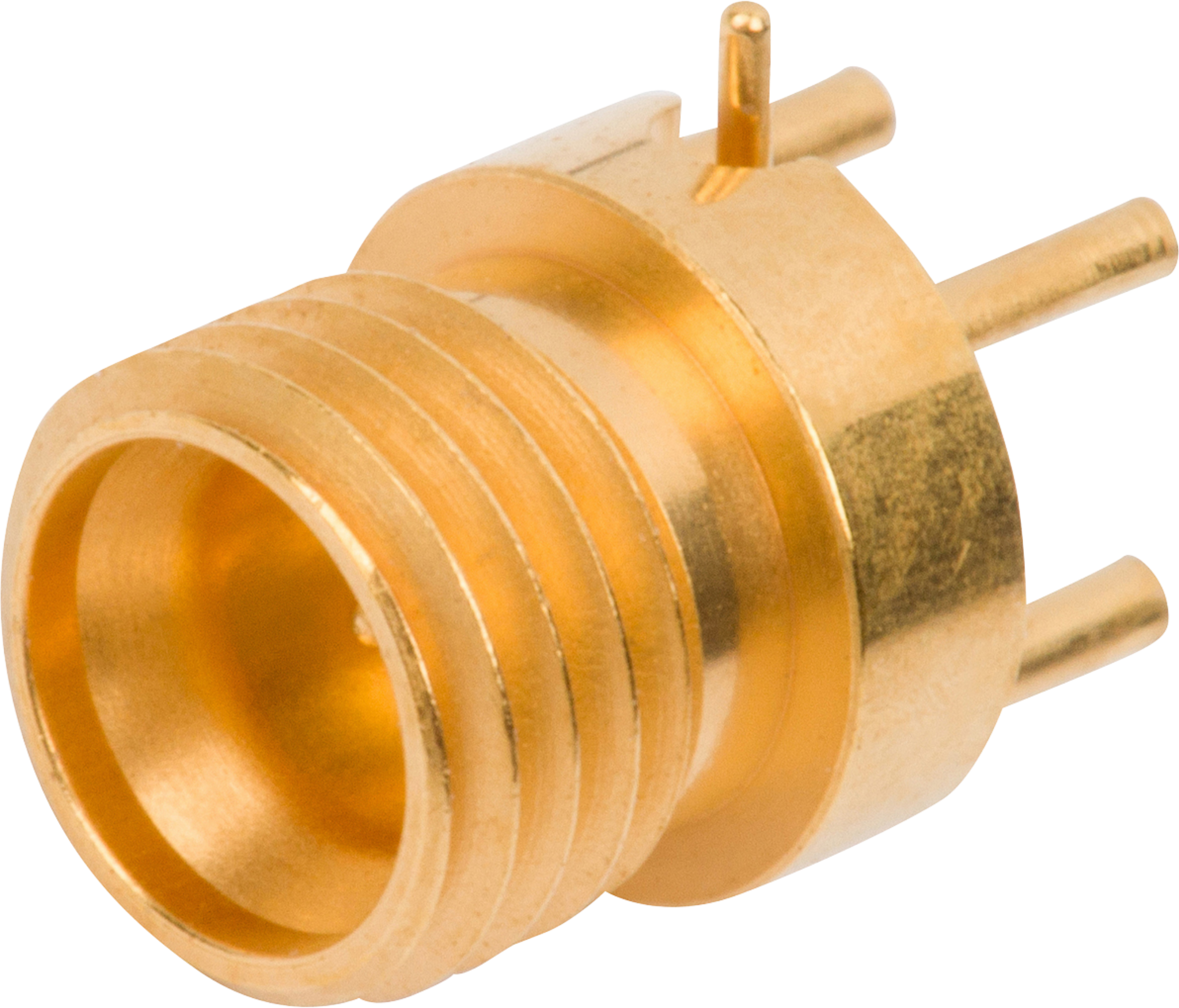

Threaded SMPM Male PCB Thru-Hole Connector, SB

Available Inventory: 951
3211-60298
SMPM Connectors 3211-60298
Datasheet
Part #   3211-40121

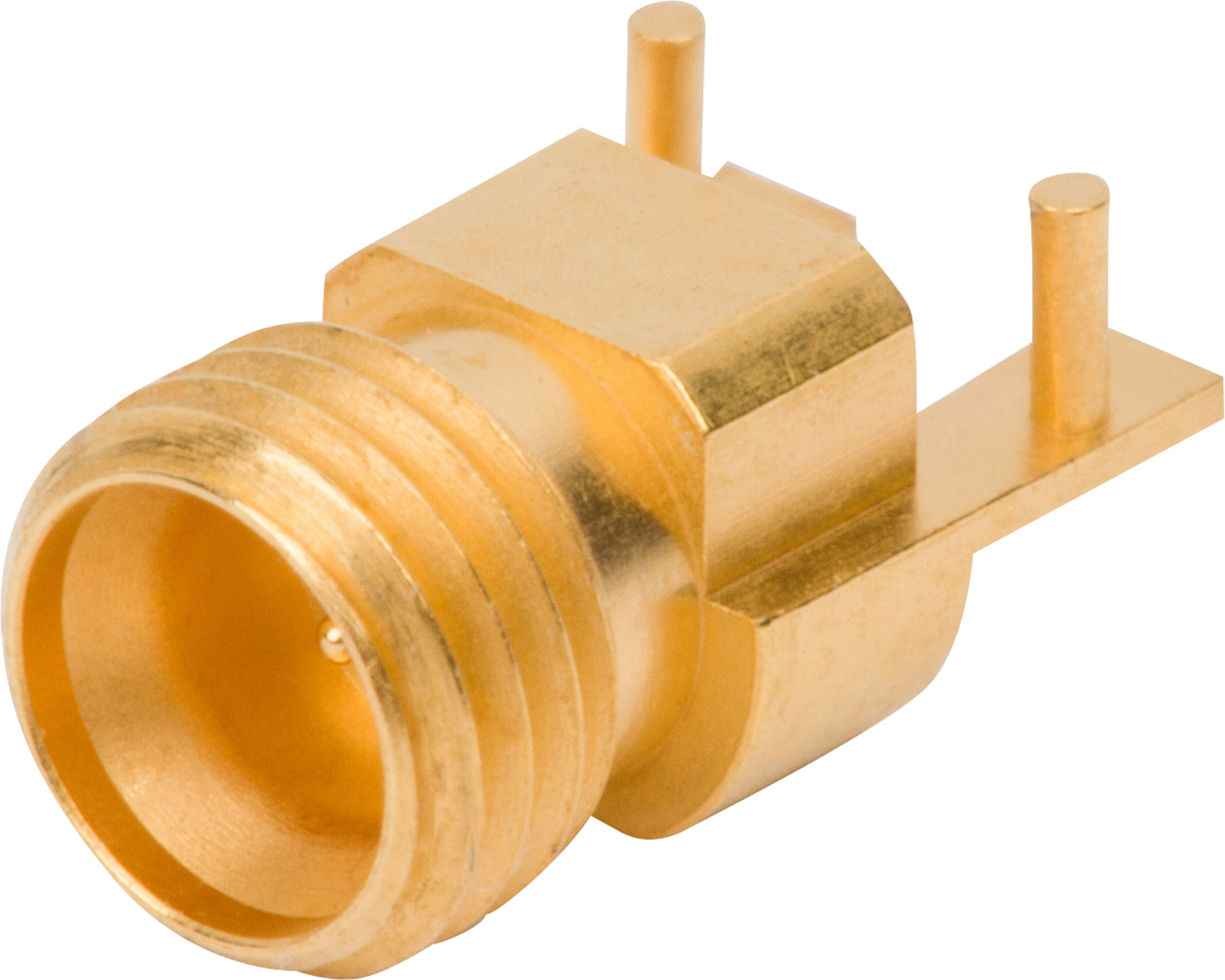

Threaded SMPM Male PCB Edge Launch Connector, SB
