Products specifications
| Attribute name | Attribute value |
|---|---|
| RF Series | SMPM |
| Gender | Jack (Female) |
| Orientation (Body) | Straight |
| Coupling | Push-on |
| Termination Style | Solder |
| Number of Ports | Single |
| RF Series 2 | SMA |
| Gender 2 | Plug (Male) |
| Cable Type | 0.085 Flexible Coax |
| Orientation 2 (Body) | Straight |
| Cable Length | 12" |
| Family | Threaded SMPM |
| Electrical | |
| Frequency | 18 GHz |
| Impedance | 50 ohms |
| Shielding Effectiveness | ≥ -80 dB DC - 3 GHz, ≥ -65 dB 3 - 26.5 GHz |
| Dielectric withstanding Voltage | 325 VRMS |
| Mechanical | |
| Mating Cycles - SB | 500 |
| Mating Cycles - FD | 100 |
| Insertion Force - SB | 2.5 lbs |
| Insertion Force - FD | 4.5 lbs |
| Axial Misalignment | .010” Max |
| Withdrawal Force - SB | 1.5 lbs |
| Radial Misalignment | 3° Max |
| Withdrawal Force - FD | 6.5 lbs |
| Environmental | |
| Corrosion (salt spray) | MIL-STD-202, Method 101, Condition B |
| Temperature Rating | -65°C to +165°C |
| Vibration | MIL-STD-202, Method 204, Condition D |
| Shock | MIL-STD-202, Method 213, Condition I |
| Thermal Shock | MIL-STD-202, Method 107, Condition B |
| Moisture Resistance | MIL-STD-202, Method 106, Less Step 7B |
| Barometric Pressure (Altitude) | MIL-STD-202, Method 105, Condition C, 70k Ft. |
Products specifications
| Attribute name | Attribute value |
|---|---|
| RF Series | SMPM |
| Gender | Jack (Female) |
| Orientation (Body) | Straight |
| Coupling | Push-on |
| Termination Style | Solder |
| Number of Ports | Single |
| RF Series 2 | SMA |
| Gender 2 | Plug (Male) |
| Cable Type | 0.085 Flexible Coax |
| Orientation 2 (Body) | Straight |
| Cable Length | 12" |
| Family | Threaded SMPM |
| Electrical | |
| Frequency | 18 GHz |
| Impedance | 50 ohms |
| Shielding Effectiveness | ≥ -80 dB DC - 3 GHz, ≥ -65 dB 3 - 26.5 GHz |
| Dielectric withstanding Voltage | 325 VRMS |
| Mechanical | |
| Mating Cycles - SB | 500 |
| Mating Cycles - FD | 100 |
| Insertion Force - SB | 2.5 lbs |
| Insertion Force - FD | 4.5 lbs |
| Axial Misalignment | .010” Max |
| Withdrawal Force - SB | 1.5 lbs |
| Radial Misalignment | 3° Max |
| Withdrawal Force - FD | 6.5 lbs |
| Environmental | |
| Corrosion (salt spray) | MIL-STD-202, Method 101, Condition B |
| Temperature Rating | -65°C to +165°C |
| Vibration | MIL-STD-202, Method 204, Condition D |
| Shock | MIL-STD-202, Method 213, Condition I |
| Thermal Shock | MIL-STD-202, Method 107, Condition B |
| Moisture Resistance | MIL-STD-202, Method 106, Less Step 7B |
| Barometric Pressure (Altitude) | MIL-STD-202, Method 105, Condition C, 70k Ft. |
Customers Also Viewed
Part # 7012-1084

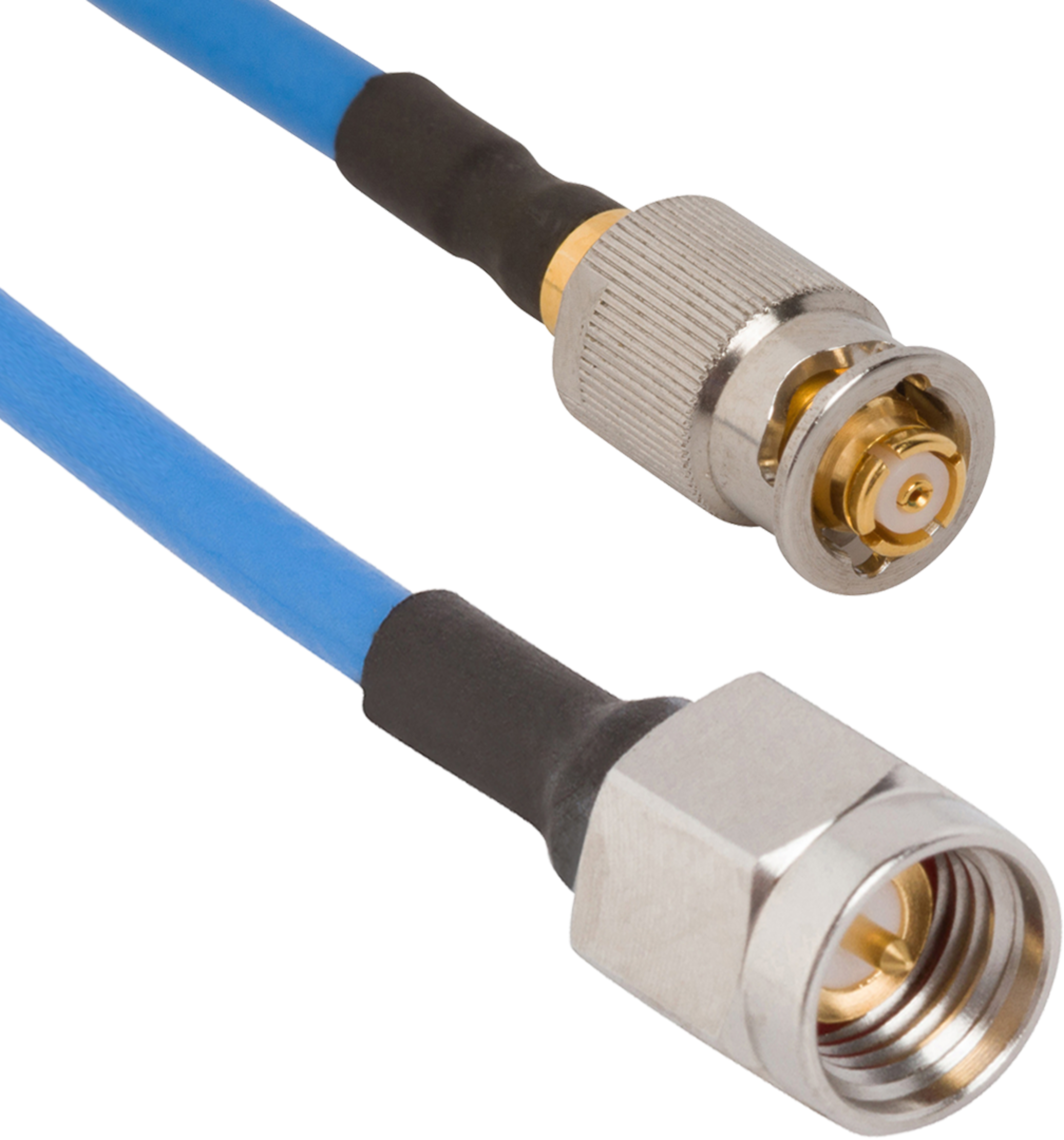

SMP Female QB to SMA Male 12" Cable Assembly for .085 Cable
Available Inventory: 30
7012-1084
SMP Cable Assemblies 7012-1084
Part # 7012-1085
SMP Female QB to SMA Male 6" Cable Assembly for .085 Cable
Available Inventory: 121
7012-1085
SMP Cable Assemblies 7012-1085
Part # 7012-1302

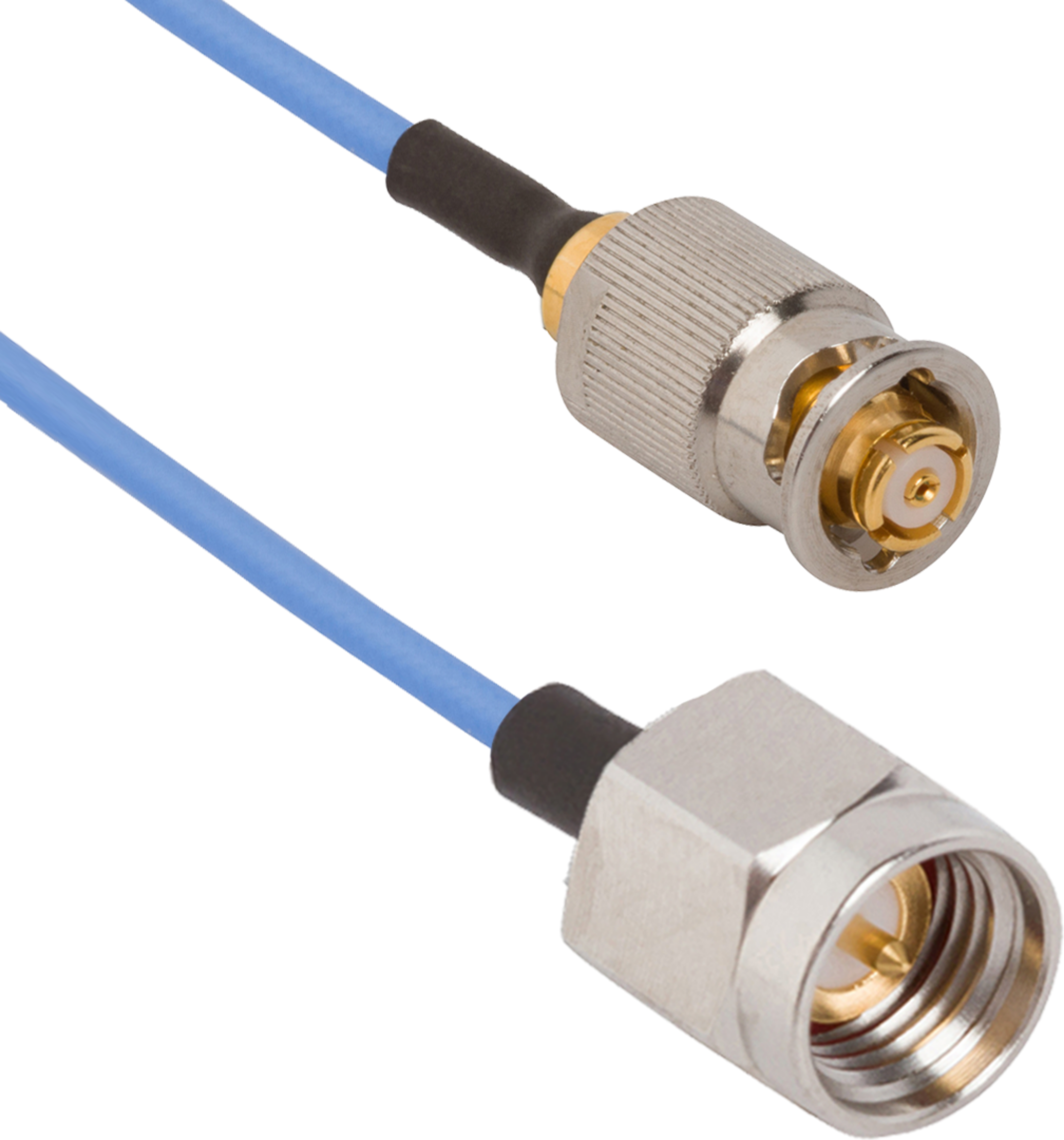

SMP Female QB to SMA Male 12" Cable Assembly for .047 Cable
