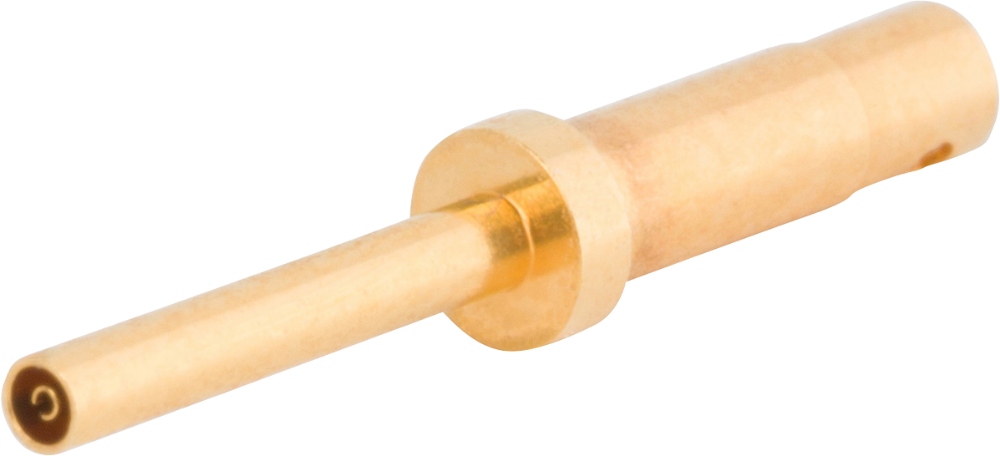

SV20 RF Series
| SV20 RF Series offers a compact, high-frequency, push-on RF contact solution compatible with MIL-DTL-38999 Series I, II, III, and IV housings, while the Micro38999 size 20HD pin and socket contacts are designed for MIL-DTL-32689, 2M, and Series 80. It can deliver superior performance up to 40 GHz. Its rugged durability makes it well suited for modern high-density, high-speed RF applications in Military and Aerospace environments. |
SV20
| Impedance (Ω) | 50 |
| Frequency GHz | 40 GHz |
| Shielding Effectiveness | -90 dB - F(GHz) |
| Dielectric Withstanding Voltage | 150 VRMS |
| Mating Cycles | 500 |
| Temperature Rating | -65°C to +165°C |
| Corrosion (salt spray) | MIL-STD-202, Method 101, Condition B |
| Vibration | MIL-STD-202, Method 204, Condition D |
| Shock | MIL-STD-202, Method 213, Condition I |
| Thermal Shock | MIL-STD-202, Method 107, Condition B |
| Moisture Resistance | MIL-STD-202, Method 106, Less Step 7B |
| Barometric Pressure (Altitude) | MIL-STD-202, Method 105, Condition C, 70k Ft. |
