SV20 Socket D38999 Contact (Size 20) for .047 Cable
P/N: 2051-60001

There currently isn't any inventory available in distribution. Please contact us to obtain this product.
Products specifications
Attribute name Attribute value
Gender Socket
Cable Type 0.047 Flexible Coax
Mounting Type D38999 Series I, III and IV
Style Size 20
Orientation (Body) Straight
Coupling Push-on
Finish Passivated
RF Series SV20
Electrical
Impedance 50 ohms
Frequency 40 GHz
Shielding Effectiveness ≥ -90 dB
Dielectric withstanding Voltage 150 VRMS
Mechanical
Mating Cycles 500
Environmental
Temperature Rating -55°C to +125°C
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Thermal Shock MIL-STD-202, Method 107, Condition B
Shock MIL-STD-202, Method 213, Condition I
Vibration MIL-STD-202, Method 204, Condition D
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B
Spinning Wheel; Your Submission is Loading

Contact Us

How can we help?

*
*
*
*
*
*
*
*
Products specifications
Attribute name Attribute value
Gender Socket
Cable Type 0.047 Flexible Coax
Mounting Type D38999 Series I, III and IV
Style Size 20
Orientation (Body) Straight
Coupling Push-on
Finish Passivated
RF Series SV20
Electrical
Impedance 50 ohms
Frequency 40 GHz
Shielding Effectiveness ≥ -90 dB
Dielectric withstanding Voltage 150 VRMS
Mechanical
Mating Cycles 500
Environmental
Temperature Rating -55°C to +125°C
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Thermal Shock MIL-STD-202, Method 107, Condition B
Shock MIL-STD-202, Method 213, Condition I
Vibration MIL-STD-202, Method 204, Condition D
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B
Product tags
Customers Also Viewed
Part #   9921-40001

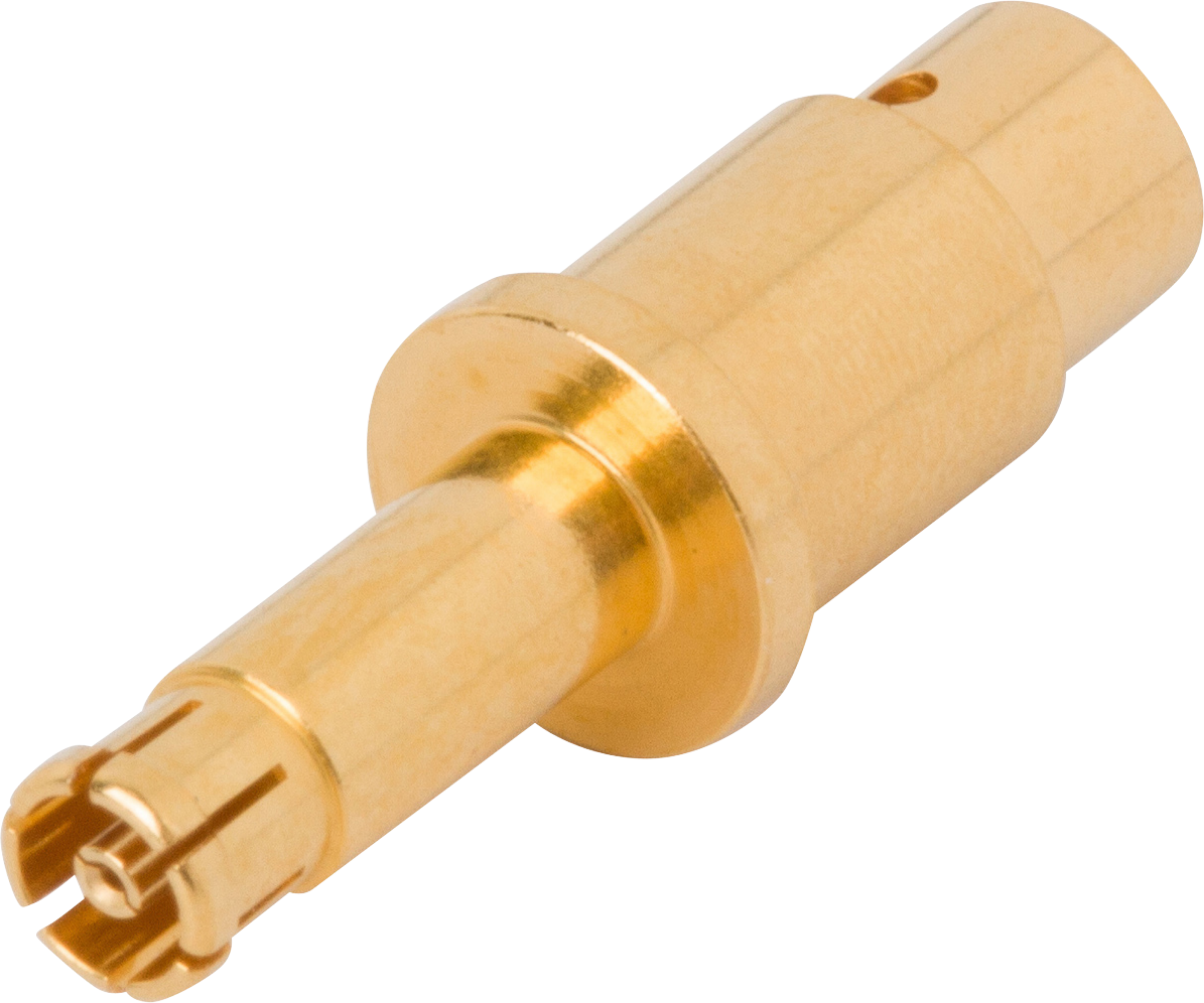

SMPS Pin D38999 Contact (Size 16) for .047 Cable

Available Inventory: 601
9921-40001
SMPS Connectors 9921-40001
Datasheet
Part #   2041-40001

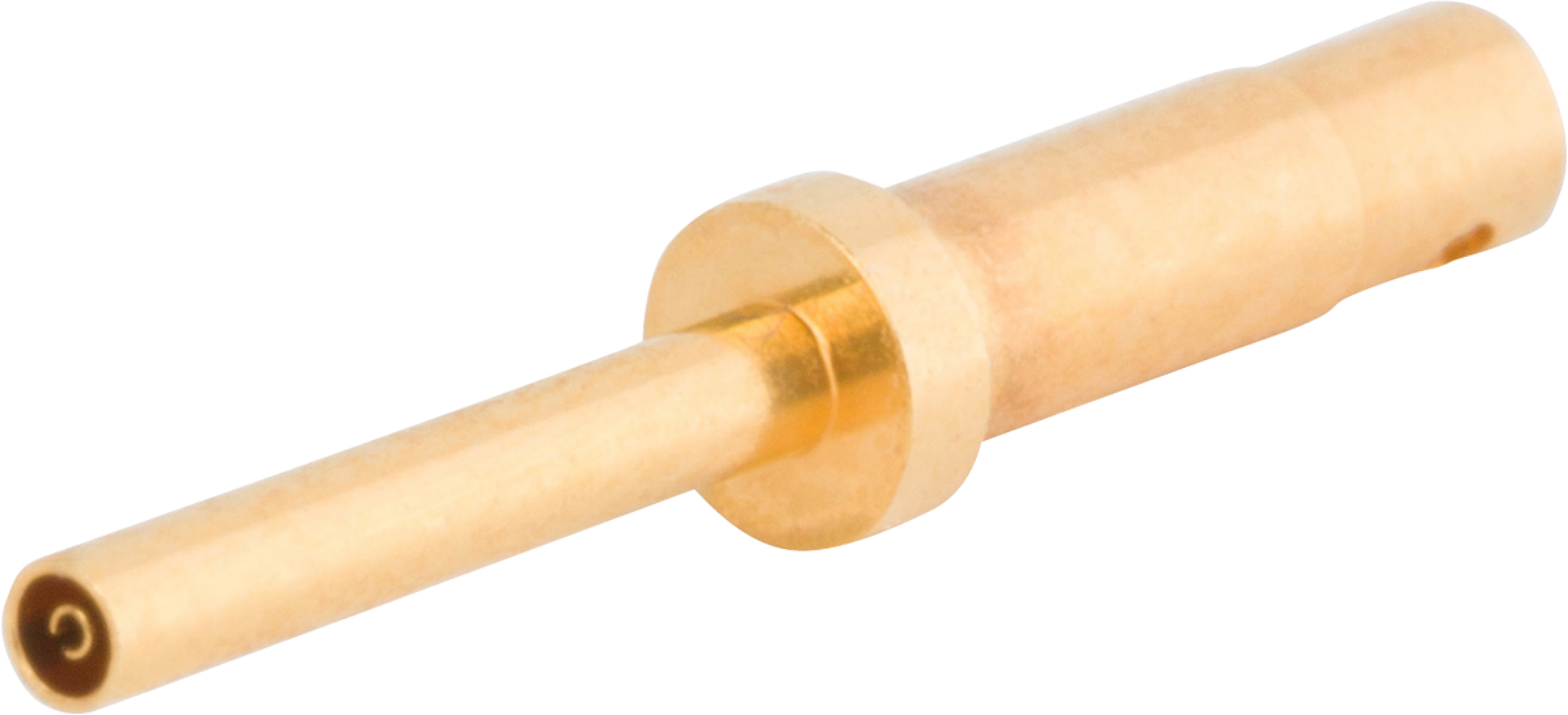

SV20 Pin D38999 Contact (Size 20) for .047 Cable
