Solder-On PCB Edge Launch and Surface Mount Connectors

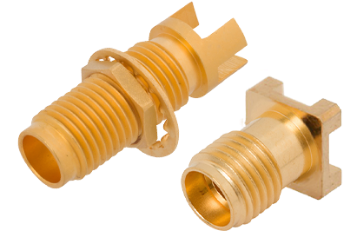

Picture for category Solder-On PCB Edge Launch and Surface Mount Connectors

SV Microwave’s high speed RF/coaxial solder-on bulkhead edge launch and low profile surface mount connectors are ideal for high frequency PCB applications where precision is critical.  These female connectors feature a new body style design and are available in SMA, 2.92mm, 2.4mm and 1.85mm series.

Features / Benefits:

  • High frequency RF performance up to 67 GHz (1.85mm version)
  • Durable and rugged design
  • Bulkhead style connector for outside of the box applications

Applications:

  • High speed/frequency component test
  • Product evaluation boards
  • Mil-Aero radar and communication systems
  • Satellite communication systems

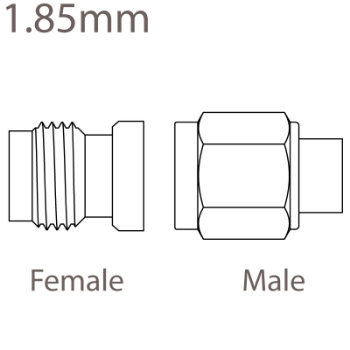

1.85 mm

 Impedance (Ω)  50
 Frequency GHz  65 GHz
 Shielding Effectiveness  ≥ -100 dB
 Dielectric withstanding Voltage  500 VRMS
 Mating Cycles  500
 Mating Torque  5 - 7 in - lbs
 Inter-mate ability  2.4mm
 Temperature Rating  -65°C to +165°C
 Corrosion (salt spray)  MIL-STD-202, Method 101, Condition B
 Vibration  MIL-STD-202, Method 204, Condition D
 Shock  MIL-STD-202, Method 213, Condition I
 Thermal Shock  MIL-STD-202, Method 107, Condition B
 Moisture Resistance  MIL-STD-202, Method 106, Less Step 7B
 Barometric Pressure (Altitude)  MIL-STD-202, Method 105, Condition C, 70k Ft.

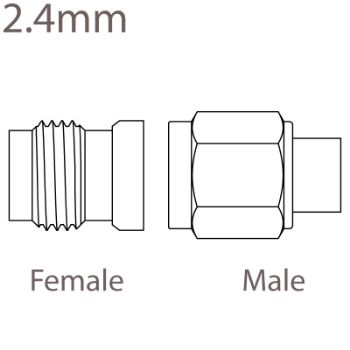

2.4 mm

 Impedance (Ω)  50
 Frequency GHz  50 GHz
 Shielding Effectiveness  ≥ -100 dB
 Dielectric withstanding Voltage  500 VRMS
 Mating Cycles  500
 Mating Torque  5 - 7 in - lbs
 Inter-mate ability  1.85mm
 Temperature Rating  -65°C to +165°C
 Corrosion (salt spray)  MIL-STD-202, Method 101, Condition B
 Vibration  MIL-STD-202, Method 204, Condition D
 Shock  MIL-STD-202, Method 213, Condition I
 Thermal Shock  MIL-STD-202, Method 107, Condition B
 Moisture Resistance  MIL-STD-202, Method 106, Less Step 7B
 Barometric Pressure (Altitude)  MIL-STD-202, Method 105, Condition C, 70k Ft.

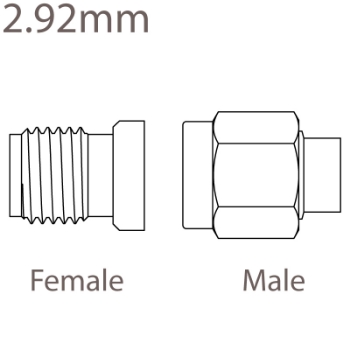

2.92 mm

 Impedance (Ω)  50
 Frequency GHz  40 GHz
 Shielding Effectiveness  ≥ -100 dB
 Dielectric withstanding Voltage  750 VRMS
 Mating Cycles  500
 Mating Torque  7 - 10 in - lbs
 Inter-mate ability  SMA
 Temperature Rating  -65°C to +165°C
 Corrosion (salt spray)  MIL-STD-202, Method 101, Condition B
 Vibration  MIL-STD-202, Method 204, Condition D
 Shock  MIL-STD-202, Method 213, Condition I
 Thermal Shock  MIL-STD-202, Method 107, Condition B
 Moisture Resistance  MIL-STD-202, Method 106, Less Step 7B
 Barometric Pressure (Altitude)  MIL-STD-202, Method 105, Condition C, 70k Ft.

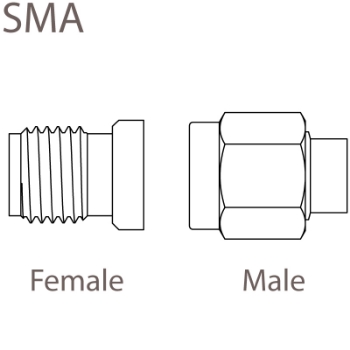

SMA

 Impedance (Ω)  50
 Frequency GHz  18 GHz (select models to 26.5 GHz)
 Shielding Effectiveness  ≥ -90 dB
 Dielectric withstanding Voltage  1000 VRMS
 Mating Cycles  500
 Mating Torque  7 - 10 in - lbs
 Inter-mate ability  2.92mm
 Temperature Rating  -65°C to +165°C
 Corrosion (salt spray)  MIL-STD-202, Method 101, Condition B
 Vibration  MIL-STD-202, Method 204, Condition D
 Shock  MIL-STD-202, Method 213, Condition I
 Thermal Shock  MIL-STD-202, Method 107, Condition B
 Moisture Resistance  MIL-STD-202, Method 106, Less Step 7B
 Barometric Pressure (Altitude)  MIL-STD-202, Method 105, Condition C, 70k Ft.
Filters
per page
Part #   3321-00004

1.85mm Female Bulkhead PCB Edge Launch Connector, .062" PCB Thickness

Available Inventory: 92
3321-00004
1.85mm Connectors 3321-00004
Datasheet
Part #   3321-00003

1.85mm Female Bulkhead PCB Edge Launch Connector, 4 Legs

Available Inventory: 100
3321-00003
1.85mm Connectors 3321-00003
Datasheet
Part #   1621-00003

2.4mm Female Bulkhead PCB Edge Launch Connector, .062" PCB Thickness

Available Inventory: 100
1621-00003
2.4mm Connectors 1621-00003
Datasheet
Part #   1621-00002

2.4mm Female Bulkhead PCB Edge Launch Connector, 4 Leg

Available Inventory: 150
1621-00002
2.4mm Connectors 1621-00002
Datasheet
Part #   1521-00010

2.92mm Female Bulkhead PCB Edge Launch Connector, .062" PCB Thickness

Available Inventory: 86
1521-00010
2.92mm Connectors 1521-00010
Datasheet
Part #   1521-00009

2.92mm Female Bulkhead PCB Edge Launch Connector, 4 Leg

Available Inventory: 43
1521-00009
2.92mm Connectors 1521-00009
Datasheet
Part #   2921-00058

SMA Female Bulkhead PCB Edge Launch Connector, .062" PCB Thickness

Available Inventory: 180
2921-00058
SMA Connectors 2921-00058
Datasheet
Part #   2921-00057

SMA Female Bulkhead PCB Edge Launch Connector, 4 Legs

Available Inventory: 0
2921-00057
SMA Connectors 2921-00057
Datasheet
Part #   1521-00008

2.92mm Female PCB Low Profile Surface Mount Connector

Available Inventory: 0
1521-00008
1521-00008, 2.92mm Connector, 2.92mm PCB Connector
Datasheet
Part #   1521-60210

2.92mm Female PCB Thru-Hole Connector

Available Inventory: 129
1521-60210
1521-60210, 2.92mm Connector
Datasheet
