SMPS VITA 67.3 Gen2 Cable Assemblies

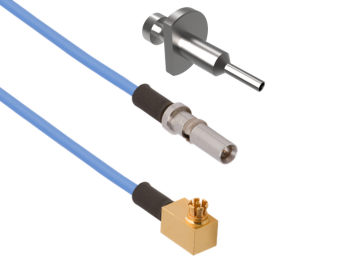

SV Microwave's VITA 67.3 Gen2 product line now includes a new range of flexible cable assemblies, designed to provide robust, high-performance RF signal routing within embedded systems. Expanding on our innovative VITA 67.3 interconnects, these assemblies feature popular right angle SMPM and SMPS connectors terminated to our VITA 67.3 Gen2 Plug-in Contacts.
Available in common metric lengths, these cable assemblies offer engineers the flexibility needed for efficient chassis design and connectivity. With performance up to 40 GHz, they are the ideal solution for ensuring signal integrity in the most demanding RF and microwave applications.
Features/Benefits
- VITA 67.3 Gen2 standard compliant
- Flexible .047" cable for easy routing within a chassis
- Terminated with right-angle SMPM or SMPS connectors for added density
- DC - 40 GHz
Applications
- Military and Aerospace
- High-Speed Digital Test
- Phased Array Radar Systems
- Electronic Warfare Jamming Systems
- Embedded Systems
The specifications below are typical for the connector series, but may not apply to this particular part. Please see the datasheet for full specifications.
VITA SMPM
| Impedance (Ω) | 50 |
| Frequency GHz | 40 GHz |
| Shielding Effectiveness | ≥ -100 dB, DC to 26.5 GHz |
| Dielectric withstanding Voltage | 325 VRMS |
| Mating Cycles | 500 |
| Insertion Force | 2.5 lbs (per contact) |
| Withdrawal Force | 1.5 lbs |
| Temperature Rating | -65°C to +165°C |
| Corrosion (salt spray) | MIL-STD-202, Method 101, Condition B |
| Vibration | MIL-STD-202, Method 204, Condition D |
| Shock | MIL-STD-202, Method 213, Condition I |
| Thermal Shock | MIL-STD-202, Method 107, Condition B |
| Moisture Resistance | MIL-STD-202, Method 106, Less Step 7B |
| Barometric Pressure (Altitude) | MIL-STD-202, Method 105, Condition C, 70k Ft. |
VITA SMPS
| Impedance (Ω) | 50 |
| Frequency GHz | 65 GHz |
| Shielding Effectiveness | ≥ -100 dB, DC to 26.5 GHz |
| Dielectric withstanding Voltage | 250 VRMS |
| Mating Cycles | 500 |
| Insertion Force | 1.2 lbs (per contact) |
| Withdrawal Force | 1.0 lbs |
| Temperature Rating | -65°C to +165°C |
| Corrosion (salt spray) | MIL-STD-202, Method 101, Condition B |
| Vibration | MIL-STD-202, Method 204, Condition D |
| Shock | MIL-STD-202, Method 213, Condition I |
| Thermal Shock | MIL-STD-202, Method 107, Condition B |
| Moisture Resistance | MIL-STD-202, Method 106, Less Step 7B |
| Barometric Pressure (Altitude) | MIL-STD-202, Method 105, Condition C, 70k Ft. |
Part # 7038-7774
SMPS Male VITA 67.3 Gen2 Plug-In Contact to SMPM Female R/A 100mm Cable Assembly for .047 Cable
Available Inventory: 0
7038-7774
SMPS Male VITA 67.3 Gen2 Plug-In Contact to SMPM Female R/A 100mm Cable Assembly for .047 Cable, 7038-7774
Part # 7038-7776
SMPS Male VITA 67.3 Gen2 Plug-In Contact to SMPM Female R/A 200mm Cable Assembly for .047 Cable
Available Inventory: 0
7038-7776
SMPS Male VITA 67.3 Gen2 Plug-In Contact to SMPM Female R/A 200mm Cable Assembly for .047 Cable, 7038-7776
Part # 7038-7778
SMPS Male VITA 67.3 Gen2 Plug-In Contact to SMPS Female R/A 100mm Cable Assembly for .047 Cable
Available Inventory: 0
7038-7778
SMPS Male VITA 67.3 Gen2 Plug-In Contact to SMPS Female R/A 100mm Cable Assembly for .047 Cable, 7038-7778
Part # 7038-7780
SMPS Male VITA 67.3 Gen2 Plug-In Contact to SMPS Female R/A 200mm Cable Assembly for .047 Cable
Available Inventory: 0
7038-7780
SMPS Male VITA 67.3 Gen2 Plug-In Contact to SMPS Female R/A 200mm Cable Assembly for .047 Cable, 7038-7780
500-38-021
SMPS VITA 67.3 Gen2 Plug-In Contact Removal Tool, 500-38-021
