SMP Female to SMPM Female 12" Cable Assembly for .047 Cable"
P/N: 7012-1295

In stock at Qty Order
Digi-Key Electronics 51
Products specifications
Attribute name Attribute value
RF Series SMP
Gender Jack (Female)
Orientation (Body) Straight
Coupling Push-on
Gender 2 Jack (Female)
RF Series 2 SMPM
Orientation 2 (Body) Straight
Cable Type 0.047 Flexible Coax
Cable Length 12"
Electrical
Frequency 40 GHz
Impedance 50 ohms
Shielding Effectiveness ≥ -80 dB DC - 3 GHz, ≥ -65 dB 3 - 26.5 GHz
Dielectric withstanding Voltage 500 VRMS
Mechanical
Mating Cycles - SB 1000
Mating Cycles - LD 500
Insertion Force - LD 5.0 lbs
Mating Cycles - FD 100
Insertion Force - SB 3.0 lbs
Insertion Force - FD 7.0 lbs
Withdrawal Force - FD 9.0 lbs
Withdrawal Force - LD 7.0 lbs
Withdrawal Force - SB 0.5 lbs
Radial Misalignment 3° Max
Axial Misalignment .010” Max
Environmental
Temperature Rating -65°C to +165°C
Vibration MIL-STD-202, Method 204, Condition D
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Shock MIL-STD-202, Method 213, Condition I
Thermal Shock MIL-STD-202, Method 107, Condition B
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.


CE / UKCA Compliant

This products meets the requirements for CE and UKCA.

This information is provided based on reasonable inquiry of our suppliers and represents our current actual knowledge based on the information they provided.

Please contact compliance@svmicro.com for any Compliance or Environmental related questions.

Last Update: 12/4/2022 1:03:20 AM

Contact Us

How can we help?

*
*
*
*
*
*
*
*
Products specifications
Attribute name Attribute value
RF Series SMP
Gender Jack (Female)
Orientation (Body) Straight
Coupling Push-on
Gender 2 Jack (Female)
RF Series 2 SMPM
Orientation 2 (Body) Straight
Cable Type 0.047 Flexible Coax
Cable Length 12"
Electrical
Frequency 40 GHz
Impedance 50 ohms
Shielding Effectiveness ≥ -80 dB DC - 3 GHz, ≥ -65 dB 3 - 26.5 GHz
Dielectric withstanding Voltage 500 VRMS
Mechanical
Mating Cycles - SB 1000
Mating Cycles - LD 500
Insertion Force - LD 5.0 lbs
Mating Cycles - FD 100
Insertion Force - SB 3.0 lbs
Insertion Force - FD 7.0 lbs
Withdrawal Force - FD 9.0 lbs
Withdrawal Force - LD 7.0 lbs
Withdrawal Force - SB 0.5 lbs
Radial Misalignment 3° Max
Axial Misalignment .010” Max
Environmental
Temperature Rating -65°C to +165°C
Vibration MIL-STD-202, Method 204, Condition D
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Shock MIL-STD-202, Method 213, Condition I
Thermal Shock MIL-STD-202, Method 107, Condition B
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.
Customers Also Viewed
Part #   7012-1294

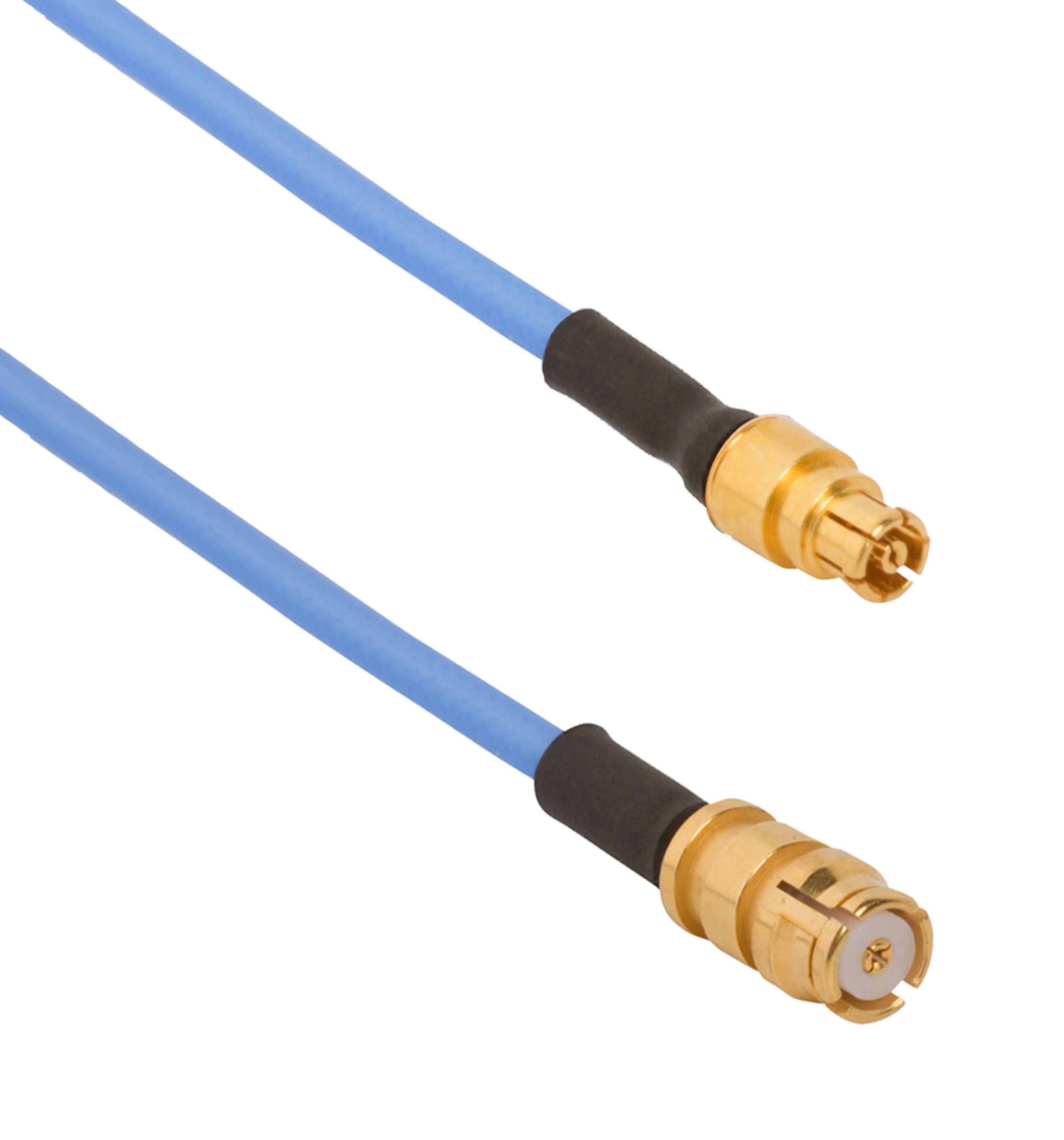

SMP Female to SMPM Female 6" Cable Assembly for .047 Cable"

Available Inventory: 0
7012-1294
SMP Cable Assemblies 7012-1294
Datasheet
Part #   7012-1298

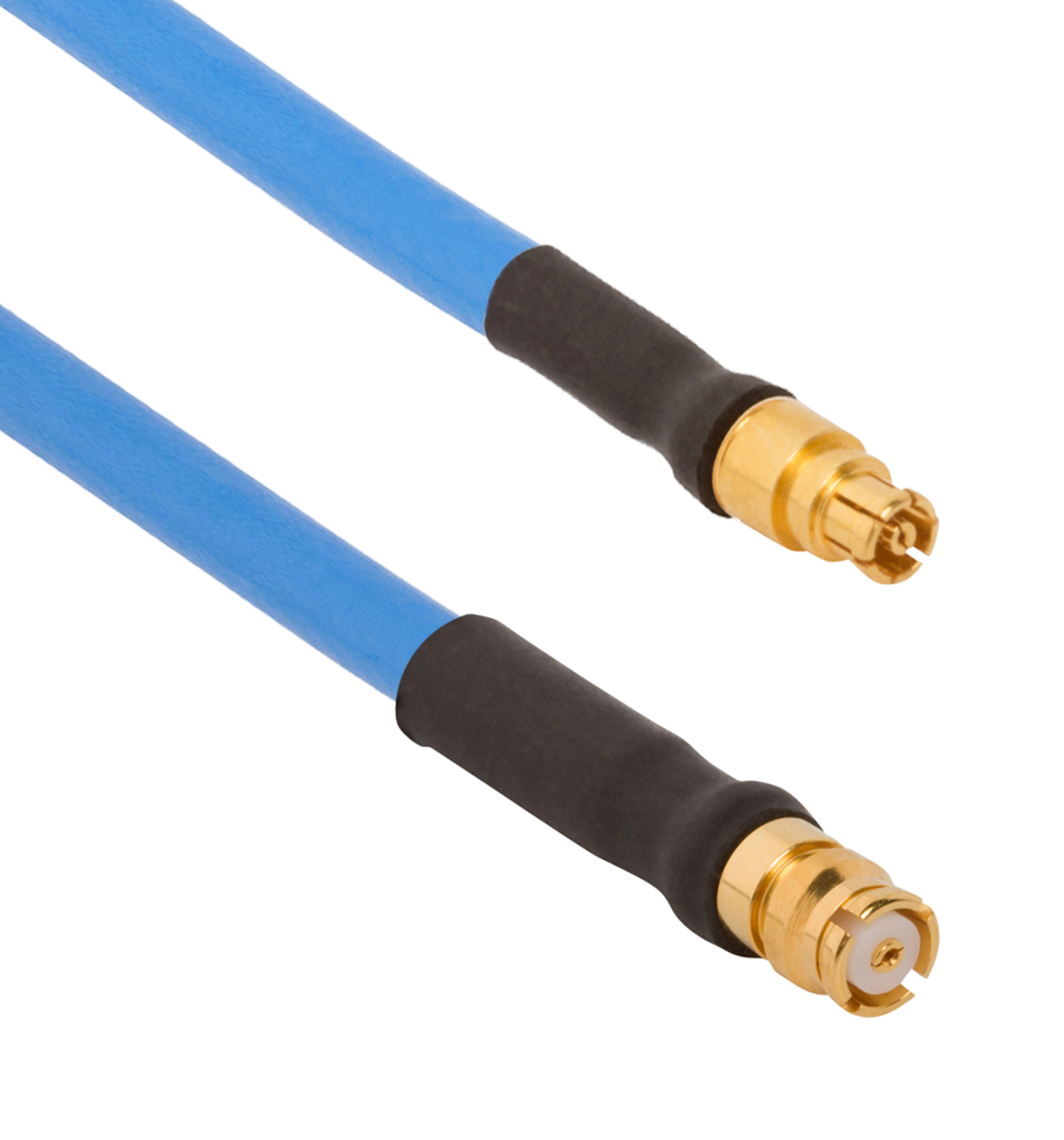

SMP Female to SMPM Female 12" Cable Assembly for .085 Cable"

Available Inventory: 14
7012-1298
SMP Cable Assemblies 7012-1298
Datasheet
Part #   7029-2559

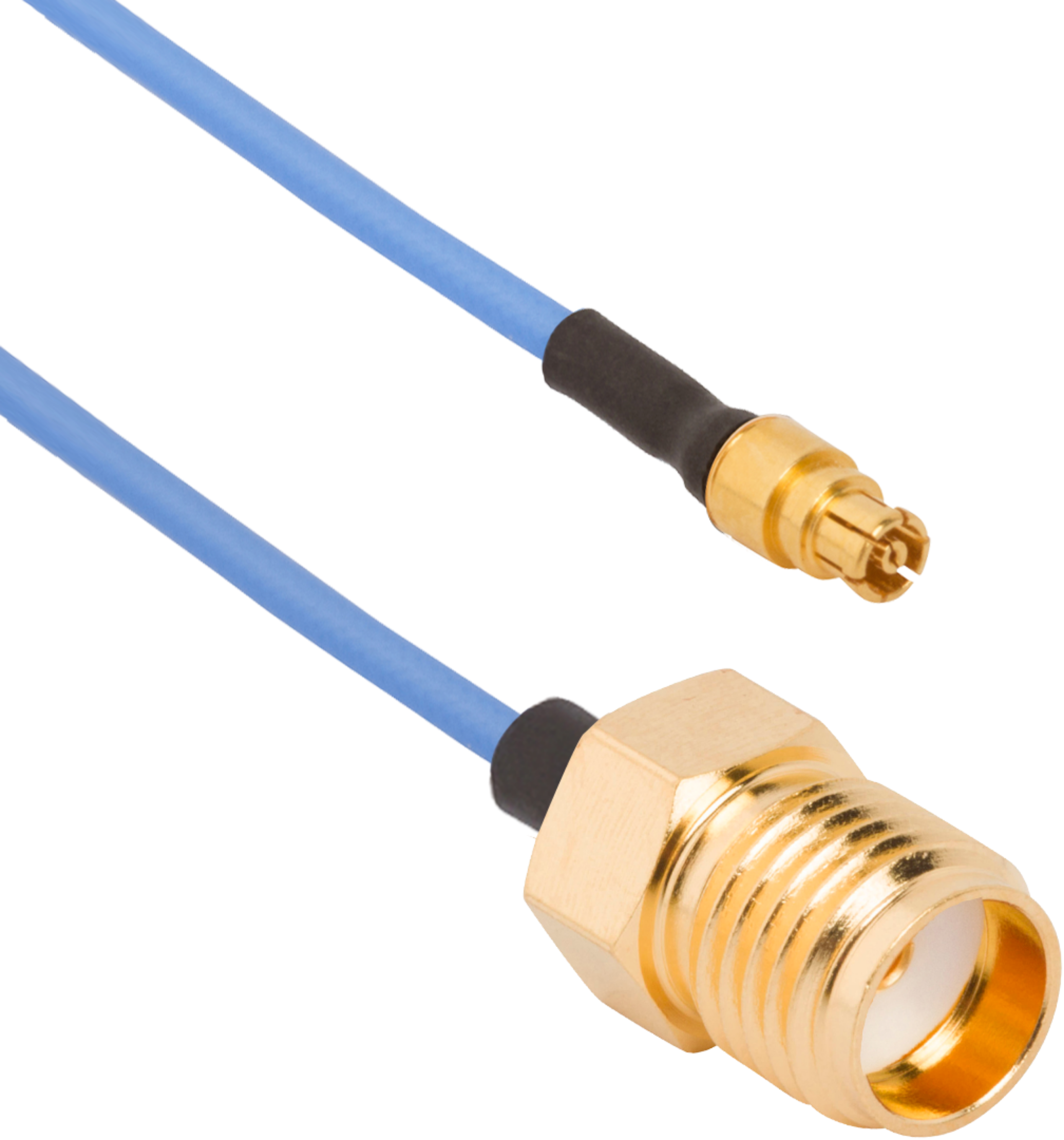

SMA Female to SMPM Female 12" Cable Assembly for .047 Cable
