SMA Female to SMPM Female 12" Cable Assembly for .047 Cable
P/N: 7029-2559

In stock at Qty Order
Digi-Key Electronics 10
Mouser Electronics 3
Products specifications
Attribute name Attribute value
RF Series SMA
Gender Jack (Female)
Orientation (Body) Straight
Coupling Threaded
Termination Style Solder
Orientation 2 (Body) Straight
Gender 2 Jack (Female)
RF Series 2 SMPM
Cable Type 0.047 Flexible Coax
Cable Length 12"
Electrical
Frequency 18 GHz
Impedance 50 ohms
Dielectric withstanding Voltage 1000 VRMS
Shielding Effectiveness ≥ -90 dB
Mechanical
Mating Cycles 500
Mating Torque 7 - 10 in - lbs
Inter-mate ability 2.92mm
Environmental
Temperature Rating -65°C to +165°C
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Vibration MIL-STD-202, Method 204, Condition D
Shock MIL-STD-202, Method 213, Condition I
Thermal Shock MIL-STD-202, Method 107, Condition B
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.


CE / UKCA Compliant

This products meets the requirements for CE and UKCA.

This information is provided based on reasonable inquiry of our suppliers and represents our current actual knowledge based on the information they provided.

Please contact [email protected] for any Compliance or Environmental related questions.

Last Update: 2/5/2023 1:03:47 AM

Contact Us

How can we help?

*
*
*
*
*
*
*
*
Products specifications
Attribute name Attribute value
RF Series SMA
Gender Jack (Female)
Orientation (Body) Straight
Coupling Threaded
Termination Style Solder
Orientation 2 (Body) Straight
Gender 2 Jack (Female)
RF Series 2 SMPM
Cable Type 0.047 Flexible Coax
Cable Length 12"
Electrical
Frequency 18 GHz
Impedance 50 ohms
Dielectric withstanding Voltage 1000 VRMS
Shielding Effectiveness ≥ -90 dB
Mechanical
Mating Cycles 500
Mating Torque 7 - 10 in - lbs
Inter-mate ability 2.92mm
Environmental
Temperature Rating -65°C to +165°C
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Vibration MIL-STD-202, Method 204, Condition D
Shock MIL-STD-202, Method 213, Condition I
Thermal Shock MIL-STD-202, Method 107, Condition B
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.
Customers Also Viewed
Part #   7029-2558

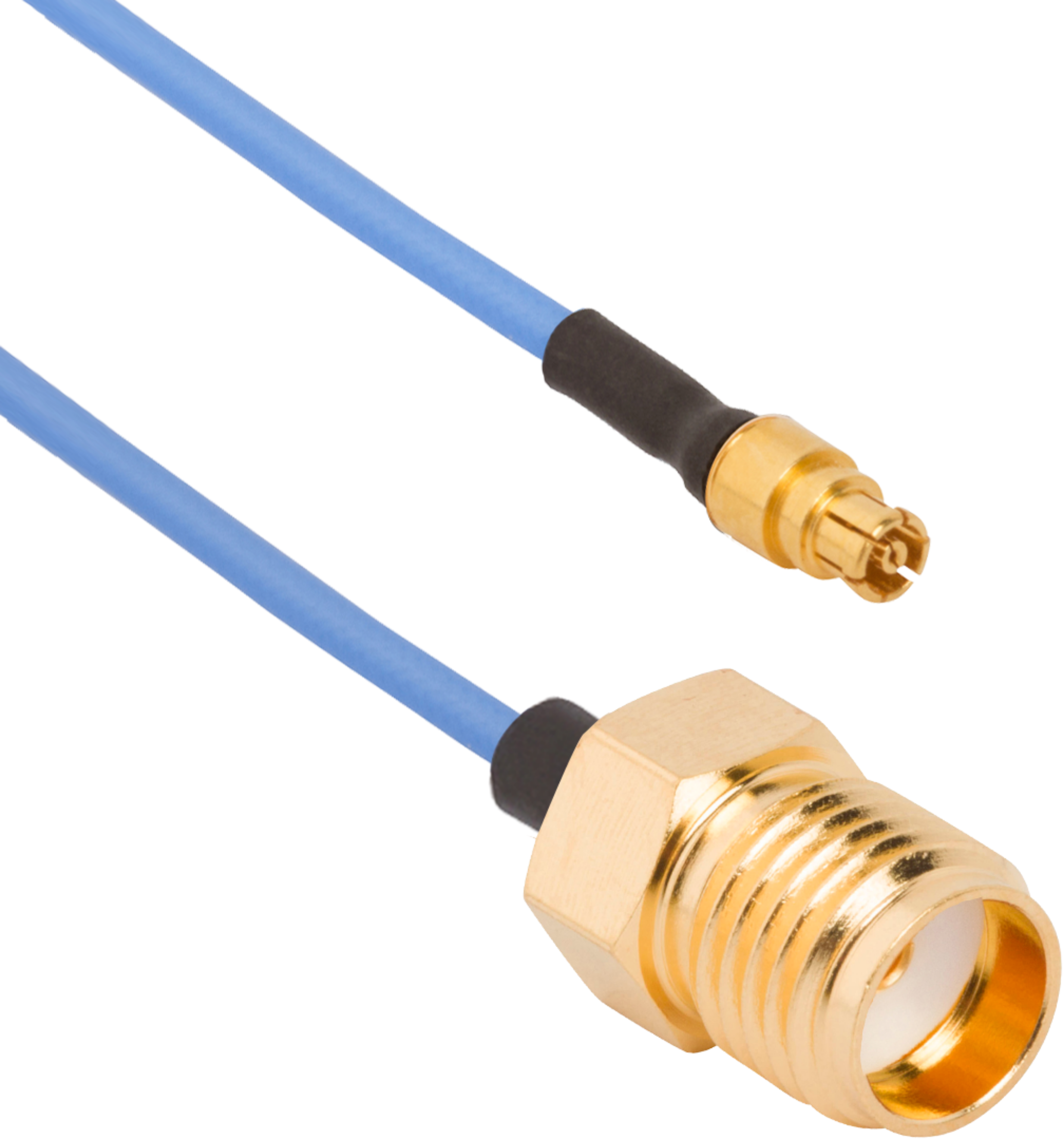

SMA Female to SMPM Female 6" Cable Assembly for .047 Cable

Available Inventory: 42
7029-2558
SMA Cable Assemblies 7029-2558
Datasheet
Part #   7029-2560

SMA Female to SMPM Female 24" Cable Assembly for .047 Cable

Available Inventory: 0
7029-2560
SMA Cable Assemblies 7029-2560
Datasheet
Part #   7029-2561

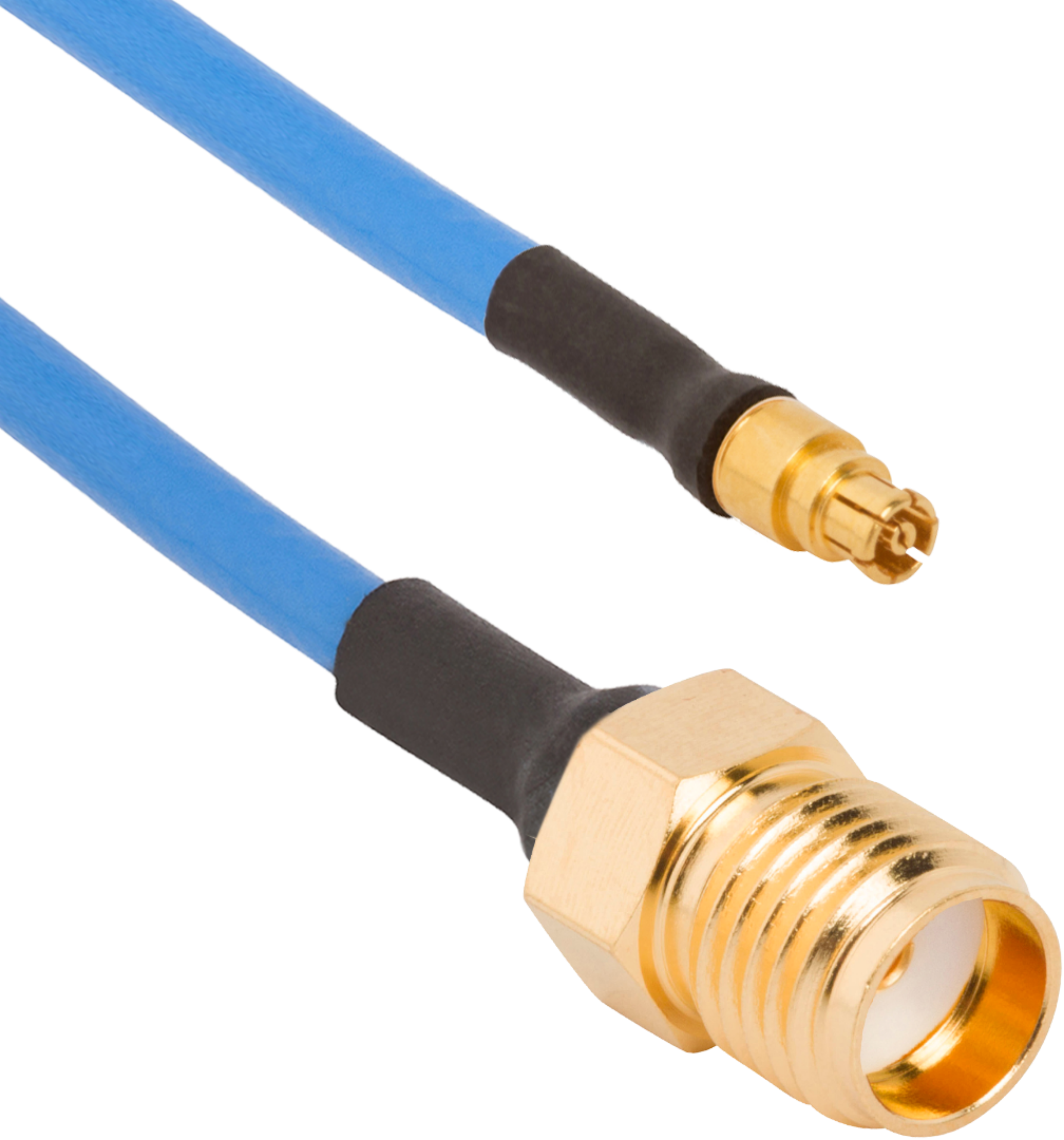

SMA Female to SMPM Female 6" Cable Assembly for .085 Cable
