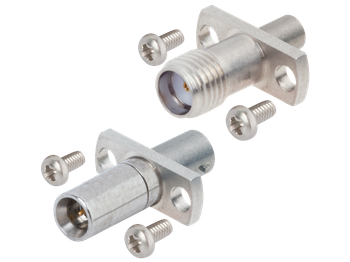

Between-Series Flange Mount Adapters

SV Microwave’s Between-Series Flange Mount Adapters are engineered to deliver outstanding reliability and durability in demanding test and measurement environments. Performing up to 65 GHz, these adapters provide an exceptionally secure, high-integrity RF connection. Offering a versatile range of configurations, including SMA, SMP, and SMPM, alongside our proprietary Threaded SMPM and QuarterBack® secure-locking technologies. This product line provides the precise mechanical and electrical versatility required for any complex system design.

Features / Benefits & Applications
Technical Specs

Features / Benefits

Push-on and threaded configurations, including Threaded SMPM and QB varieties
Rugged passivated stainless steel construction
Secure and fast installation for panel
DC up to 65 GHz

Applications

Lab Environment from DUT to Analyzer
Box panels as junction between cables coming off the PCB to IOs

The specifications below are typical for the connector series, but may not apply to this particular part. Please see the datasheet for full specifications.

SMA

Impedance (Ω)	50
Frequency GHz	18 GHz (select models to 26.5 GHz)
Shielding Effectiveness	≥ -90 dB
Dielectric withstanding Voltage	1000 VRMS
Mating Cycles	500
Mating Torque	7 - 10 in - lbs
Inter-mate ability	2.92mm
Temperature Rating	-65°C to +165°C
Corrosion (salt spray)	MIL-STD-202, Method 101, Condition B
Vibration	MIL-STD-202, Method 204, Condition D
Shock	MIL-STD-202, Method 213, Condition I
Thermal Shock	MIL-STD-202, Method 107, Condition B
Moisture Resistance	MIL-STD-202, Method 106, Less Step 7B
Barometric Pressure (Altitude)	MIL-STD-202, Method 105, Condition C, 70k Ft.

SMP

Impedance (Ω)	50
Frequency GHz	40 GHz
Shielding Effectiveness	≥ -80 dB DC - 3 GHz ≥ -65 dB 3 - 26.5 GHz
Dielectric withstanding Voltage	500 VRMS
Mating Cycles - SB	1000
Mating Cycles - LD	500
Mating Cycles - FD	100
Insertion Force - SB	3.0 lbs
Insertion Force - LD	5.0 lbs
Insertion Force - FD	7.0 lbs
Withdrawal Force - SB	0.5 lbs
Withdrawal Force - LD	7.0 lbs
Withdrawal Force - FD	9.0 lbs
Axial Misalignment	.010” Max
Radial Misalignment	3° Max
Temperature Rating	-65°C to +165°C
Corrosion (salt spray)	MIL-STD-202, Method 101, Condition B
Vibration	MIL-STD-202, Method 204, Condition D
Shock	MIL-STD-202, Method 213, Condition I
Thermal Shock	MIL-STD-202, Method 107, Condition B
Moisture Resistance	MIL-STD-202, Method 106, Less Step 7B
Barometric Pressure (Altitude)	MIL-STD-202, Method 105, Condition C, 70k Ft.

SMPM

Impedance (Ω)	50
Frequency GHz	65 GHz
Shielding Effectiveness	≥ -80 dB DC - 3 GHz ≥ -65 dB 3 - 26.5 GHz
Dielectric withstanding Voltage	325 VRMS
Mating Cycles - SB	500
Mating Cycles - FD	100
Insertion Force - SB	2.5 lbs
Insertion Force - FD	4.5 lbs
Withdrawal Force - SB	1.5 lbs
Withdrawal Force - FD	6.5 lbs
Axial Misalignment	.010” Max
Radial Misalignment	3° Max
Temperature Rating	-65°C to +165°C
Corrosion (salt spray)	MIL-STD-202, Method 101, Condition B
Vibration	MIL-STD-202, Method 204, Condition D
Shock	MIL-STD-202, Method 213, Condition I
Thermal Shock	MIL-STD-202, Method 107, Condition B
Moisture Resistance	MIL-STD-202, Method 106, Less Step 7B
Barometric Pressure (Altitude)	MIL-STD-202, Method 105, Condition C, 70k Ft.
