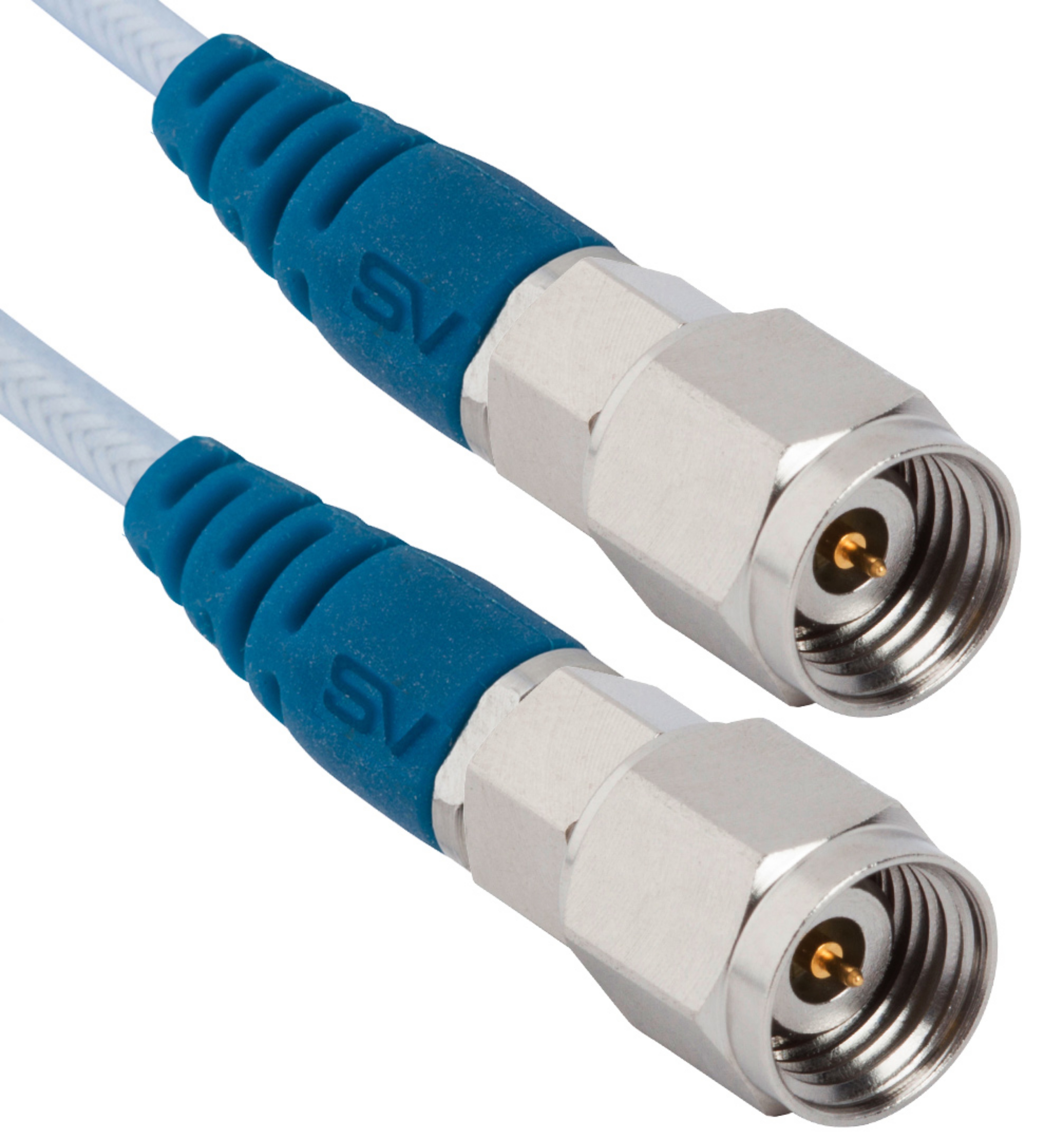

2.92mm Male to 2.92mm Male 12" Low Loss Strain Relief Cable Assembly for .087-LL Cable
P/N: 7015-1143

In stock at Qty Order
Digi-Key Electronics 25
Mouser Electronics 22
Products specifications
Attribute name Attribute value
RF Series 2.92 mm
Coupling Threaded
Orientation (Body) Straight
Gender Plug (Male)
RF Series 2 2.92 mm
Gender 2 Plug (Male)
Cable Type 0.087-LL
Cable Length 12"
Electrical
Impedance 50 ohms
Frequency 40 GHz
Shielding Effectiveness ≥ -100 dB
Dielectric withstanding Voltage 750 VRMS
Mechanical
Mating Cycles 500
Inter-mate ability SMA
Mating Torque 7 - 10 in - lbs
Environmental
Vibration MIL-STD-202, Method 204, Condition D
Temperature Rating -65°C to +165°C
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Shock MIL-STD-202, Method 213, Condition I
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.
Thermal Shock MIL-STD-202, Method 107, Condition B

Contact Us

How can we help?

*
*
*
*
*
*
*
*
Products specifications
Attribute name Attribute value
RF Series 2.92 mm
Coupling Threaded
Orientation (Body) Straight
Gender Plug (Male)
RF Series 2 2.92 mm
Gender 2 Plug (Male)
Cable Type 0.087-LL
Cable Length 12"
Electrical
Impedance 50 ohms
Frequency 40 GHz
Shielding Effectiveness ≥ -100 dB
Dielectric withstanding Voltage 750 VRMS
Mechanical
Mating Cycles 500
Inter-mate ability SMA
Mating Torque 7 - 10 in - lbs
Environmental
Vibration MIL-STD-202, Method 204, Condition D
Temperature Rating -65°C to +165°C
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Shock MIL-STD-202, Method 213, Condition I
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.
Thermal Shock MIL-STD-202, Method 107, Condition B
Customers Also Viewed

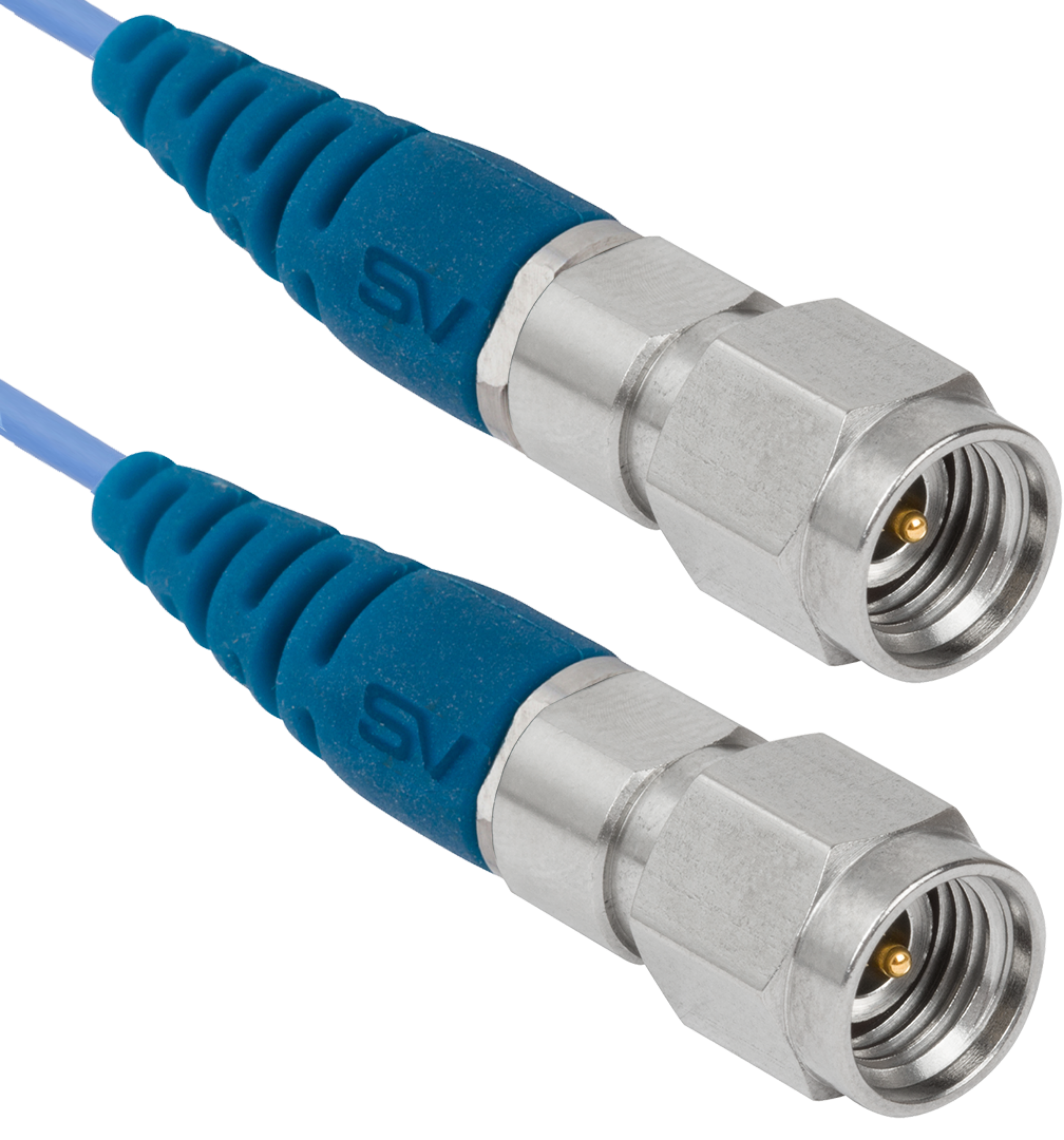

7033-0024
1.85mm Cable Assemblies 7033-0024
Datasheet
7015-1085
2.92mm Cable Assemblies 7015-1085
Datasheet

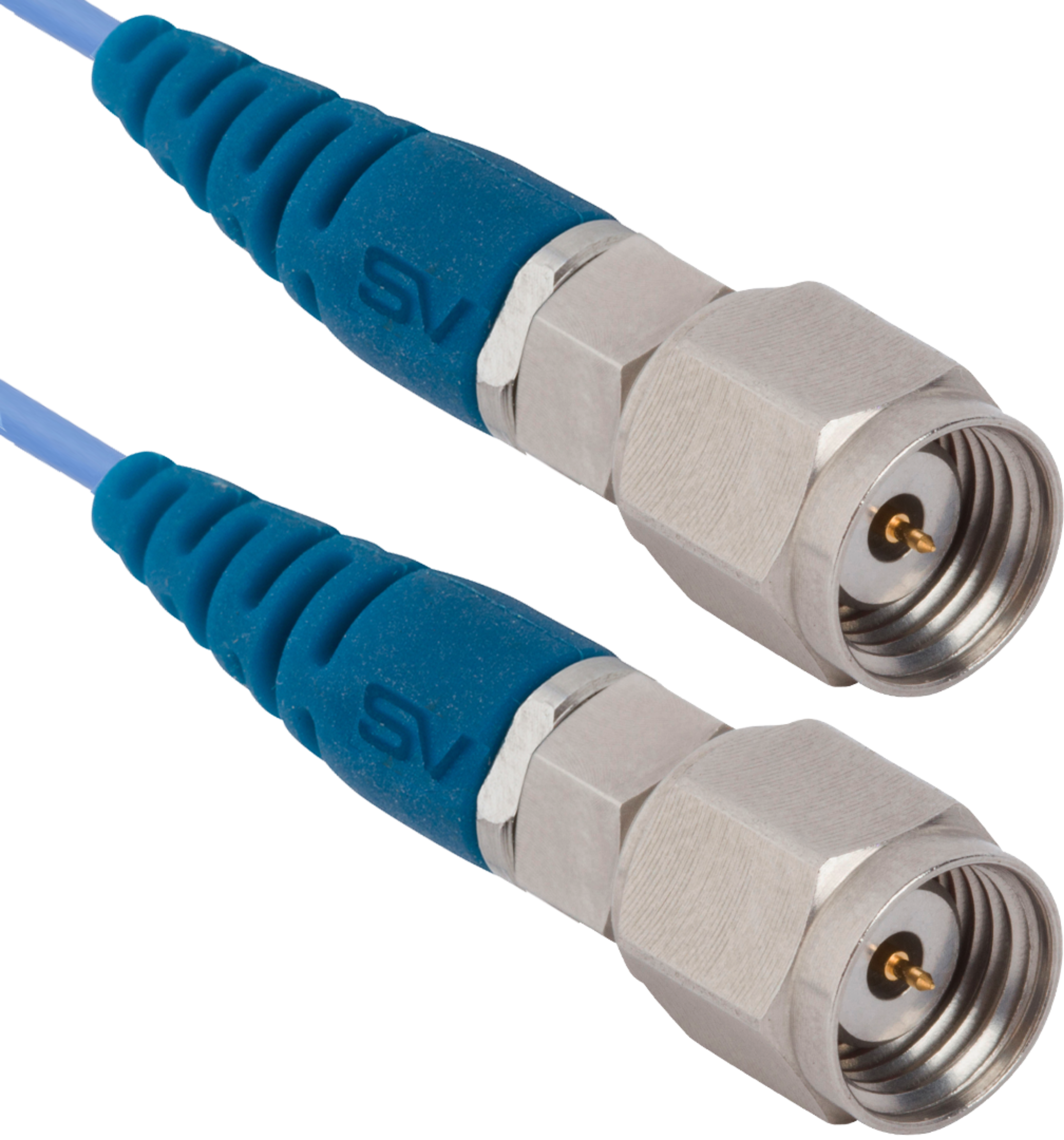

7016-0133
