2.92mm Female to Male Attenuator, 32 GHz (Screened), M3933/30-XXS

2.92mm Female to Male Attenuator, 32 GHz (Screened)
P/N: M3933/30-XXS

There currently isn't any inventory available in distribution. Please contact us to obtain this product.
Downloads
Products specifications
Attribute name Attribute value
RF Series 2.92 mm
Gender Plug (Male)
Coupling Threaded
RF Series 2 2.92 mm
Gender 2 Jack (Female)
Family MIL-SPEC
Electrical
Impedance 50 ohms
Frequency 32 GHz, 40 GHz, 40 GHz
Shielding Effectiveness ≥ -100 dB, ≥ -100 dB
Dielectric withstanding Voltage 750 VRMS, 750 VRMS
Mechanical
Mating Torque 7 - 10 in - lbs, 7 - 10 in - lbs
Mating Cycles 500, 500
Intermateability SMA, SMA
Environmental
Temperature Rating -65°C to +165°C, -65°C to +165°C
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B, MIL-STD-202, Method 101, Condition B
Vibration MIL-STD-202, Method 204, Condition D, MIL-STD-202, Method 204, Condition D
Shock MIL-STD-202, Method 213, Condition I, MIL-STD-202, Method 213, Condition I
Thermal Shock MIL-STD-202, Method 107, Condition B, MIL-STD-202, Method 107, Condition B
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B, MIL-STD-202, Method 106, Less Step 7B
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft., MIL-STD-202, Method 105, Condition C, 70k Ft.
*
*
*
*
Products specifications
Attribute name Attribute value
RF Series 2.92 mm
Gender Plug (Male)
Coupling Threaded
RF Series 2 2.92 mm
Gender 2 Jack (Female)
Family MIL-SPEC
Electrical
Impedance 50 ohms
Frequency 32 GHz, 40 GHz, 40 GHz
Shielding Effectiveness ≥ -100 dB, ≥ -100 dB
Dielectric withstanding Voltage 750 VRMS, 750 VRMS
Mechanical
Mating Torque 7 - 10 in - lbs, 7 - 10 in - lbs
Mating Cycles 500, 500
Intermateability SMA, SMA
Environmental
Temperature Rating -65°C to +165°C, -65°C to +165°C
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B, MIL-STD-202, Method 101, Condition B
Vibration MIL-STD-202, Method 204, Condition D, MIL-STD-202, Method 204, Condition D
Shock MIL-STD-202, Method 213, Condition I, MIL-STD-202, Method 213, Condition I
Thermal Shock MIL-STD-202, Method 107, Condition B, MIL-STD-202, Method 107, Condition B
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B, MIL-STD-202, Method 106, Less Step 7B
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft., MIL-STD-202, Method 105, Condition C, 70k Ft.
Customers Also Viewed

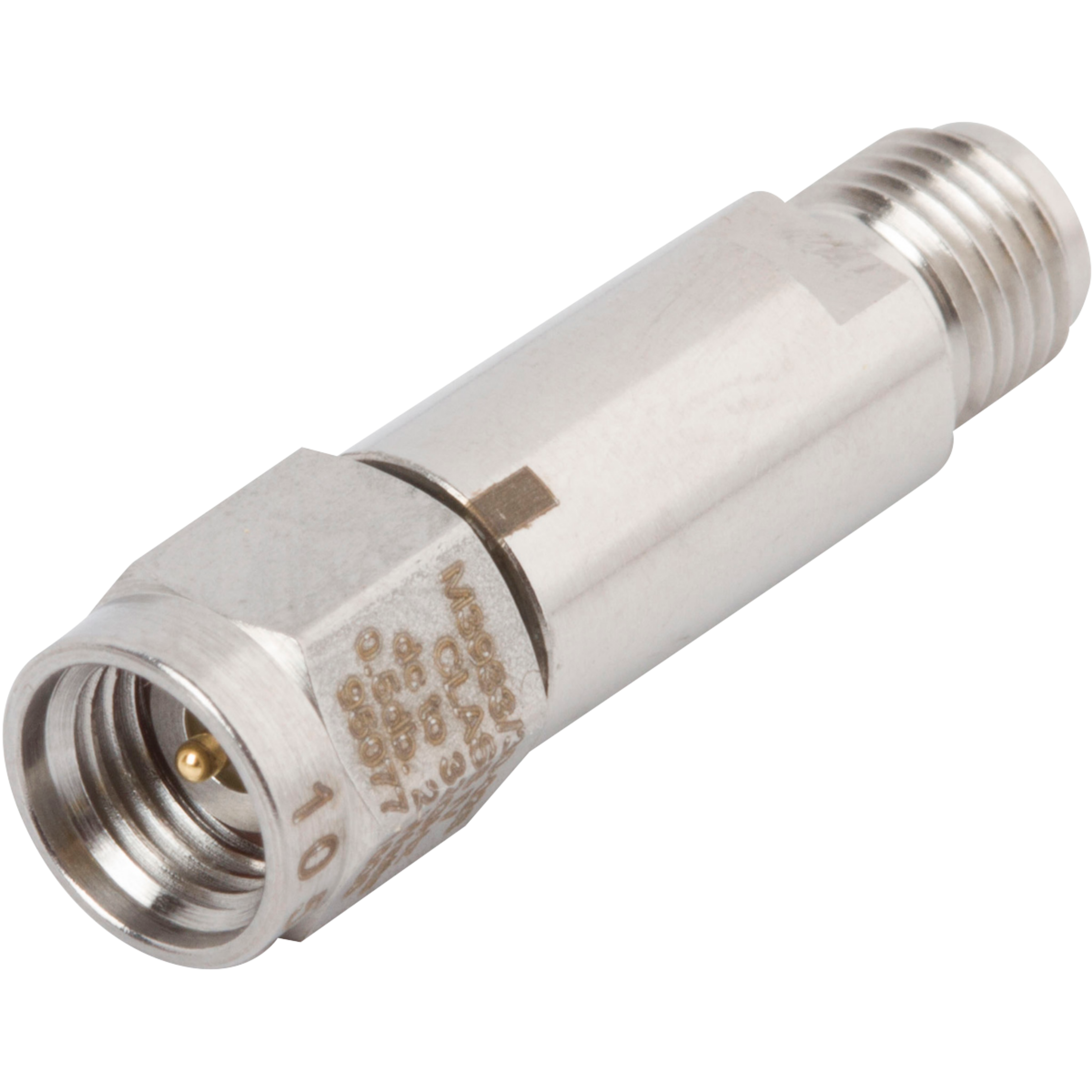

2.92mm Female to Male Attenuator, 32 GHz (Nonscreened), M3933/30-XXN
Part #   M3933/30-XXN

2.92mm Female to Male Attenuator, 32 GHz (Nonscreened)

Available Inventory: 0
M3933/30-XXN
2.92mm Attenuator M3933/30-02N M3933/30-02N M3933/30-03N M3933/30-04N M3933/30-05N M3933/30-06N M3933/30-07N M3933/30-08N M3933/30-09N M3933/30-10N M3933/30-11N M3933/30-12N M3933/30-13N M3933/30-14N M3933/30-15N M3933/30-16N M3933/30-17N M3933/30-18N M3933/30-19N M3933/30-20N M3933/30-21N M3933/30-22N M3933/30-23N M3933/30-24N M3933/30-25N M3933/30-26N M3933/30-27N M3933/30-28N M3933/30-29N M3933/30-30N M3933/30-31N M3933/30-32N M3933/30-33N M3933/30-34N M3933/30-35N M3933/30-02N M3933/30-03N M3933/30-04N M3933/30-05N M3933/30-06N M3933/30-07N M3933/30-08N M3933/30-09N M3933/30-10N M3933/30-11N M3933/30-12N M3933/30-13N M3933/30-14N M3933/30-15N M3933/30-16N M3933/30-17N M3933/30-18N M3933/30-19N M3933/30-20N M3933/30-21N M3933/30-22N M3933/30-23N M3933/30-24N M3933/30-25N M3933/30-26N M3933/30-27N M3933/30-28N M3933/30-29N M3933/30-30N M3933/30-31N M3933/30-32N M3933/30-33N M3933/30-34N M3933/30-35N M3933/30-02N M3933/30-03N M3933/30-04N M3933/30-05N M3933/30-06N M3933/30-07N M3933/30-08N M3933/30-09N M3933/30-10N M3933/30-11N M3933/30-12N M3933/30-13N M3933/30-14N M3933/30-15N M3933/30-16N M3933/30-17N M3933/30-18N M3933/30-19N M3933/30-20N M3933/30-21N M3933/30-22N M3933/30-23N M3933/30-24N M3933/30-25N M3933/30-26N M3933/30-27N M3933/30-28N M3933/30-29N M3933/30-30N M3933/30-31N M3933/30-32N M3933/30-33N M3933/30-34N M3933/30-35N
Datasheet

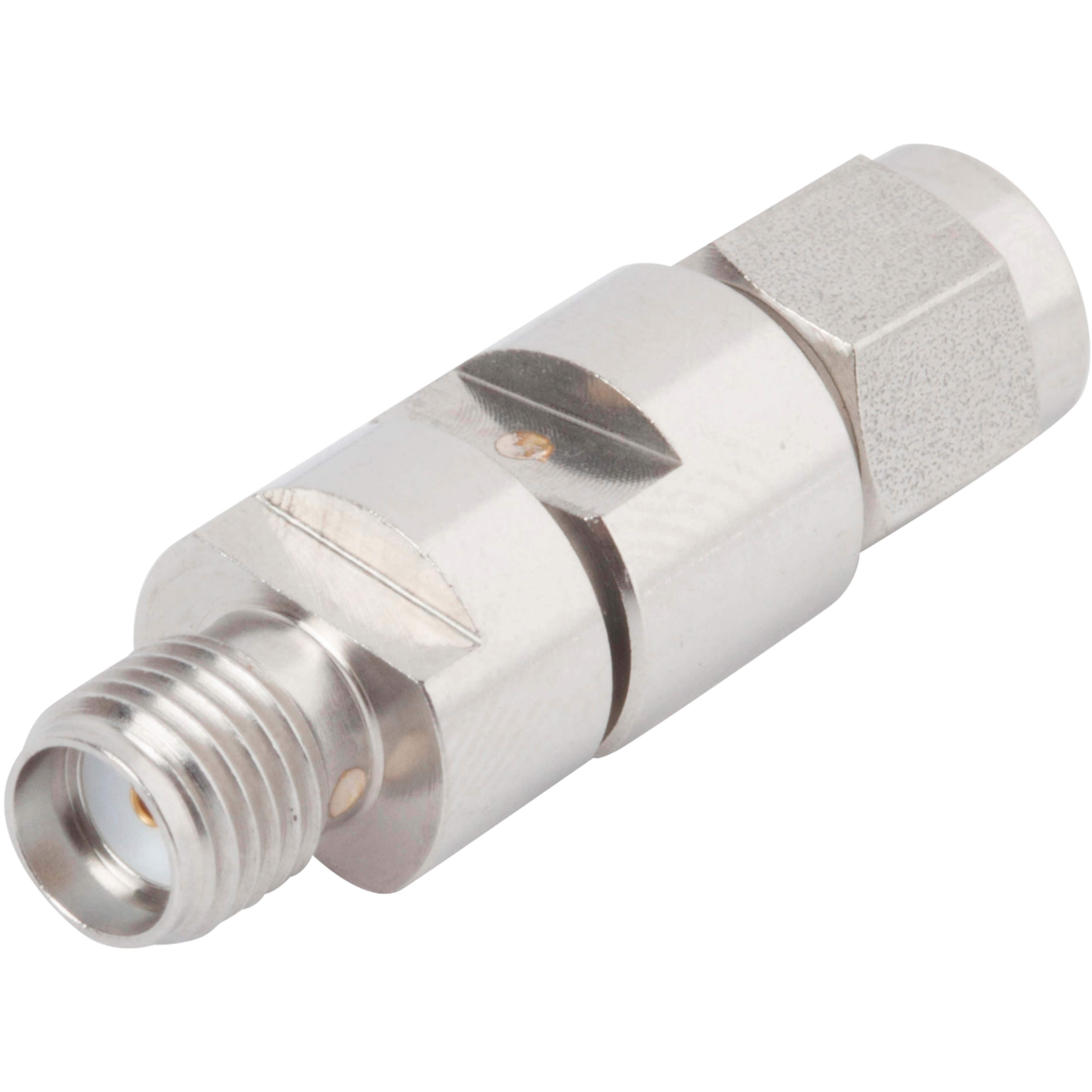

SMA Female to Male Attenuator, 18 GHz (Nonscreened), M3933/16-XXN
