2.92mm Female to Male Attenuator, 32 GHz (Nonscreened), M3933/30-XXN

2.92mm Female to Male Attenuator, 32 GHz (Nonscreened)
P/N: M3933/30-XXN

There currently isn't any inventory available in distribution. Please contact us to obtain this product.
Downloads
Products specifications
Attribute name Attribute value
RF Series 2.92 mm
Gender Plug (Male)
Coupling Threaded
RF Series 2 2.92 mm
Gender 2 Jack (Female)
Family MIL-SPEC
Electrical
Frequency 32 GHz, 40 GHz
Impedance 50 ohms
Shielding Effectiveness ≥ -100 dB, ≥ -100 dB
Dielectric withstanding Voltage 750 VRMS, 750 VRMS, 750 VRMS
Mechanical
Mating Cycles 500, 500
Mating Torque 7 - 10 in - lbs, 7 - 10 in - lbs
Intermateability SMA, SMA
Environmental
Temperature Rating -65°C to +165°C, -65°C to +165°C
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B, MIL-STD-202, Method 101, Condition B
Vibration MIL-STD-202, Method 204, Condition D, MIL-STD-202, Method 204, Condition D
Shock MIL-STD-202, Method 213, Condition I, MIL-STD-202, Method 213, Condition I
Thermal Shock MIL-STD-202, Method 107, Condition B, MIL-STD-202, Method 107, Condition B
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft., MIL-STD-202, Method 105, Condition C, 70k Ft.
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B, MIL-STD-202, Method 106, Less Step 7B
*
*
*
*
Products specifications
Attribute name Attribute value
RF Series 2.92 mm
Gender Plug (Male)
Coupling Threaded
RF Series 2 2.92 mm
Gender 2 Jack (Female)
Family MIL-SPEC
Electrical
Frequency 32 GHz, 40 GHz
Impedance 50 ohms
Shielding Effectiveness ≥ -100 dB, ≥ -100 dB
Dielectric withstanding Voltage 750 VRMS, 750 VRMS, 750 VRMS
Mechanical
Mating Cycles 500, 500
Mating Torque 7 - 10 in - lbs, 7 - 10 in - lbs
Intermateability SMA, SMA
Environmental
Temperature Rating -65°C to +165°C, -65°C to +165°C
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B, MIL-STD-202, Method 101, Condition B
Vibration MIL-STD-202, Method 204, Condition D, MIL-STD-202, Method 204, Condition D
Shock MIL-STD-202, Method 213, Condition I, MIL-STD-202, Method 213, Condition I
Thermal Shock MIL-STD-202, Method 107, Condition B, MIL-STD-202, Method 107, Condition B
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft., MIL-STD-202, Method 105, Condition C, 70k Ft.
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B, MIL-STD-202, Method 106, Less Step 7B
Customers Also Viewed

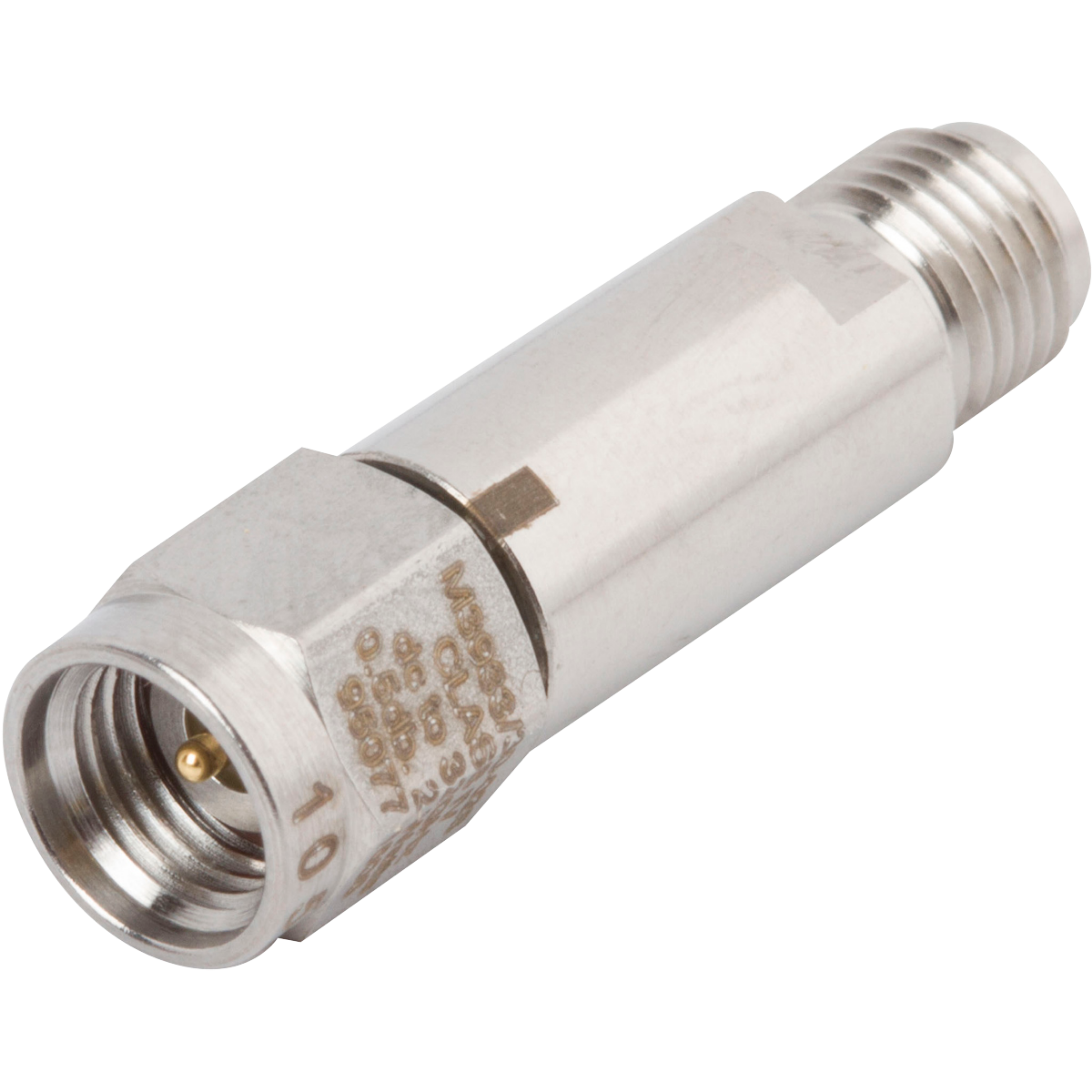

2.92mm Female to Male Attenuator, 32 GHz (Screened), M3933/30-XXS
Part #   M3933/30-XXS

2.92mm Female to Male Attenuator, 32 GHz (Screened)

Available Inventory: 0
M3933/30-XXS
2.92mm Attenuator M3933/30-02S M3933/30-02S M3933/30-03S M3933/30-04S M3933/30-05S M3933/30-06S M3933/30-07S M3933/30-08S M3933/30-09S M3933/30-10S M3933/30-11S M3933/30-12S M3933/30-13S M3933/30-14S M3933/30-15S M3933/30-16S M3933/30-17S M3933/30-18S M3933/30-19S M3933/30-20S M3933/30-21S M3933/30-22S M3933/30-23S M3933/30-24S M3933/30-25S M3933/30-26S M3933/30-27S M3933/30-28S M3933/30-29S M3933/30-30S M3933/30-31S M3933/30-32S M3933/30-33S M3933/30-34S M3933/30-35S M3933/30-02S M3933/30-03S M3933/30-04S M3933/30-05S M3933/30-06S M3933/30-07S M3933/30-08S M3933/30-09S M3933/30-10S M3933/30-11S M3933/30-12S M3933/30-13S M3933/30-14S M3933/30-15S M3933/30-16S M3933/30-17S M3933/30-18S M3933/30-19S M3933/30-20S M3933/30-21S M3933/30-22S M3933/30-23S M3933/30-24S M3933/30-25S M3933/30-26S M3933/30-27S M3933/30-28S M3933/30-29S M3933/30-30S M3933/30-31S M3933/30-32S M3933/30-33S M3933/30-34S M3933/30-35S M3933/30-02S M3933/30-03S M3933/30-04S M3933/30-05S M3933/30-06S M3933/30-07S M3933/30-08S M3933/30-09S M3933/30-10S M3933/30-11S M3933/30-12S M3933/30-13S M3933/30-14S M3933/30-15S M3933/30-16S M3933/30-17S M3933/30-18S M3933/30-19S M3933/30-20S M3933/30-21S M3933/30-22S M3933/30-23S M3933/30-24S M3933/30-25S M3933/30-26S M3933/30-27S M3933/30-28S M3933/30-29S M3933/30-30S M3933/30-31S M3933/30-32S M3933/30-33S M3933/30-34S M3933/30-35S
Datasheet

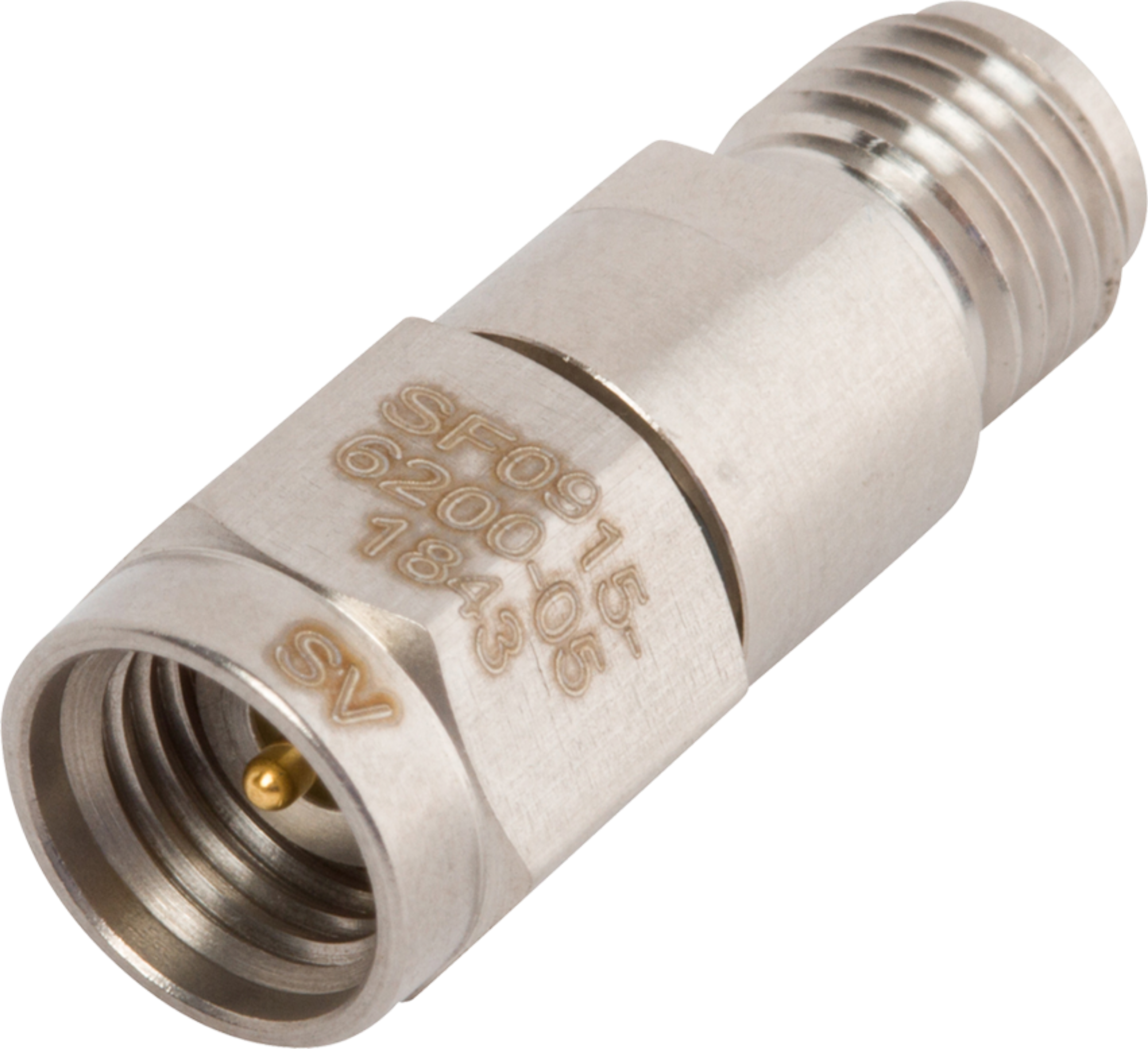

2.92mm Male to Female Attenuator (0.5 dB), SF0915-6200-XX
Part #   SF0915-6200-XX

2.92mm Male to Female Attenuator (0.5 dB)

Available Inventory: 0
SF0915-6200-XX
2.92mm Attenuator SF0915-6200-00 SF0915-6200-00 SF0915-6200-01 SF0915-6200-02 SF0915-6200-03 SF0915-6200-04 SF0915-6200-05 SF0915-6200-06 SF0915-6200-07 SF0915-6200-08 SF0915-6200-09 SF0915-6200-10 SF0915-6200-12 SF0915-6200-15 SF0915-6200-20 SF0915-6200-00 SF0915-6200-01 SF0915-6200-02 SF0915-6200-03 SF0915-6200-04 SF0915-6200-05 SF0915-6200-06 SF0915-6200-07 SF0915-6200-08 SF0915-6200-09 SF0915-6200-10 SF0915-6200-12 SF0915-6200-15 SF0915-6200-20 SF0915-6200-00 SF0915-6200-01 SF0915-6200-02 SF0915-6200-03 SF0915-6200-04 SF0915-6200-05 SF0915-6200-06 SF0915-6200-07 SF0915-6200-08 SF0915-6200-09 SF0915-6200-10 SF0915-6200-12 SF0915-6200-15 SF0915-6200-20
Datasheet

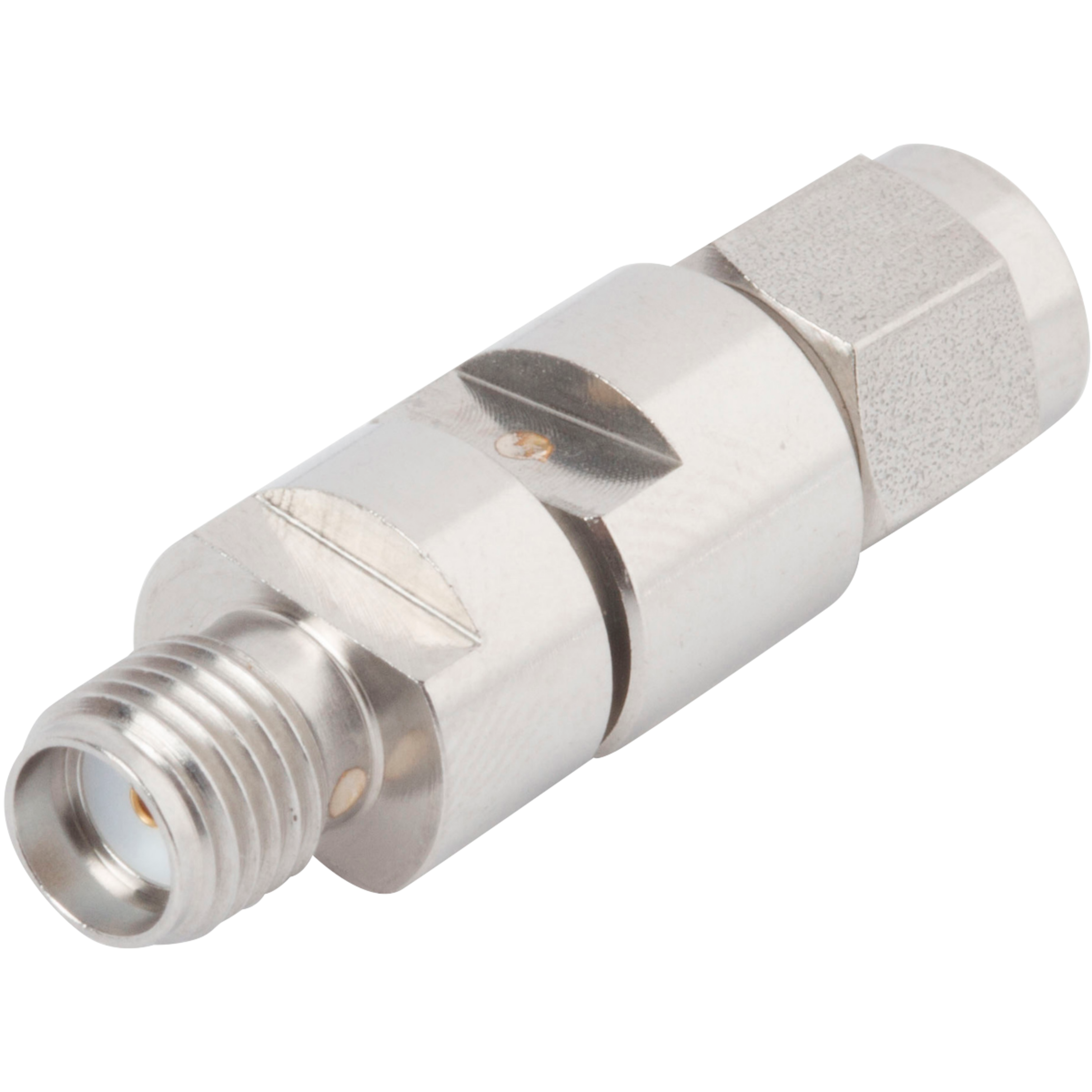

SMA Female to Male Attenuator, 18 GHz (Nonscreened), M3933/16-XXN
