P/N: M3933/16-XXN

SMA Female to Male Attenuator, 18 GHz (Nonscreened)

In stock at Qty Order
Microwave Components LLC 24
Mouser Electronics 6
Digi-Key Electronics 6
Products specifications
Attribute name Attribute value
RF Series SMA
Coupling Threaded
Gender Plug (Male)
Gender 2 Jack (Female)
RF Series 2 SMA
Electrical
Frequency 18 GHz
Impedance 50 ohms
Shielding Effectiveness ≥ -90 dB, ≥ -90 dB, ≥ -90 dB, ≥ -90 dB, ≥ -90 dB, ≥ -90 dB, ≥ -90 dB, ≥ -90 dB, ≥ -90 dB
Dielectric withstanding Voltage 1000 VRMS, 1000 VRMS, 1000 VRMS, 1000 VRMS, 1000 VRMS, 1000 VRMS, 1000 VRMS, 1000 VRMS, 1000 VRMS
Mechanical
Mating Cycles 500, 500, 500, 500, 500, 500, 500, 500, 500
Mating Torque 7 - 10 in - lbs, 7 - 10 in - lbs, 7 - 10 in - lbs, 7 - 10 in - lbs, 7 - 10 in - lbs, 7 - 10 in - lbs, 7 - 10 in - lbs, 7 - 10 in - lbs, 7 - 10 in - lbs
Inter-mate ability 2.92mm, 2.92mm, 2.92mm, 2.92mm, 2.92mm, 2.92mm, 2.92mm, 2.92mm, 2.92mm
Environmental
Temperature Rating -65°C to +165°C, -65°C to +165°C, -65°C to +165°C, -65°C to +165°C, -65°C to +165°C, -65°C to +165°C, -65°C to +165°C, -65°C to +165°C, -65°C to +165°C
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B, MIL-STD-202, Method 101, Condition B, MIL-STD-202, Method 101, Condition B, MIL-STD-202, Method 101, Condition B, MIL-STD-202, Method 101, Condition B, MIL-STD-202, Method 101, Condition B, MIL-STD-202, Method 101, Condition B, MIL-STD-202, Method 101, Condition B, MIL-STD-202, Method 101, Condition B
Shock MIL-STD-202, Method 213, Condition I, MIL-STD-202, Method 213, Condition I, MIL-STD-202, Method 213, Condition I, MIL-STD-202, Method 213, Condition I, MIL-STD-202, Method 213, Condition I, MIL-STD-202, Method 213, Condition I, MIL-STD-202, Method 213, Condition I, MIL-STD-202, Method 213, Condition I, MIL-STD-202, Method 213, Condition I
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B, MIL-STD-202, Method 106, Less Step 7B, MIL-STD-202, Method 106, Less Step 7B, MIL-STD-202, Method 106, Less Step 7B, MIL-STD-202, Method 106, Less Step 7B, MIL-STD-202, Method 106, Less Step 7B, MIL-STD-202, Method 106, Less Step 7B, MIL-STD-202, Method 106, Less Step 7B
Vibration MIL-STD-202, Method 204, Condition D, MIL-STD-202, Method 204, Condition D, MIL-STD-202, Method 204, Condition D, MIL-STD-202, Method 204, Condition D, MIL-STD-202, Method 204, Condition D, MIL-STD-202, Method 204, Condition D, MIL-STD-202, Method 204, Condition D, MIL-STD-202, Method 204, Condition D, MIL-STD-202, Method 204, Condition D
Thermal Shock MIL-STD-202, Method 107, Condition B, MIL-STD-202, Method 107, Condition B, MIL-STD-202, Method 107, Condition B, MIL-STD-202, Method 107, Condition B, MIL-STD-202, Method 107, Condition B, MIL-STD-202, Method 107, Condition B, MIL-STD-202, Method 107, Condition B, MIL-STD-202, Method 107, Condition B, MIL-STD-202, Method 107, Condition B
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft., MIL-STD-202, Method 105, Condition C, 70k Ft., MIL-STD-202, Method 105, Condition C, 70k Ft., MIL-STD-202, Method 105, Condition C, 70k Ft., MIL-STD-202, Method 105, Condition C, 70k Ft., MIL-STD-202, Method 105, Condition C, 70k Ft., MIL-STD-202, Method 105, Condition C, 70k Ft., MIL-STD-202, Method 105, Condition C, 70k Ft.

Contact Us

How can we help?

*
*
*
*
*
*
*
*
Products specifications
Attribute name Attribute value
RF Series SMA
Coupling Threaded
Gender Plug (Male)
Gender 2 Jack (Female)
RF Series 2 SMA
Electrical
Frequency 18 GHz
Impedance 50 ohms
Shielding Effectiveness ≥ -90 dB, ≥ -90 dB, ≥ -90 dB, ≥ -90 dB, ≥ -90 dB, ≥ -90 dB, ≥ -90 dB, ≥ -90 dB, ≥ -90 dB
Dielectric withstanding Voltage 1000 VRMS, 1000 VRMS, 1000 VRMS, 1000 VRMS, 1000 VRMS, 1000 VRMS, 1000 VRMS, 1000 VRMS, 1000 VRMS
Mechanical
Mating Cycles 500, 500, 500, 500, 500, 500, 500, 500, 500
Mating Torque 7 - 10 in - lbs, 7 - 10 in - lbs, 7 - 10 in - lbs, 7 - 10 in - lbs, 7 - 10 in - lbs, 7 - 10 in - lbs, 7 - 10 in - lbs, 7 - 10 in - lbs, 7 - 10 in - lbs
Inter-mate ability 2.92mm, 2.92mm, 2.92mm, 2.92mm, 2.92mm, 2.92mm, 2.92mm, 2.92mm, 2.92mm
Environmental
Temperature Rating -65°C to +165°C, -65°C to +165°C, -65°C to +165°C, -65°C to +165°C, -65°C to +165°C, -65°C to +165°C, -65°C to +165°C, -65°C to +165°C, -65°C to +165°C
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B, MIL-STD-202, Method 101, Condition B, MIL-STD-202, Method 101, Condition B, MIL-STD-202, Method 101, Condition B, MIL-STD-202, Method 101, Condition B, MIL-STD-202, Method 101, Condition B, MIL-STD-202, Method 101, Condition B, MIL-STD-202, Method 101, Condition B, MIL-STD-202, Method 101, Condition B
Shock MIL-STD-202, Method 213, Condition I, MIL-STD-202, Method 213, Condition I, MIL-STD-202, Method 213, Condition I, MIL-STD-202, Method 213, Condition I, MIL-STD-202, Method 213, Condition I, MIL-STD-202, Method 213, Condition I, MIL-STD-202, Method 213, Condition I, MIL-STD-202, Method 213, Condition I, MIL-STD-202, Method 213, Condition I
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B, MIL-STD-202, Method 106, Less Step 7B, MIL-STD-202, Method 106, Less Step 7B, MIL-STD-202, Method 106, Less Step 7B, MIL-STD-202, Method 106, Less Step 7B, MIL-STD-202, Method 106, Less Step 7B, MIL-STD-202, Method 106, Less Step 7B, MIL-STD-202, Method 106, Less Step 7B
Vibration MIL-STD-202, Method 204, Condition D, MIL-STD-202, Method 204, Condition D, MIL-STD-202, Method 204, Condition D, MIL-STD-202, Method 204, Condition D, MIL-STD-202, Method 204, Condition D, MIL-STD-202, Method 204, Condition D, MIL-STD-202, Method 204, Condition D, MIL-STD-202, Method 204, Condition D, MIL-STD-202, Method 204, Condition D
Thermal Shock MIL-STD-202, Method 107, Condition B, MIL-STD-202, Method 107, Condition B, MIL-STD-202, Method 107, Condition B, MIL-STD-202, Method 107, Condition B, MIL-STD-202, Method 107, Condition B, MIL-STD-202, Method 107, Condition B, MIL-STD-202, Method 107, Condition B, MIL-STD-202, Method 107, Condition B, MIL-STD-202, Method 107, Condition B
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft., MIL-STD-202, Method 105, Condition C, 70k Ft., MIL-STD-202, Method 105, Condition C, 70k Ft., MIL-STD-202, Method 105, Condition C, 70k Ft., MIL-STD-202, Method 105, Condition C, 70k Ft., MIL-STD-202, Method 105, Condition C, 70k Ft., MIL-STD-202, Method 105, Condition C, 70k Ft., MIL-STD-202, Method 105, Condition C, 70k Ft.
Customers Also Viewed

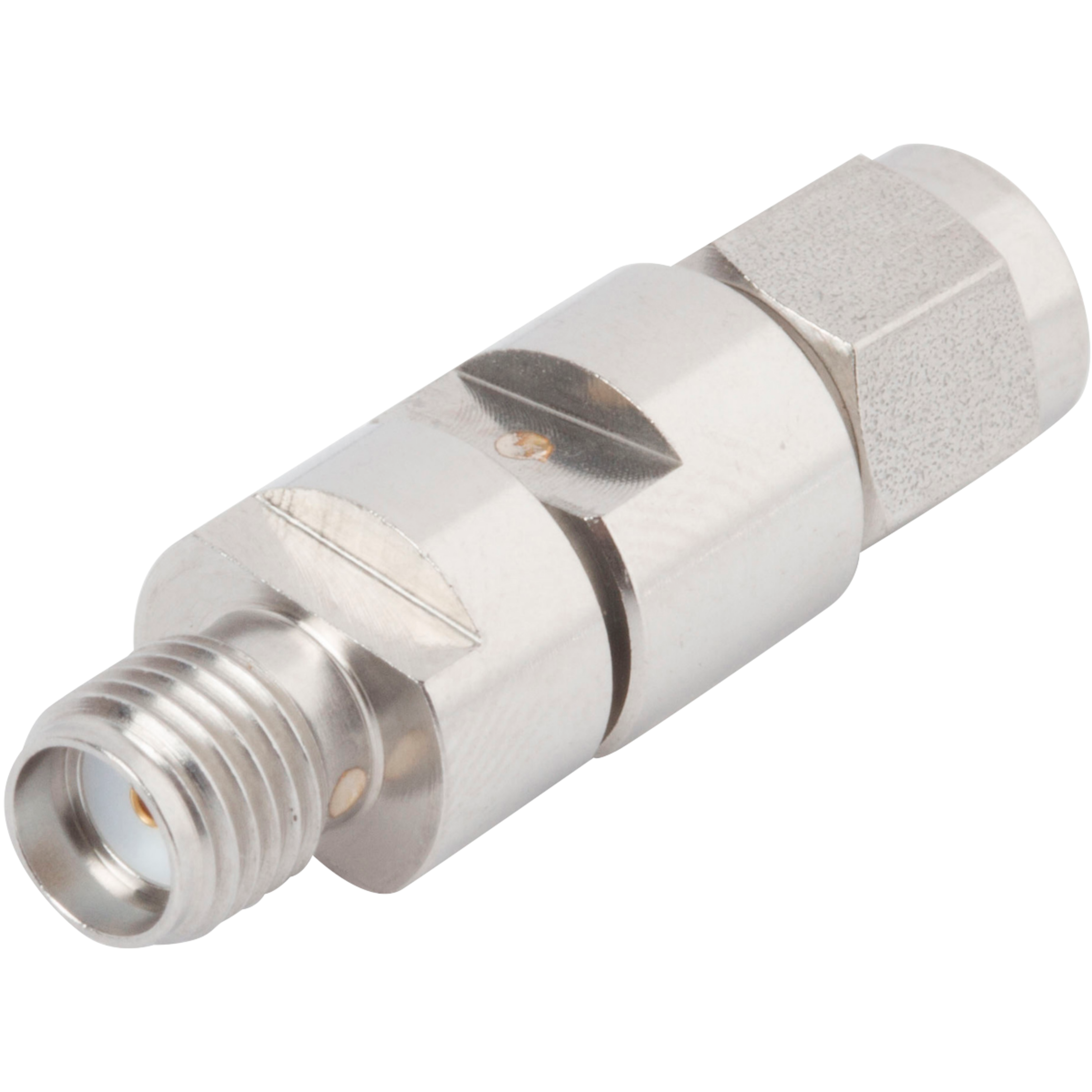

Part #   M3933/16-XXS

SMA Female to Male Attenuator, 18 GHz (Screened)

Available Inventory: 0
M3933/16-XXS
SMA Attenuator M3933/16-01S M3933/16-01S M3933/16-02S M3933/16-03S M3933/16-04S M3933/16-05S M3933/16-06S M3933/16-07S M3933/16-08S M3933/16-09S M3933/16-10S M3933/16-11S M3933/16-16S M3933/16-17S M3933/16-18S M3933/16-19S M3933/16-21S M3933/16-22S M3933/16-23S M3933/16-25S M3933/16-26S M3933/16-27S M3933/16-28S M3933/16-30S M3933/16-32S M3933/16-34S M3933/16-36S M3933/16-40S M3933/16-01S M3933/16-02S M3933/16-03S M3933/16-04S M3933/16-05S M3933/16-06S M3933/16-07S M3933/16-08S M3933/16-09S M3933/16-10S M3933/16-11S M3933/16-16S M3933/16-17S M3933/16-18S M3933/16-19S M3933/16-21S M3933/16-22S M3933/16-23S M3933/16-25S M3933/16-26S M3933/16-27S M3933/16-28S M3933/16-30S M3933/16-32S M3933/16-34S M3933/16-36S M3933/16-40S M3933/16-01S M3933/16-02S M3933/16-03S M3933/16-04S M3933/16-05S M3933/16-06S M3933/16-07S M3933/16-08S M3933/16-09S M3933/16-10S M3933/16-11S M3933/16-16S M3933/16-17S M3933/16-18S M3933/16-19S M3933/16-21S M3933/16-22S M3933/16-23S M3933/16-25S M3933/16-26S M3933/16-27S M3933/16-28S M3933/16-30S M3933/16-32S M3933/16-34S M3933/16-36S M3933/16-40S
Datasheet

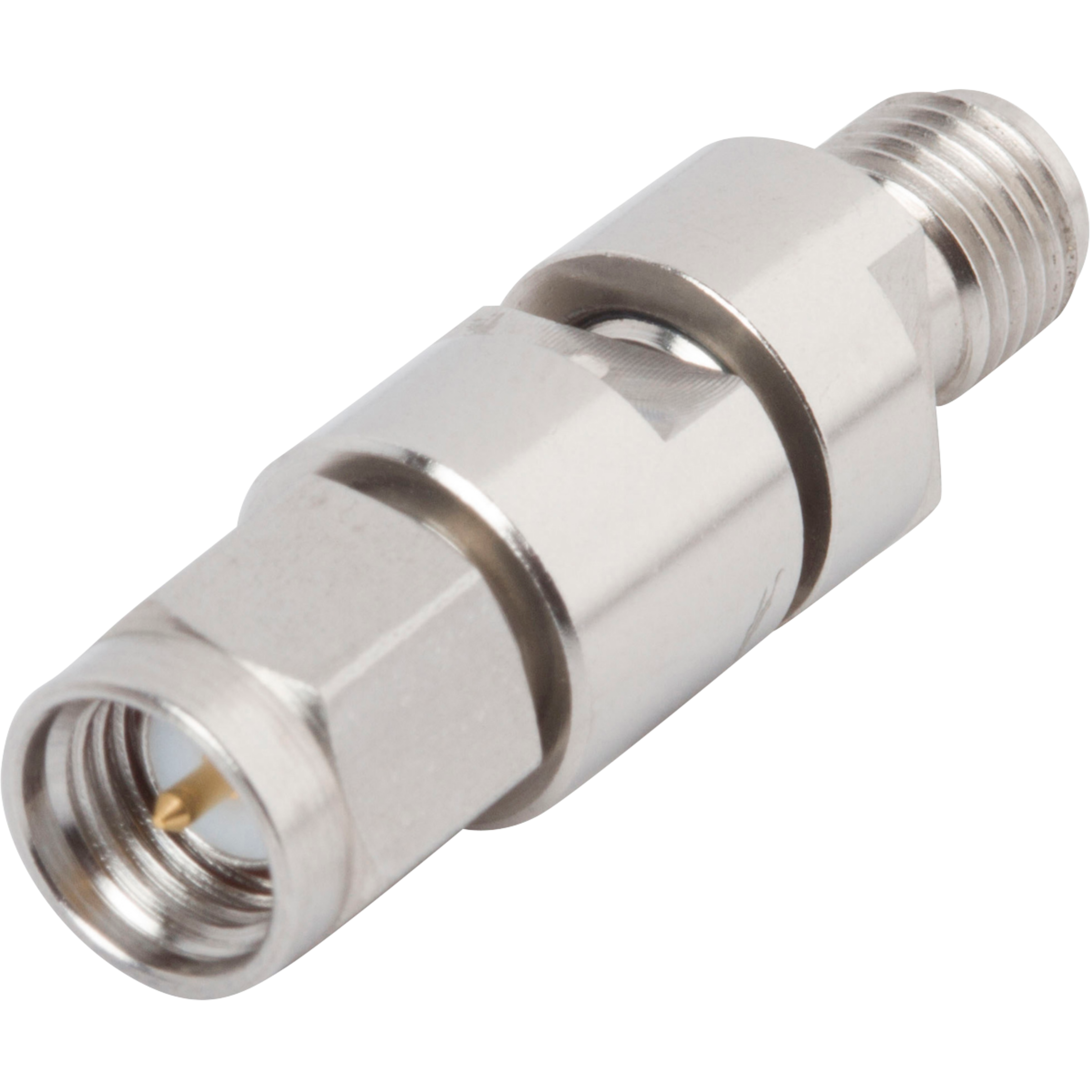

Part #   M3933/14-XXN
