P/N: SF1133-6005

1.85mm Female to 2.4mm Male Adapter

In stock at Qty Order
Mouser Electronics 6
Products specifications
Attribute name Attribute value
Orientation (Body) Straight
Gender Jack (Female)
Coupling Threaded
RF Series 1.85 mm
Gender 2 Plug (Male)
Finish Passivated
RF Series 2 2.4 mm
Orientation 2 (Body) Straight
Electrical
Frequency 50 GHz
Impedance 50 ohms
Dielectric withstanding Voltage 500 VRMS
Shielding Effectiveness ≥ -100 dB
Mechanical
Inter-mate ability 2.4mm
Mating Cycles 500
Mating Torque 5 - 7 in - lbs
Environmental
Temperature Rating -65°C to +165°C
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Shock MIL-STD-202, Method 213, Condition I
Vibration MIL-STD-202, Method 204, Condition D
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B
Thermal Shock MIL-STD-202, Method 107, Condition B


This information is provided based on reasonable inquiry of our suppliers and represents our current actual knowledge based on the information they provided.

Please contact compliance@svmicro.com for any Compliance or Environmental related questions.

Contact Us

How can we help?

*
*
*
*
*
*
*
*
Products specifications
Attribute name Attribute value
Orientation (Body) Straight
Gender Jack (Female)
Coupling Threaded
RF Series 1.85 mm
Gender 2 Plug (Male)
Finish Passivated
RF Series 2 2.4 mm
Orientation 2 (Body) Straight
Electrical
Frequency 50 GHz
Impedance 50 ohms
Dielectric withstanding Voltage 500 VRMS
Shielding Effectiveness ≥ -100 dB
Mechanical
Inter-mate ability 2.4mm
Mating Cycles 500
Mating Torque 5 - 7 in - lbs
Environmental
Temperature Rating -65°C to +165°C
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Shock MIL-STD-202, Method 213, Condition I
Vibration MIL-STD-202, Method 204, Condition D
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B
Thermal Shock MIL-STD-202, Method 107, Condition B
Customers Also Viewed
Part #   SF1133-6003

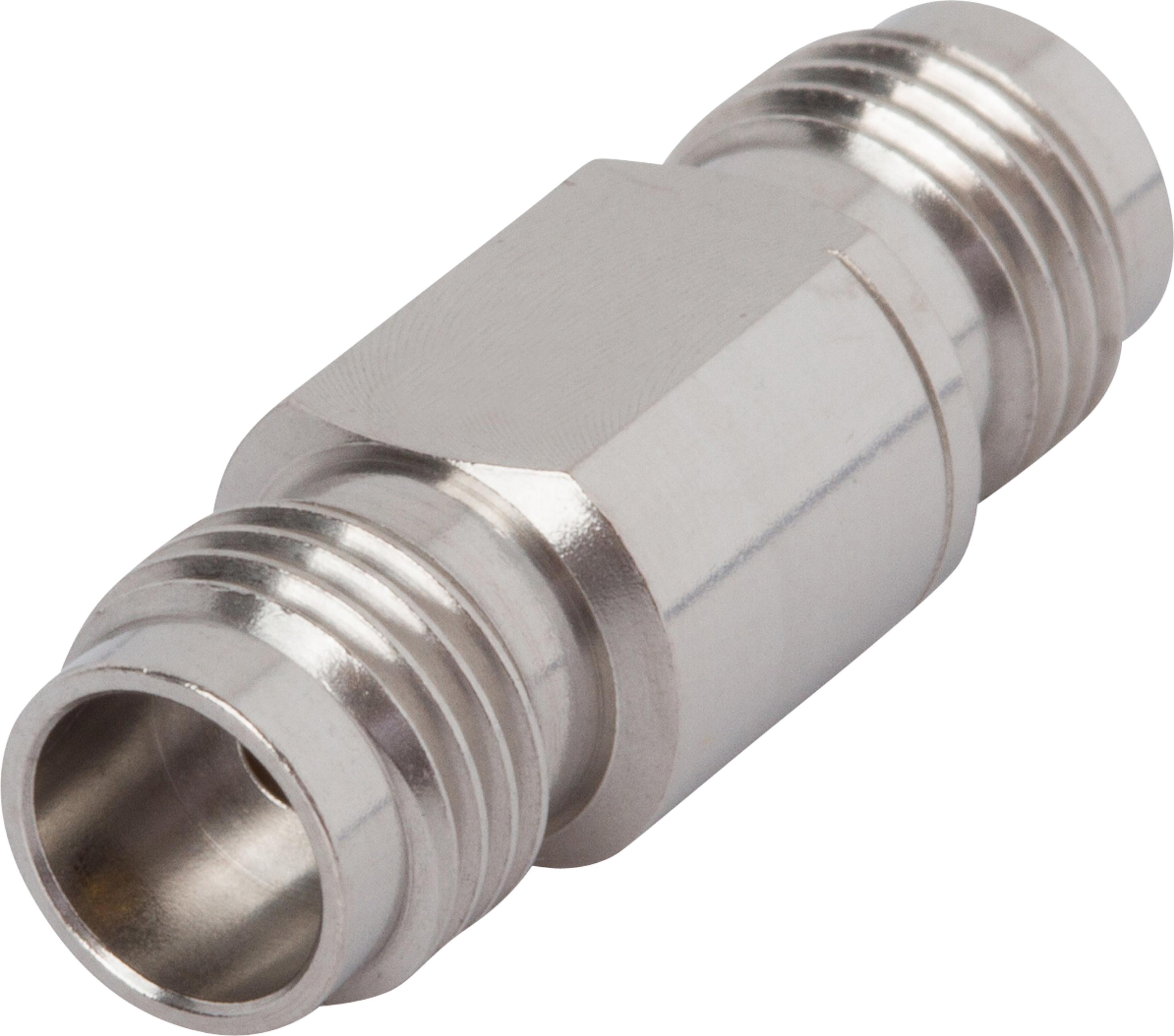

1.85mm Female to 2.4mm Female Adapter
