P/N: SF1133-6004

1.85mm Male to 2.4mm Female Adapter

In stock at Qty Order
Mouser Electronics 47
Products specifications
Attribute name Attribute value
RF Series 1.85 mm
Gender Jack (Female)
Coupling Threaded
Orientation (Body) Straight
Finish Passivated
RF Series 2 2.4 mm
Orientation 2 (Body) Straight
Gender 2 Plug (Male)
Electrical
Impedance 50 ohms
Frequency 50 GHz
Dielectric withstanding Voltage 500 VRMS
Shielding Effectiveness ≥ -100 dB
Mechanical
Mating Torque 5 - 7 in - lbs
Mating Cycles 500
Inter-mate ability 2.4mm
Environmental
Temperature Rating -65°C to +165°C
Vibration MIL-STD-202, Method 204, Condition D
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Shock MIL-STD-202, Method 213, Condition I
Thermal Shock MIL-STD-202, Method 107, Condition B
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.

Contact Us

How can we help?

*
*
*
*
*
*
*
Products specifications
Attribute name Attribute value
RF Series 1.85 mm
Gender Jack (Female)
Coupling Threaded
Orientation (Body) Straight
Finish Passivated
RF Series 2 2.4 mm
Orientation 2 (Body) Straight
Gender 2 Plug (Male)
Electrical
Impedance 50 ohms
Frequency 50 GHz
Dielectric withstanding Voltage 500 VRMS
Shielding Effectiveness ≥ -100 dB
Mechanical
Mating Torque 5 - 7 in - lbs
Mating Cycles 500
Inter-mate ability 2.4mm
Environmental
Temperature Rating -65°C to +165°C
Vibration MIL-STD-202, Method 204, Condition D
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Shock MIL-STD-202, Method 213, Condition I
Thermal Shock MIL-STD-202, Method 107, Condition B
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.
Customers Also Viewed

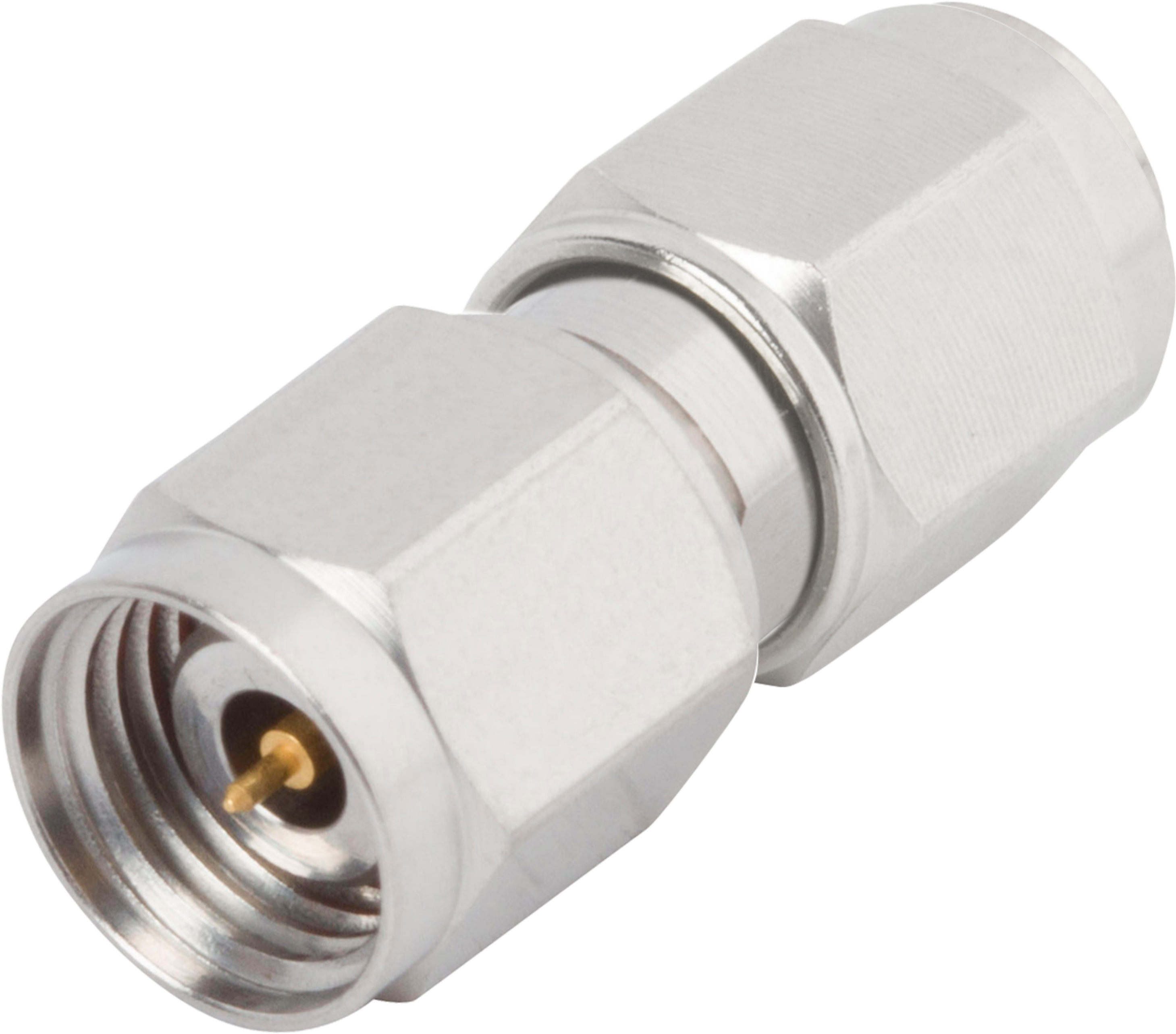

Part #   SF1133-6006

1.85mm Male to 2.4mm Male Adapter

Available Inventory: 3
SF1133-6006
1.85mm Adapters SF1133-6006
Datasheet
Part #   SF1133-6009

1.85mm Male to Male Adapter

Available Inventory: 0
SF1133-6009
1.85mm Adapters SF1133-6009
Datasheet

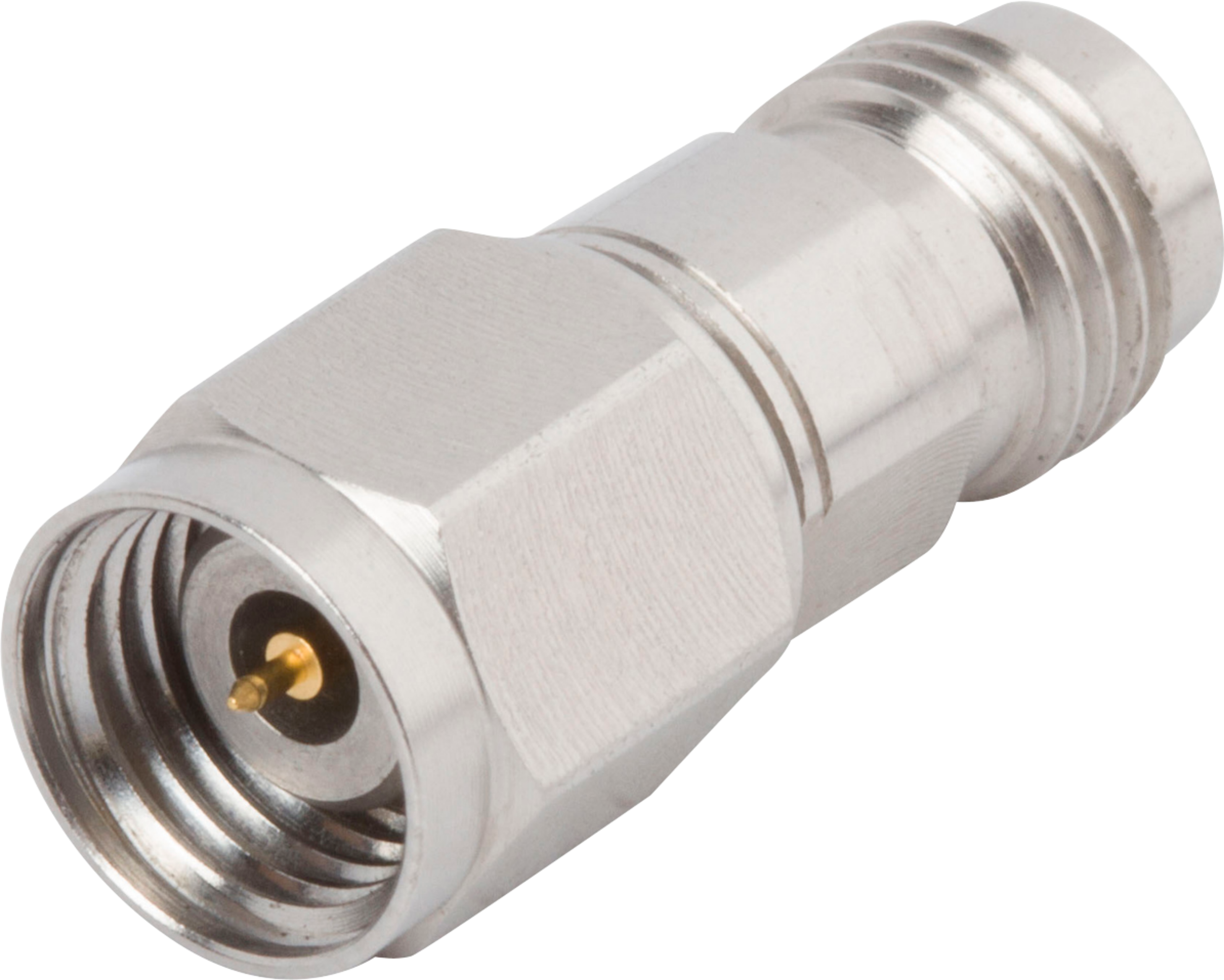

Part #   SF1133-6010
