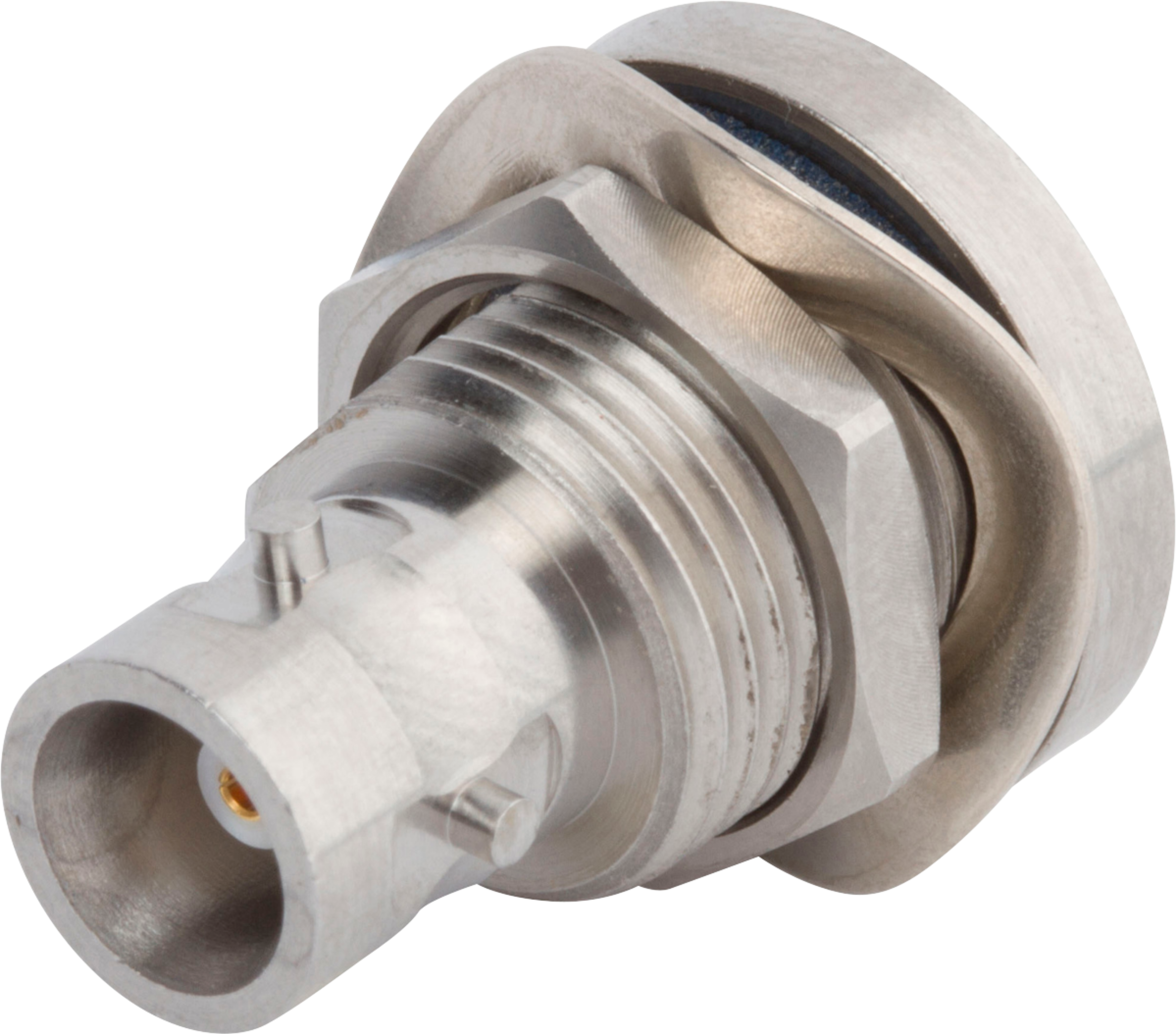

ZMA Female (90°) Bulkhead Connector for .085 Cable
P/N: SF8721-60109

In stock at Qty Order
Master Electronics 19
Onlinecomponents.com 19
Products specifications
Attribute name Attribute value
Gender Jack (Female)
RF Series ZMA
Orientation (Body) Straight
Coupling Keyed
Keyed Subtype 90-90-90-90
Termination Style Solder
Body Style Jamnut/Bulkhead
Mounting Type Panel
Number of Ports Single
Cable Type 0.085 Flexible Coax
Finish Passivated
Electrical
Frequency 18 GHz
Impedance 50 ohms
Dielectric withstanding Voltage 2500 VRMS
Shielding Effectiveness ≥ -90 dB
Mechanical
Mating Cycles 500
Mating Torque 4 in - oz
Environmental
Temperature Rating -65°C to +165°C
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Vibration MIL-STD-202, Method 204, Condition D
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B
Thermal Shock MIL-STD-202, Method 107, Condition B
Shock MIL-STD-202, Method 213, Condition I
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.


EU RoHS Directive 2011/65/EU Yes, w/ Exemption 6C
