SV20 Size 20 D38999 Contacts Now In Stock!

SV Microwave has developed a high-density product line that caters to the needs of the growing industry - higher frequency RF technologies and increased density in D3899 circular backshell connectors. SV’s D38999 size 20 pin and socket contacts are compatible with MIL-DTL-38999 Series I, II, III, and IV housings, while the Micro38999 size 20HD pin and socket contacts are designed for MIL-DTL-32689, 2M, and Series 80. Delivering superior performance up to 40 GHz, these contacts are optimized for .047 cable types, offering exceptional flexibility for compact packaging applications.

Features / Benefits:

• Push-on design for easy mating
• High-density application supports multiple RF connections at once
• Compatible with Series I, II, III, and IV housings as well as 2M Series 80 housings
• DC – 40 GHz

Applications:

• Severe/Harsh Environments
• High-density Applications
• Mil-Aero

Product's Part Number and Description

Part No.	Description

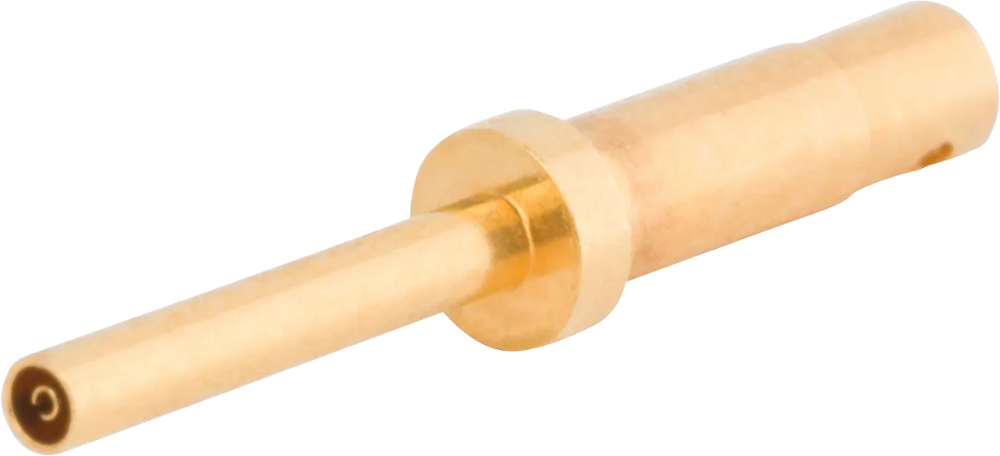

2041-40001	SV20 Pin D38999 Contact (Size 20) for .047 Cable
2041-40002	SV20 Pin Micro38999 Contact (Size 20HD) for .047 Cable

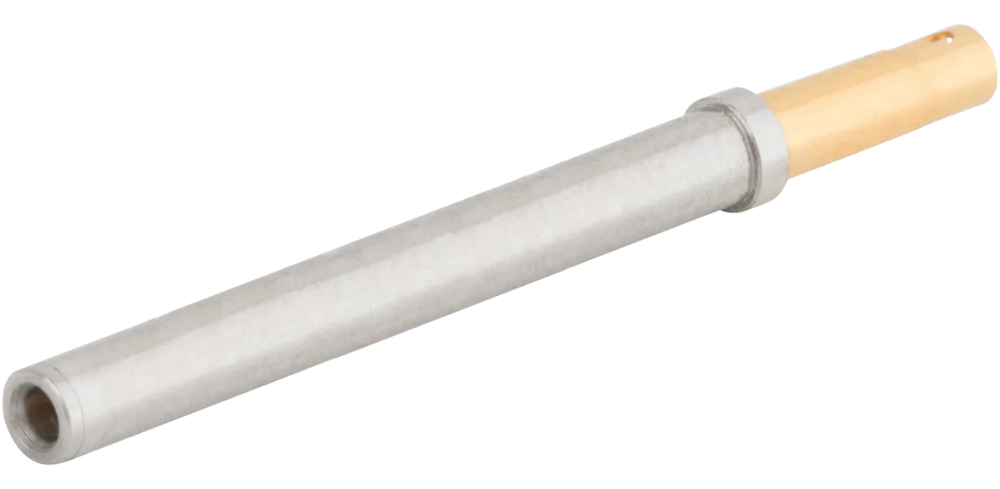

2051-60001	SV20 Socket D38999 Contact (Size 20) for .047 Cable

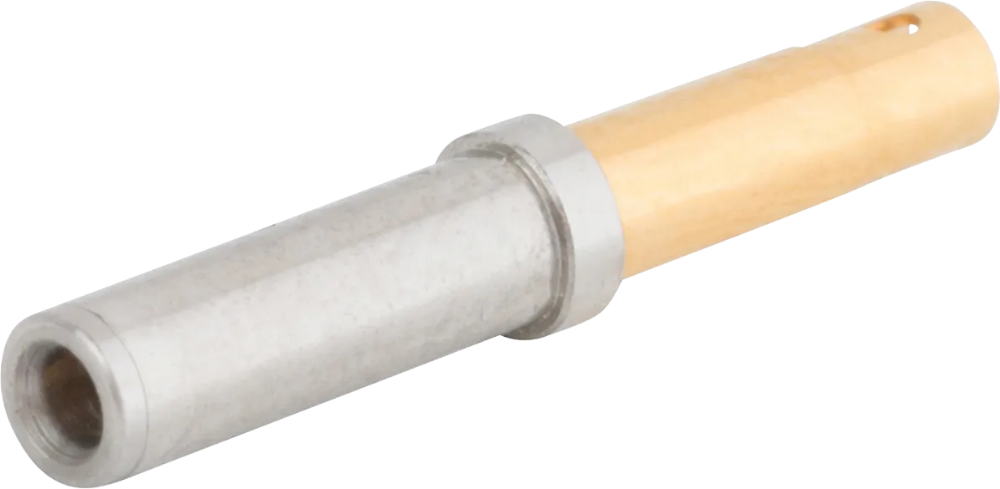

2051-60002	SV20 Socket Micro38999 Contact (Size 20HD) for .047 Cable
